Week 8 - Challenge 3 - Switch Bezel Design

Report

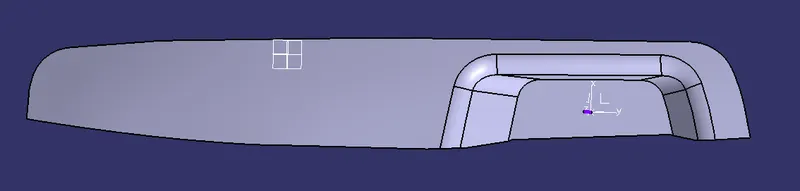

Aim：Create the Switch Bezel Plastic component through the given Class-A surface.

Procedure:

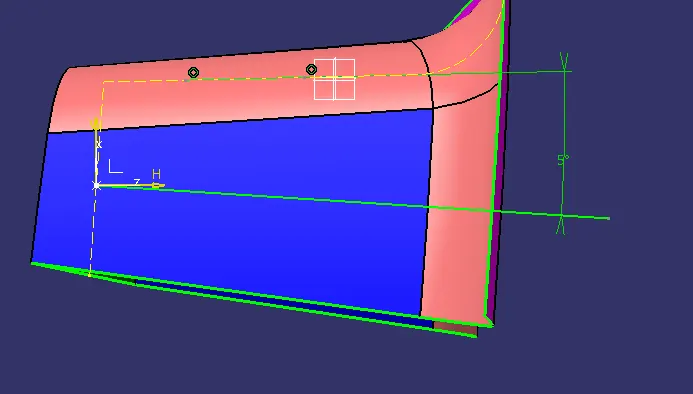

import geometry

create intersection

create bisecting line

create another line with 5 degree

create another bisecting line-tooling axis

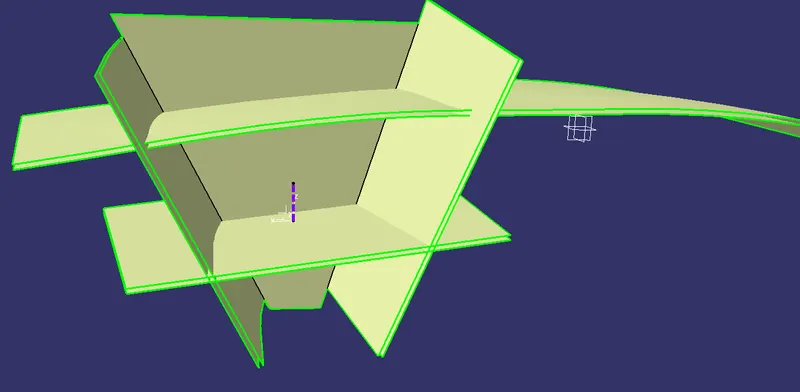

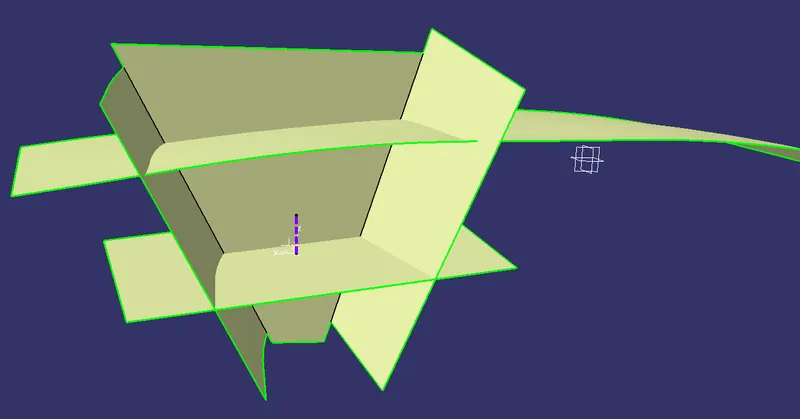

extract surfaces,untrim and extrapolate, trim

offset 2.5mm

trim everything

give fillets

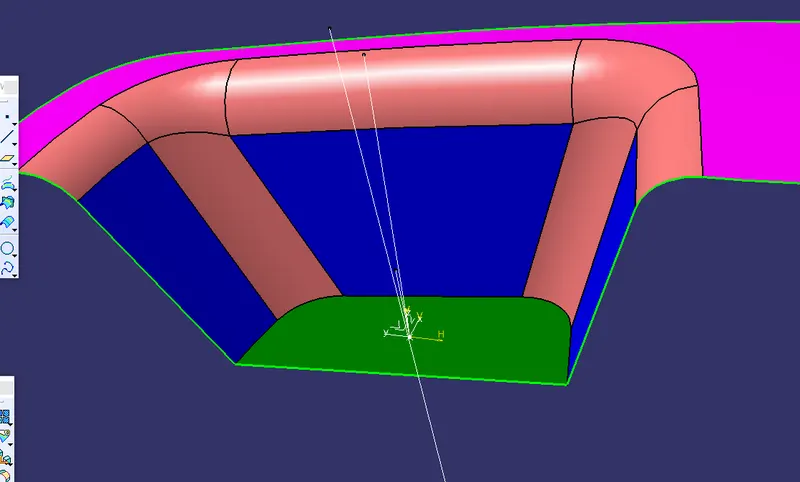

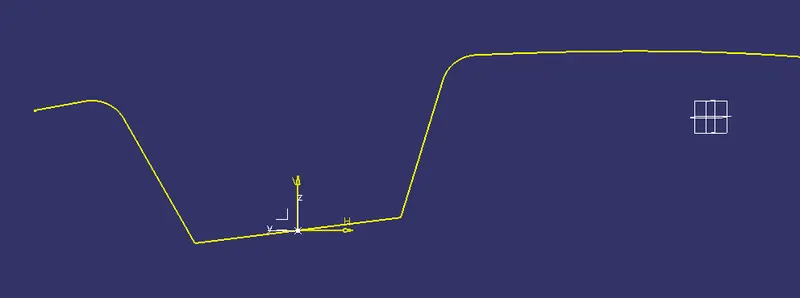

use sweep to create c surface

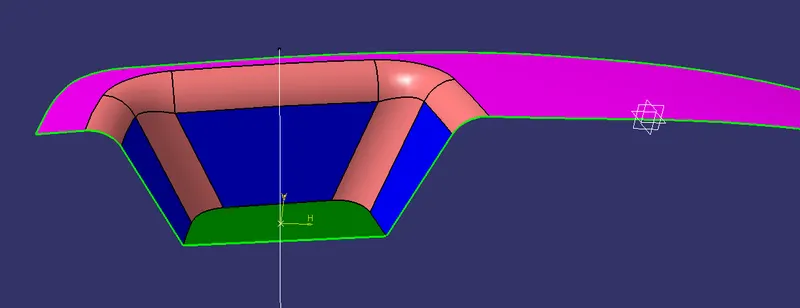

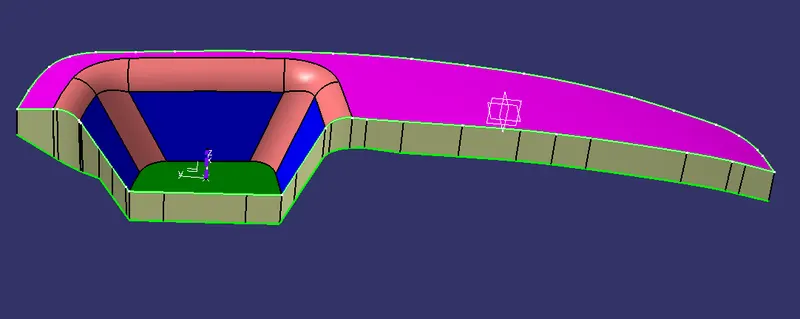

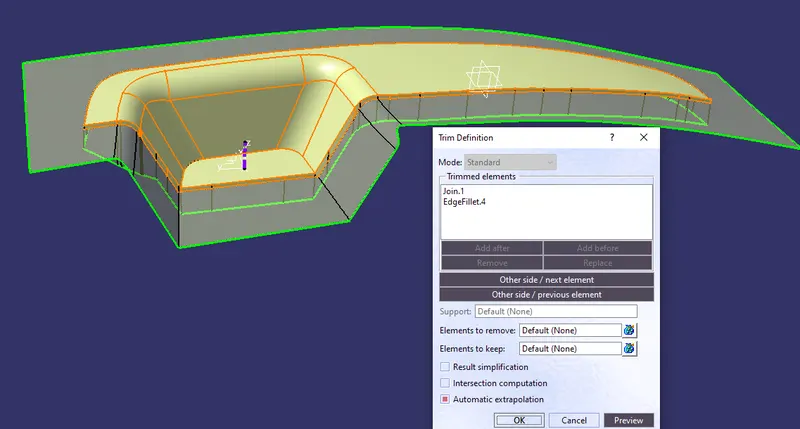

join surface A and C and trim with surface B

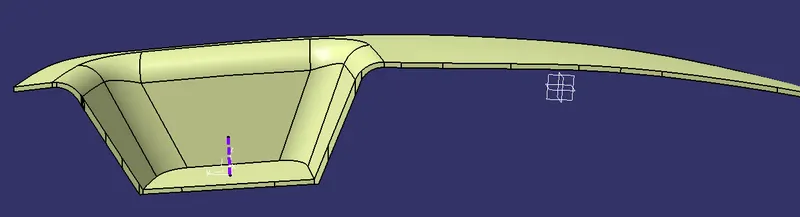

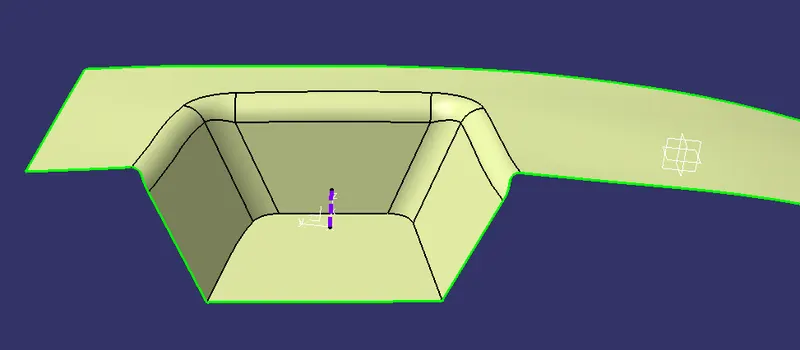

go to part design, use close surface to create solid

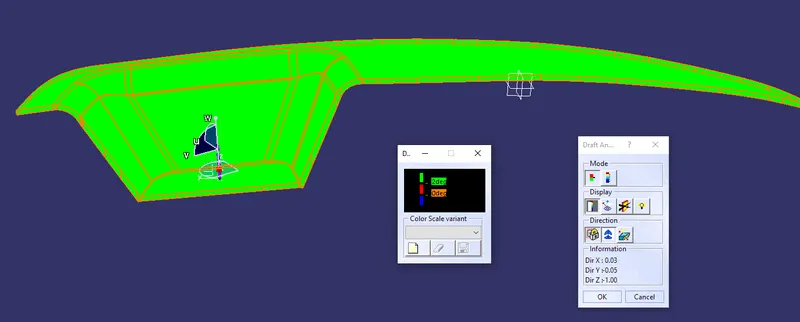

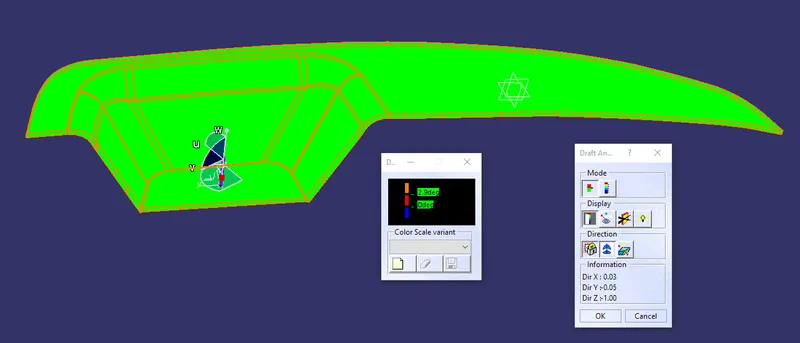

draft analysis 2 degree

draft analysis 2.9 degree

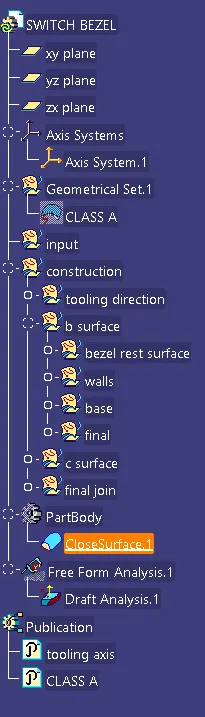

Tree Structure

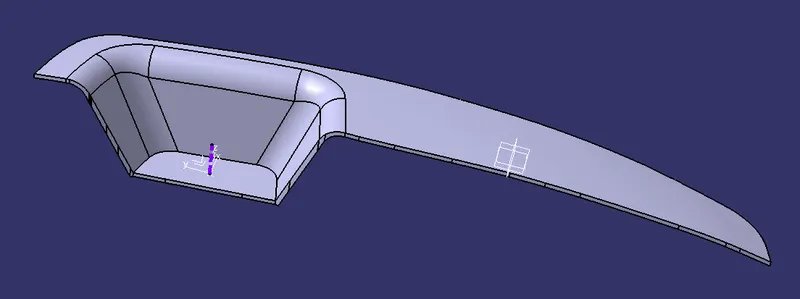

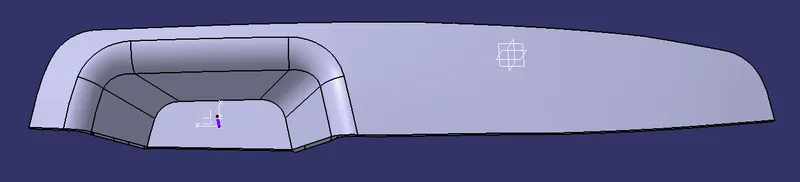

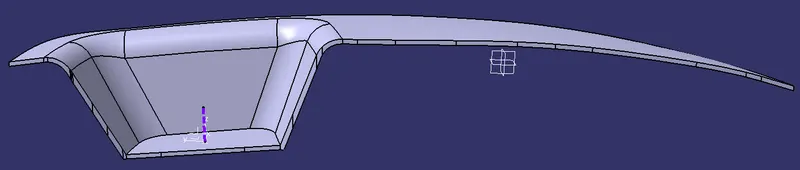

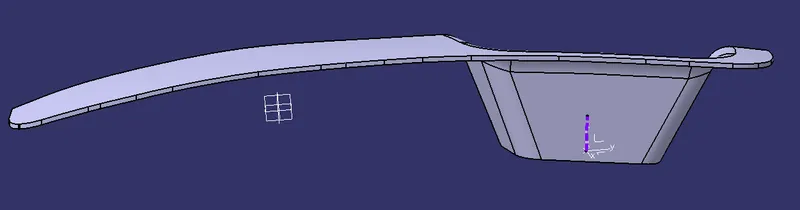

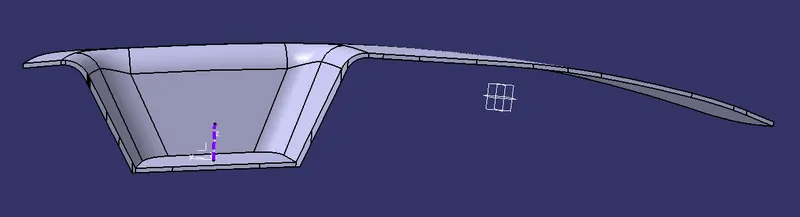

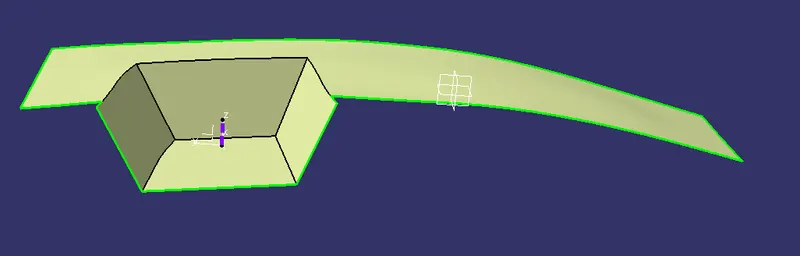

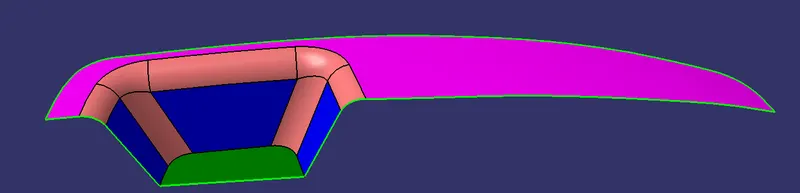

3d views

Conclusion:

Class A, Class B and Class C surface are created. Parts are created using closed surface operation. Draft analysis are performed.
