Week 8 - Challenge 3 - Switch Bezel Design

DRAFT ANALYSIS OF SWITCH BEZEL

Draft is the angle that is put on the side faces of the part so that the part doesn’t get trapped in the mold or cast. Here the draft angle is checked on switch bezel in CATIA V5.

The Class A surface is provided to us.

Fig 1. Class A Surface

First of all we need to check whether the surface provided has nay discontinuity in it. For that we will use the command boundary and check if there is any discontinuity in the surface.

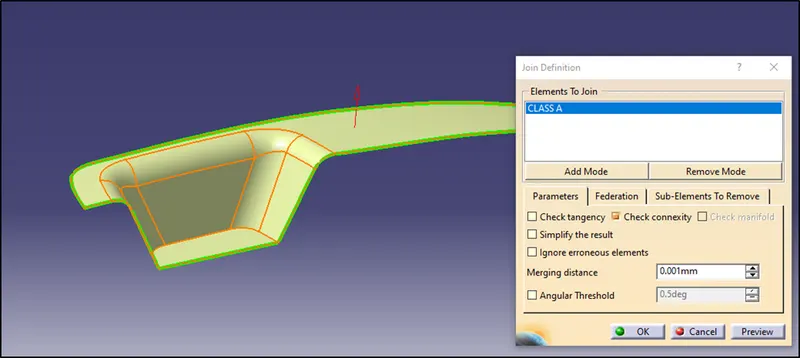

After that we will join the whole surfaces of the fan cover by using join command.

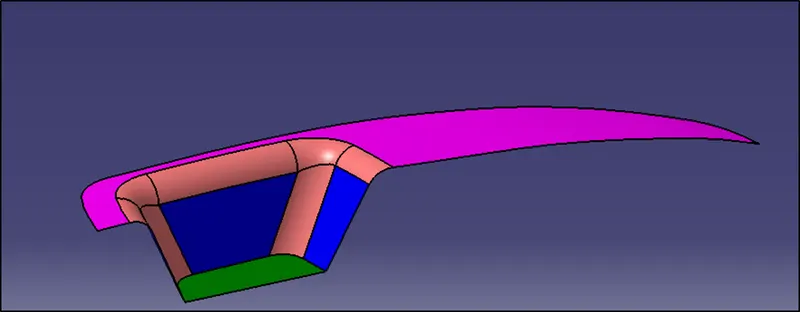

Fig 2. Join Command

Then we will randomly select the tooling axis. For making the selection first analyse the shape of the product and avoid side cores as far as possible. Here we will take the Z axis as the tooling direction and mark a point there and create a datum axis at that point. We will make a dummy tooling axis in the Z direction.

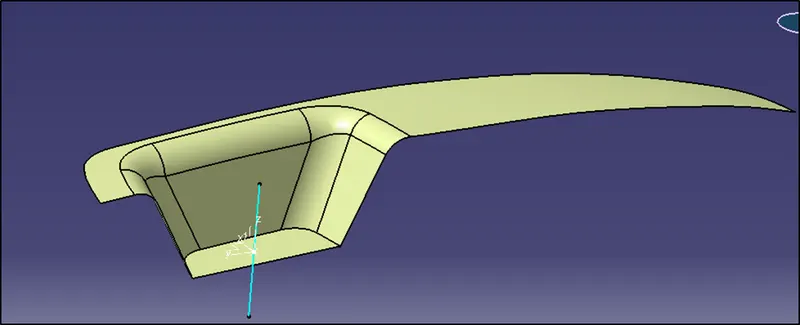

Fig 3. Dummy Tooling Axis and datum axis is created

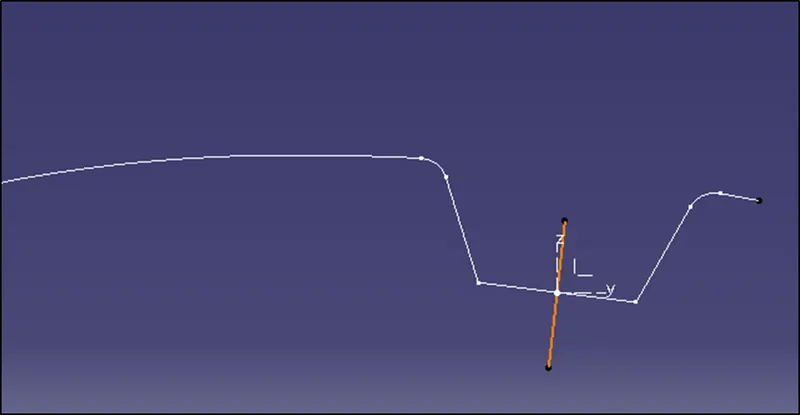

Next step is to take the intersect of the Class A Surface and the YZ plane.

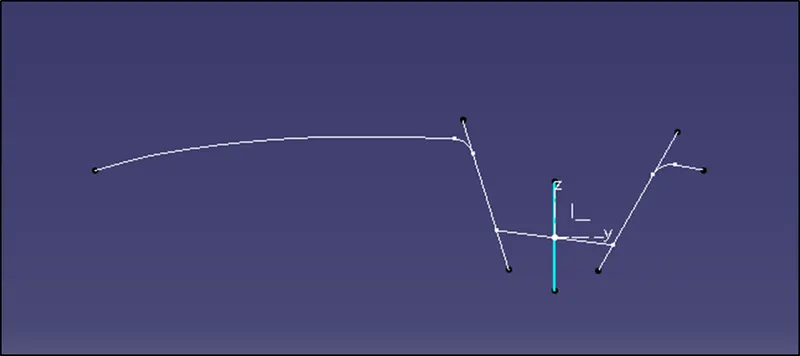

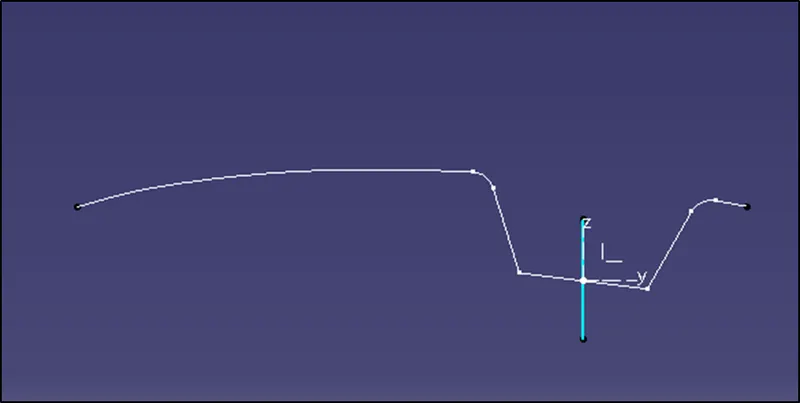

Fig 4. Intersect at YZ plane.

Observe the surfaces which are parallel to the dummy tooling axes and which will create a problem while the component will be ejected from the mould. Draw a line through the surfaces.

Fig 5. Extending the parallel surfaces to the dummy tooling axis

Next bisect both the lines and obtain the line that is going in the direction of the dummy tooling axis. That will be the tooling axis in the YZ direction.

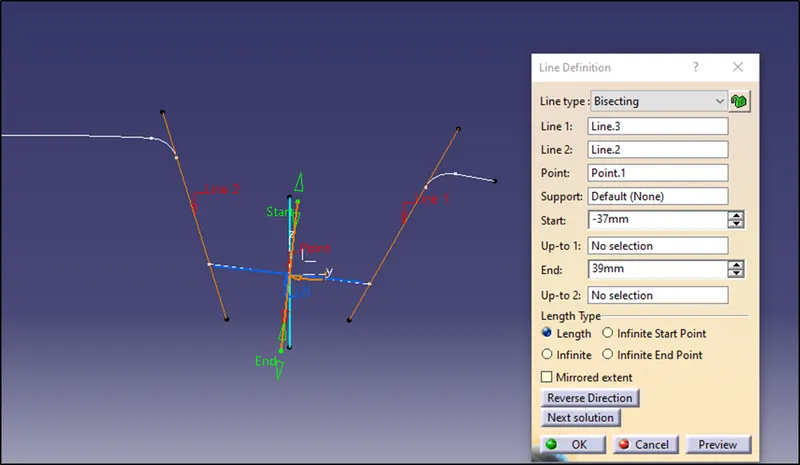

Fig 6. Bisecting the lines

Fig 7. Tooling axis in the YZ direction

Next obtain the tooling axis for the XZ direction by following the same steps.

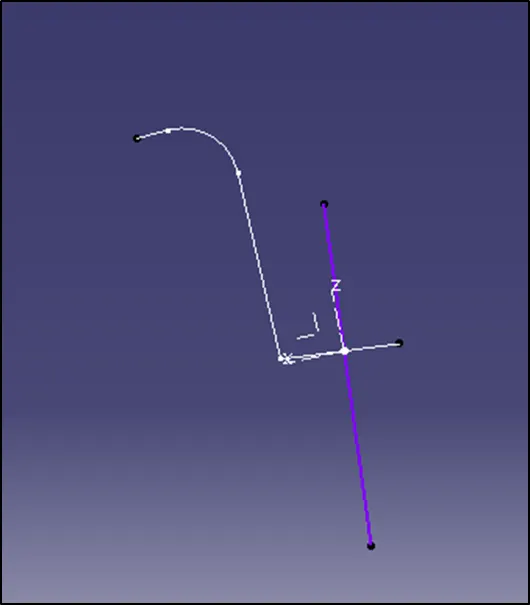

Take the intersect of the switch bezel and the XZ plane. Identify the faces which are parallel to the dummy tooling axis. Since there is only one face which will create a problem in the removal of the component. We will sketch another line which is at an angle to the surface.

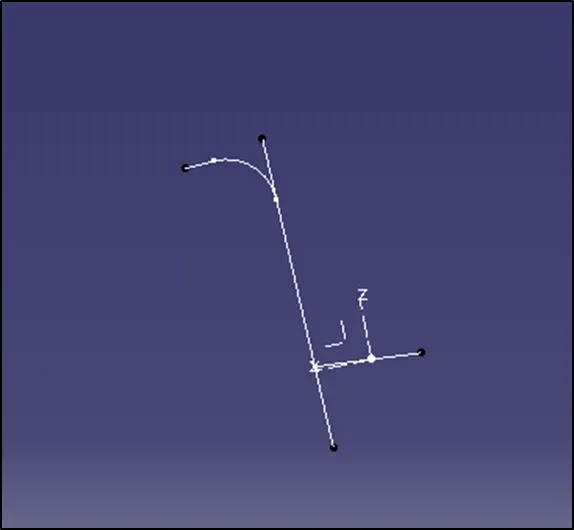

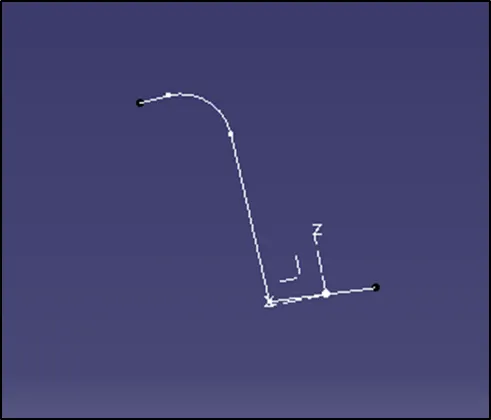

Fig 8. Intersect at XZ plane

Fig 9. Extending the surfaces parallel to the tooling direction.

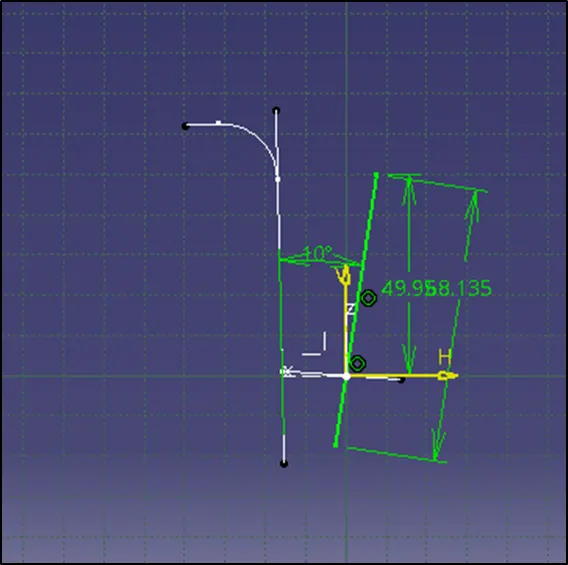

Fig 10. Sketching a line at an angle to the surface

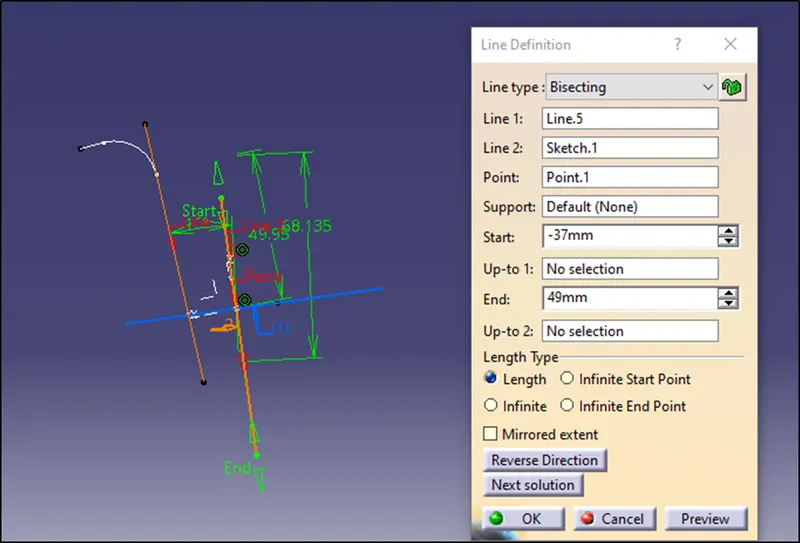

Fig 11. Bisecting the lines

Fig 12. Tooling axis in the XZ direction

Now we have got tolling axis in the XZ and YZ direction. Bisect both the lines and obtain the line which is in the direction of the dummy tooling axis. That is the required tooling axis of the Switch Bezel.

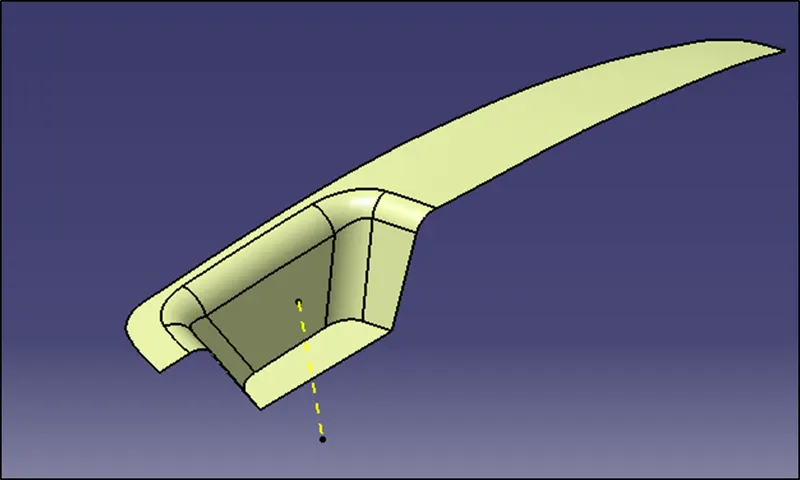

Fig 13. Tooling axis

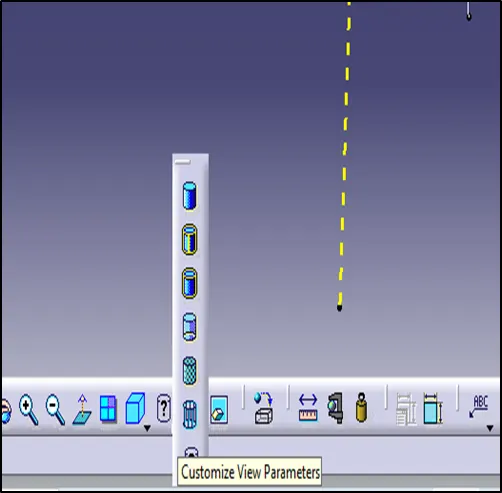

Now we have to perform the draft analysis in the required tooling direction. Change the view to material mode in the customize view parameters.

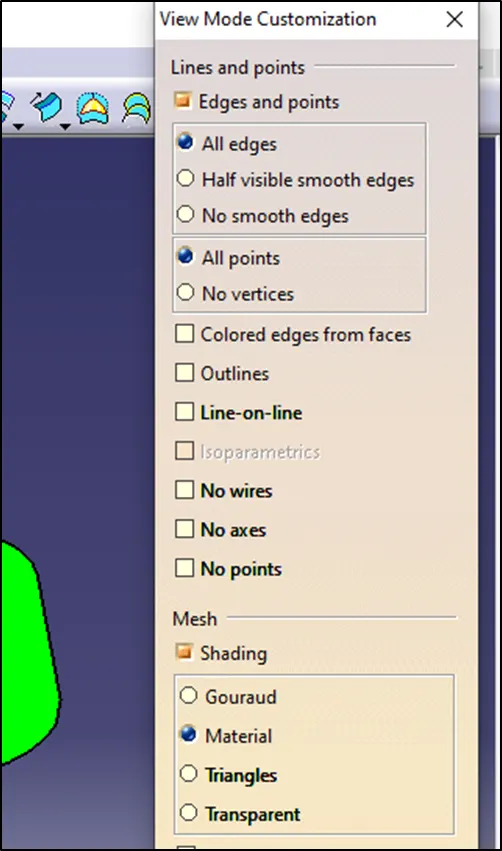

Fig 14.Material Mode for Draft Analysis

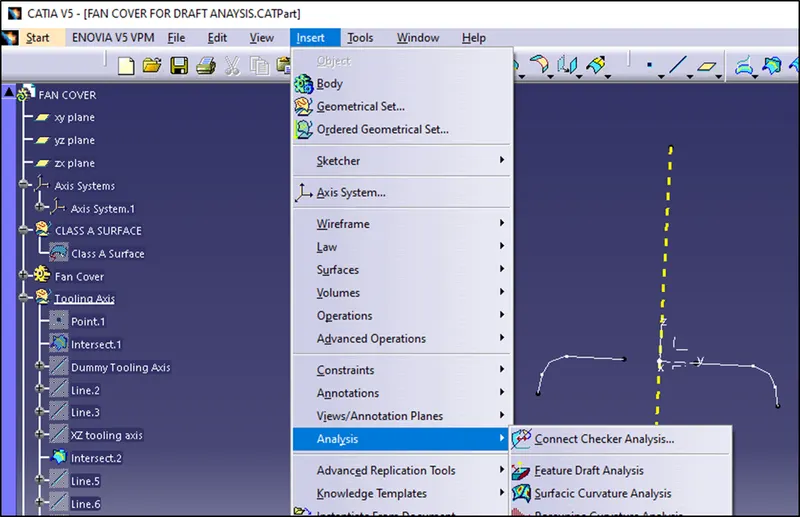

Then insert > analysis > feature draft analysis.

Fig 15.Draft Analysis

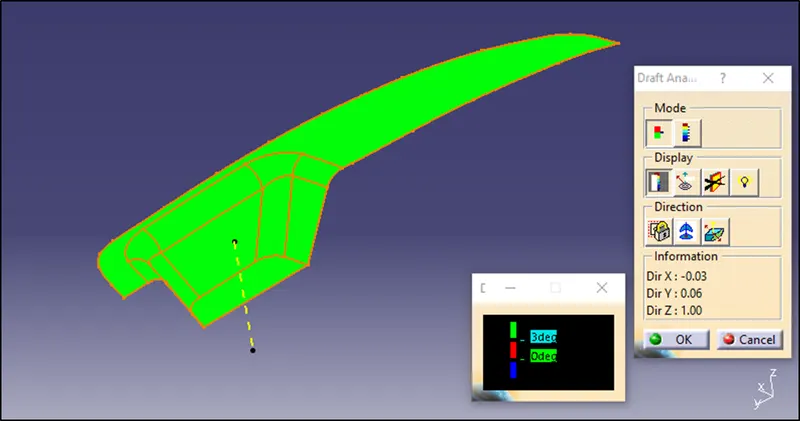

Next take the compass and put it over the tooling axis to get the required direction of draft analysis and then lock the draft direction.

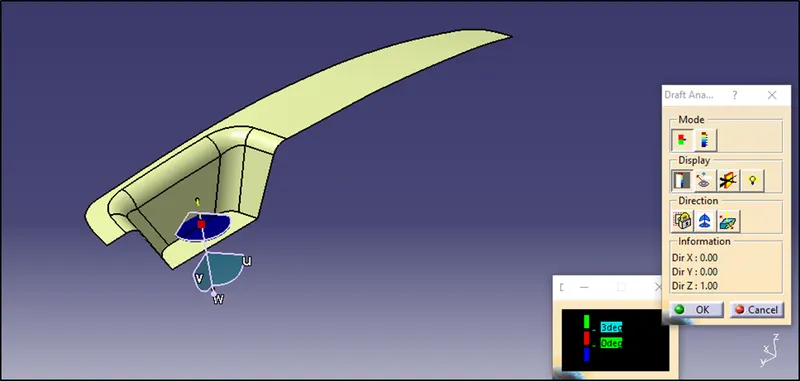

Fig 16. Compass over the tooling axis

Then double click on the component and it will show the draft analysis. It is shown according to different colours for different draft angles.

Fig 13. Draft Analysis

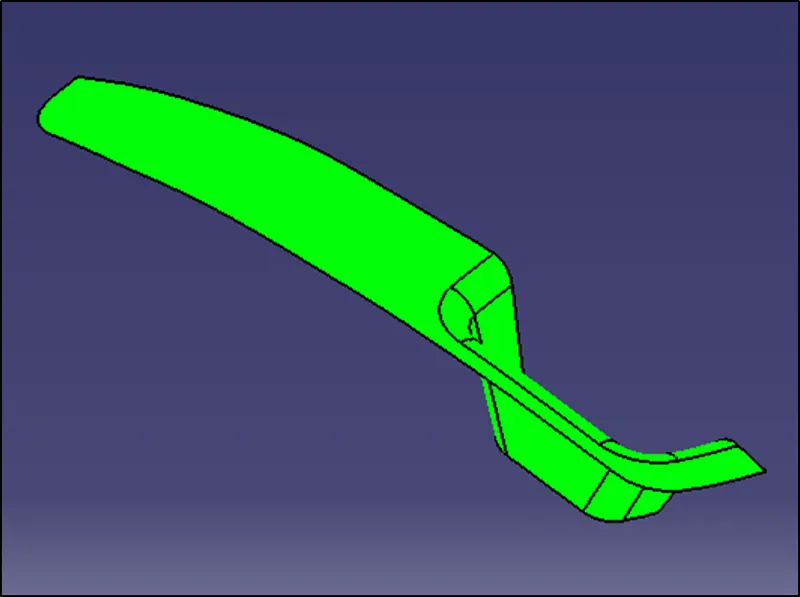

Fig 14. Isometric View

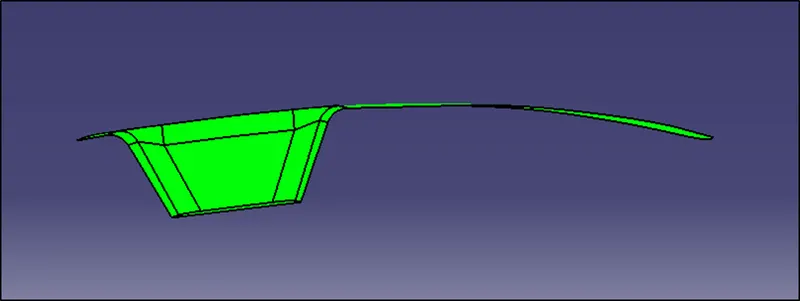

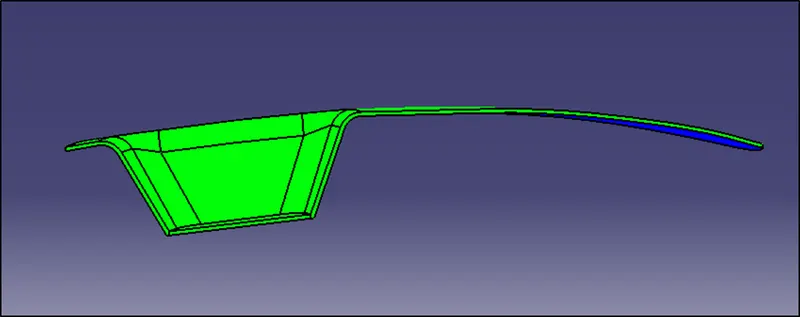

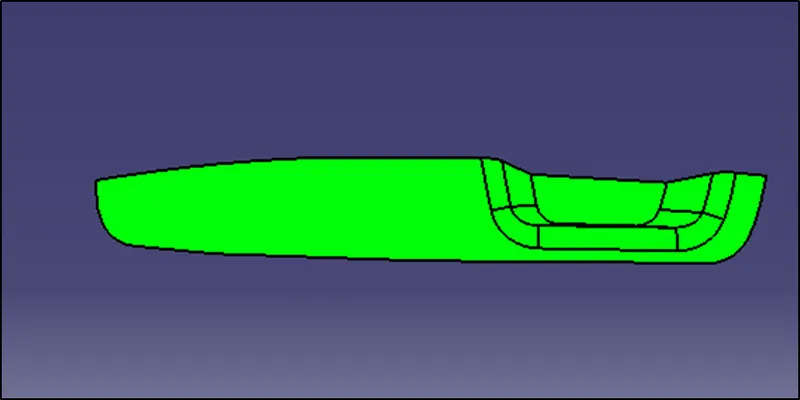

Fig 15. Front View

Fig 16. Top View

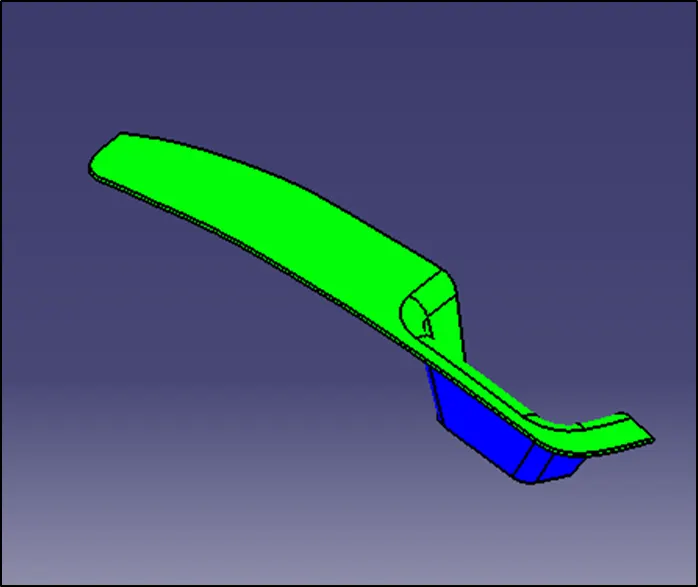

Draft analysis for Final Solid:

Fig 17. Isometric View

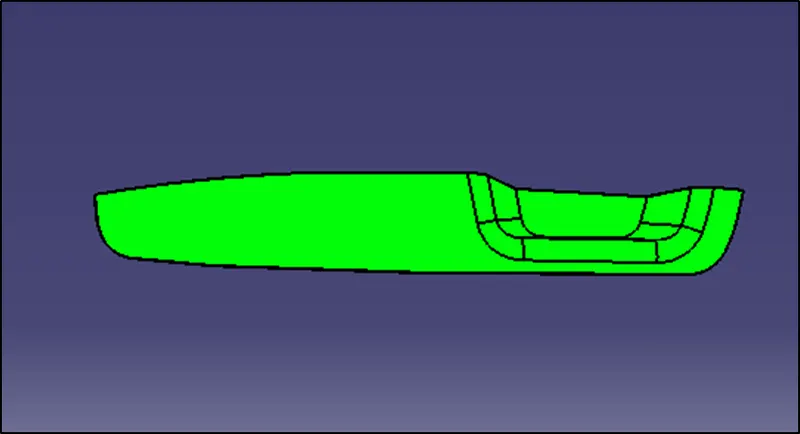

Fig 18. Front View

Fig 19. Top View

*********
