Week 8 - Challenge 3 - Switch Bezel Design

Switch Bezel Design

Aim: - The aim of this report is to create the Switch Bezel Plastic component through the given Class-A surface in catiaV5 (Computer-aided three-dimensional interactive application).

Objective: -

1. To create the switch bezel plastic component through the given Class-A surface.
2. To create the tooling axis for the switch bezel model meeting the requirements of the draft angle.
3. To perform a draft analysis on both switch bezel Class A and the final model to confirm the appropriate draft angle.
4. To publish the Class A, B, and C surfaces and tooling axis using the publication command in the software.
5. To explain the bisecting method used in order to create the tooling axis for the switch bezel model.

Theory: -

1. Tooling axis creation for switch bezel model: -

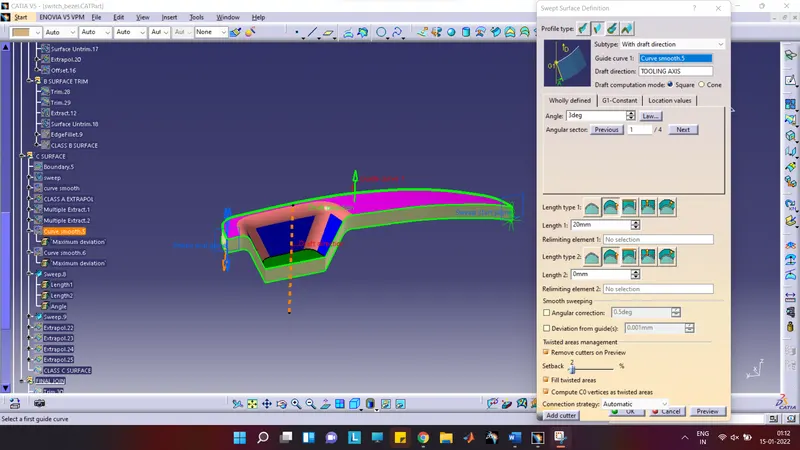

            The tooling axis indicates the direction along which the tooling or the manufacturing of the component will be done. In catia, the tooling axis is used to create C surfaces using the sweep option. There are many methods for the creation of the tooling axis and bisecting method is one of them.

  figure 01: - Example of tooling axis direction



  figure 02: - Use of tooling axis in catia

The steps involved in creating tooling axis using the bisecting method are as follow: -

1. Check continuity or quality of Class A surface
2. Selection of best possible tooling direction
3. Creating dummy tooling axis
4. Tooling clearance for respective directions
5. Creating final tooling axis

step1: - Check continuity or quality of Class A surface

            Product designers should check the continuity or quality of the class A surface given by the class A engineer. They should ensure that there are no gaps between the surfaces using the boundary or the join command in catia.

 figure 03: - Checking the continuity (using boundary command)

step2: - Selection of best possible tooling direction

            The tooling direction should be in such a way that it should cover the complete component along with its holes, undercuts, etc. in the main tooling. The product designer should also avoid side cores because the side cores generally increase the manufacturing cost of the component.

  figure 04: - Switch Bezel Model

  figure 05: - y-direction

            If one selects the y-direction as a tooling direction then one might face problems in manufacturing slant faces that are parallel to the tooling direction y as shown in figure 05. Hence, the y-direction is not suitable to be a tooling direction.

  figure 06: - x-direction

           If one selects the x-direction as shown in figure 06 as a tooling direction then one might face problems in manufacturing the mold. Hence, the y-direction is also not suitable to be a tooling direction.

  figure 07: - z-direction

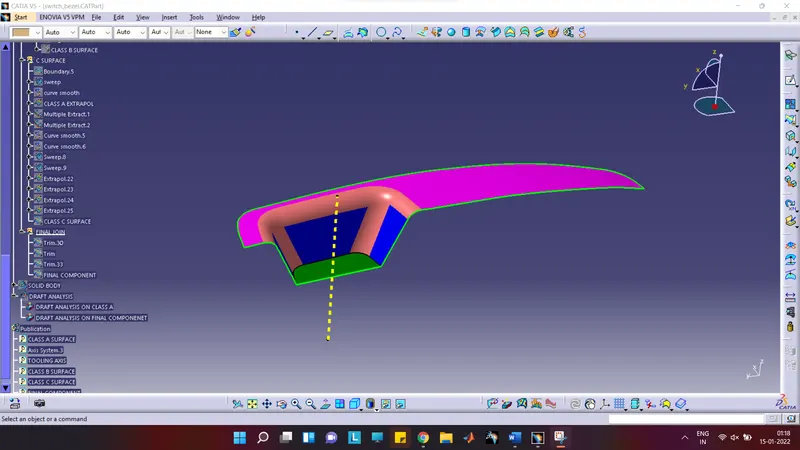

            One can select the z-direction as shown in figure 07 as the best possible tooling direction because it clears all parts in the main tooling and also supports mold manufacturing in an easy way.

step3: - Creating dummy tooling axis

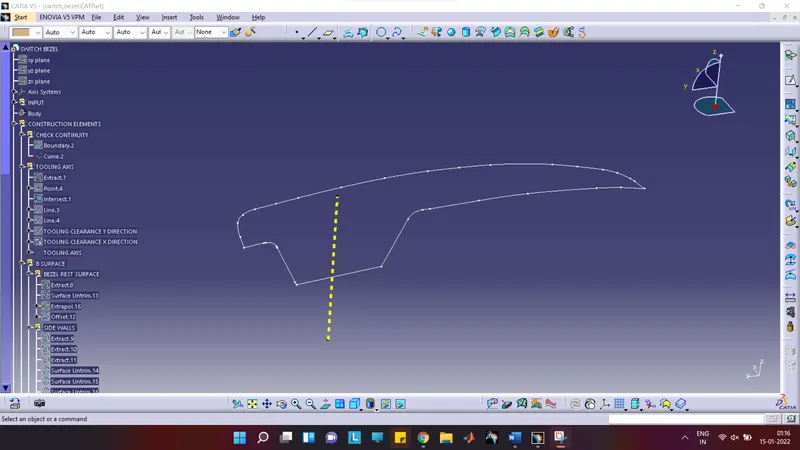

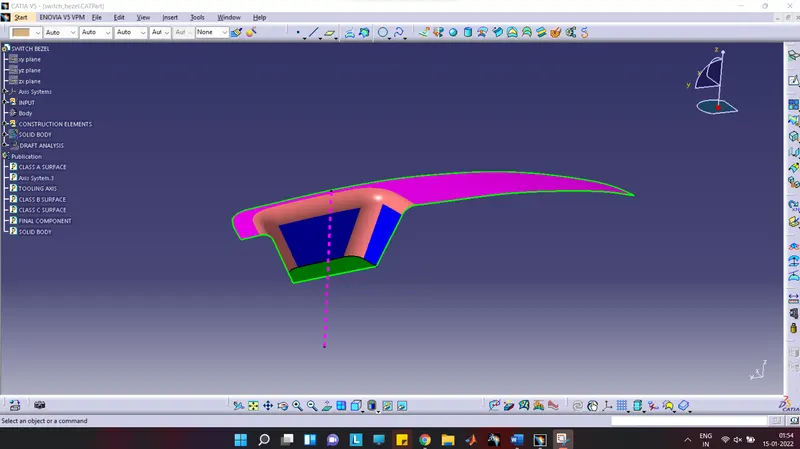

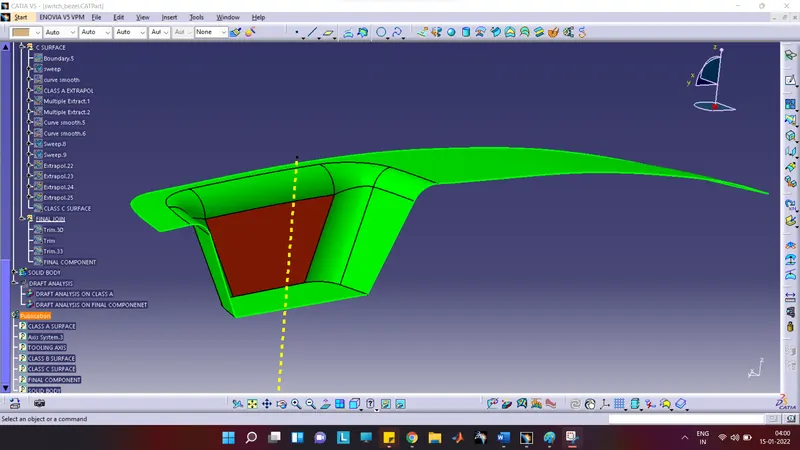

            The dummy tooling axis is a line or an axis created at the center along z-direction as shown in figure 08. The dummy tooling axis is used just as a reference and it is not the real tooling axis.

  figure 08: - Dummy tooling axis

step4: - Tooling clearance for respective directions

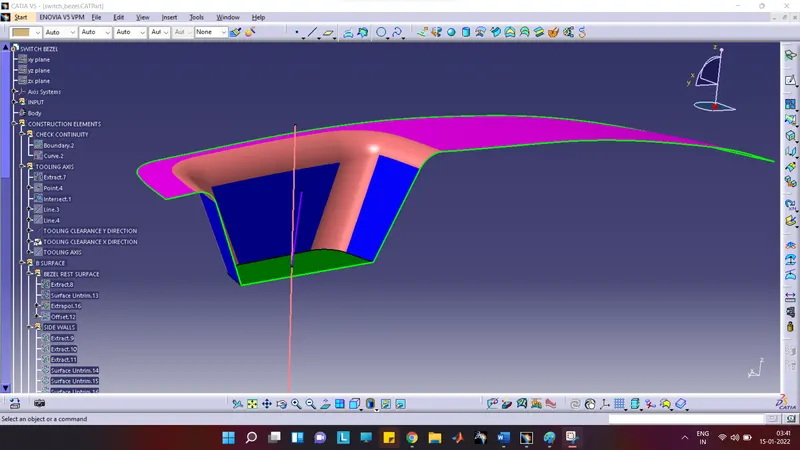

            After selecting the main tooling direction, it is important for a product designer to see that all the surfaces along the x,y, and z directions should be clear in the main tooling. Now, the surfaces perpendicular to the tooling axis is quite easy for manufacturing in the main tooling but the surfaces with a draft angle that are parallel to the tooling axis are a little difficult to manufacture in the main tooling. If z-direction is chosen as the main tooling direction then 2 tooling clearances along direction x and y will be created bisecting the surfaces that are parallel to the tooling axis(z-direction) which further will be bisected to form the main tooling axis.

  figure 09: - Tooling clearance along x-direction

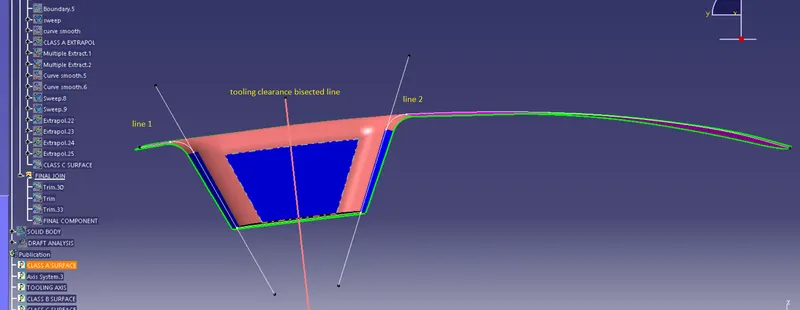

            Line 1 and Line 2 represent surfaces that are parallel to the tooling axis as shown in figure 09 will be bisected to form line 3 which is the tooling clearance along the x-direction.



  figure 10: - Tooling clearance along the y-direction

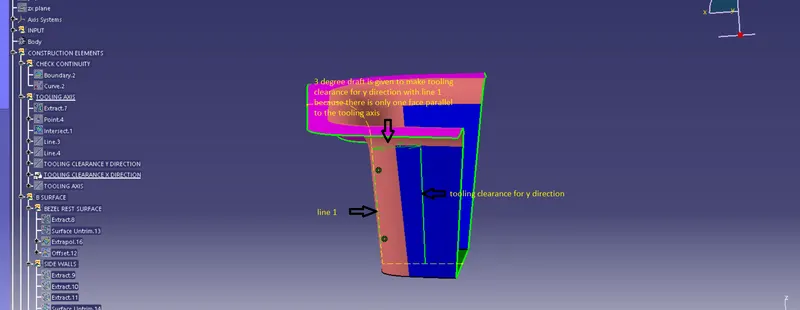

            The 3-degree draft is given to form a tooling clearance along y-direction with line 1 because in this case there is only one surface parallel to the tooling axis i.e line 1.

step5: - Creating final tooling axis

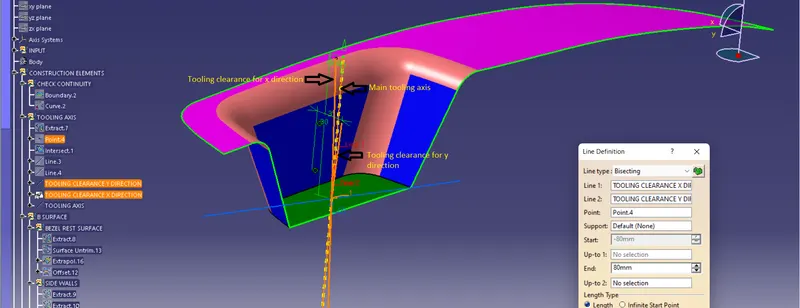

          The tooling clearance lines along the x and y directions will be again bisected to form the main tooling axis as shown in figure 11.



  figure 11: - Main Tooling Axis

    2. Publication: -

            Using the publication option, the important parts of a model are easy to search.

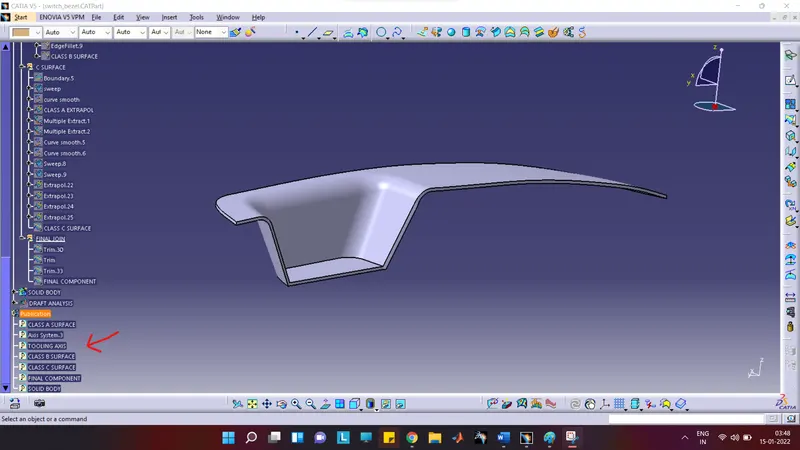

  figure 12: - Switch Bezel Model, Class A, B, and C and tooling axis are easy to search

3. Draft Analysis on Switch Bezel Model: -

Draft: - Draft is providing angles or tapers on product features such as walls, ribs, posts, and bosses that lie parallel to the direction of release from the mold that eases the part ejection.

           The draft is required on all parts in the direction of mold movement in order to allow parts to release or eject from the mold properly. The draft is the angle at which the part is tapered to allow it to release. As the part cools, it tends to shrink to the core side of the mold. Adding draft helps the part to release. 3 degrees is the nominal draft. Whereas, 0.5 degrees can also be manufactured at ribs. 7 degrees for the textured faces.

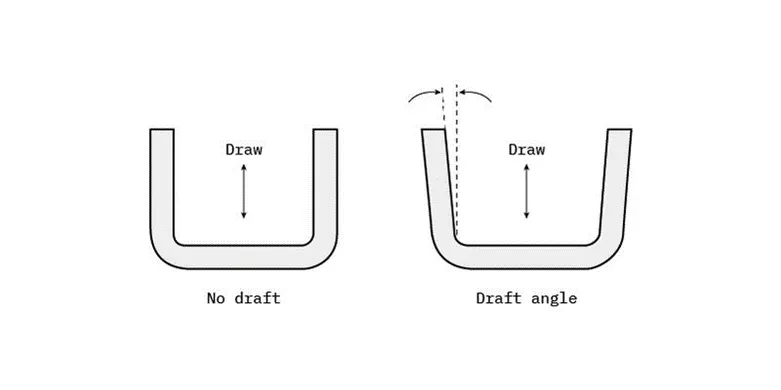

  figure 13: - Example of draft

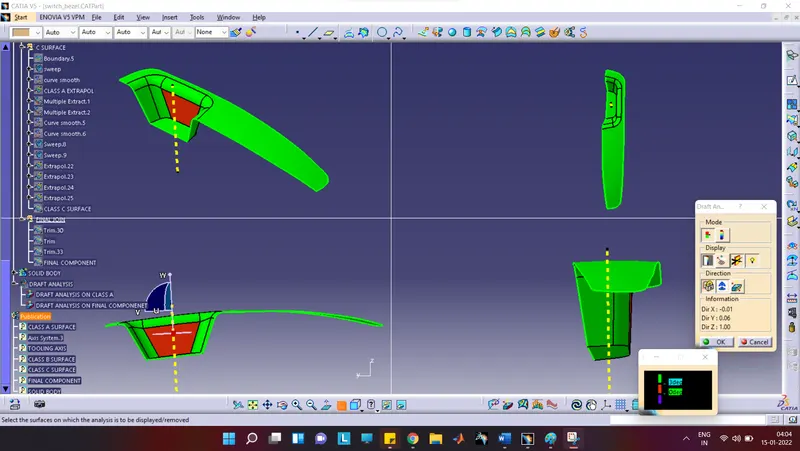

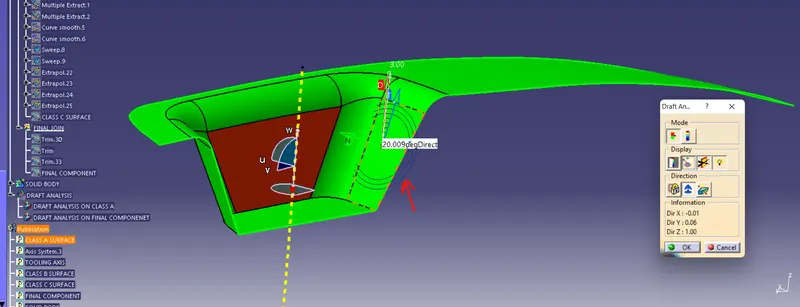

            Draft analysis is used to confirm the appropriate draft angle required for the component that is to be manufactured. Quick analysis mode, show or hide color scale, and analysis under the running point are the three main features used in the draft analysis. The color scale shows the draft angle for different colored areas and the analysis under the running point shows the draft angle at different points.

  figure 14: - show or hide the color scale

  figure 15: - Analysis under the running point

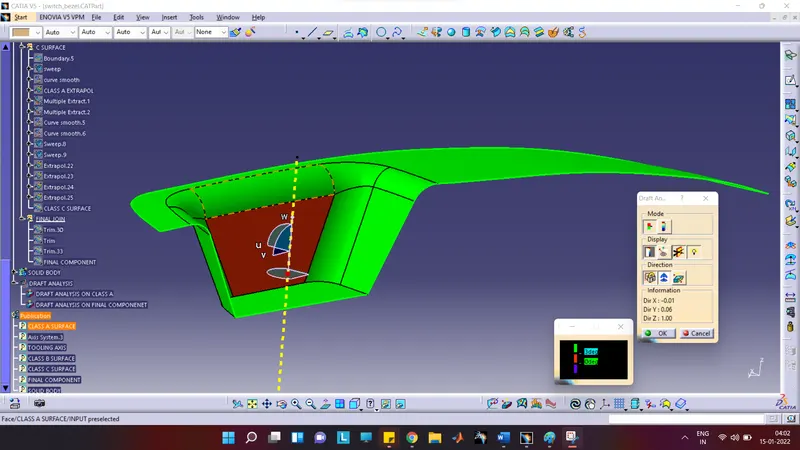

Screenshots of the Draft analysis report: -

• Screenshots of the Draft analysis report for Class-A surface: -

1. Image of the complete Draft analysis: -

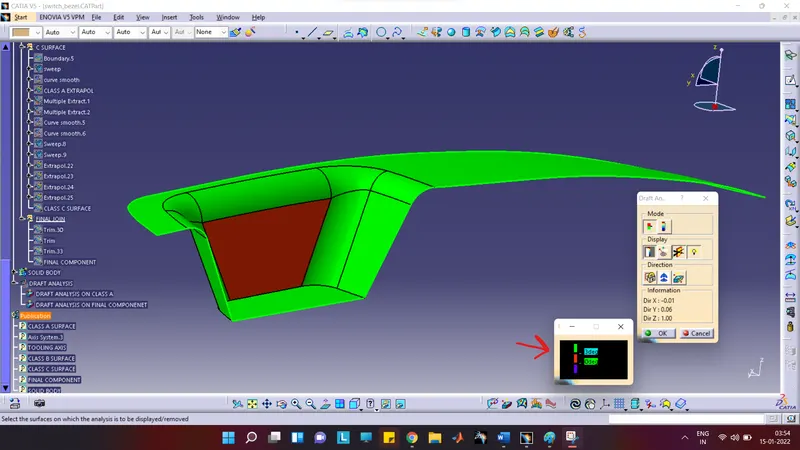

    2. Images of the color scale variant: -

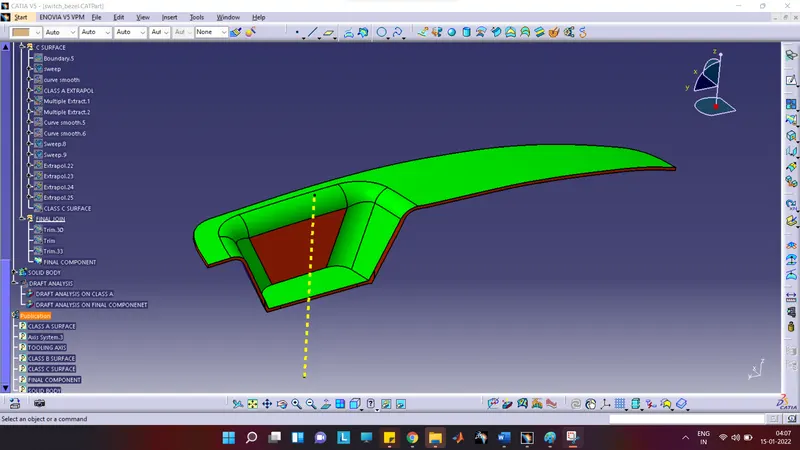

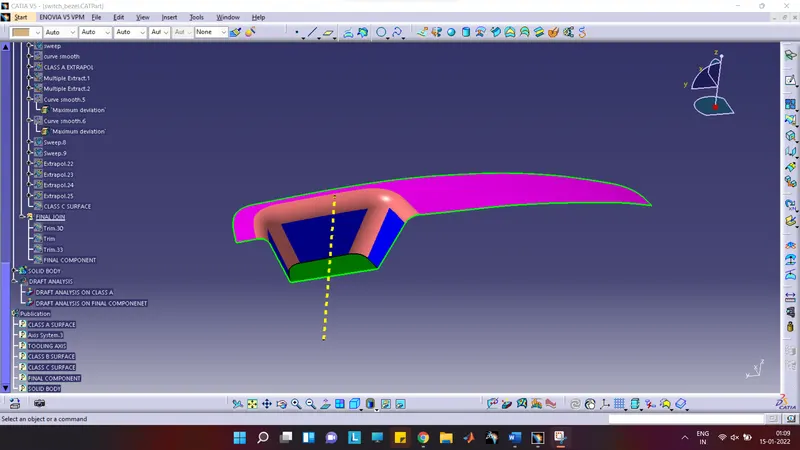

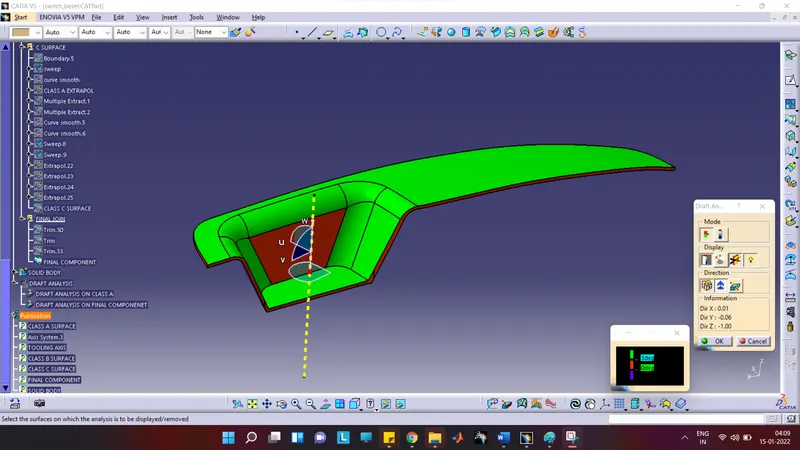

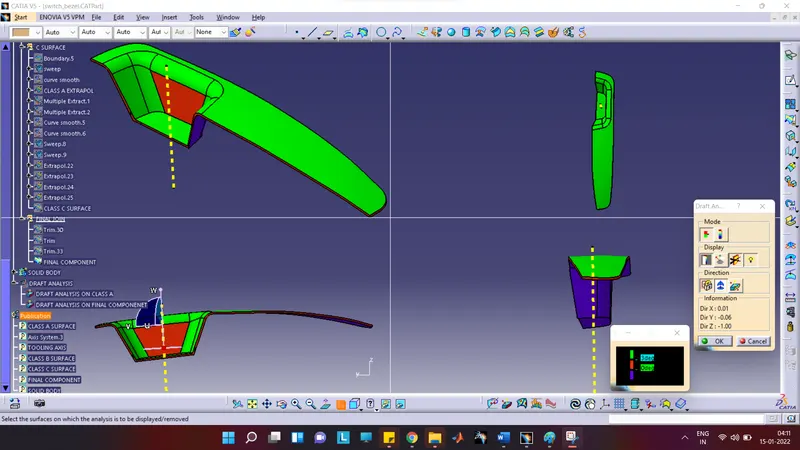

    3. Model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View): -

• Screenshots of the Draft analysis report for the final plastic component: -

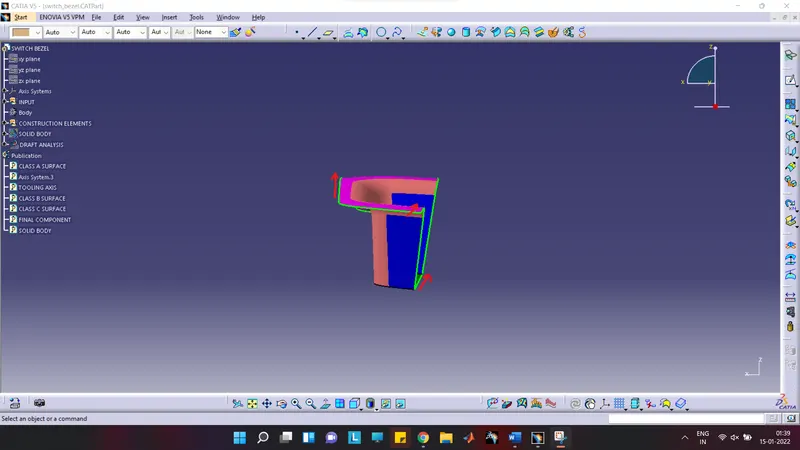

1. Image of the complete Draft analysis: -

    2. Images of the color scale variant: -

    3. Model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View): -

Other images: -

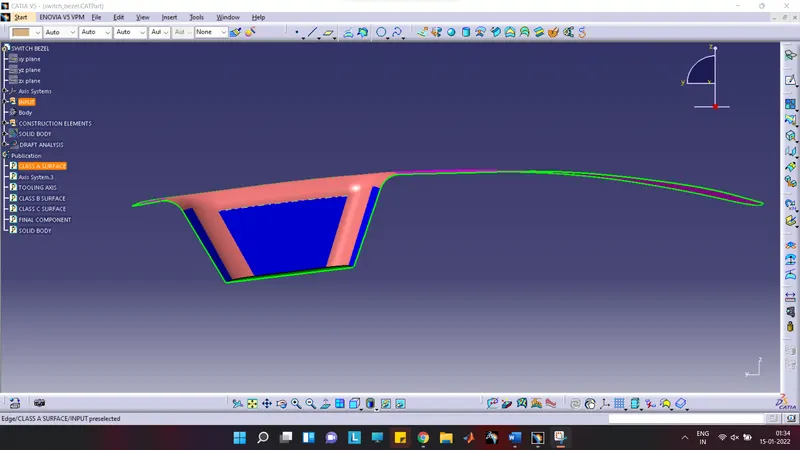

• Class A, B, and C surfaces: -

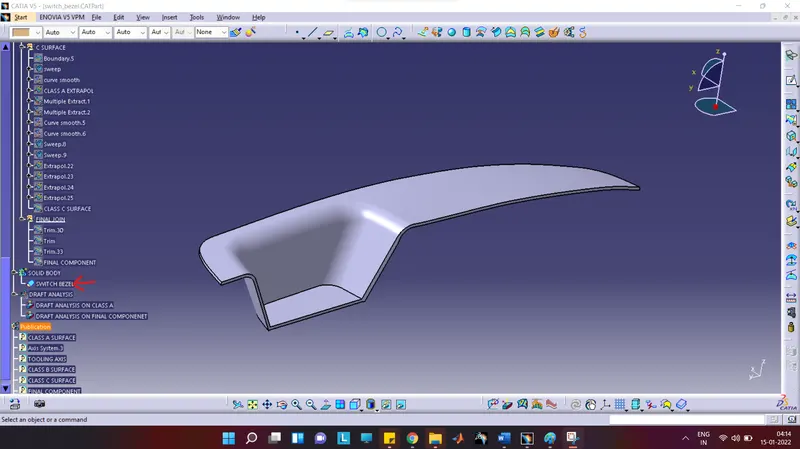

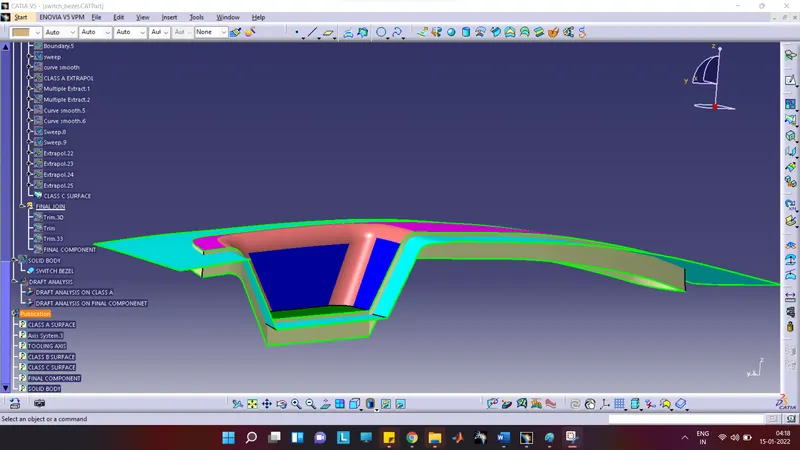

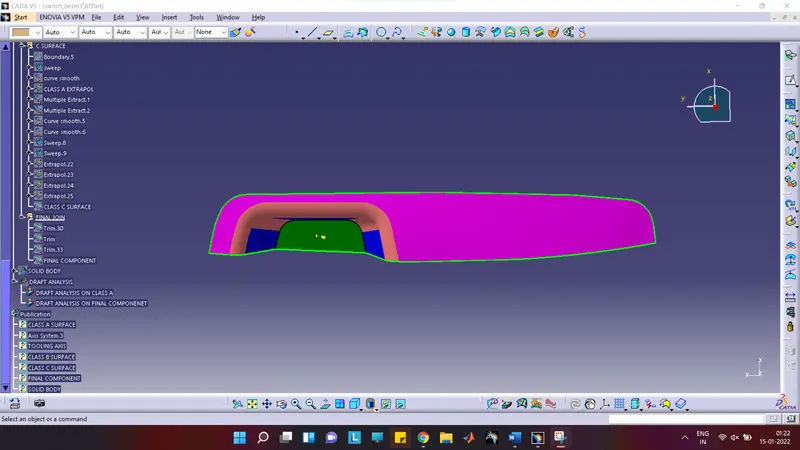

• Final plastic component (using the close surface feature): -

Conclusion: -

1. Confirming the appropriate draft angle required for the component to be manufactured is one of the important aspects before continuing the design further.
2. Adding a draft helps the part to release from the mold.
3. The draft is important because it prevents damage from happening to the component while coming out of the mold.
4. Ensuring a proper geometrical tree helps one to avoid confusion while re-editing a certain model.
5. Using publication command while making a certain model is a boon while modifying or re-modifying it because things become handy.
