Week 8 - Challenge 3 - Switch Bezel Design

MM.Dinesh Kumar30 Dec 2021

OBJECTIVE:

To create switch bezel component with the given class A surface and to perform draft analysis on it.

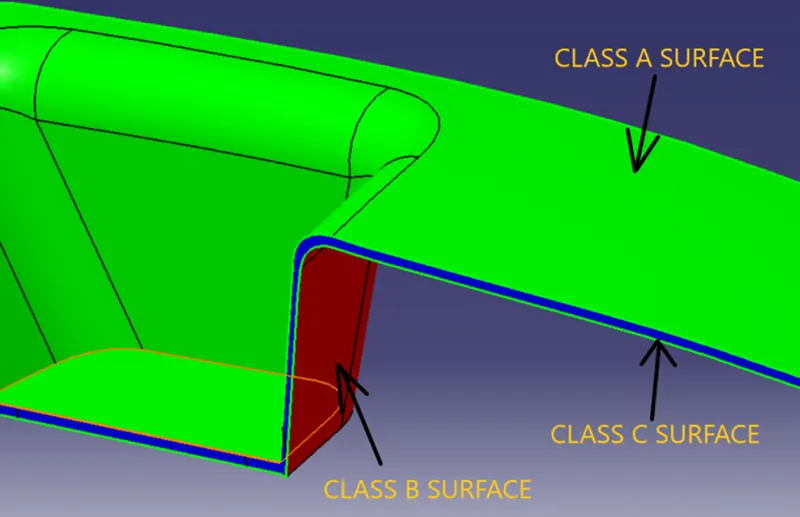

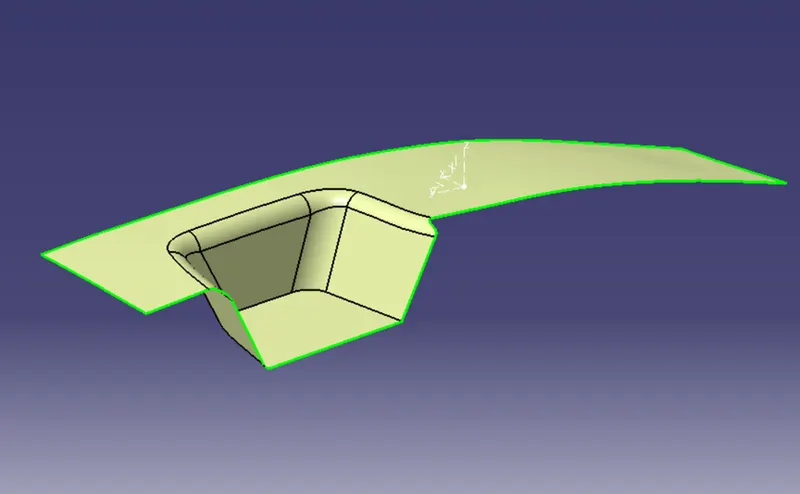

CLASS A SURFACE:

It is the outermost surface of the component with high accuracy and precision. It has aesthetic value and cannot be modified without authorization.

CLASS B SURFACE:

It is the inner surface of the component which we get after thickening it. The engineering features are attached to it.

CLASS C SURFACE:

It is the surface which joins the class A and class B surfaces along the boundaries.

SWITCH BEZEL DESIGN:

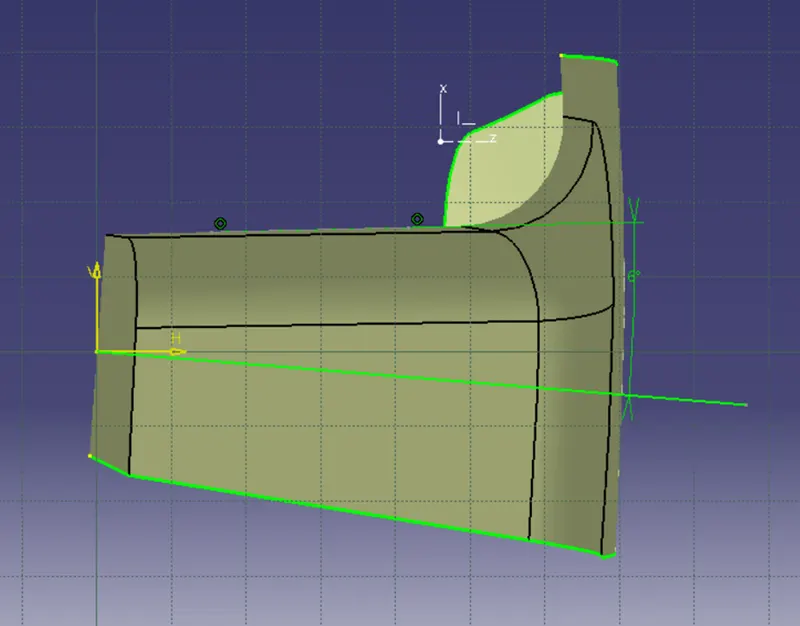

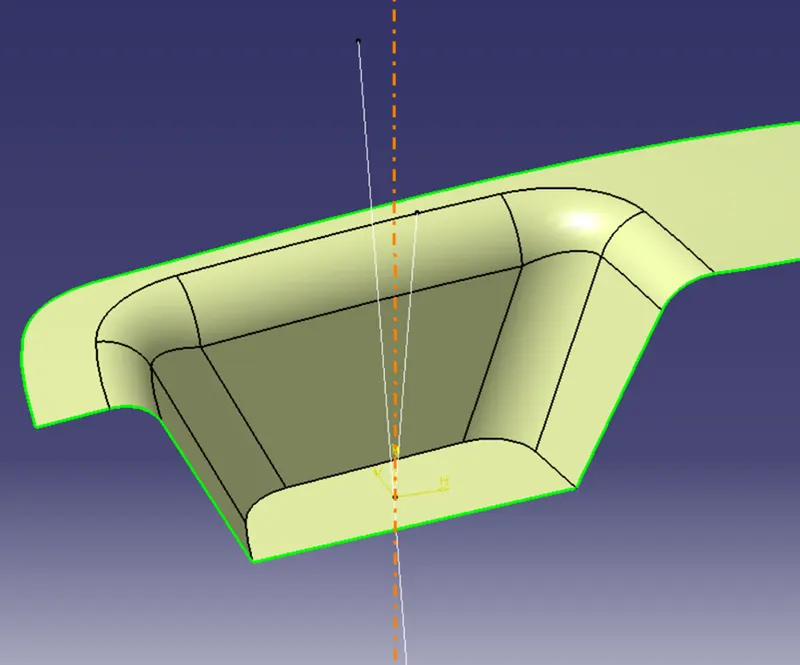

TOOLING AXIS CREATION:

Step 1: Check the boundary of the class A surface and ensure there is no gap in between the surface.

Step 2: Create an axis system on the class A surface by creating a point on it.

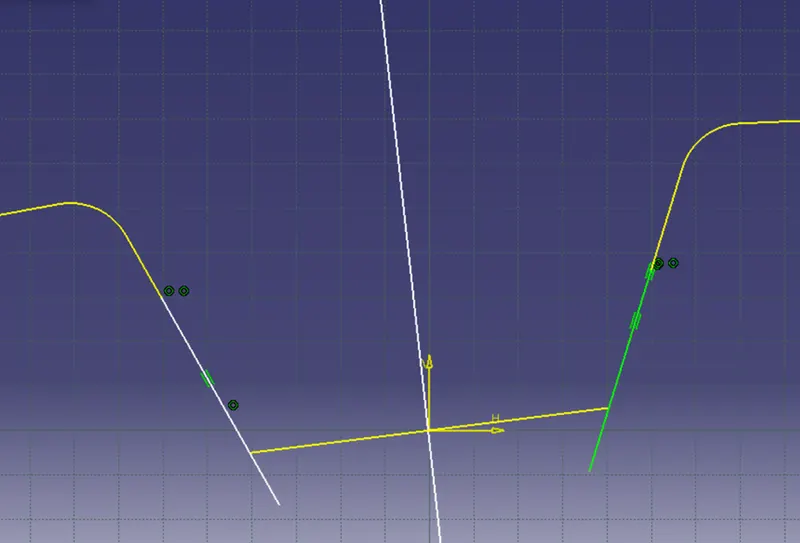

Step 3: Draw a sketch by intersecting class A surface with YZ plane and create tooling axis clearing along X direction by bisecting method.

Step 4: Similarly, draw a sketch by intersecting class A surface with XZ plane and create tooling axis clearing along Y direction by creating an inclined line.

Step 5: Finally, create the tooling axis by bisecting the above two axes.

CLASS B SURFACE:

Step 1: Extract the individual surfaces from the class A surface.

Step 2: Untrim the extracted surfaces and extrapolate them as required.

Step 3: Offset the extrapolated surfaces downwards to get the thickness (2.5mm) of the component.

Step 4: Trim the offset surfaces and give fillets as required to get the class B surface with equal wall thickness.

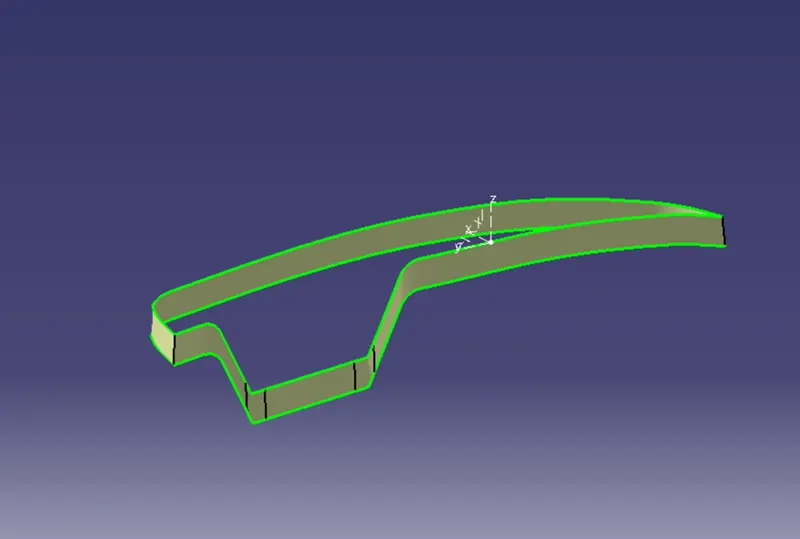

CLASS C SURFACE:

Step 1: Create the boundaries for the class A surface.

Step 2: Sweep the boundaries along the tooling direction with required draft angle to get the class C surface.

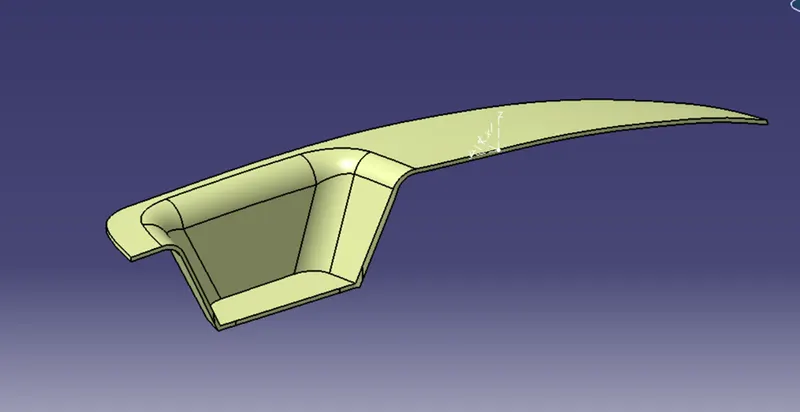

FINAL TRIM:

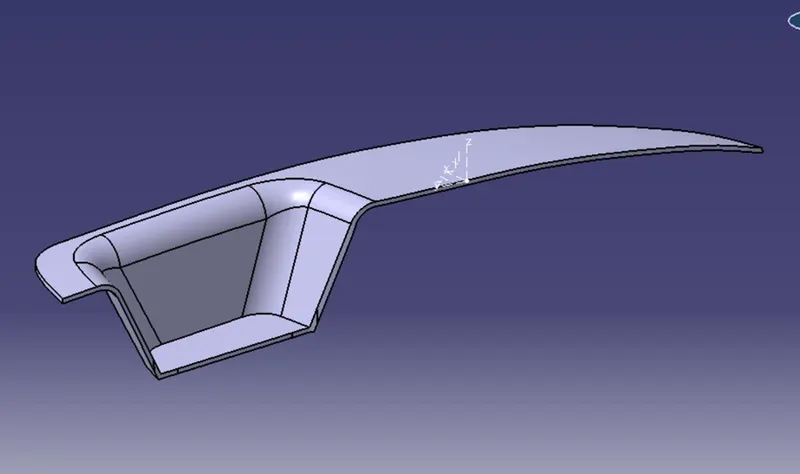

Finally trim class A, class B and class C surfaces to get the switch bezel surface and use closed surface feature to create a solid component.

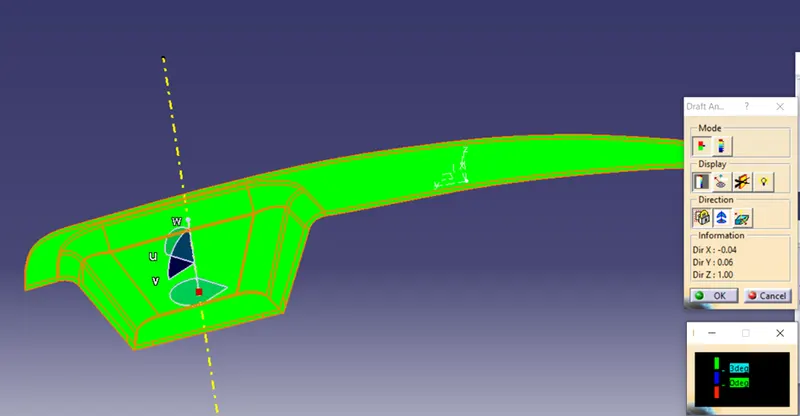

DRAFT ANALYSIS:

Step 1: Change the view to customized view and enable the material in shading option.

Step 2: Insert the feature draft analysis.

Step 3: Click the compass icon and place the compass along the tooling direction.

Step 4: Lock the draft direction and select the component to draft.

Step 5: Enable the color scale and change the draft value as required. Here 3 degree is given as draft angle.

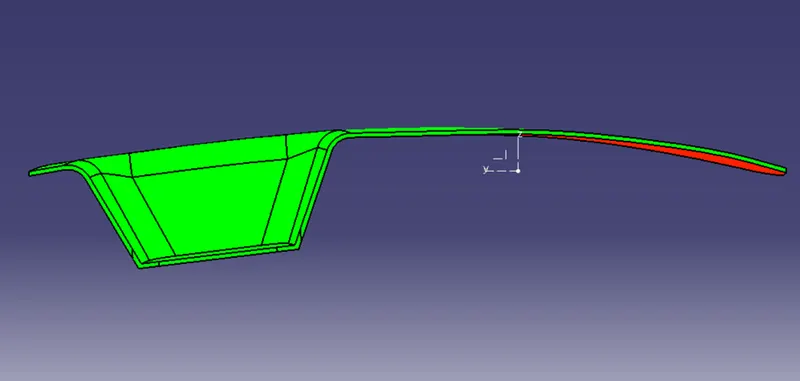

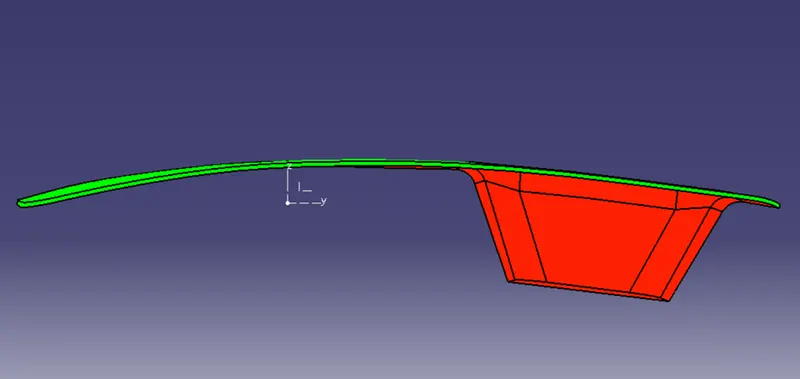

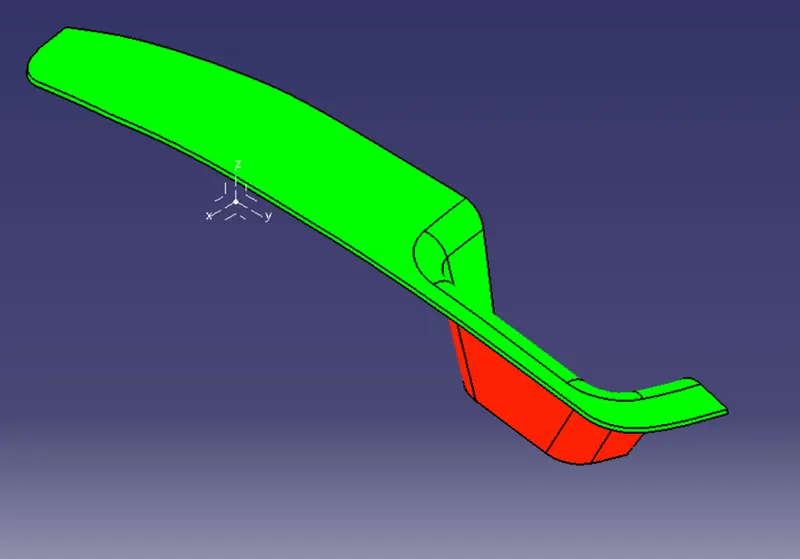

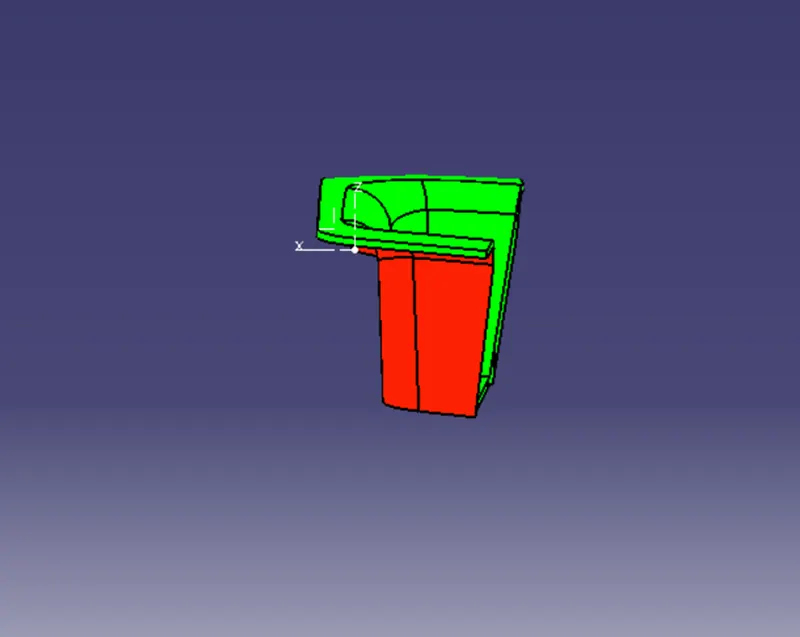

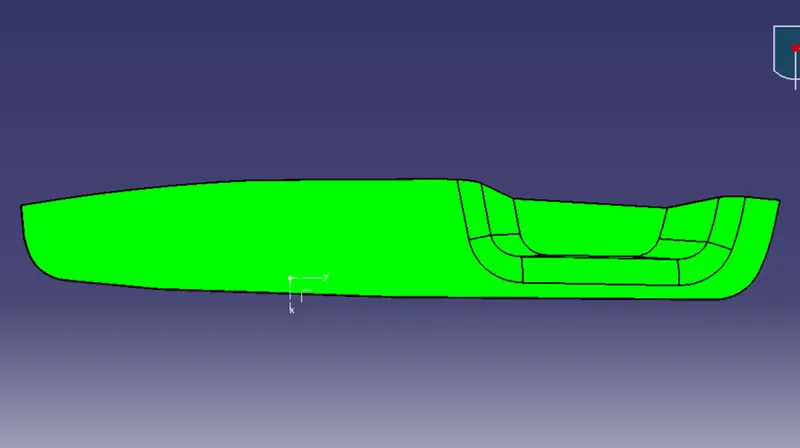

Step 6: The green color indicates that the surface is more than 3 degree from the tooling direction. The blue color indicates that the surface is 0 to 3 degree from tooling direction. Red color indicates that the surface is less than 0 degree from tooling direction which indicates the negative draft.
