Week 8 - Challenge 3 - Switch Bezel Design

                                                                        Switch Bezel Design

Objective:

            The main objective is to perform draft analysis and make a solid model from the given Class A input using Catia V5 application.

Description:

Creating Tooling Axis:

• Open the given CAT part file.
• Check for gaps between surfaces for that click on join and then preview
• Find the correct tooling axis where the material doesn’t interfere with the tooling axis and the elements can be created
• Create an axis system using the surface at the bottom and use point to create the axis system.
• Intersect the YZ plane with respect to the Class A surface walls.
• Create a line in ZX plane at 5 degree with respect to intersection.
• Hide the Class A surface and create point to point lines on the suspected drafts
• Create a bisecting line with the two lines and point to create a tooling axis
• The tooling axis is created for the component.

Publication:

• Publication is done to the component to make it visible and navigate easily.
• To publish the component, go to the tools tab, select publications and click on Tooling axis and Class A surface and Click OK.
• A separate tree structures is formed under the main part.

Draft Analysis:

• Before going to draft analysis, go to customized view parameter, click on under mesh and check material and click OK.
• Now for Draft analysis, Click Insert tab, then click on Analysis and finally click on Feature Draft Analysis.
• Use the Compass to define the draft direction.
• In the colour scale change the draft angle to 3 degree.
• The component changes to green in indication of passing draft angle.
• Use running point to check the angle on the component.
• The draft analysis is complete.

Creation of Class B Surface:

• Extract the surfaces from the Class A surface using multiple extract and Untrim them.
• Use extrapolate to make sure that all the untrims are properly intersected to trim and offset the surface to 2.5 mm to create the thickness.
• Trim extra surfaces using trim command.
• Insert them into new geometrical set and naming as class B surface.
• Apply fillets to the model after creating the entire surface.
• If the fillets are outside the fillet value will be added to the thickness of the component, for instance the thickness of the component is 2.5 mm the fillet value is 3 mm. so the outside portion value should be 11.5 mm to get uniform thickness.
• Perform things one at a time so that it will be clear to understand.

Creation of Class C Surface:

• Extract the boundary from the class A surface using boundary.
• Use Sweep command > Choose profile type line >subtype as with draft direction> Choose guide and draft direction>give draft angle as 3 degree and preview.
• Use smooth curve to reduce the patches and get smooth surface.
• Join the Class A and Class C surface.
• Check the boundary if any patches, then extrapolate the class A to 0.5 mm and then trim it with class C surface.
• After getting sweep then trim the output with class B surface to get final output.
• Now open part design workbench and using close body surface create a solid of the component.
• After getting close body surface conduct draft analysis, some parts of the component have a draft of 2.9 degree. Then modify the draft, the main wall tooling axis also to be modified to pass the draft analysis.

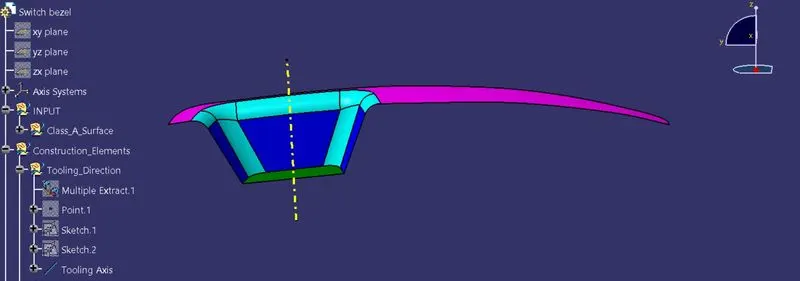

Tooling Axis:

Publication:

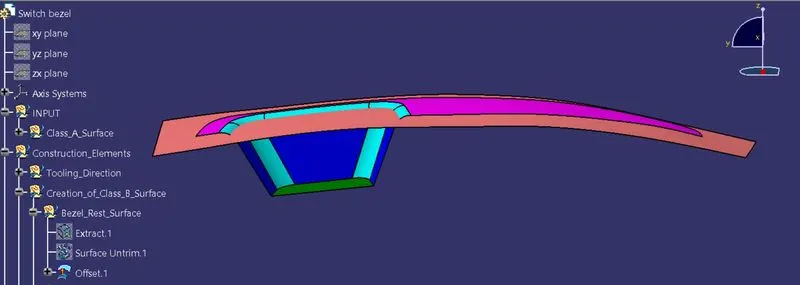

Class B Surface - Bezel Rest Surface:

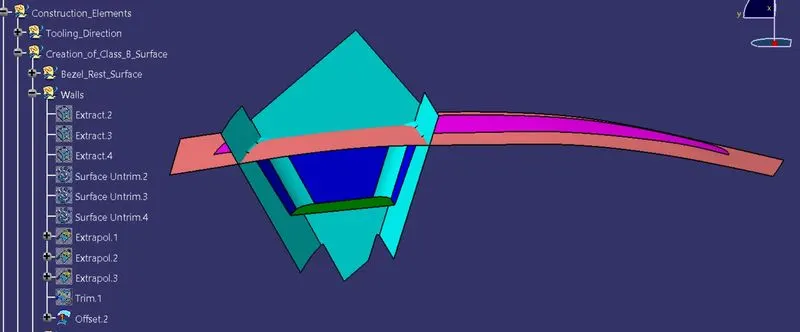

Class B Surface - Walls:

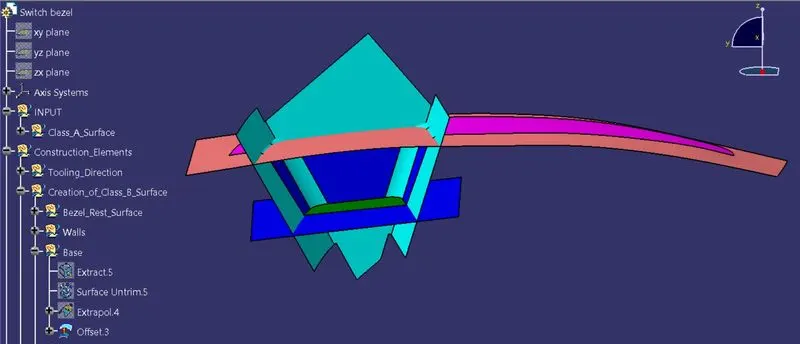

Class B Surface - Base:

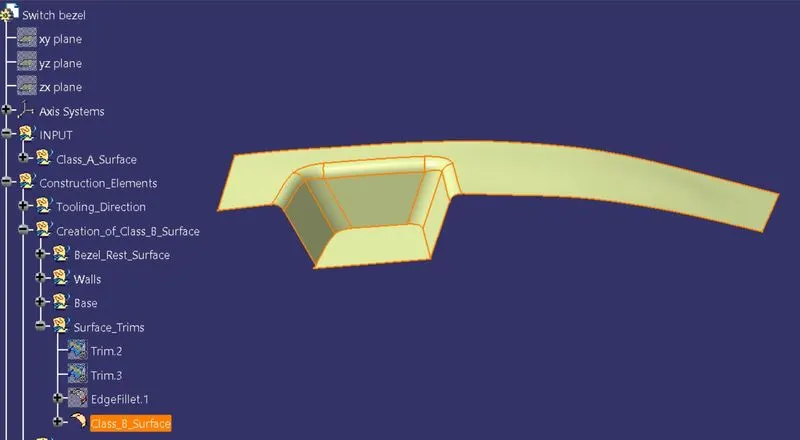

Class B Surface:

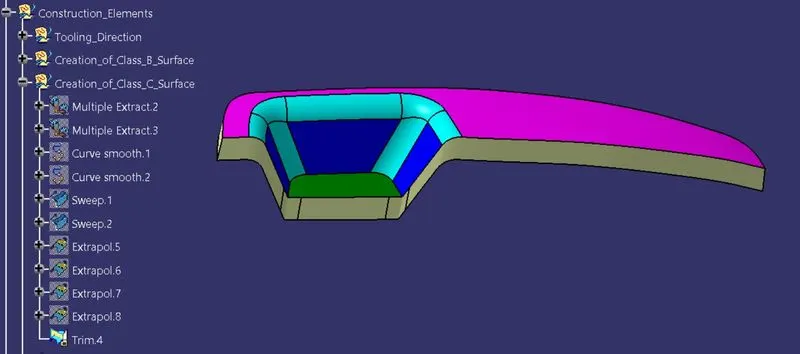

Class C Surface:

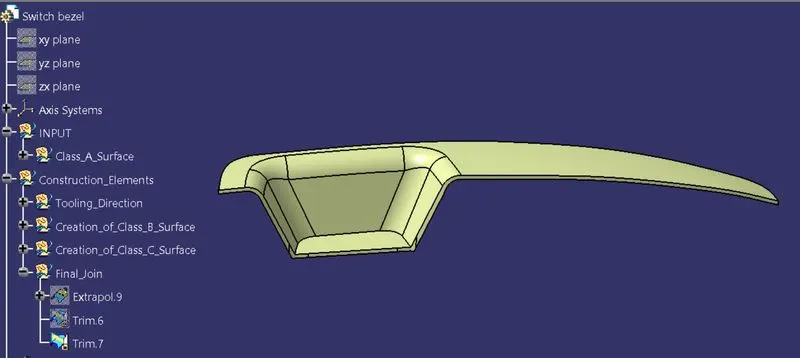

Final Join:

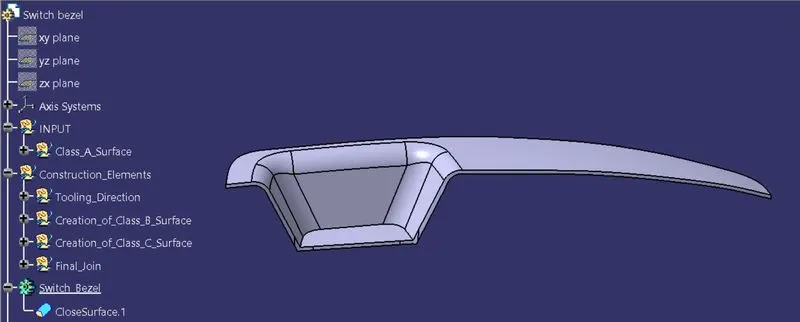

Switch Bezel - Part Body:

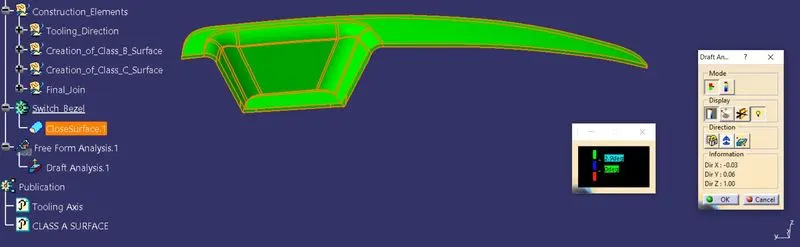

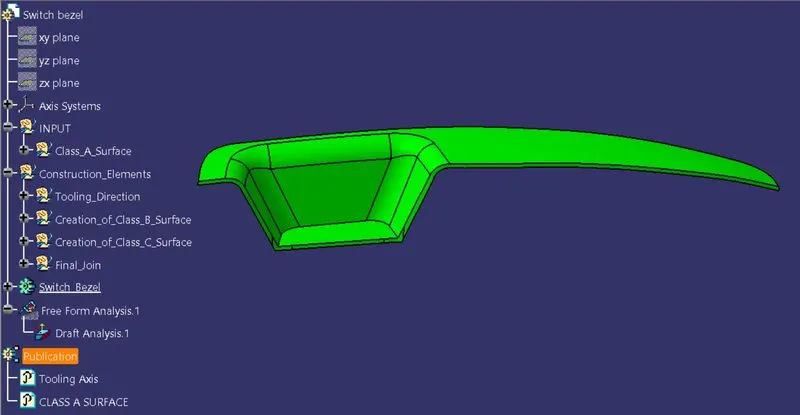

Draft Analysis:

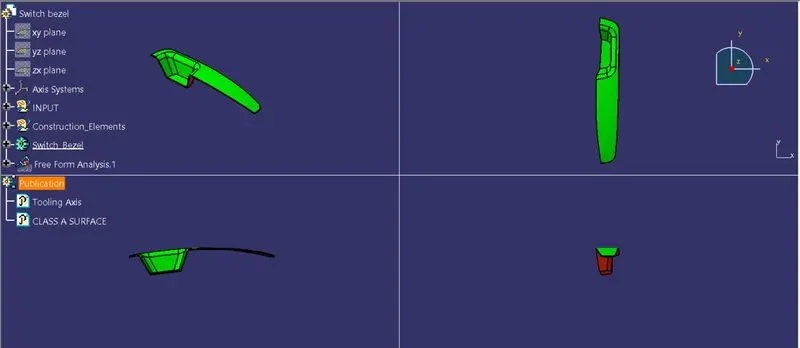

Standard Views (Isometric, Front, Top and Side Views):

Conclusion:

        Successfully created closed surface part body with the given Class A surface using Catia V5 application.
