Week 8 - Challenge 3 - Switch Bezel Design

CREATION OF TOOLING AXIS AND DRAFT ANALYSIS FOR SWITCH BEZEL

Objective:

The main objective of this project is to create the tooling axis and the draft analysis for the Switch Bezel using Catia V5.

Introduction:

The tooling axis is very important for the component to be manufactured, keeping that tooling axis as reference the part can be manufactured without any congestion and will ease the way in manufacturing the part. The draft analysis will show the important angles of the body, it is very important to maintain positive draft angle.

Methodology/approach:

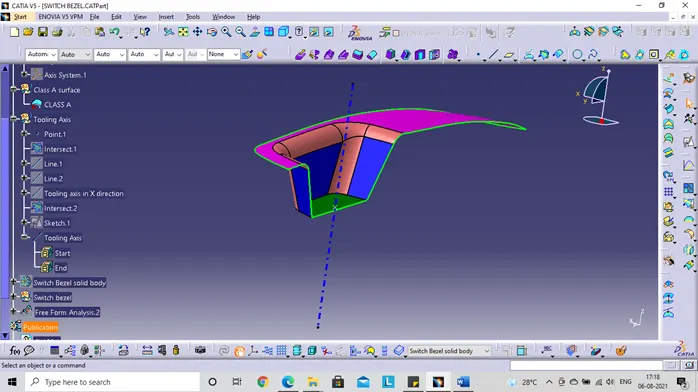

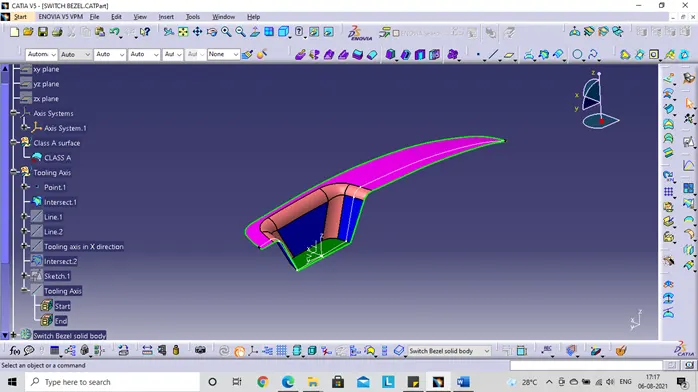

• For the creation of tooling axis and draft analysis, the first important input is the class A surface, then further using Catia V5, create the tooling axis and draft analysis, first, check the best direction (X, Y, Z) and select the direction at which is very easy to manufacture. Z direction is selected for the Tooling axis. For reference if required create the dummy tooling axis in Z direction keeping the point as reference.

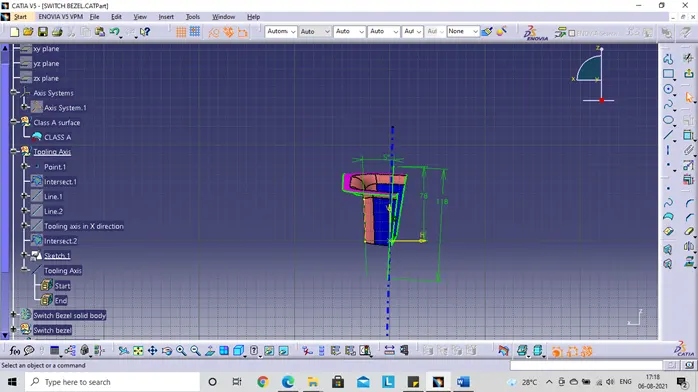

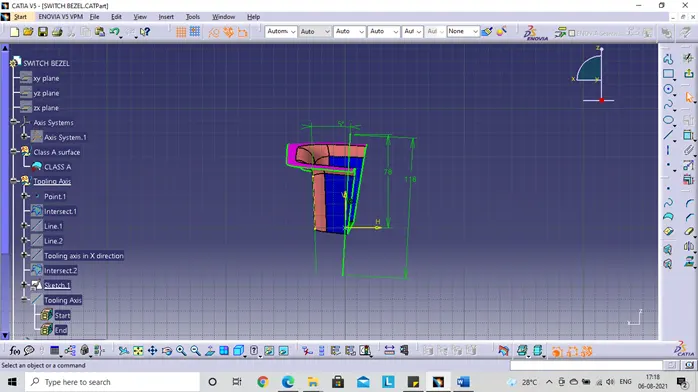

• Create a plane in ZY direction on the reference point and then create an intersection curve of ZY plane of the switch bezel. To get the bisecting line of the two line at an angle, create two lines and bisect them to get the tooling axis.

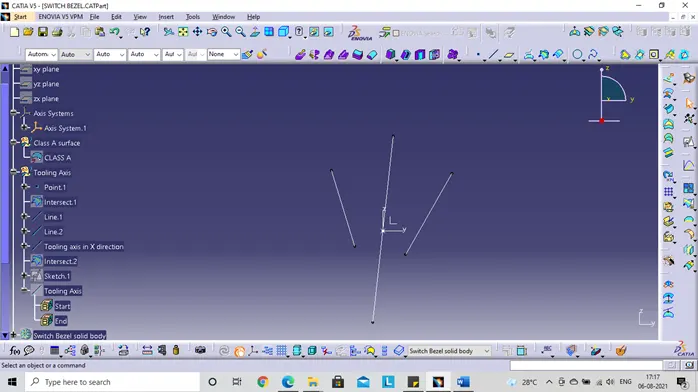

• Create a sketch in ZX plane and draw the line for bisecting line creation. Then draw the bisecting line for both the lines created.

• Publishing – Use the publish option to publish the Class A surface and the tooling axis, so to easily acces the required feature.

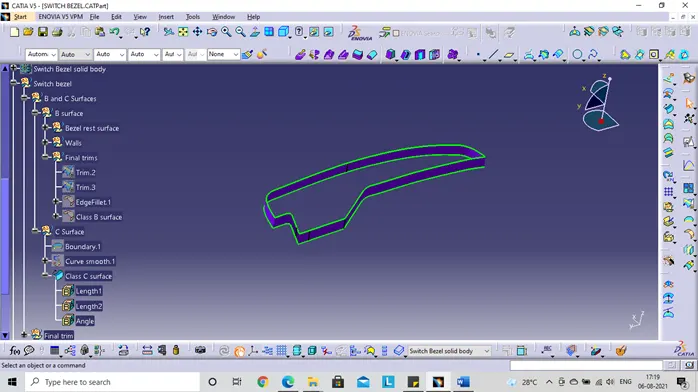

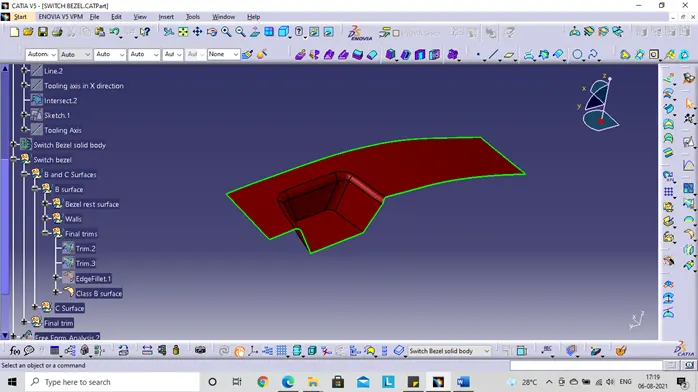

• Thicken the Switch bezel using some of the surface features, since the edge fillet has to be at equal distance on the offset surface, we add the thickness for the edge fillet, the final offset will be the B surface.

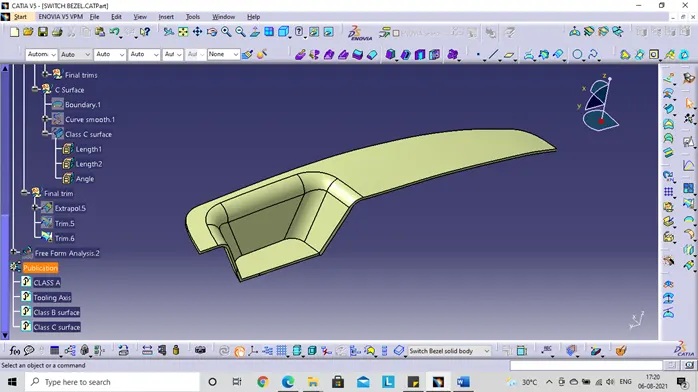

• The C surface is the surface which gives the draft angle to the thickened body, using the tooling axis we can obtain the C surface

• Then join and trim them to obtain the thickened part surface.

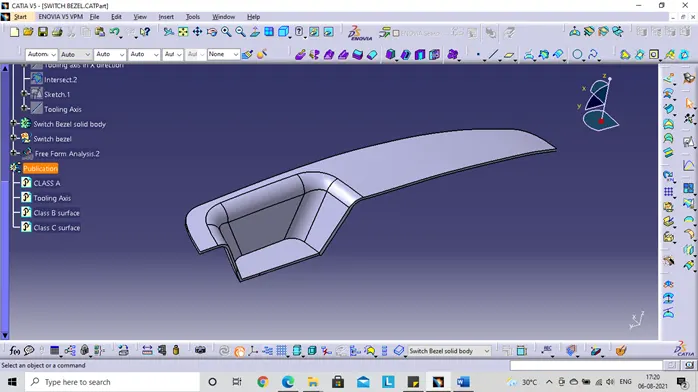

• Using part design create a solid body from the closed body feature.

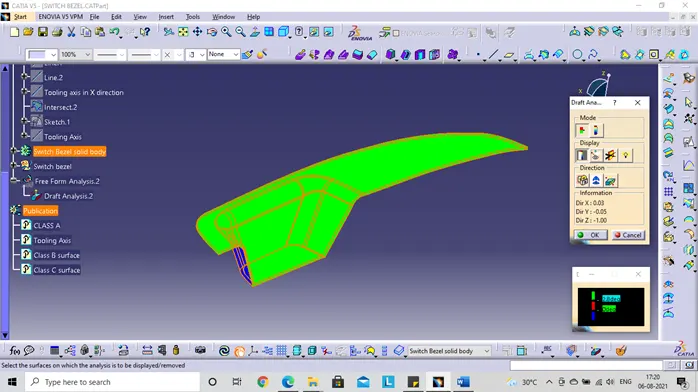

• Then, use the feature draft analysis to check the draft analysis of the Switch bezel using the tooling axis.
• Use the analysis>Feature draft analysis toolbar to check the draft analysis, Use the compass and place in the Z direction line being upwards and lock it.

• Select the axis and the part so that the color changes according keeping the reference as tooling axis.

• On the quick analysis mode there are 3 colors green, red and blue. We can change the values as per our standards, it is good to main standard drafting angle of 3 degrees

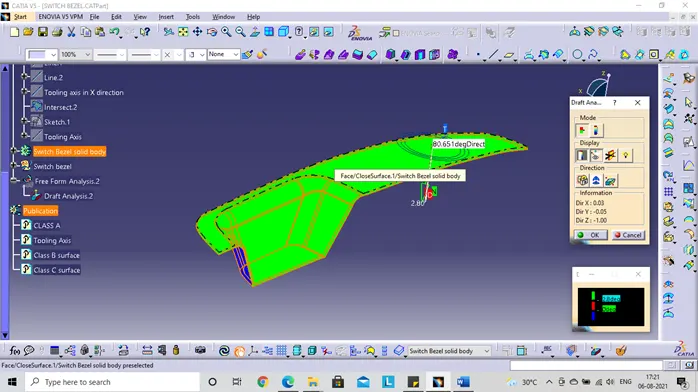

• Analysis on running point - with the help of this option, the angles at every point can be checked easily.

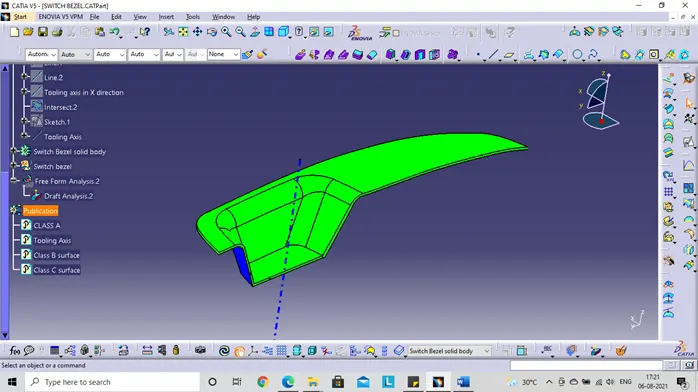

The draft analysis is obtained for the closed surface of switch bezel.

Different views of the switch bezel:

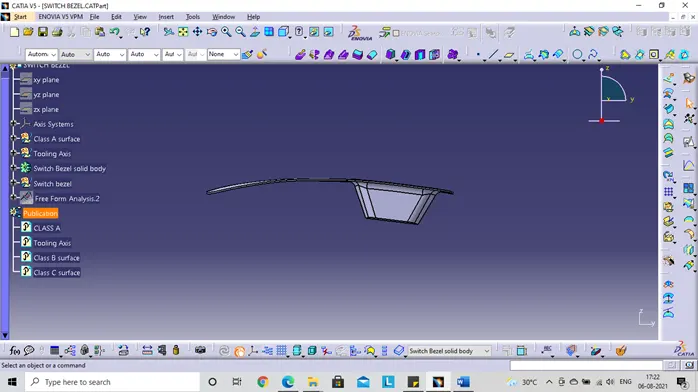

• Front view

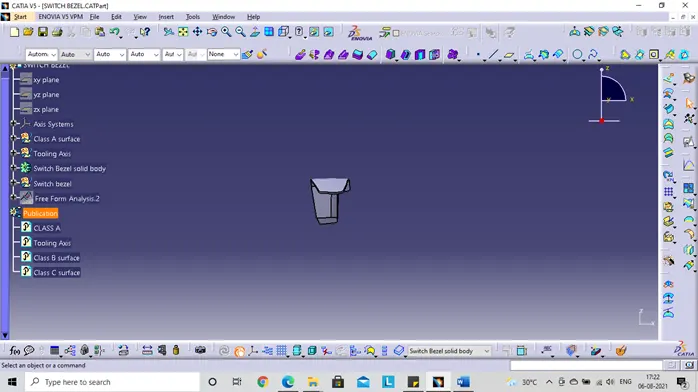

• Left side view

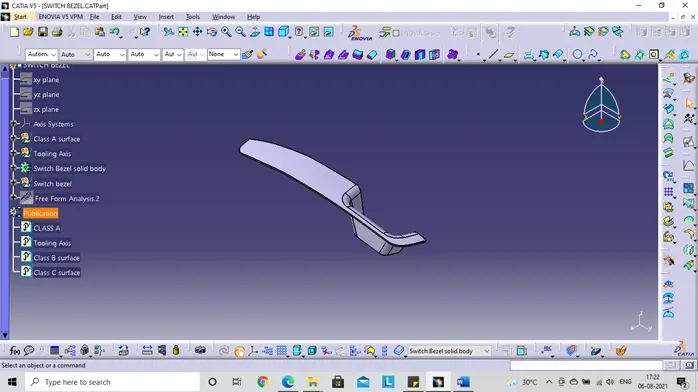

• Isometric view

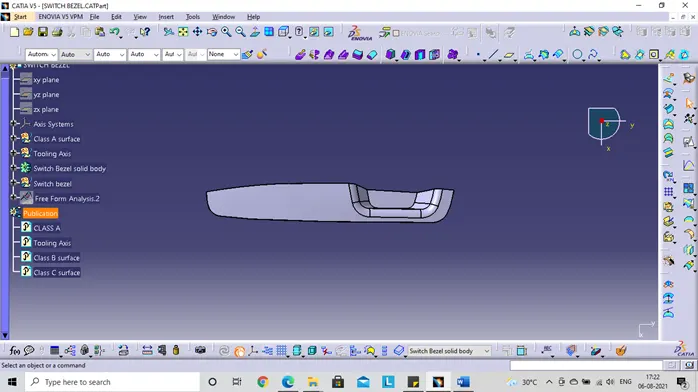

• Top view

Conclusion:

The draft analysis, tooling axis, B surface and C surface are created for the class A surface of the switch bezel.
