Week 8 - Challenge 3 - Coin Holder Design

AIM – To create the tooling axis and do the draft analysis of the COIN HOLDER.

INPUTS – 1. Class A Surface.

2. The minimum Draft Angle Should be 3 degrees.
3. The component thickness should be 2.5 mm.

TOOLING AXIS

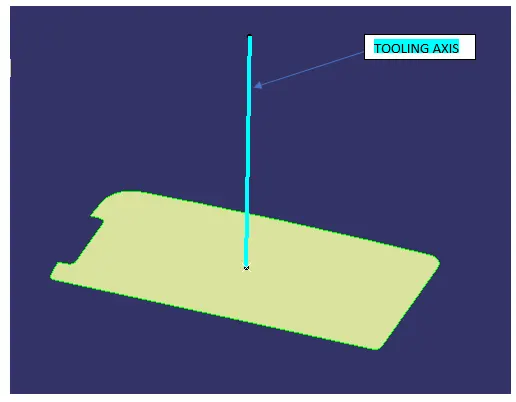

1. CREATION OF TOOLING AXIS

We have created the tooling axis in the Z direction IN the middle of the surface.

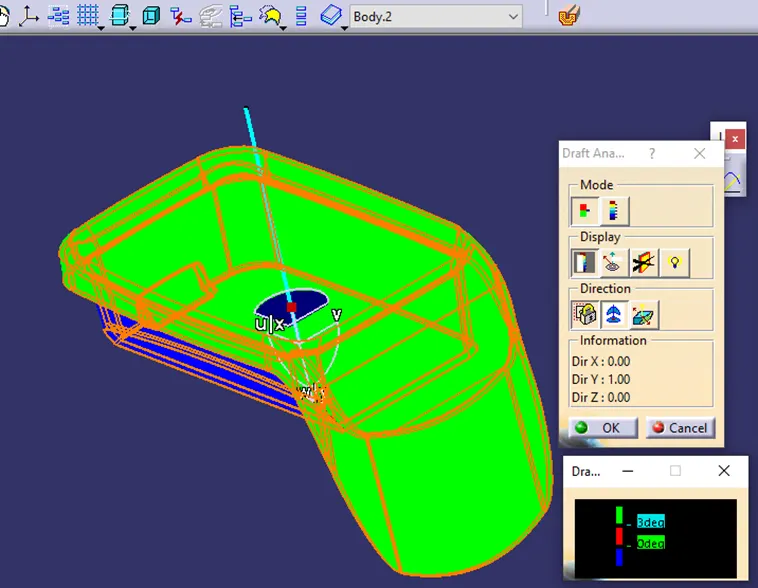

DRAFT ANALYSIS OF A CLASS SURFACE

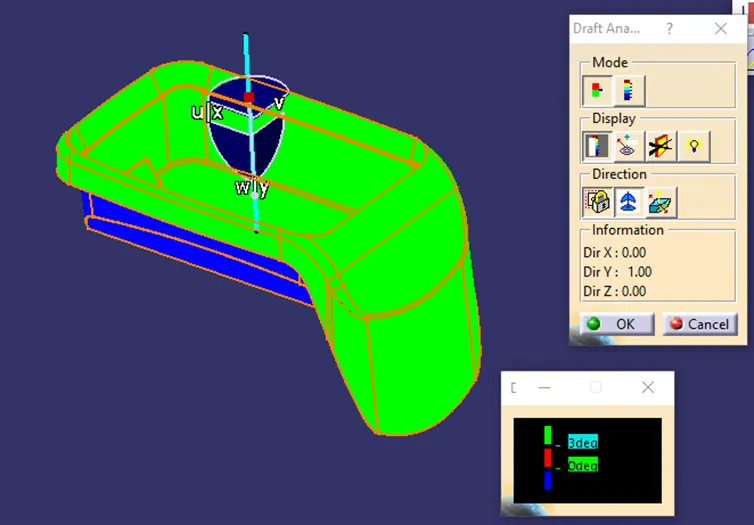

DRAFT ANALYSIS OF THE FINAL COMPONENT

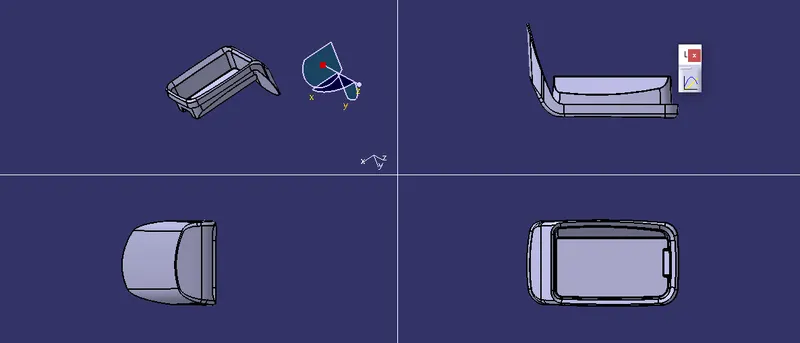

ALL THE VIEWS OF COIN HOLDER

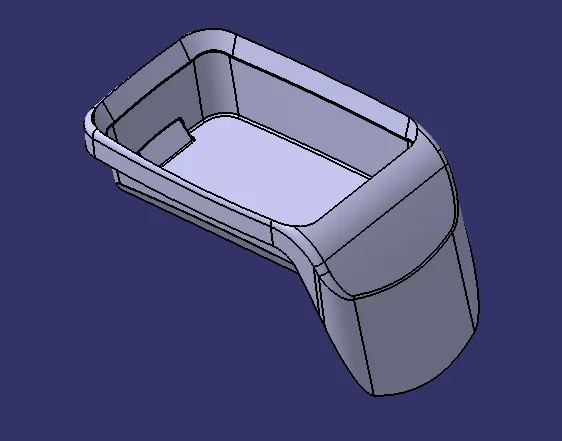

FINAL COMPONENT
