Week 8 - Challenge 3 - Coin Holder Design

AIM:

To create the center console coin holder plastic component through the given class a surface and at the end performing the draft analysis on the model.

OBJECTIVE:

• To ensure proper tree structure is followed. Geometrical sets should have a proper name based on the sketches present inside of them.
• All the sketches should be created under the geometrical set. Use of the close surface feature to make a solid body from the surface.
• To publish the tooling axis, class A, B and C surface.

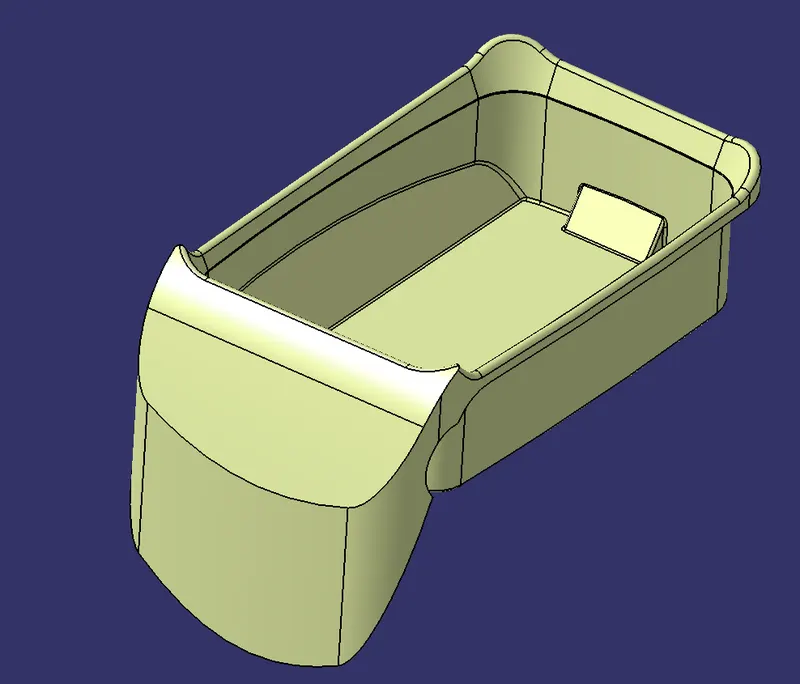

The given CLASS - A Surface:

PROCEDURE:

• First import the class A surface of the center console coin holder model in CATIA V5.
• Check the connectivity of the class A surface using the boundary option. Ensure that there is no gap between the two surfaces.

TOOLING AXIS Creation:

• Now we need to create the tooling axis for the center console coin holder model.
• Visually check which direction is better for creating the tooling axis.
• Now to create the tooling axis in the z-direction, first create a reference point on any surface as shown below figure.
• Now using the reference point, create a line normal to the surface. This line will give us the tooling axis.

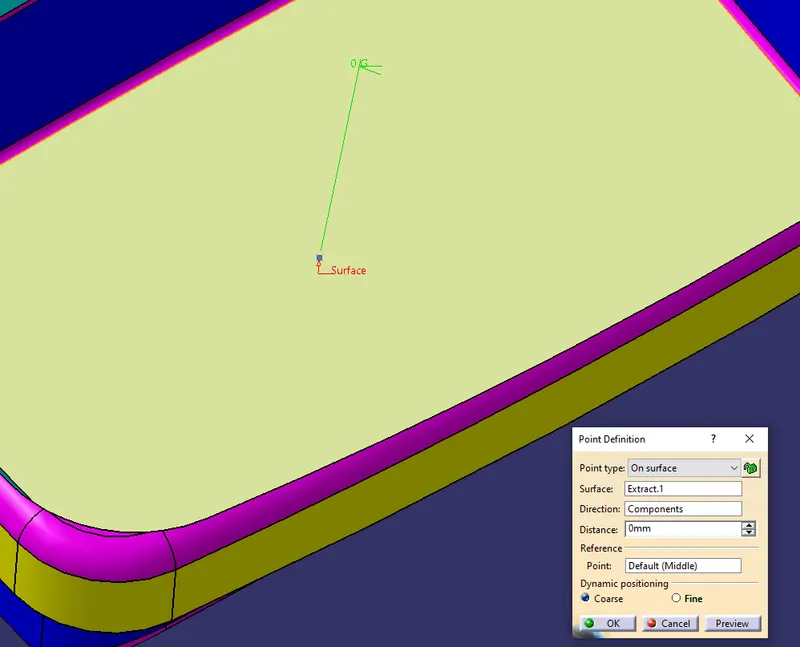

POINT PLACEMENT:

INTERSECTION CURVE Creation:

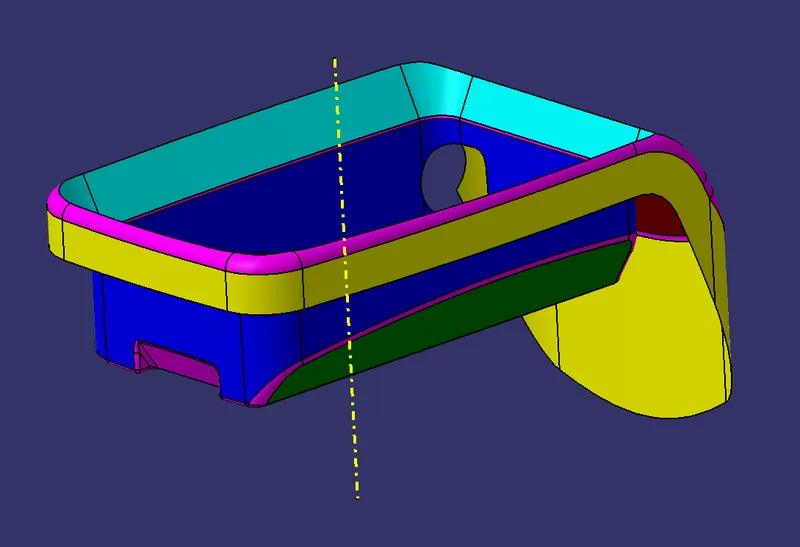

MAIN TOOLING AXIS:

CLASS - B SURFACE Creation:

• Consider the thickness of the component as 2.5mm.

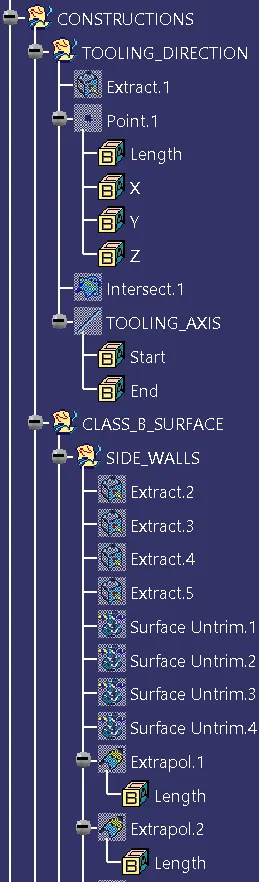

• Now we need to create a B surface that will be similar to the A surface at an offset value of 2.5mm. In this operation, we are creating A class B surface in 4 different geometrical sets.
• First, we are creating a sidewall. To create this surface, we need to extract the class A surface as shown below in the below figure.

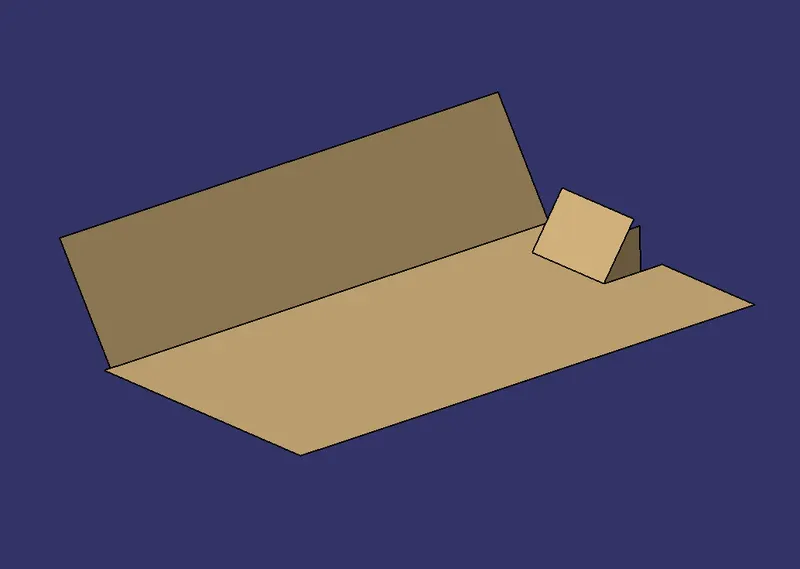

• Once the surface is extracted, Untrim it and then extrapolate it by a required value on each side using point continuity.
• Trim them to form proper walls. Now offset it by 2.5mm.
• Similarly, we need to extract the base, top wall and outer flange surface of the center console coin holder in different geometrical sets and perform similar operations on it as mentioned above.
• Once all the surfaces are created trim these surfaces to form a class B surface. Give the appropriate fillets to form a class B surface.

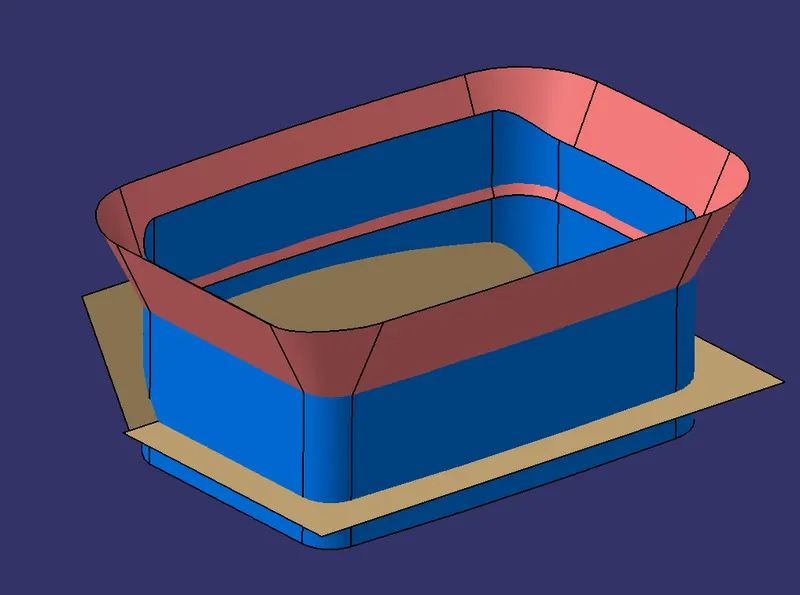

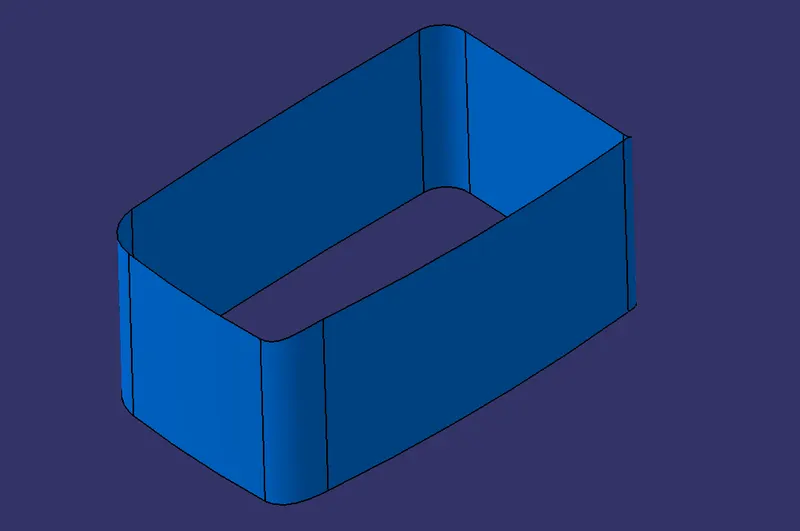

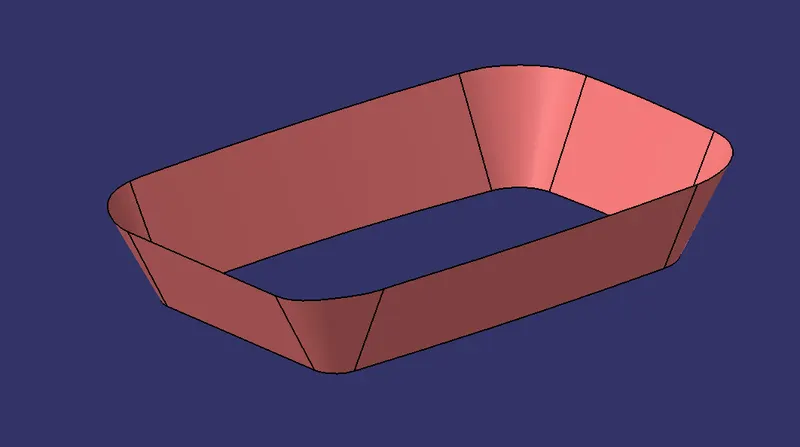

SIDE WALL:

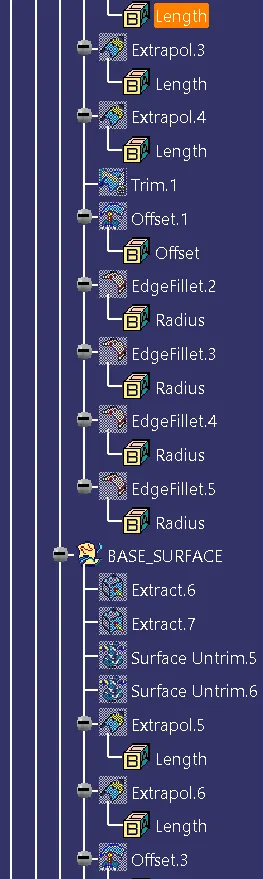

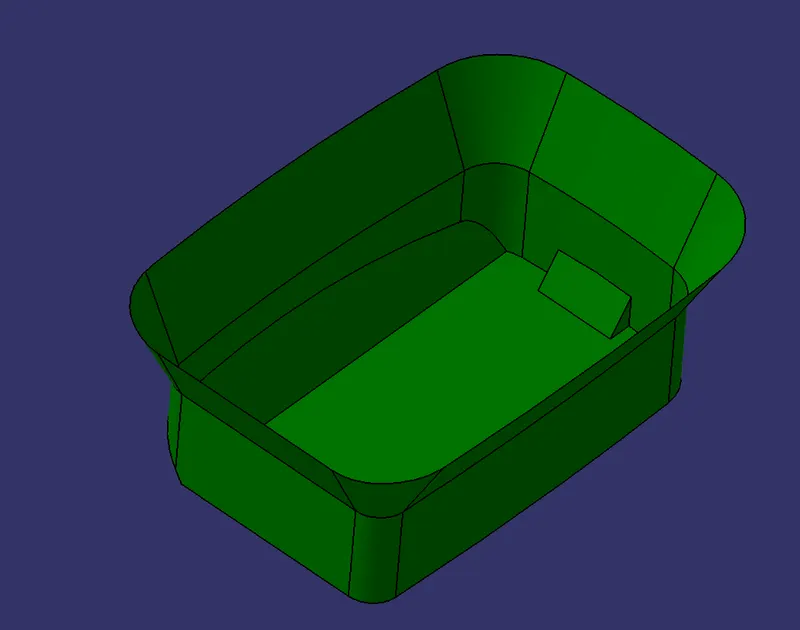

BASE SURFACE:

TOP WALL:

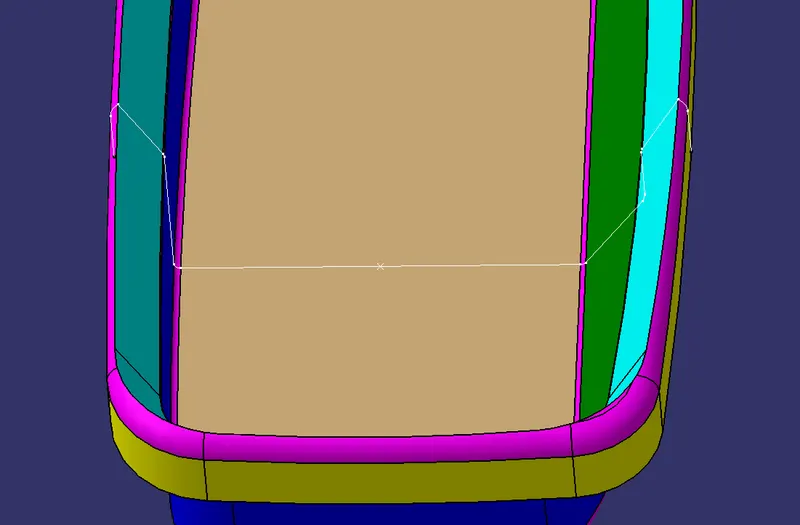

INITIAL TRIM:

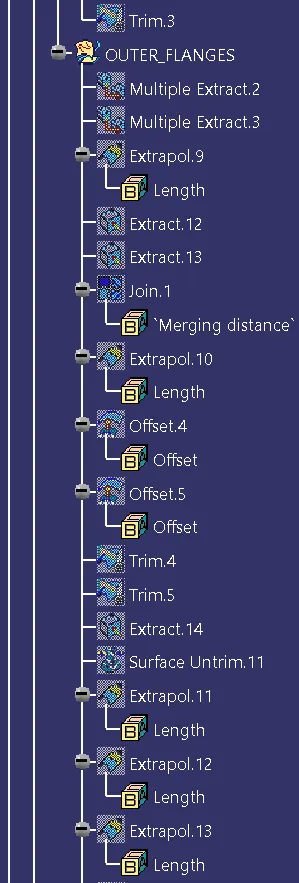

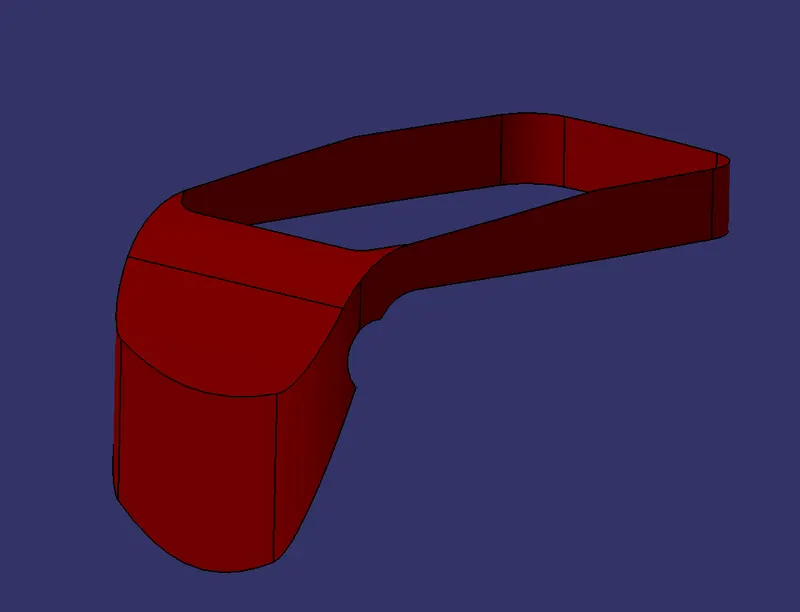

OUTER FLANGE:

FINAL CLASS - B SURFACE:

CLASS C SURFACE:

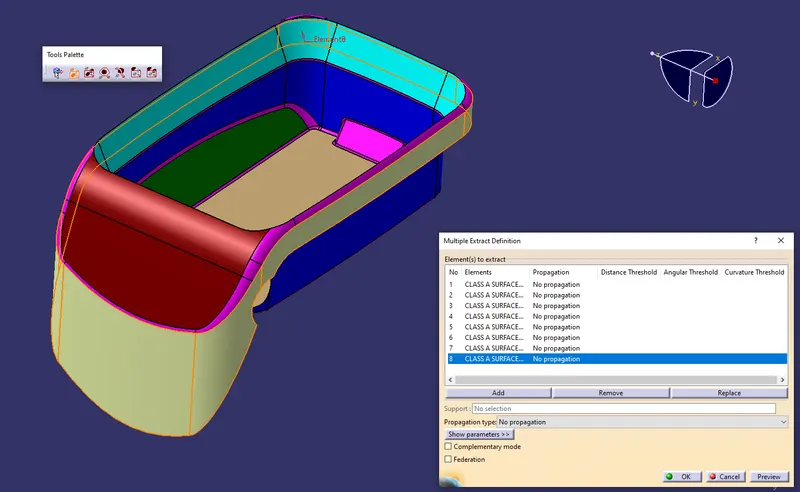

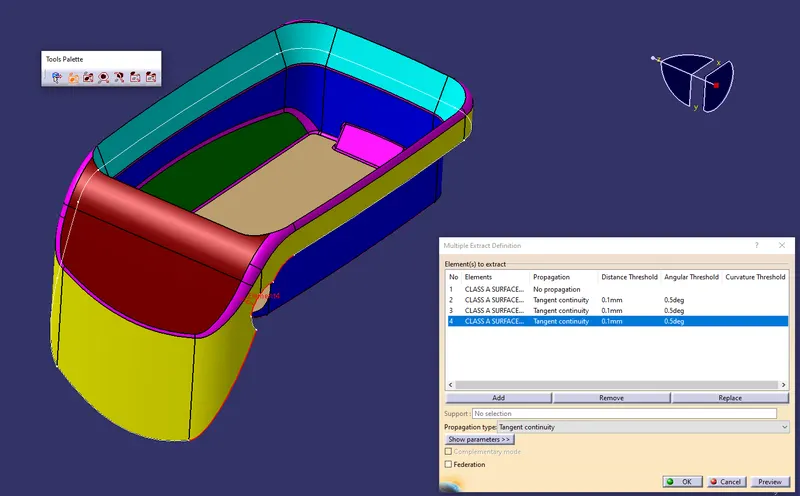

• To create a class C surface, first, extract the boundaries of the class A surface and extract the adjacent surfaces to the boundary as shown in the figure below.
• Now using the sweep option create the surface.
• To perform this operation, Go to the toolbar > sweep > profile type > line > subtype > with reference surface > guide curve 1 – (select the extracted boundaries) > reference surface – (select the extracted surface) > angle and length as 90 deg and 4mm respectively and click ok.

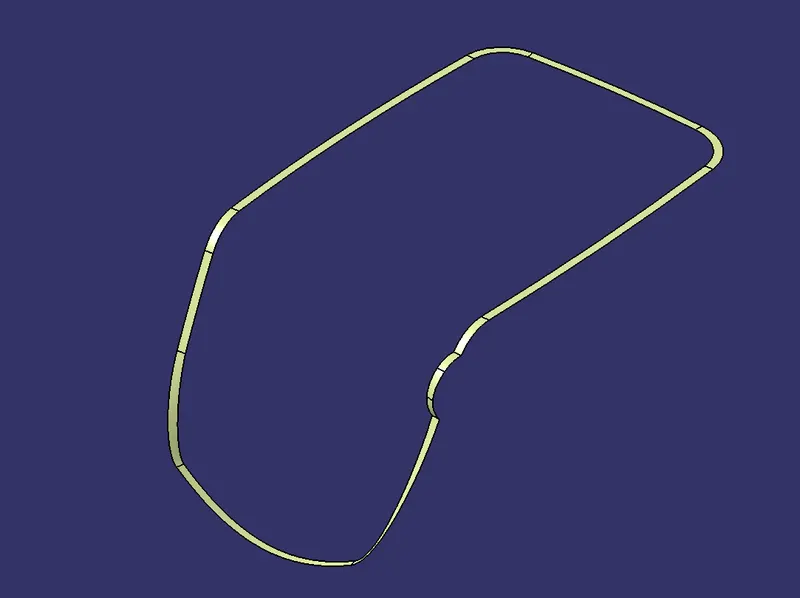

CURVE BOUNDARY:

SURFACE SUPPORT:

FINAL CLASS - C SURFACE:

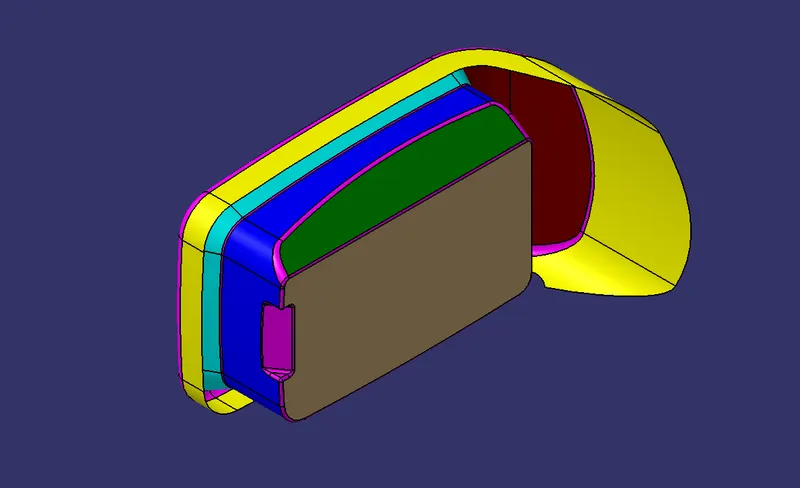

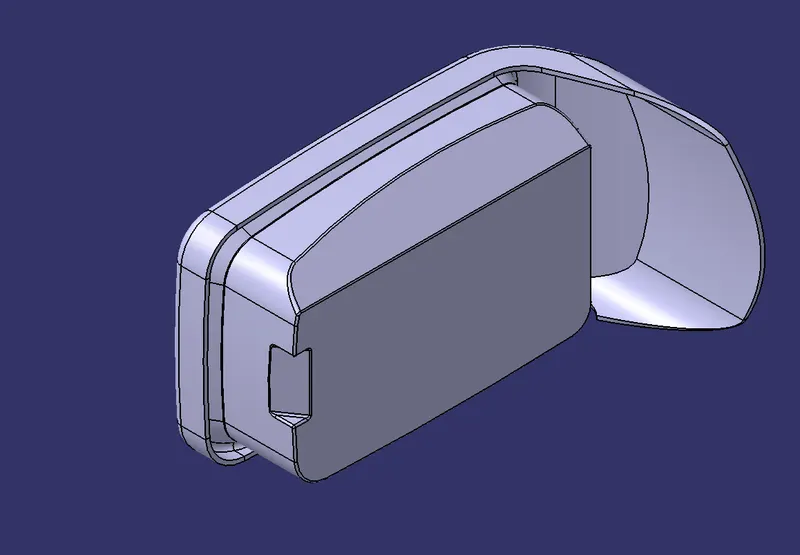

FINAL SURFACE BODY:

• After the creation of class A, class B and class C surfaces, we need to trim class B and class C surfaces to form a new surface.
• Then join the trimmed surface with the class A surface to form the final required surface. Now using the close surface option from the part workbench form a solid body from the surface body.

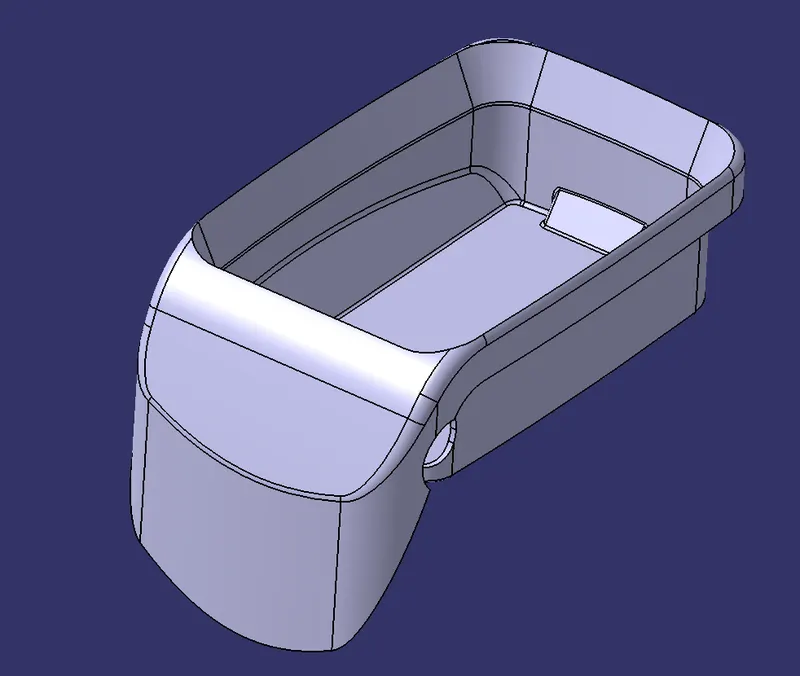

FINAL CLOSED BODY:

DRAFT ANALYSIS

• To perform draft analysis on the center console coin holder model, first set the view parameters to material mode.
• Then Go to Menu bar > Select insert > Analysis > Feature draft analysis. To give the draft direction, use the compass and align its Z-axis of it with the final tooling axis for the center console coin holder model.
• Once it is properly aligned, lock the draft direction. Select the center console coin holder and it will show us the current draft angle of the model.
• Set the draft value to 3 deg under the color scale variant and press ok.

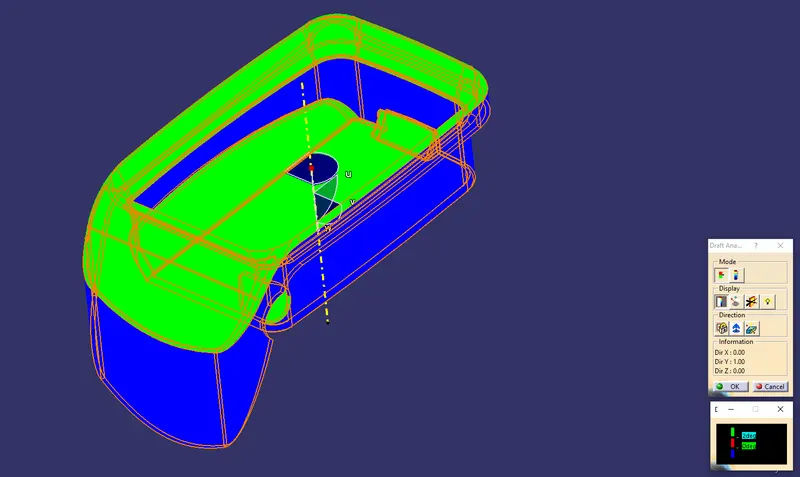

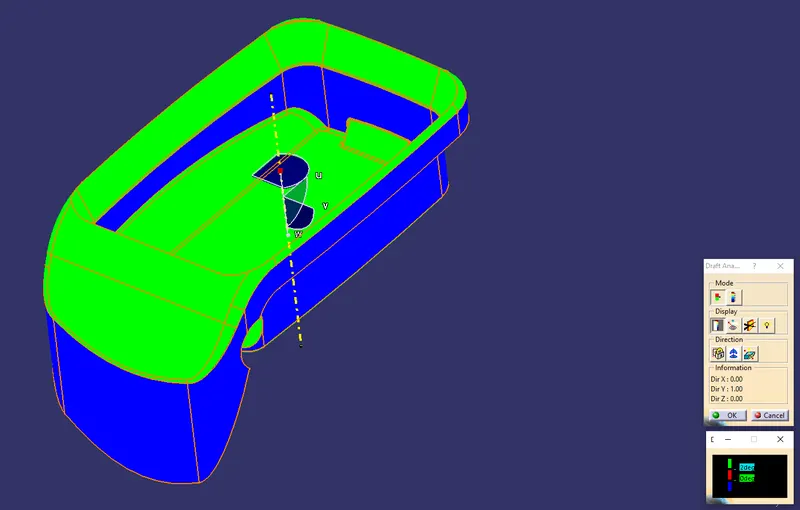

DRAFT ANALYSIS OF CLASS - A:

DRAFT ANALYSIS OF CLOSE BODY:

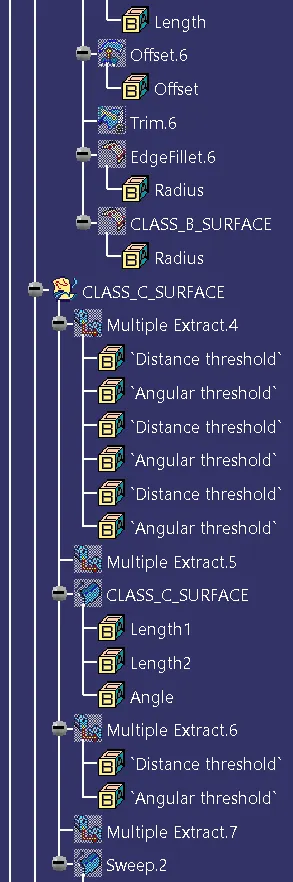

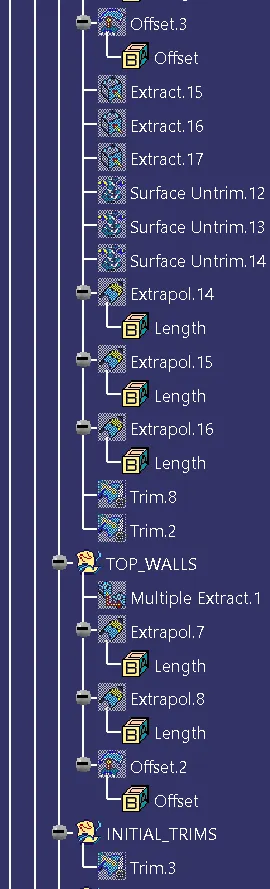

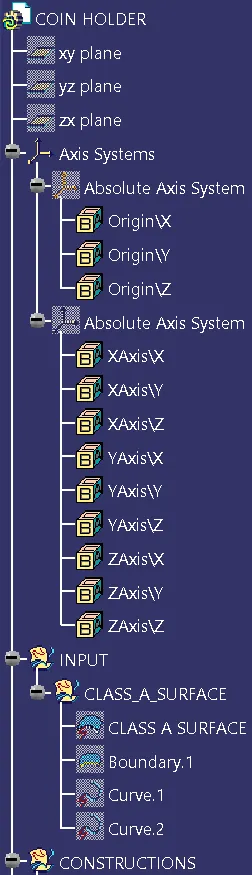

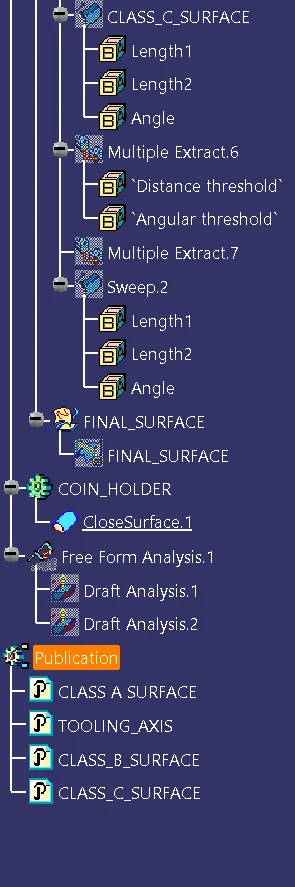

TREE STRUCTURE:

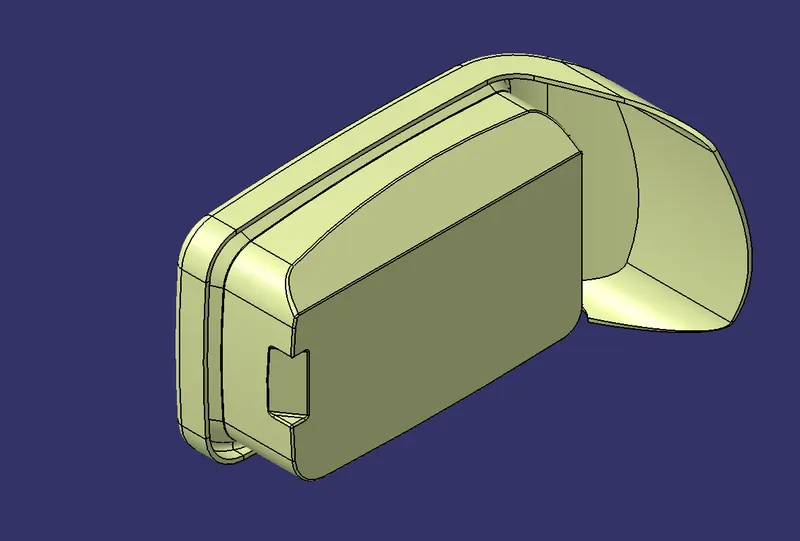

ISOMETRIC VIEW:

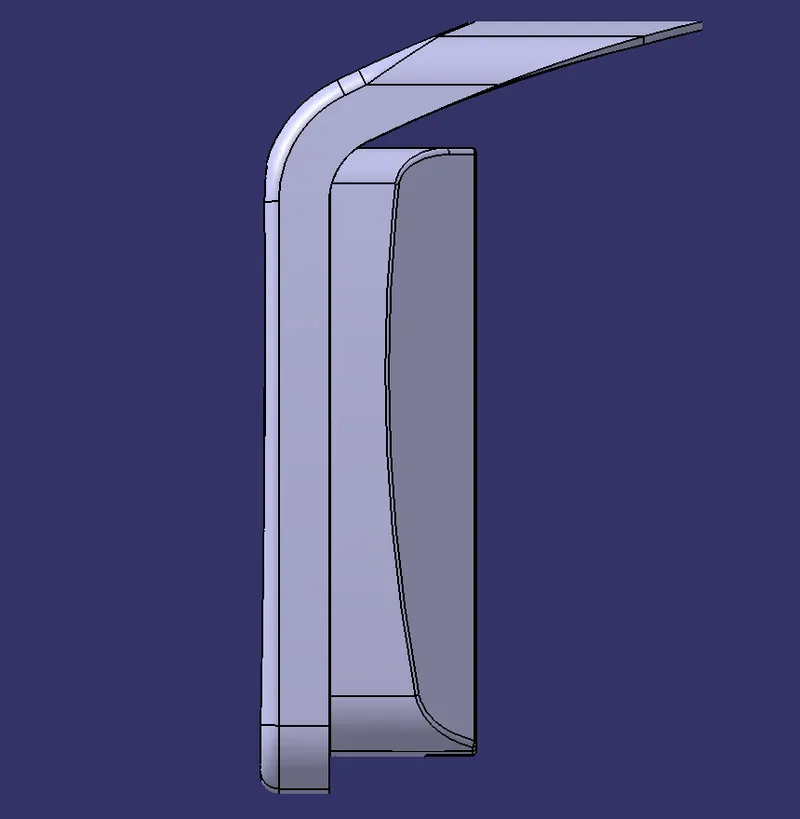

FRONT VIEW:

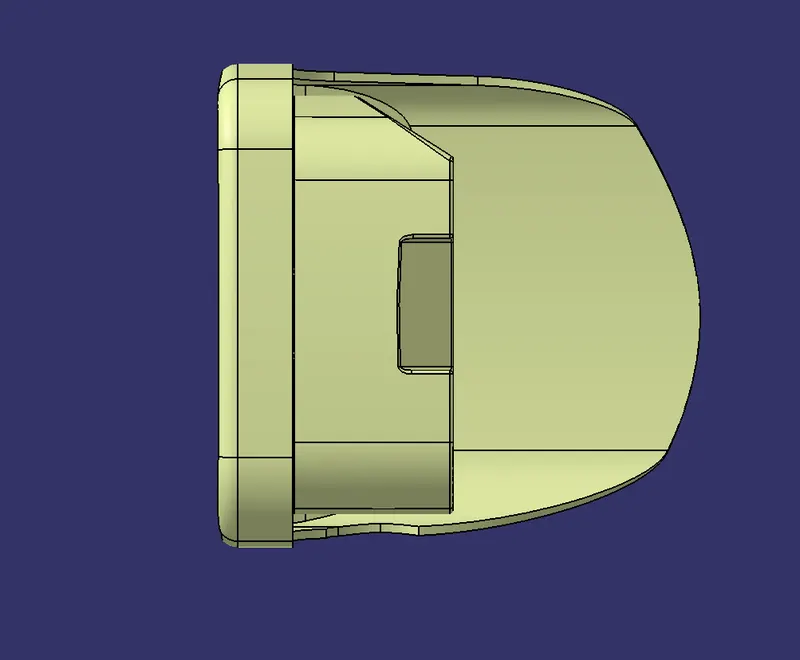

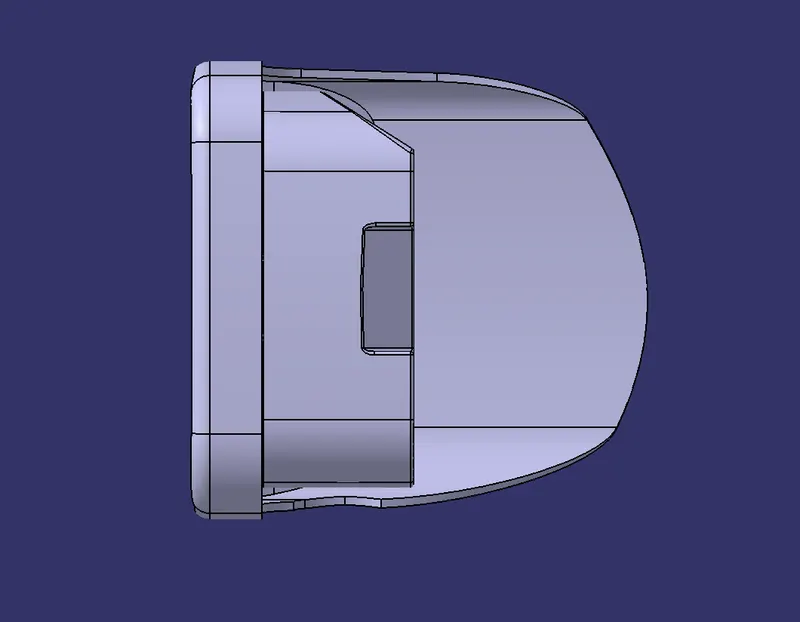

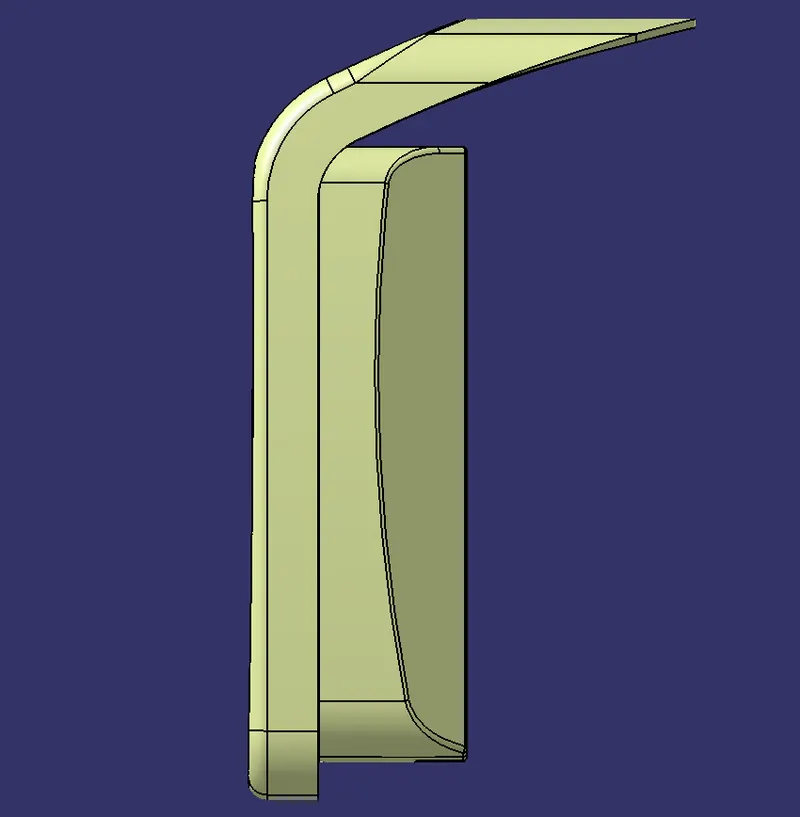

SIDE VIEW:

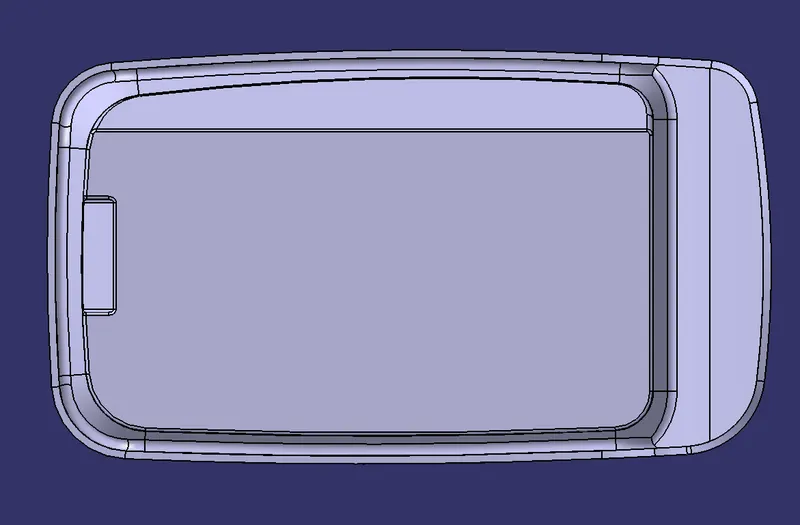

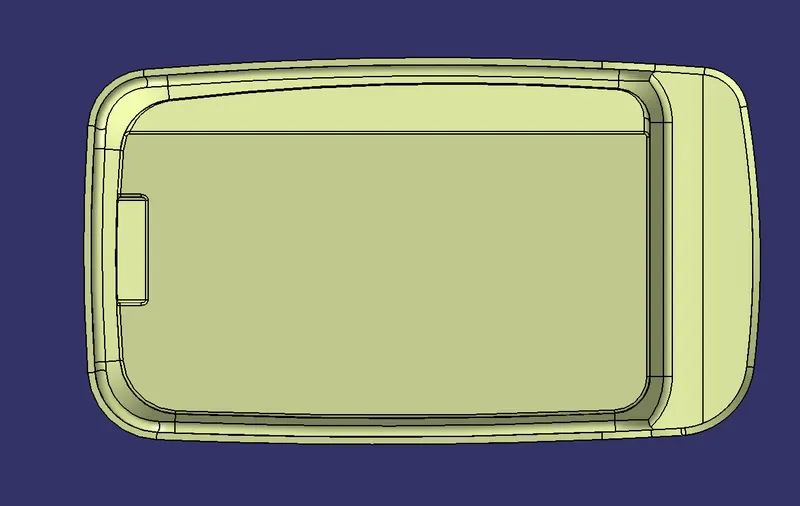

TOP VIEW:
