Week 8 - Challenge 3 - Coin Holder Design

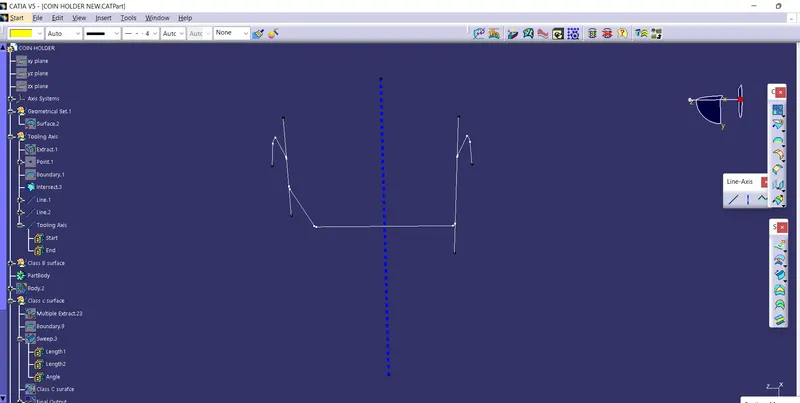

1. From Given Class A surafce Tooling Axis was created. On ZX plane center of the part intersection was taken. With the intersection two parallel lines are taken and Tooling Axis was created by bisecting two parallel lines

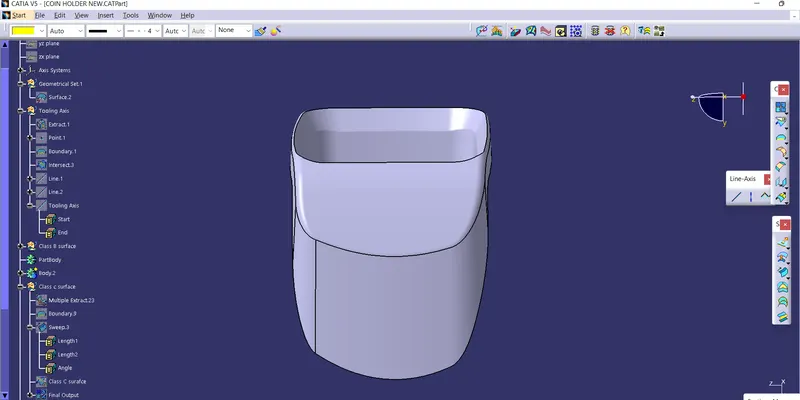

Tooing Axis

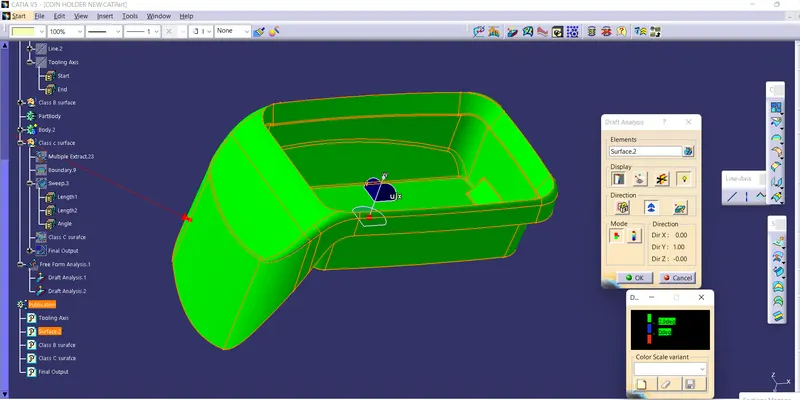

2. Draft analysis made on given class A surface. Compess moved to tooling axis and loacked the draft direction. In color scale it was showing fully green (0 to 3 degree).

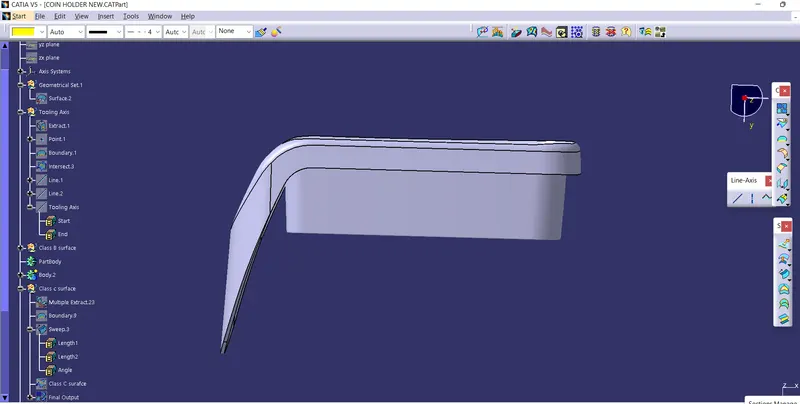

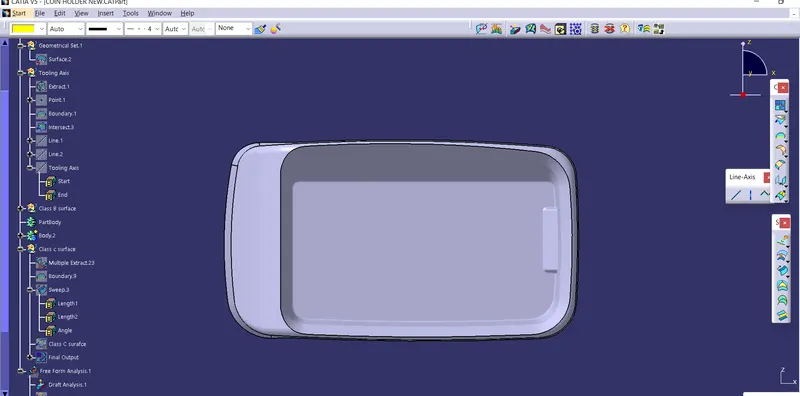

Class A surafce

Draft Analysis

3. Given Class A surafce considered into 5 parts as Base,Sied walls,Top walls, Flange and sliding surface. All the surfaces are extracted from the class A surface Extrapolated and offset to 2.5 mm and Trimed To get Class B surfce. Fillets are given to edges by considering the thickness of the part.

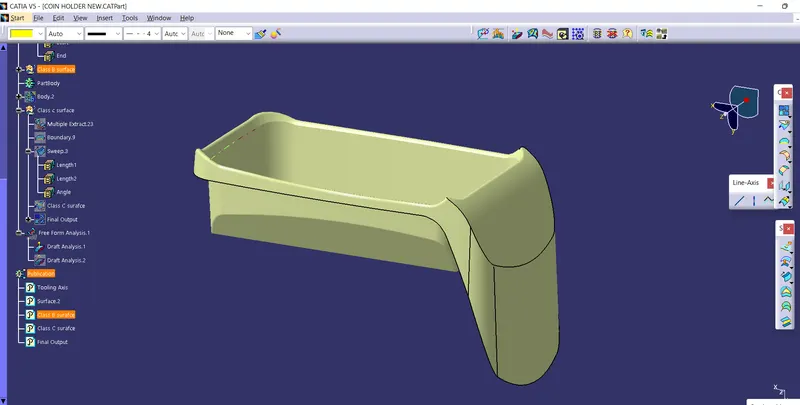

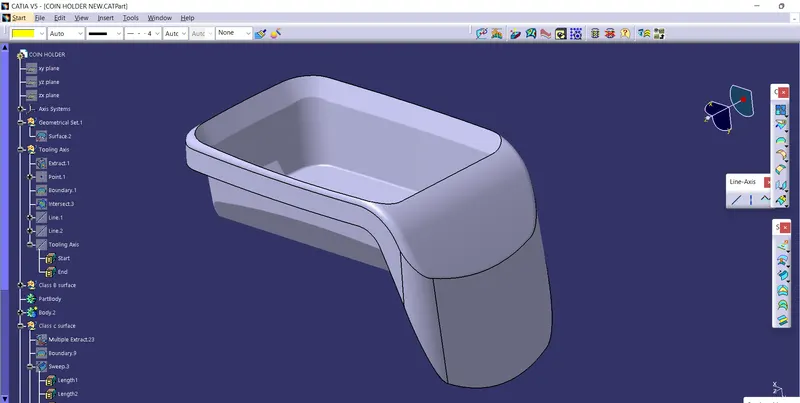

Class B surface

4. To create the class C surface, boundary taken from Class A surface. Sweeped using With referance surface. The Sweep was 4 mm length and at 87 degree. the Sweep and class B surface are trimed to merge both.

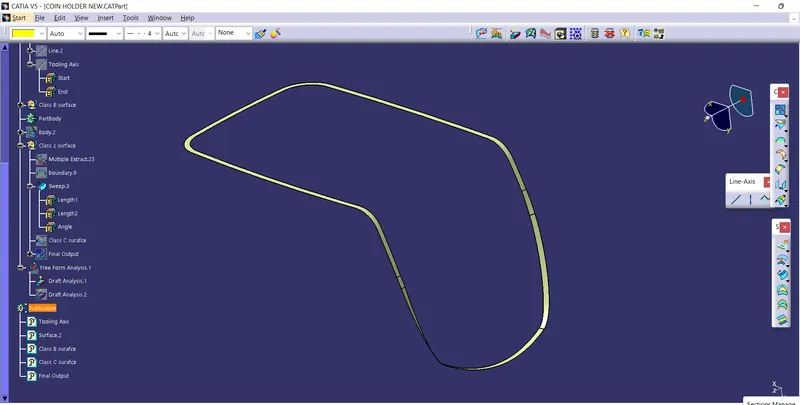

Class c Surface

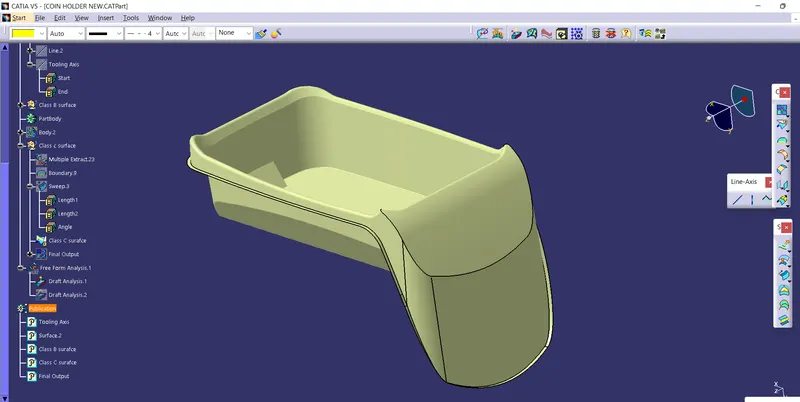

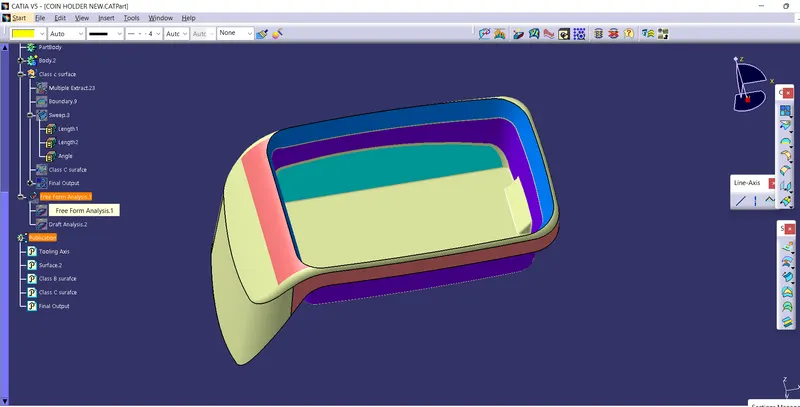

Join of Class B and Class c Surfaces

5.To get final output Class A surafce , class B surface and Class C surfaces are Joined. Draft analysis made on Final output in that Outer surafce are in green and inner surface in red color.

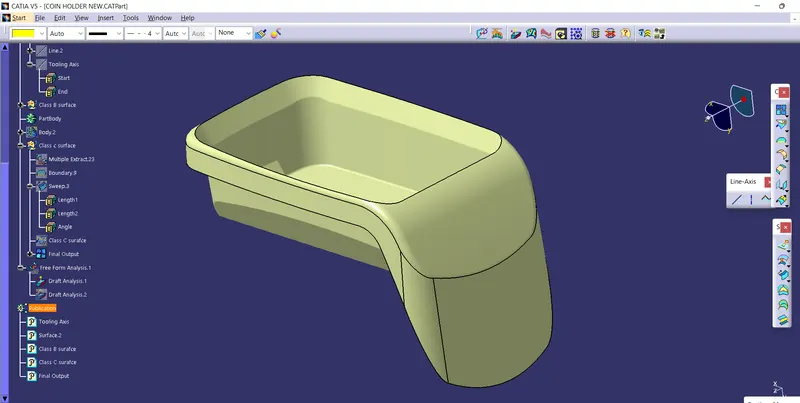

Final OutPut

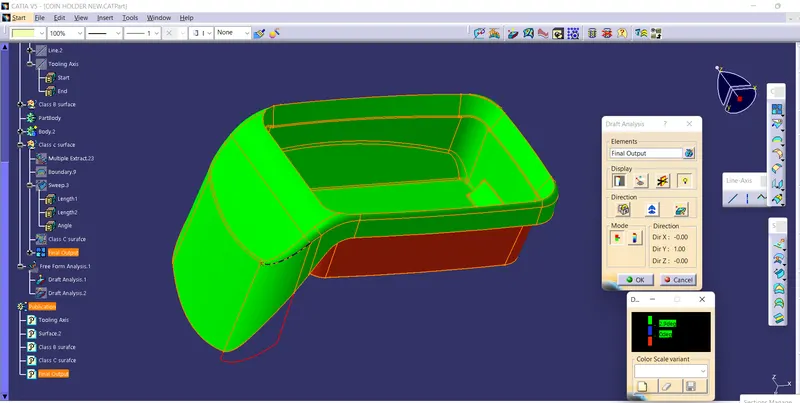

Draft Analysis on Final output

6. Final output Converts into Solid part using close surface in part surface.
