Week 8 - Challenge 1 - Base Bracket Design

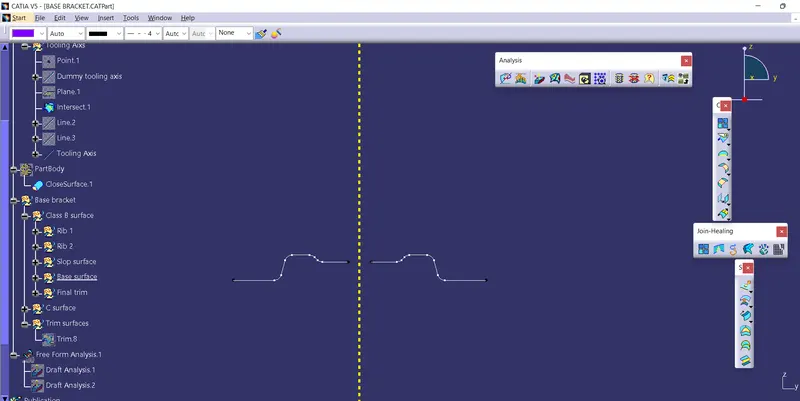

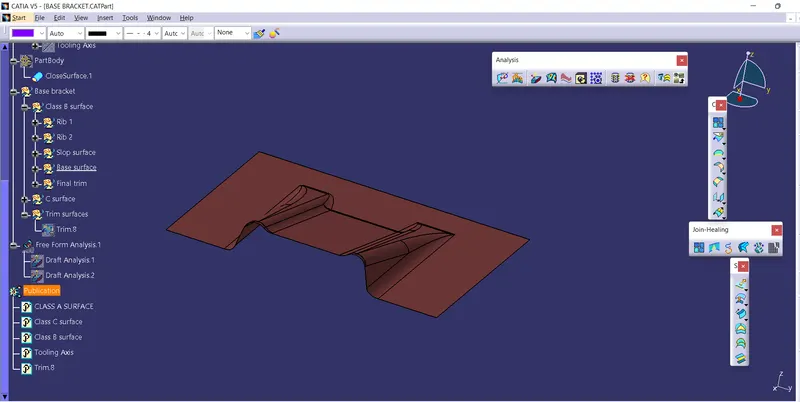

1.Recieved the class A surface, in that created a dummy tooling axis in z axis and plane .Using intersect created two parllel lines with that created a bisecting line with that created the tooling axis.

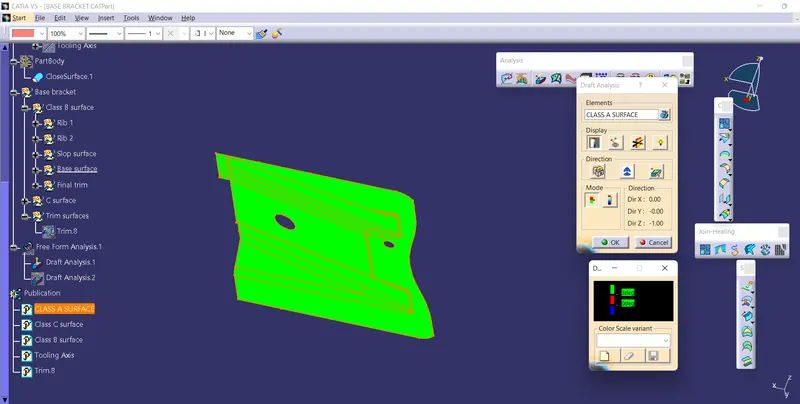

2.Draft analysis done on given class A surface and changed the draft degree into 3 and moved the compess to the tooling axis.

3.Two create class B surface consider the given class A surface a 3 simple surafce as Rib, Slop surface and Base surface. Offset the rib, slop surface and base surface to 2.5mm and untrimed the surfaces and extrapolated the surfaces and trimed it to get class B surface.

4.To create class C surface , boundary option used to take boundary from given class A surface. with the boundary expanded using Sweep option with Tooling axis. Same like that Two hole in the class A surface got sweeped. class A surface and class B surface are merged using Join.

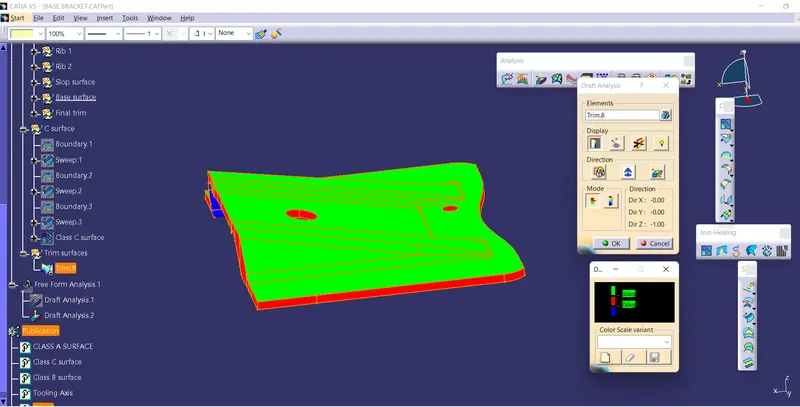

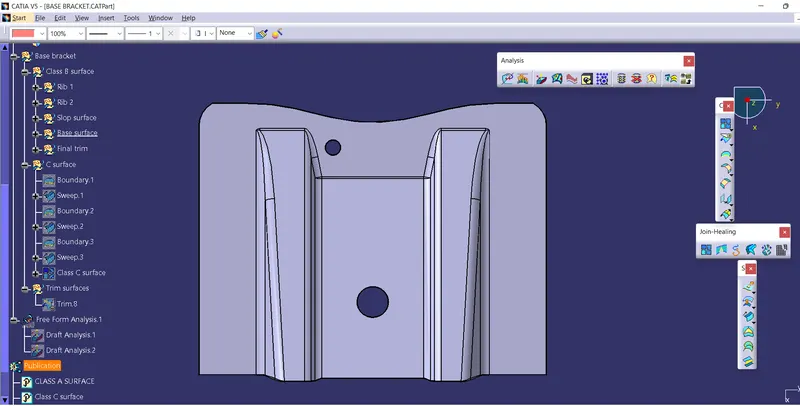

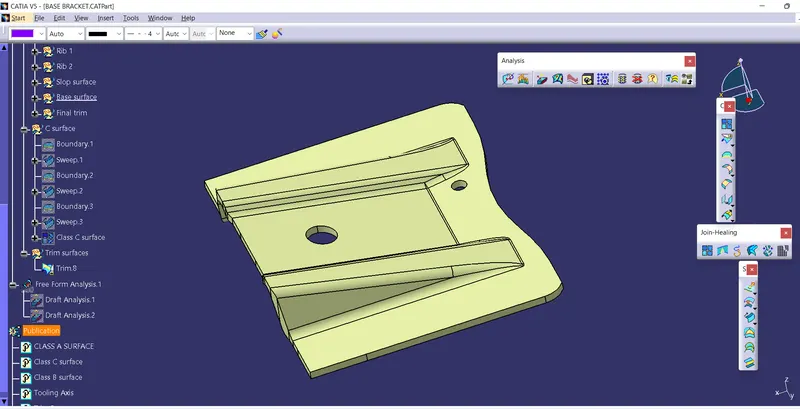

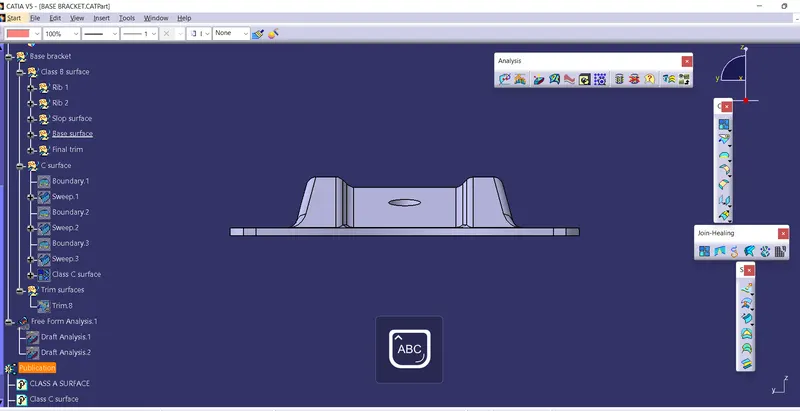

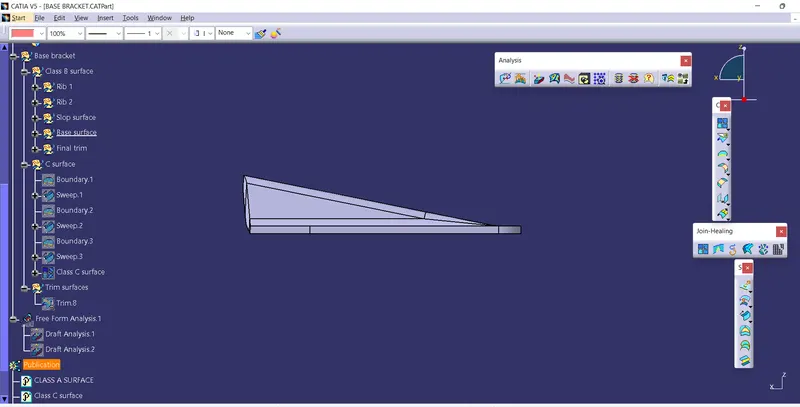

5.Finaly to get the out put given class A surface, class B surafce and class C surface are trimed. And draft analysis done on final part.

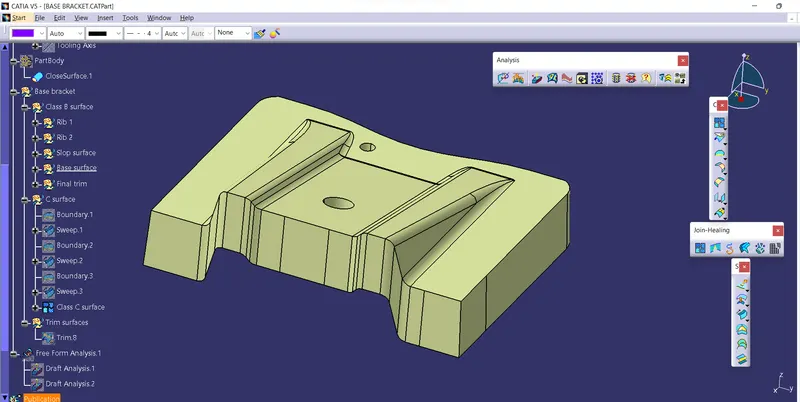

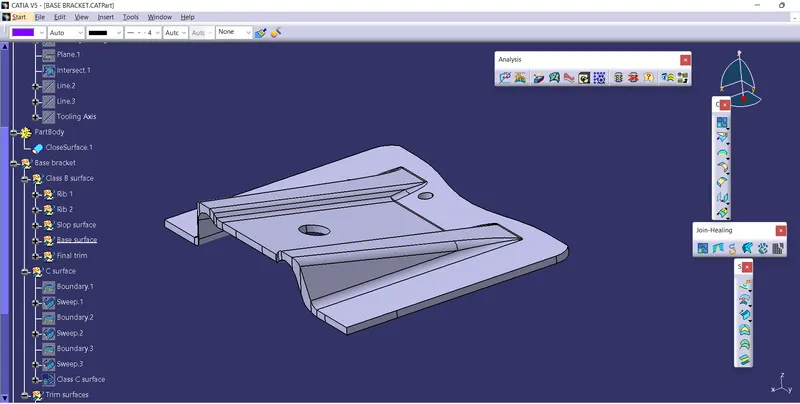

6.From th e final output from surface workbench it was made into a solid part in part workbench using cloase surface.
