Week 8 - Challenge 2 - Switch Bezel Design

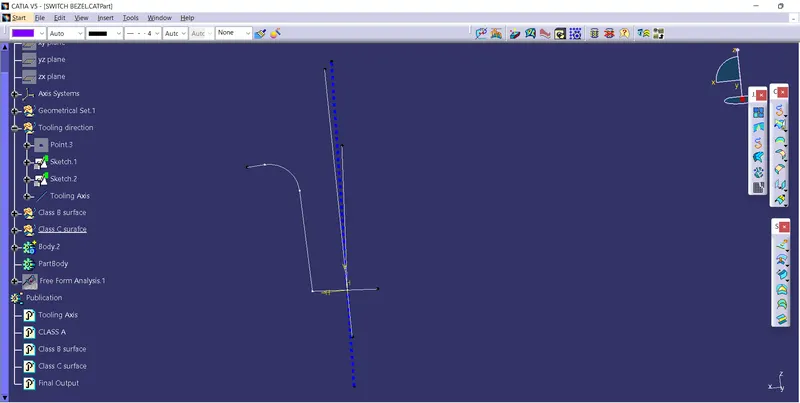

1. With the given Class A surface , in sketch1 dummy tooling axis 1 created by intersecting two parallel faces and in sketch2 dummy tooling axis 2 created parallel to third face of wall at 3 degree and by intersecting dummy axis 1 and dummy axis 2  Tooling Axis is Created.

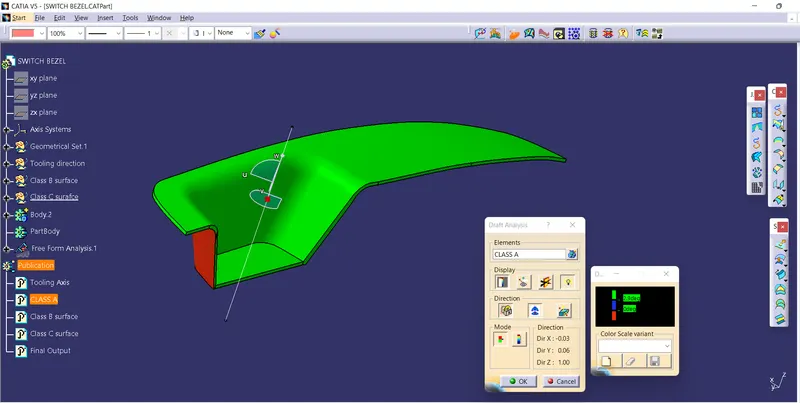

2. Draft analysis made on Given Class A surface.

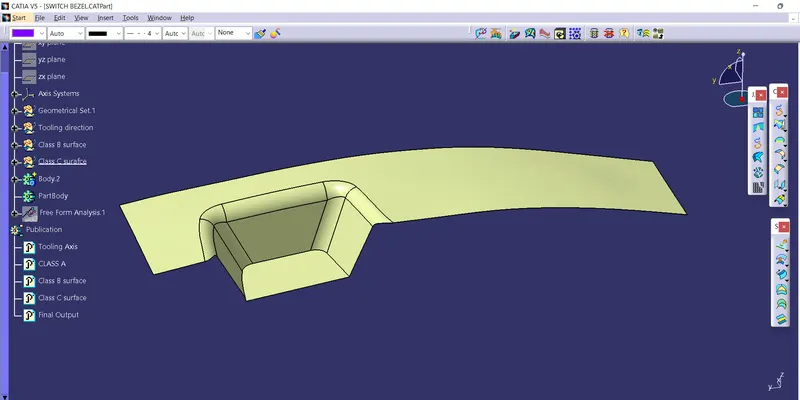

3. Given Class A surface considered as 3 parts Wall, base and Rest . the parts are extracted from class A and untrimed and exapolated as needed and all surfaces are offseted to 2.5 mm.  The offseted surfsces are trimed.

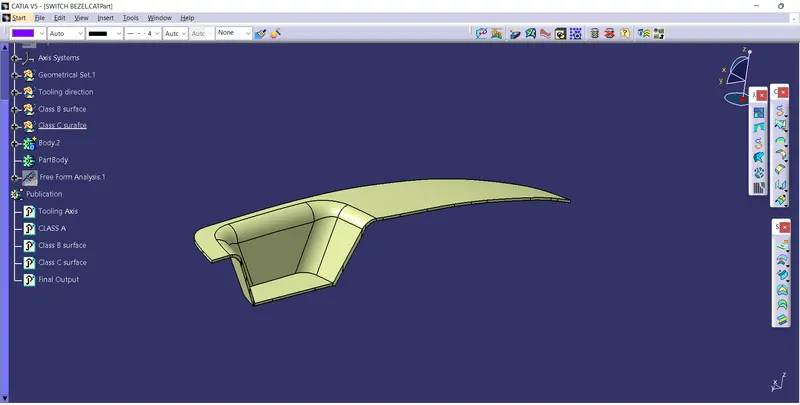

4. Boundaries are taken from Class A surface. Sweeped with respect to the boundary. the swiped surface joined with class A surface to get Class C surface.

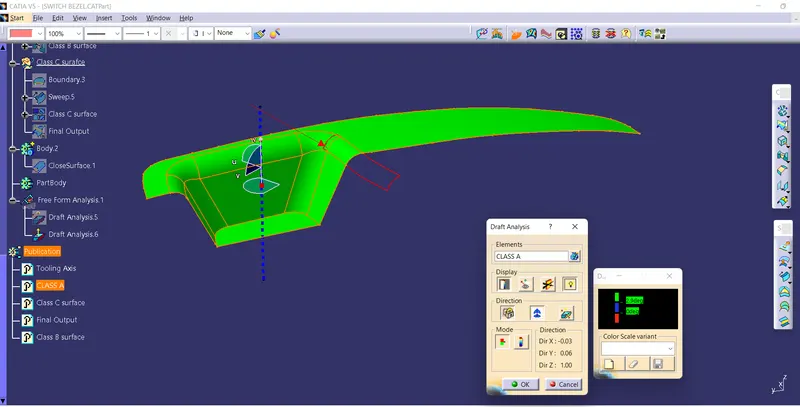

5. To get final Output, Class A surface, Class B surface and Class C surface get trimed to get required output. Draft analysis made on final output.

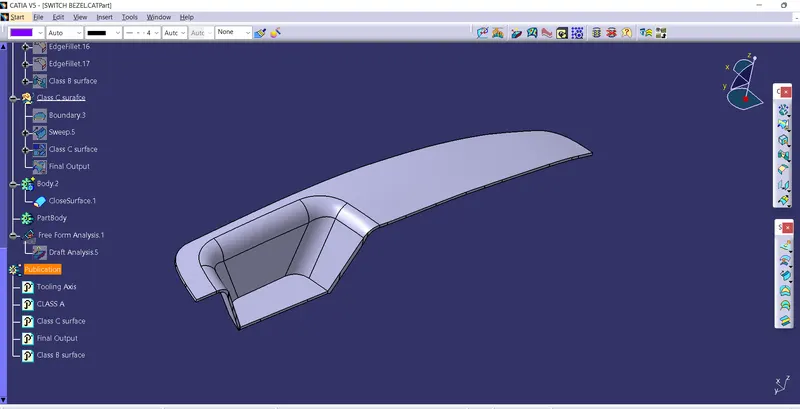

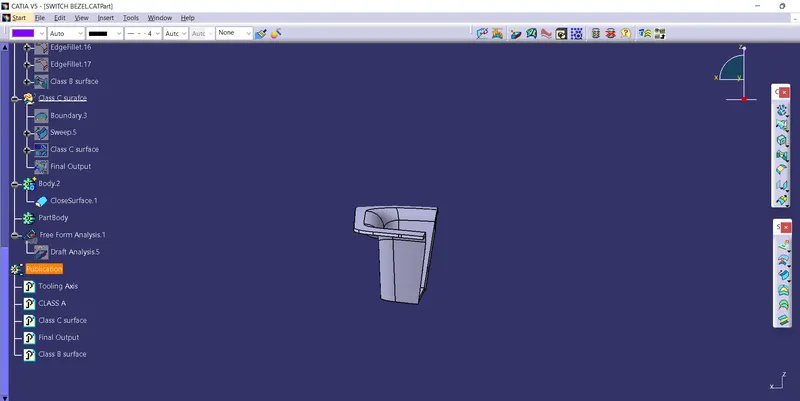

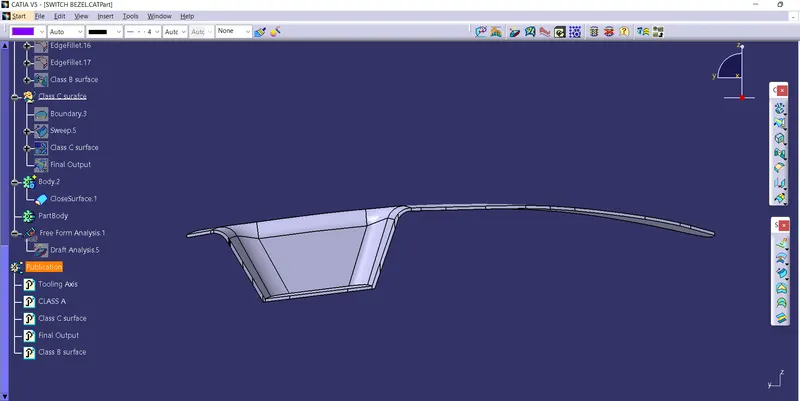

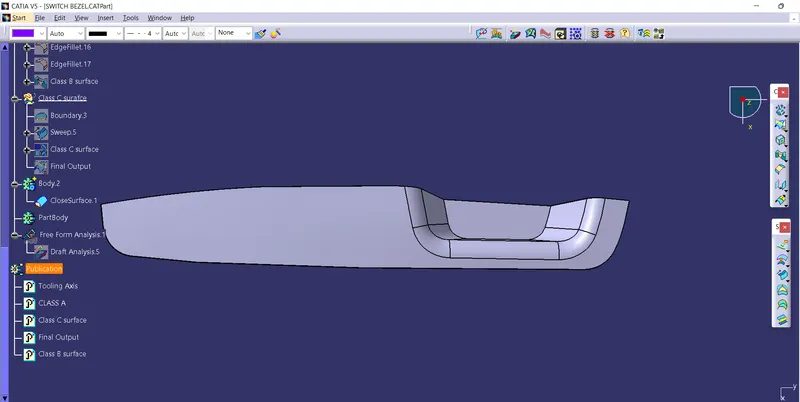

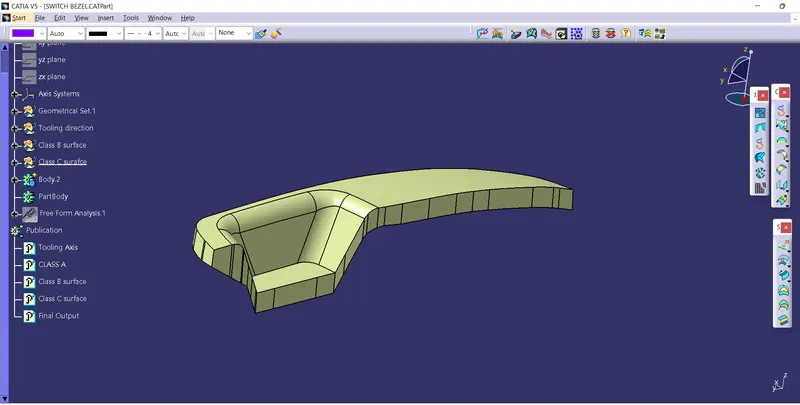

6. The final Output from Surface workbench converts into Closed surface in Part workbench.

Note : Surface workbench challenge 1 attached here because wrong file submitted on that challenge.
