Week 8 - Challenge 3 - Coin Holder Design

KKatha Sai Lokeswara Reddy25 Jul 2022

COIN HOLDER DESIGN

AIM

This Report aim to create a tooling direction of the given class-A surface of Coin Holder and then to create the solid model by creating B and C surfaces and perform draft analysis.

PROCEDURE

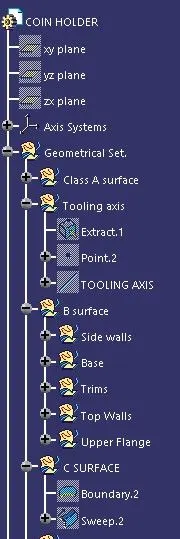

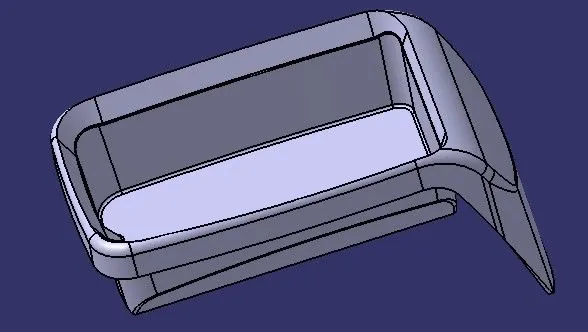

Checking the given class-A surface:

The class-A surface must be evaluated before starting the design and any irregularities/ discontinuities must be reported and rectified. This can be done by using the join/ boundary command.

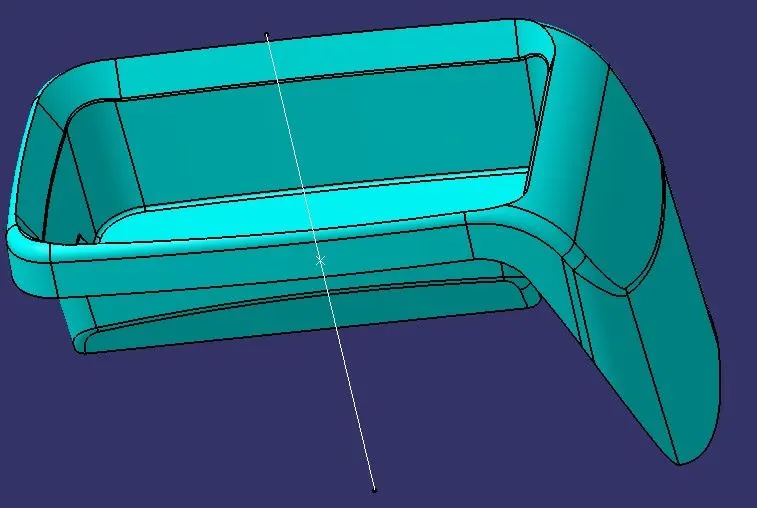

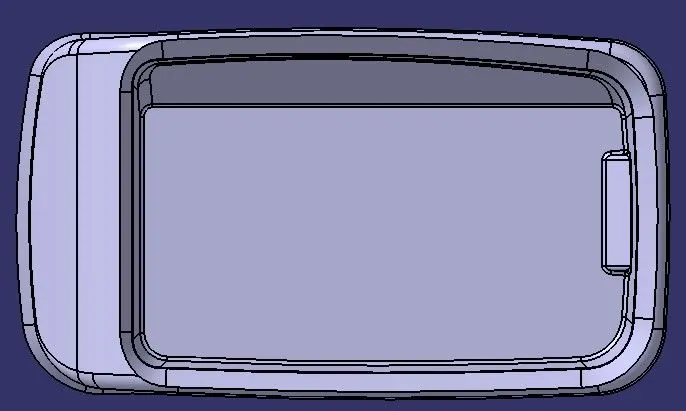

Defining the tooling direction

Ideal tooling direction has to be the direction in which most of the features can be easily cleared. In this case the initial tooling direction can be assumed in the direction perpendicular to the flat surfaces and the surfaces which might be difficult to clear in this direction are identified and the initial tooling direction has to be modified accordingly. But in this case the flat surfaces and the critical surfaces are perpendicular to each other. So, the initial tooling direction can be taken as the final tooling direction.

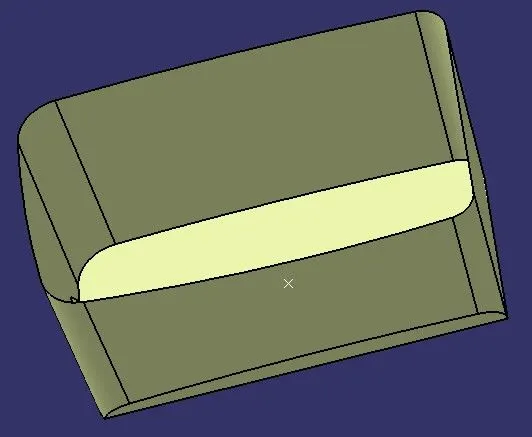

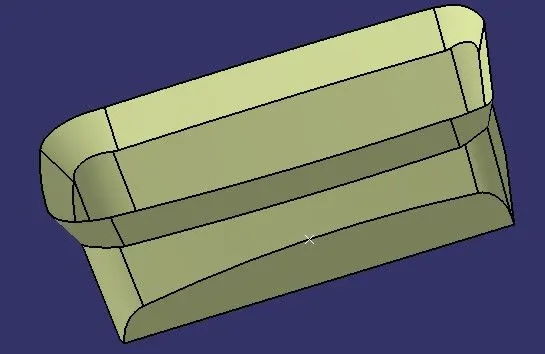

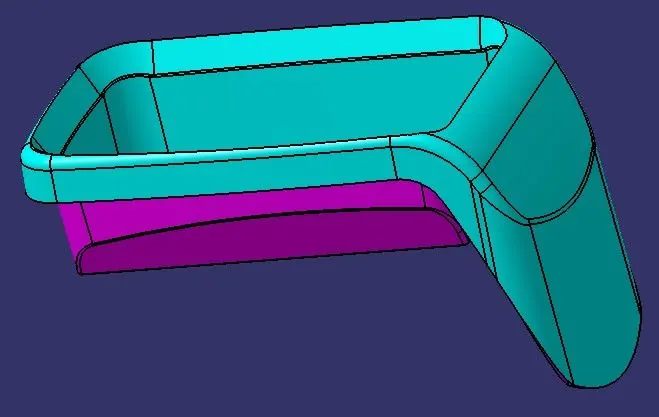

Creation of class-B surfaces:

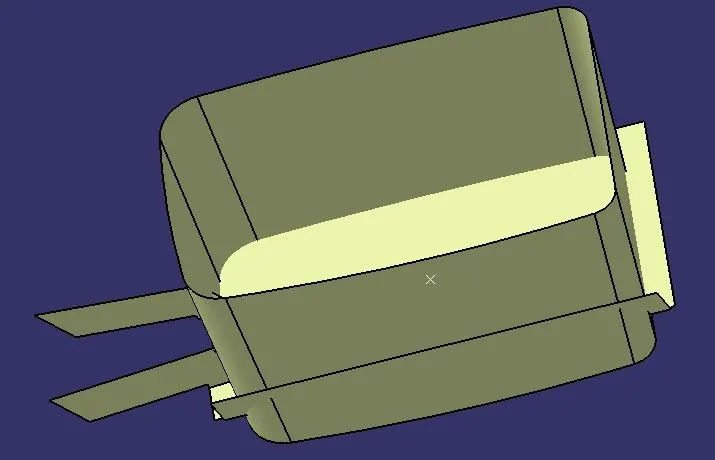

For the class-b surfaces we extract the class-A surfaces excluding the fillets and then untrim these surfaces to get the original surfaces. These surfaces are now extrapolated by appropriate distances so that all the surfaces touch each other. Now, the unnecessary faces are trimmed off and the output is offset by thickness value (here it is 2.5mm) in the appropriate direction. This process is repeated for all the features in the coin holder to get the class-B surface.

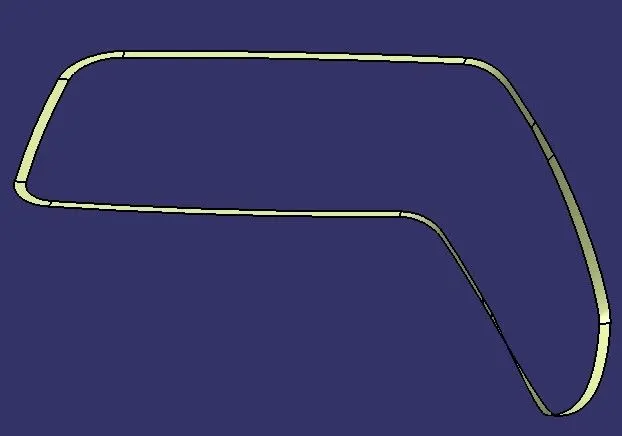

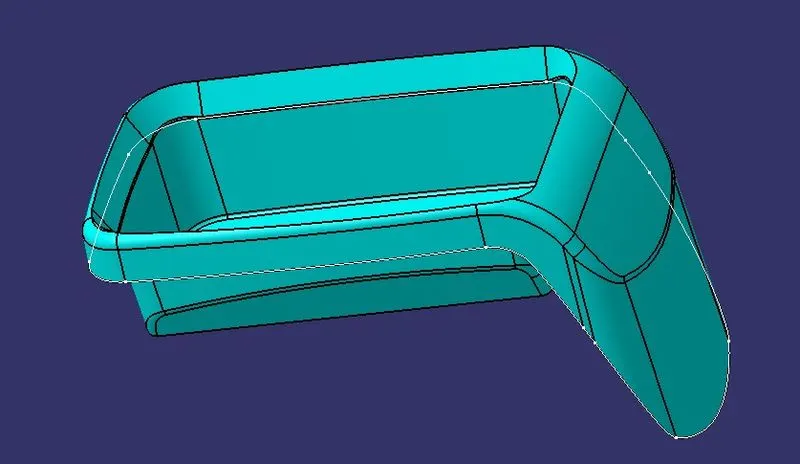

Creation of class-C surface:

Class-C surface joins the A and B surfaces together. C-surface can be created by using sweep command where the input is the boundary extracted from the A-surface. The c-surface is now joined to the existing A-surface and the output is trimmed using the B-surface which gives a closed surface (This can be verified using boundary command).

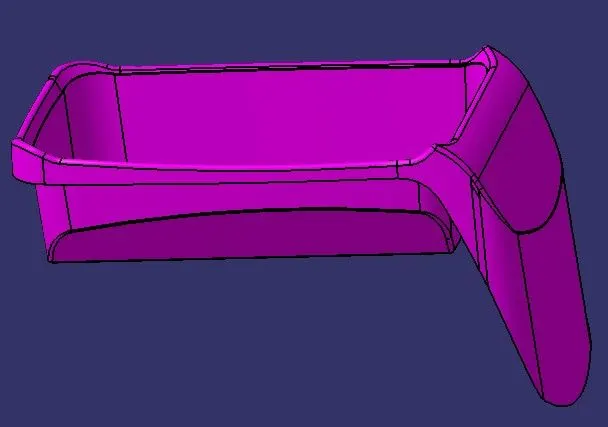

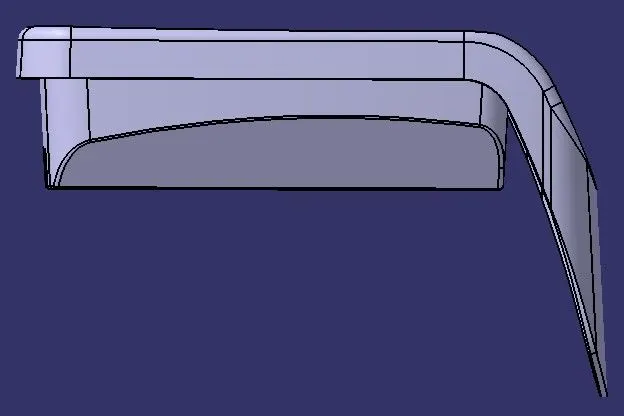

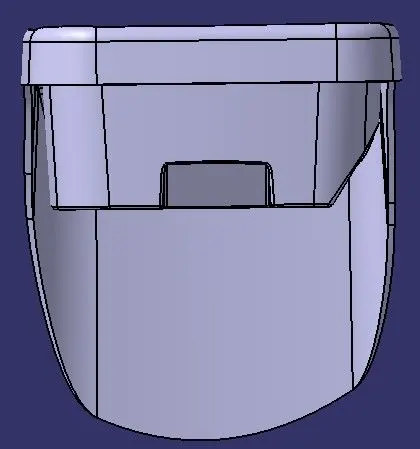

Final surface

Closed body:

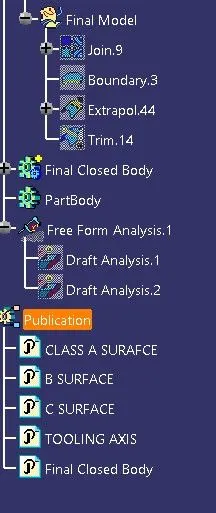

The obtained surface model can be converted into a solid model using the closed surface feature present in the part workbench.

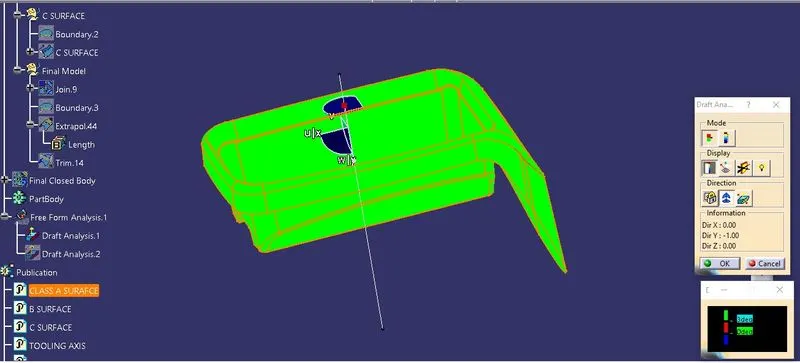

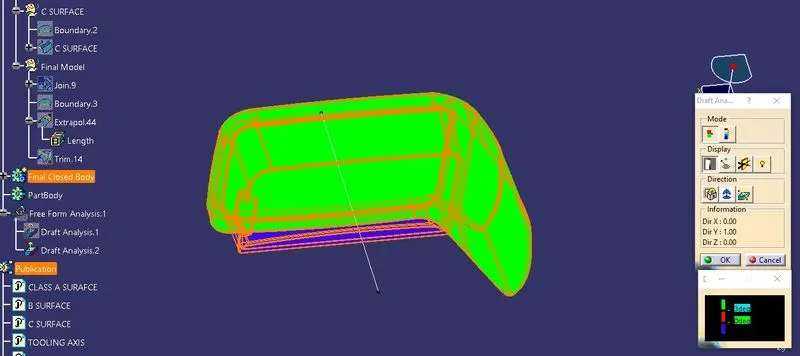

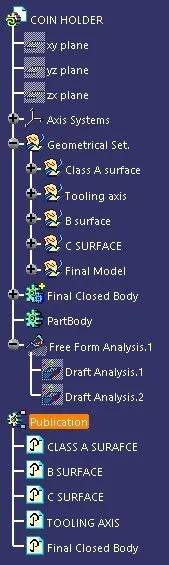

Draft analysis:

Draft analysis is an operation that is performed to know the draft angles of the surfaces concerning the tooling direction. The minimum feasible draft angle for this design is taken as 3 degrees. Generally for plastic components, a minimum draft angle that can be achieved is 0.5 degrees.

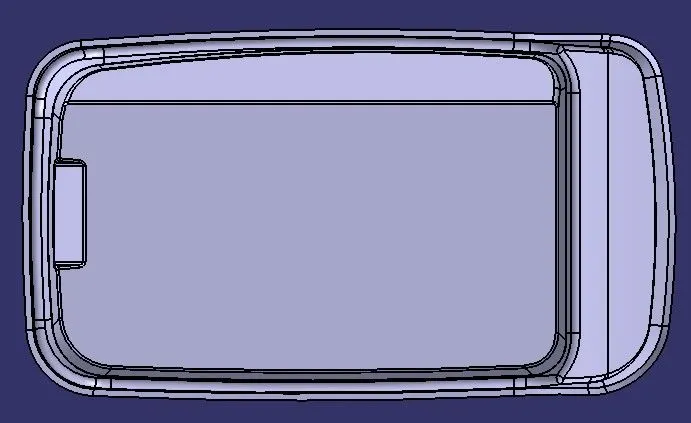

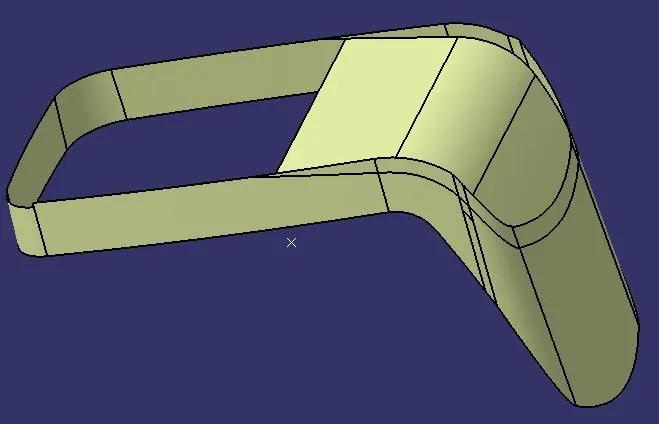

class A surface
