Week 8 - Challenge 3 - Coin Holder Design

Aim -

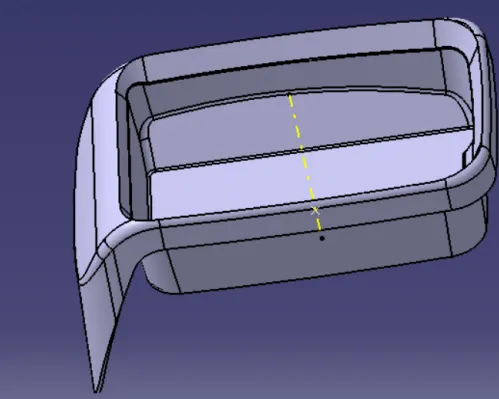

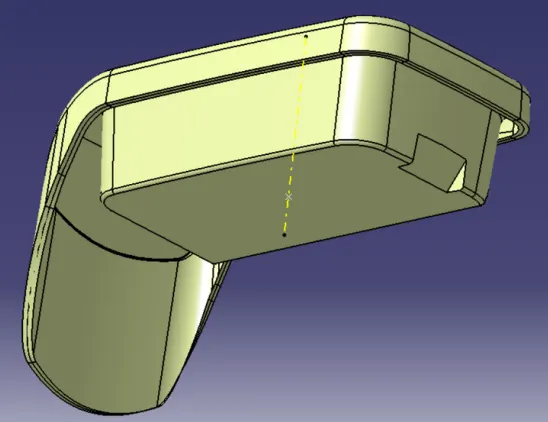

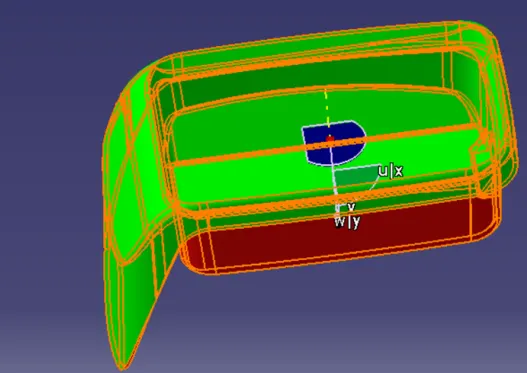

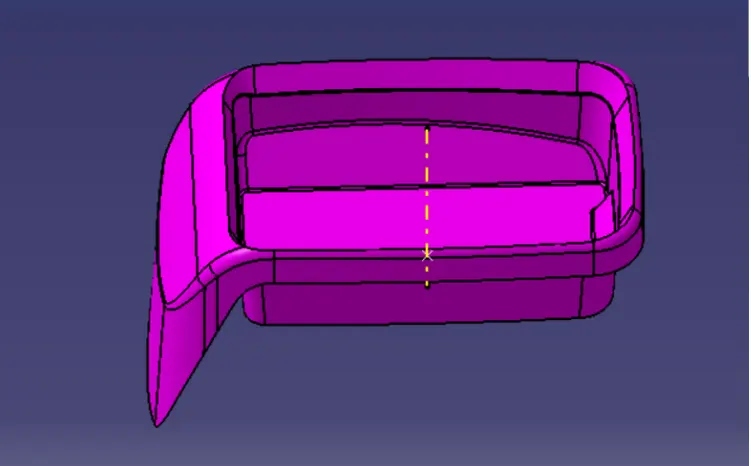

Create the Coin Holder Plastic component through the given Class-A surface. To begin
with, the tooling axis for the given Class-A Surface should be created meeting the

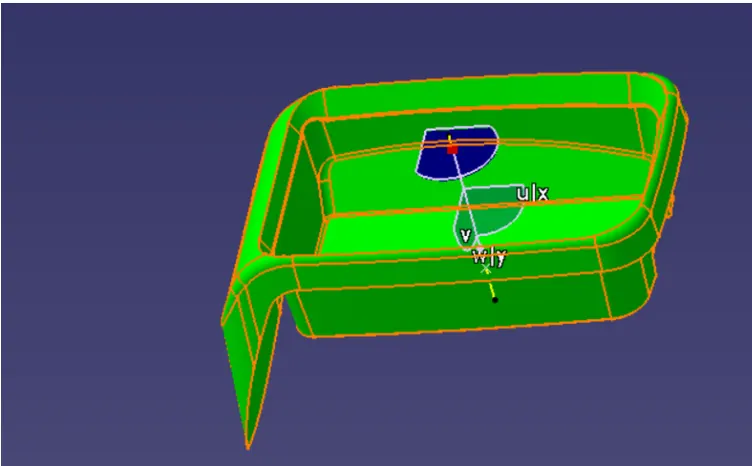

requirements of the draft angle and at the end perform the Draft analysis on the model.
objectives :

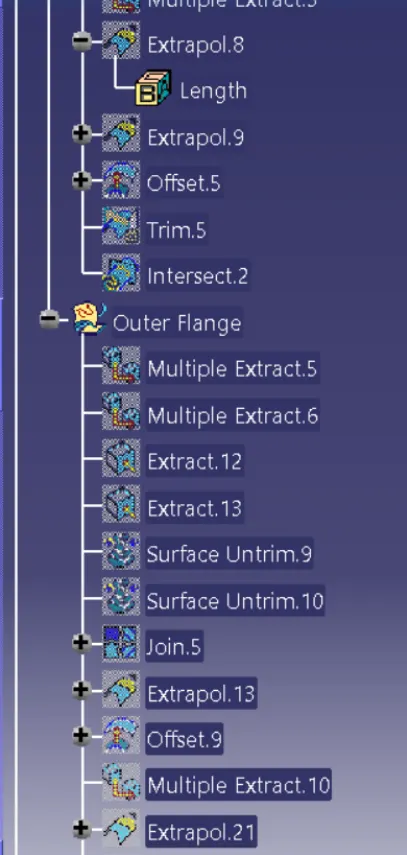

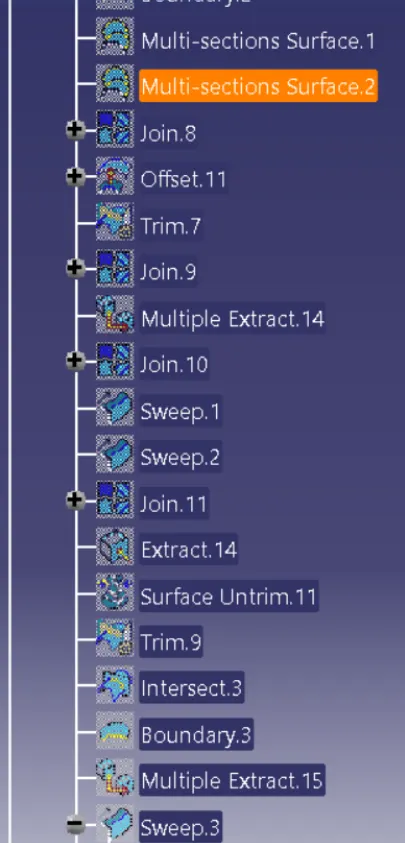

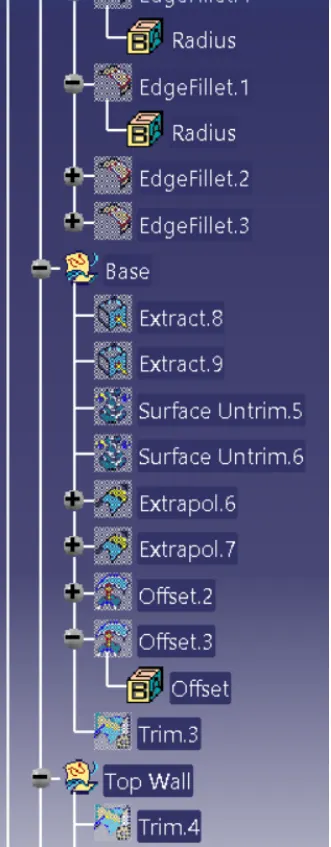

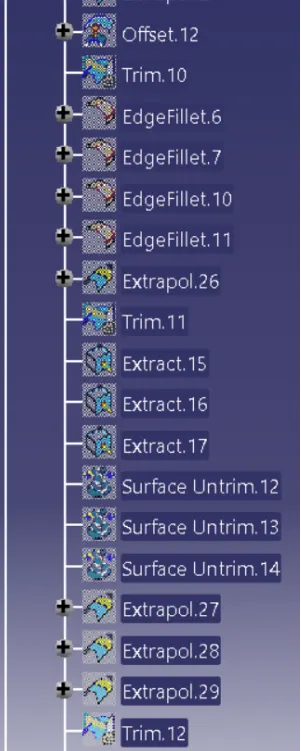

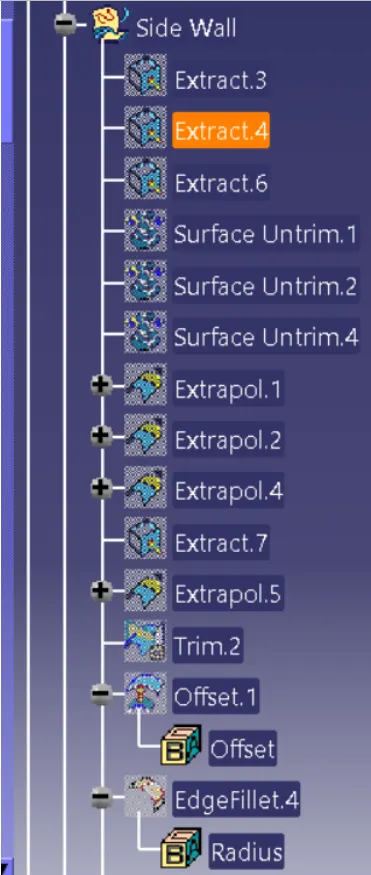

To ensure proper tree structure is followed
To keep the design as per requirement
All the sketches should be iso constrained
To publish the Class A,B and C Surface.
PROCEDURE :
First import the class A surface in catia.
