Week 8 - Challenge 3 - Coin Holder Design

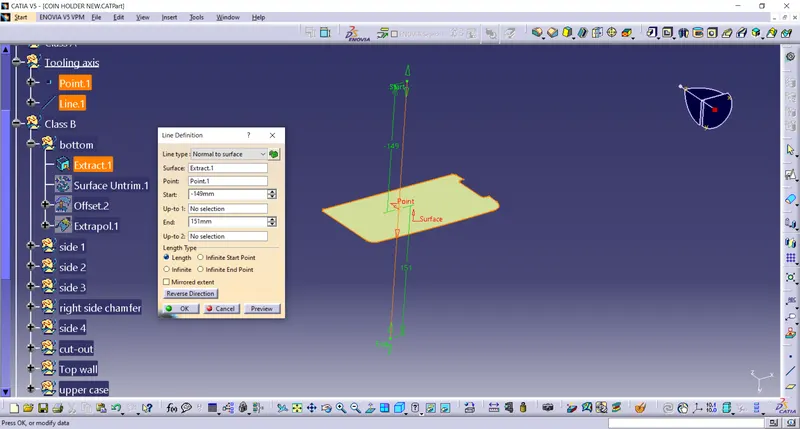

CREATING TOOLING AXIS

1.Extract any surface from the class A.

2. Take a point on that surface and create a line normal to the surface.

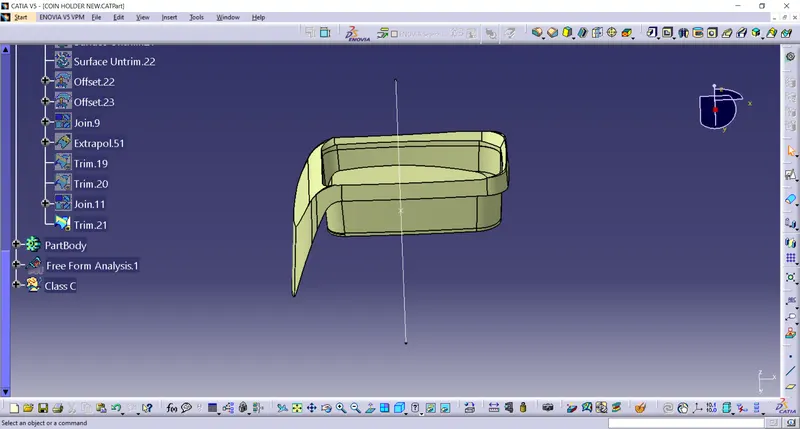

CLASS B SURFACE

The Class B surface is created by taking offset of 2.5mm from the Class A

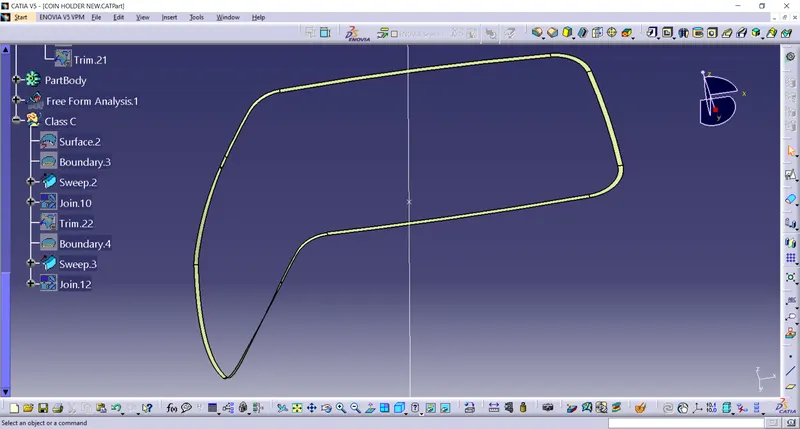

CLASS C

Class c is create with the sweep comand with reference to the surface at 90degree.

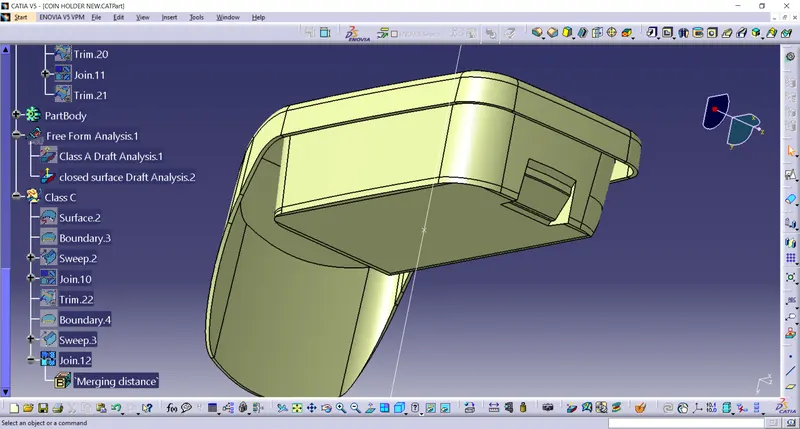

CLASS A, CLASSB, CLASS C

Draft analysis

1. Take a compass and placed on the tooling axis and go to featured draft analysis.
2. The green colour shows drafting angle 2.9 and above 2.9.
3. Red colour indicates the angle zero degree.
4. Blue colour indicates the negative draft angle.

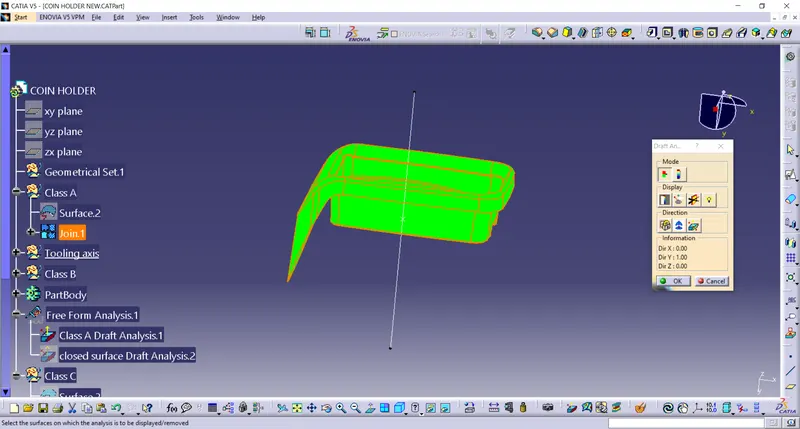

CLASS A DRAFT ANALYSIS

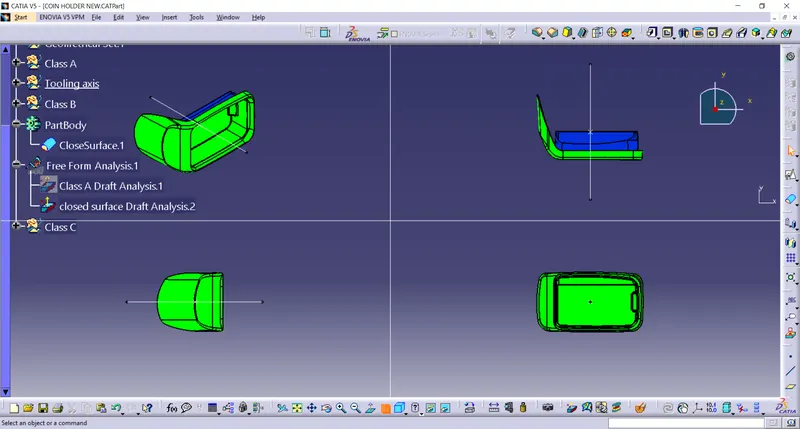

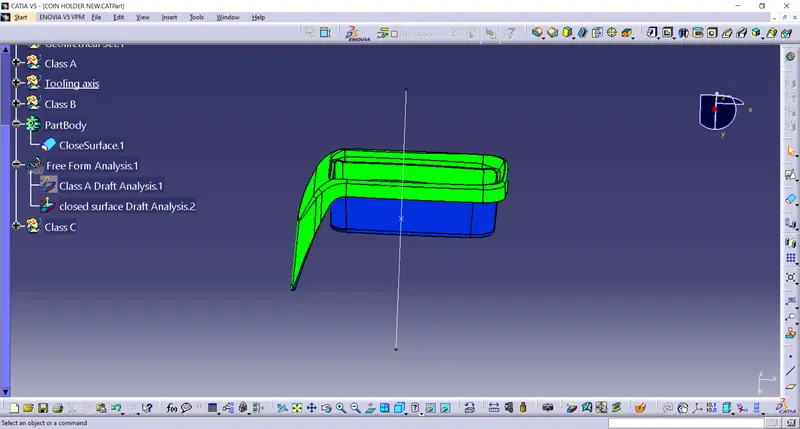

CLOSED SURFACE DRAFT ANALYSIS
