Project 1 - Parsing NASA thermodynamic data

close all
clear all
clc
% C:\matlab_program\images\
f=fopen('THERMO.dat','r');

%file header
fileheader=fgetl(f);

% for second line
S=fgetl(f);

% second line data is split using command
S=strsplit(S,' ');

% in numeric values it is converted
global_low_temp=str2num(S{2});
global_mid_temp=str2num(S{3});
global_high_temp=str2num(S{4});

% skipping lines

for j=1:3
    fgetl(f);
end


 mkdir('nasa')
 cd(sprintf('nasa'))

% extracting all species data
for i=1:53



    % to get line
    species=fgetl(f);
%     finding string by separater = '.'
%     String temperatures are determined by .. Assuming 3, 4, 4 digit
%     temperatures
% O                 L 1/90O   1               G   200.000  3500.000  1000.000
    a=strfind(species,'.');


    % t variable for temperature(
    T1 =species((a(1)-3):(a(1)+3));
    % local low temperature
    T_low=str2double(T1);

    T2 =species(a(2)-4:a(2)+3);
    % local mid temperature
    T_mid =str2double(T2);

    T3 = species(a(3)-4:a(3)+3);
    % local high temperature
    T_high = str2double(T3);

    % longest name has 6 alphabets, for short string extra spaces will be
    % included in variable
    species_name=species(1:6)
%     fprintf("debug %s" ,species_name)

    % getting first line of species
    line_1=fgetl(f);

    % extracting constant from species with Separater = 'E'
    L1 = strfind(line_1,'E');
    a1=str2double(line_1(1:(L1(1)+3)));
    a2=str2double(line_1((L1(1)+4):(L1(2)+3)));
    a3=str2double(line_1((L1(2)+4):(L1(3)+3)));
    a4=str2double(line_1((L1(3)+4):(L1(4)+3)));
    a5=str2double(line_1((L1(4)+4):(L1(5)+3)));

    % reading second species line
    Line_2 = fgetl(f);

    % extracting line 2
    L2=strfind(Line_2,'E');
    a6=str2double(Line_2(1:(L2(1)+3)));
    a7=str2double(Line_2((L2(1)+4):(L2(2)+3)));
    a8=str2double(Line_2((L2(2)+4):(L2(3)+3)));
    a9=str2double(Line_2((L2(3)+4):(L2(4)+3)));
    a10=str2double(Line_2((L2(4)+4):(L2(5)+3)));

    % reading 3rd line of species
    Line_3 = fgetl(f);

    %extracting 3rd line
    L3=strfind(Line_3,'E');
    a11=str2double(Line_3(1:(L3(1)+3)));
    a12=str2double(Line_3((L3(1)+4):(L3(2)+3)));
    a13=str2double(Line_3((L3(2)+4):(L3(3)+3)));
    a14=str2double(Line_3((L3(3)+4):(L3(4)+3)));


     % taking  1000 values
    Temperature =linspace(T_low,T_high,1000);

    % universal gas constant
    R=8.314;

    k=1:length(Temperature);
    if Temperature(k)>T_mid
        % high temperature coefficient
        specific_heat = (a1+a2.*Temperature+a3.*Temperature.^2+a4.*Temperature.^3+a5.*Temperature.^4).*R;
        Enthalpy=(a1+(a2.*Temperature)./2+(a3.*Temperature.^2)./3+(a4.*Temperature.^3)./4+(a5.*Temperature.^2)./5+a6./Temperature).*Temperature.*R;
        Entropy=(a1.*log(Temperature)+a2.*Temperature+(a3.*Temperature.^2)/2+(a4.*Temperature.^3)./3+(a5.*Temperature.^4)/4+a7).*R;
    else
        specific_heat = (a8+a9.*Temperature+a10.*Temperature.^2+a11.*Temperature.^3+a12.*Temperature.^4).*R;
        Enthalpy=(a8+(a9.*Temperature)./2+(a10.*Temperature.^2)./3+(a11.*Temperature.^3)./4+(a12.*Temperature.^2)./5+a13./Temperature).*Temperature.*R;
        Entropy=(a8.*log(Temperature)+a9.*Temperature+(a10.*Temperature.^2)/2+(a11.*Temperature.^3)./3+(a12.*Temperature.^4)/4+a14).*R;
    end
    elements = ['H','C','O','N','A','S'];

    % atomic weight value
    atomic_weight = [1.0079 12.0107 15.999 14.0067 39.948 32.065];

    % molecular to be zero
    mol_mass = 0;


    for x = 1:length(species_name)
        for y = 1:length(atomic_weight)
            if strcmp (species_name(x),elements(y))
                mol_mass = mol_mass+atomic_weight(y);
                position = y;
            end
        end
        n=str2double(species_name(x));
        if n>1
            mol_mass = mol_mass+atomic_weight(position)*(n-1);
        end
    end

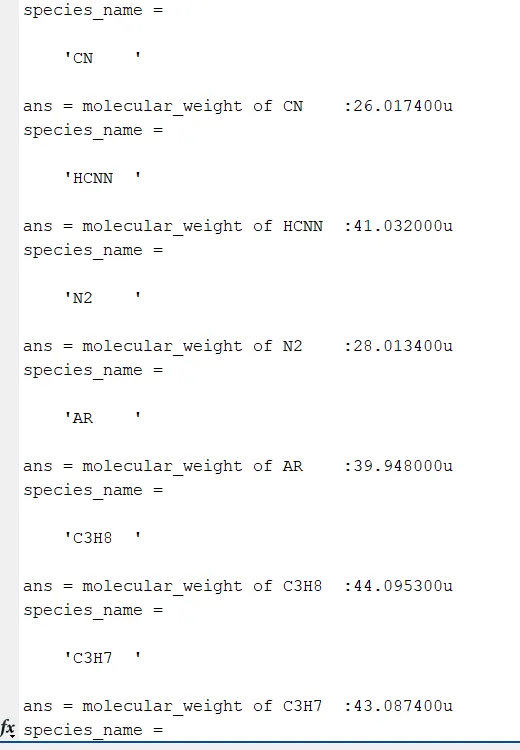

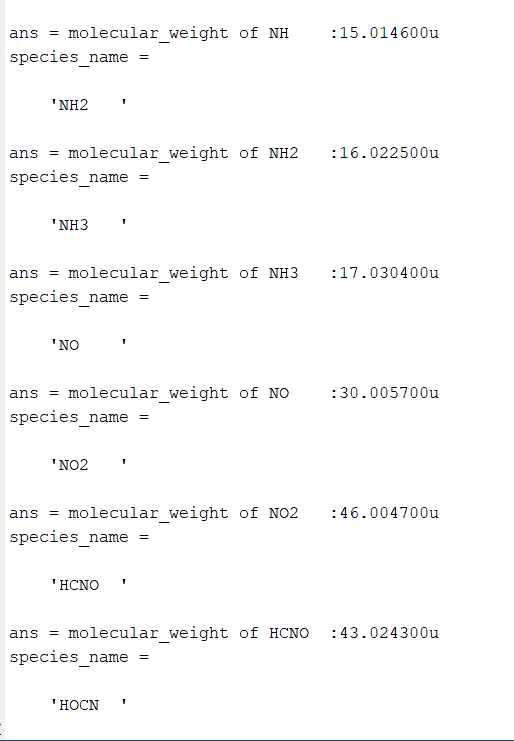

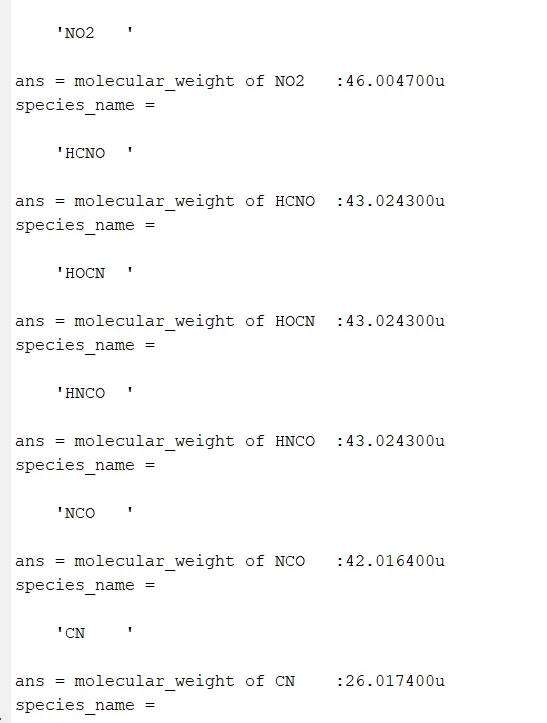

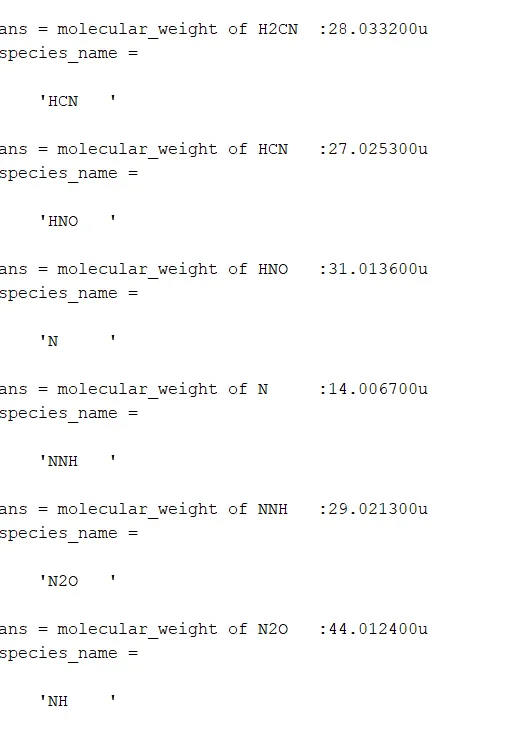

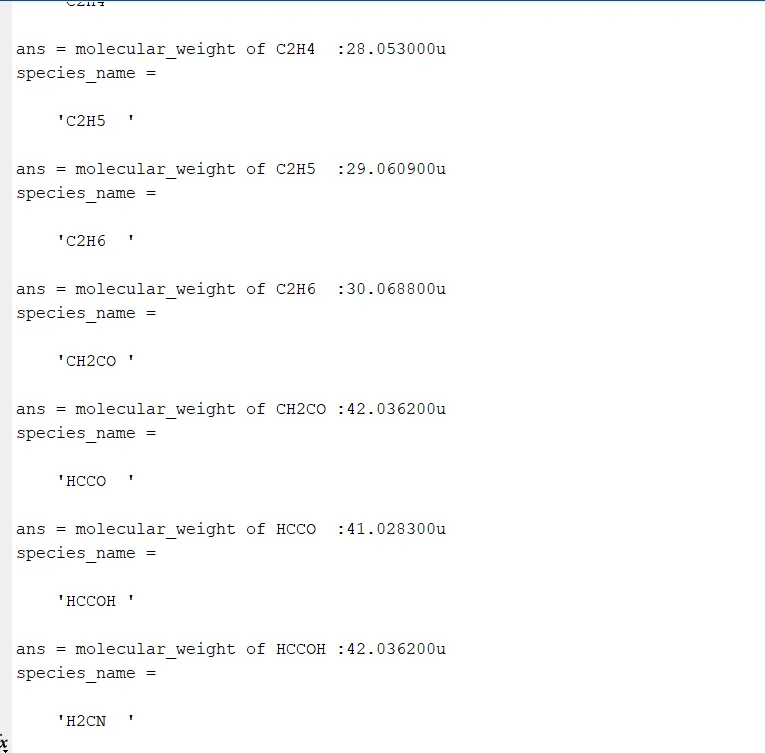

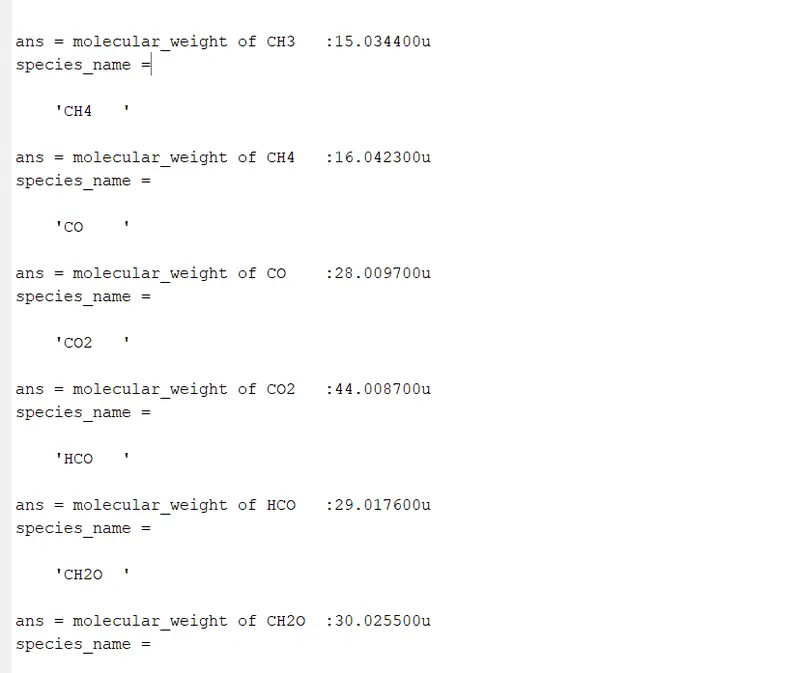

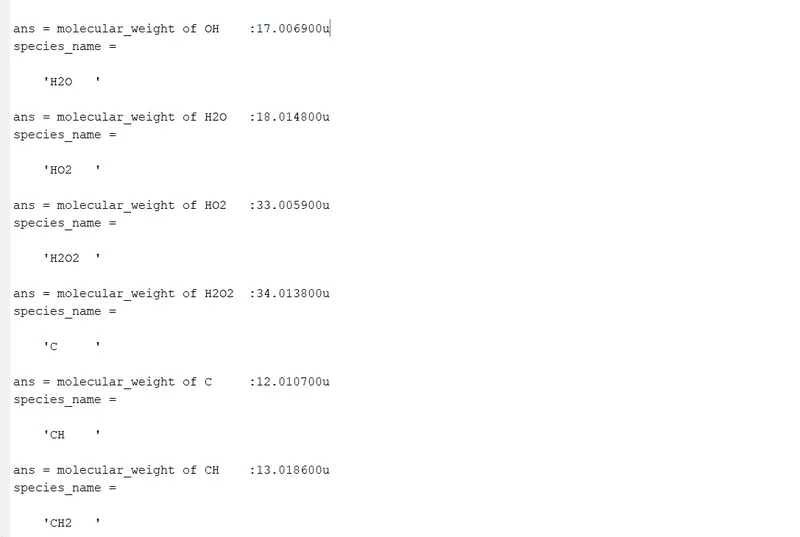

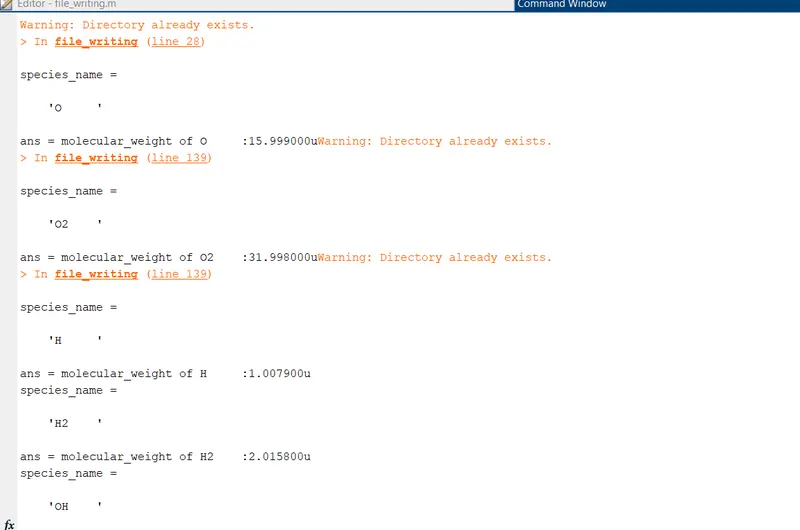

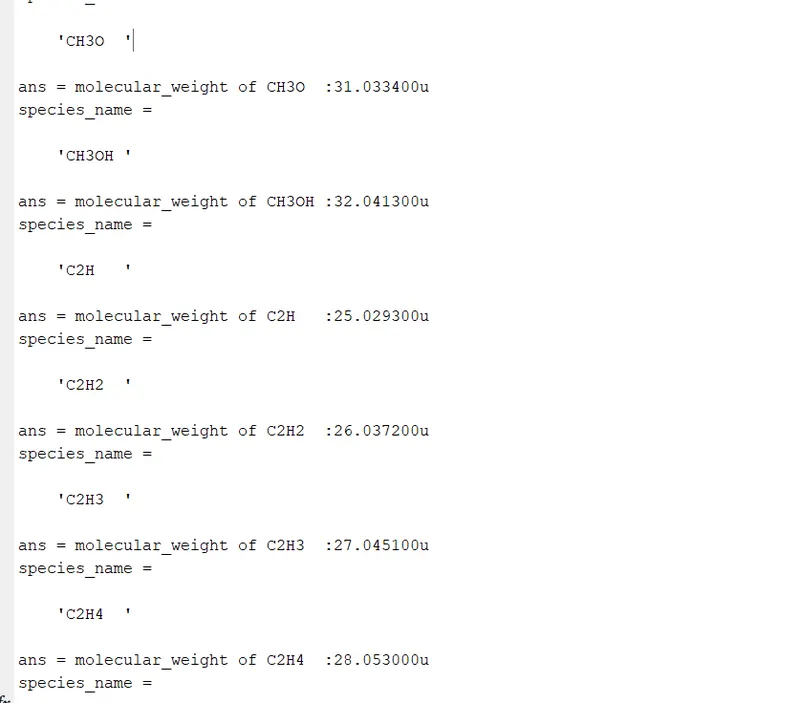

    fprintf('ans = molecular_weight of %s:%fu', species_name ,mol_mass);

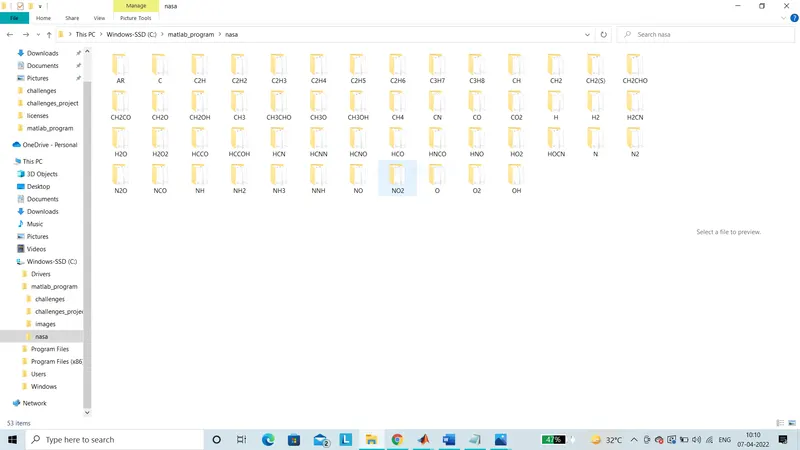

%     creating to new Dir Species_Name
    mkdir(sprintf("%s", species_name))
%      Switching to new Dir Species Name
    cd (sprintf("%s", species_name))

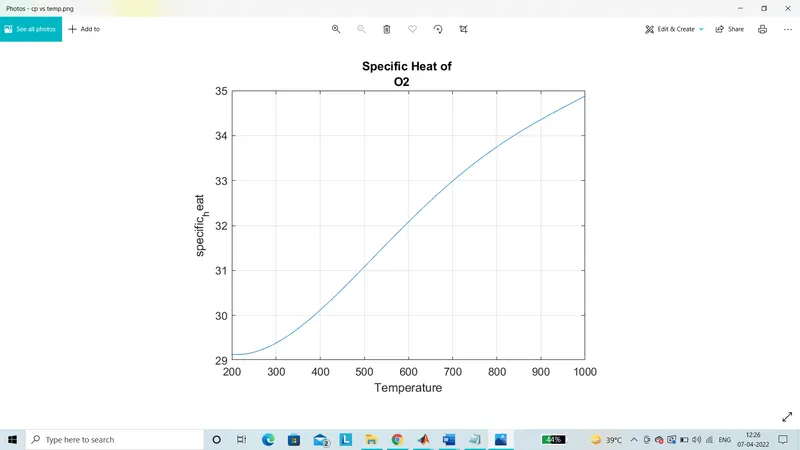

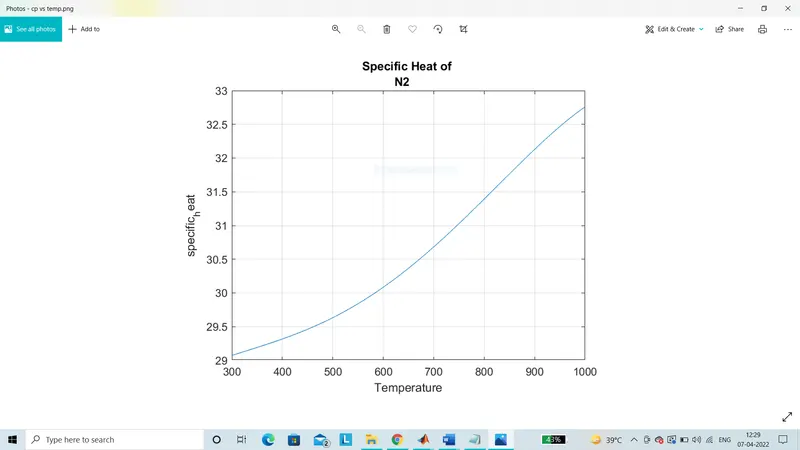

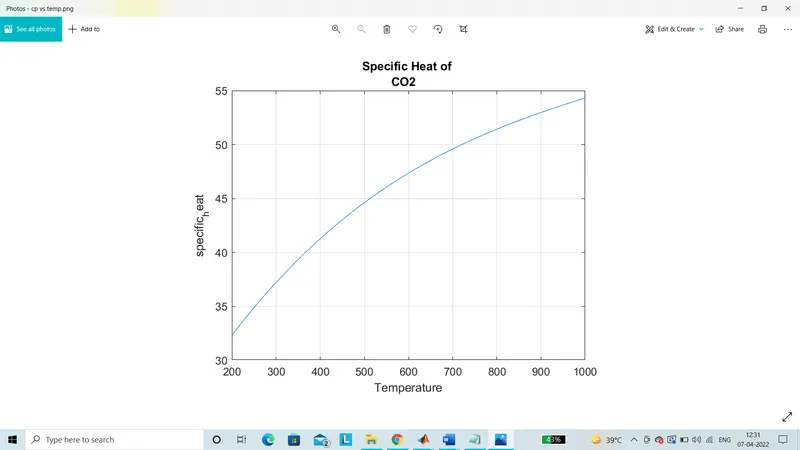

    figure(1);
    plot(Temperature,specific_heat);
    grid on
    title(["Specific Heat of ", species_name]);
    xlabel('Temperature')
    ylabel('specific_heat')
    saveas(figure(1),'cp vs temp.png');

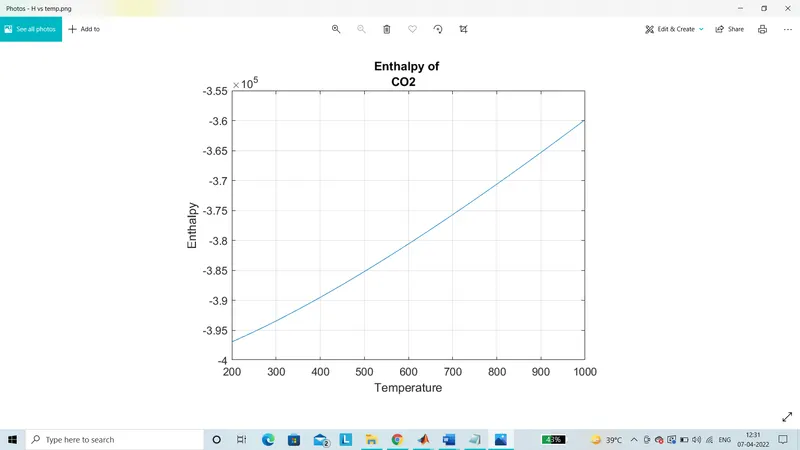

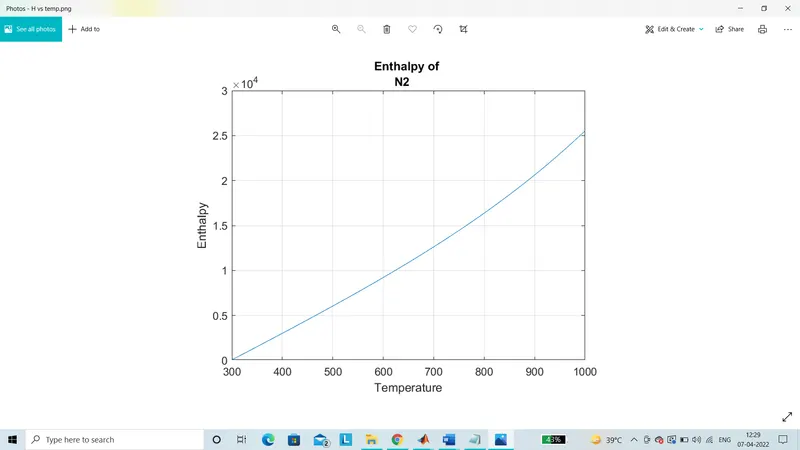

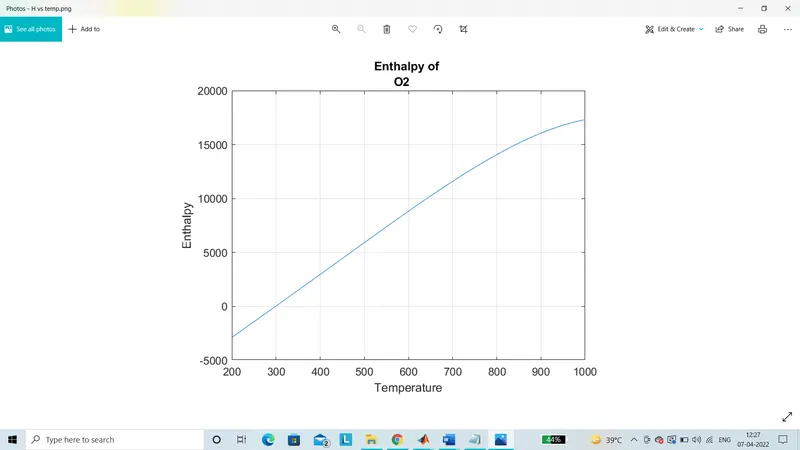

    figure(2)
    plot(Temperature,Enthalpy);
    grid on
    title(["Enthalpy of ", species_name]);
    xlabel('Temperature')
    ylabel('Enthalpy')
    saveas(figure(2),'H vs temp.png');

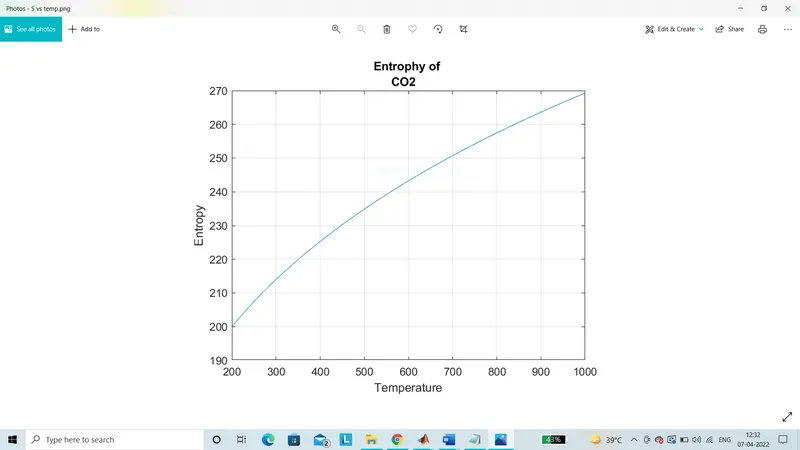

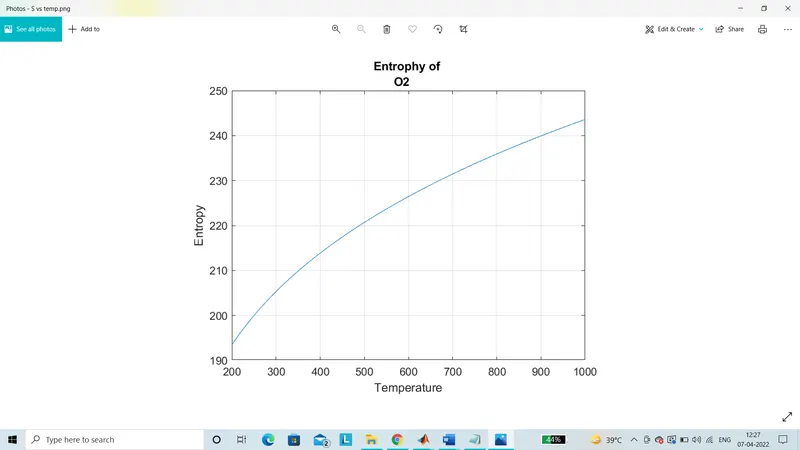

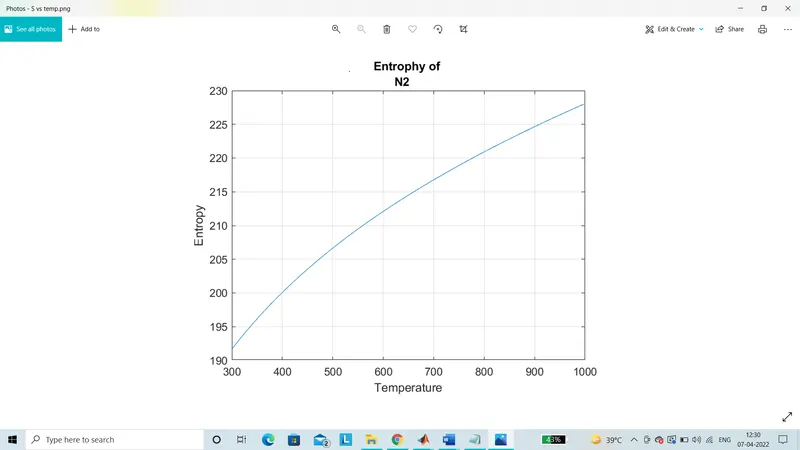

    figure(3)
    plot(Temperature,Entropy);
    grid on
    title(["Entrophy of ", species_name]);
    xlabel('Temperature')
    ylabel('Entropy')
    saveas(figure(3),'S vs temp.png');

%    switching to Dir nasa
     cd ('..\')


end

fclose(f);
