Week 8 - Challenge 3 - Coin Holder Design

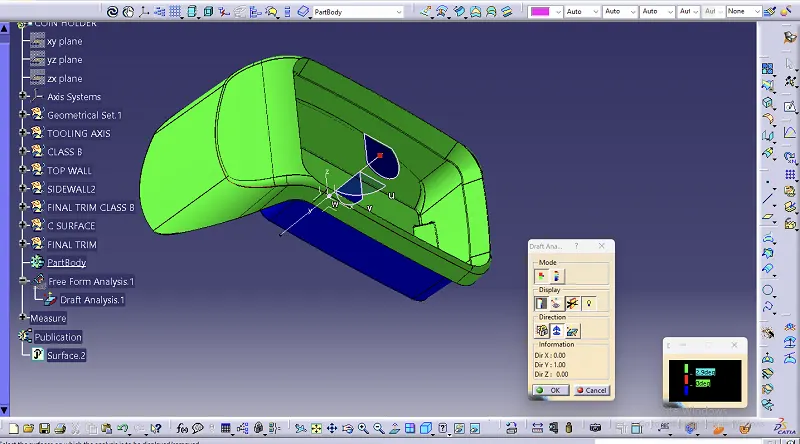

DRAFT ANALYSIS:

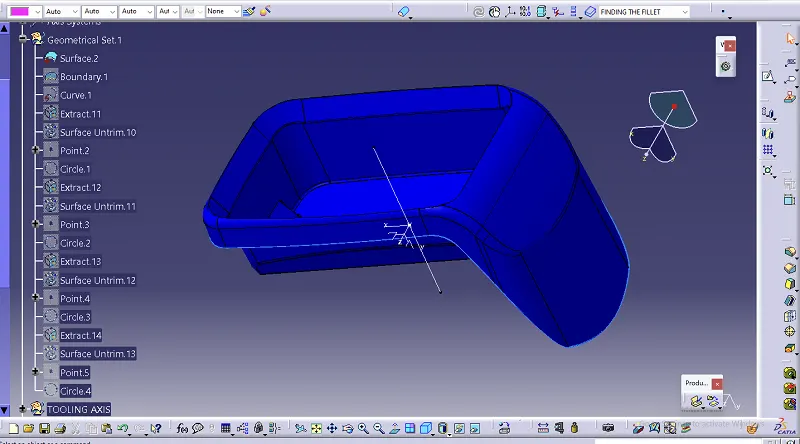

CLASS A:

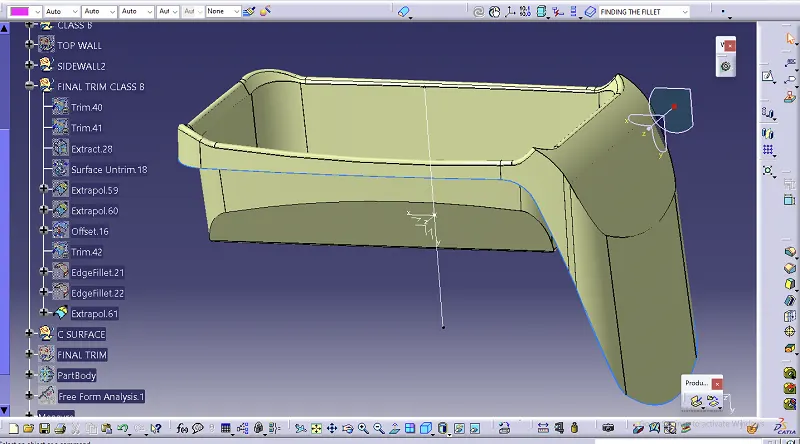

CLASS B:

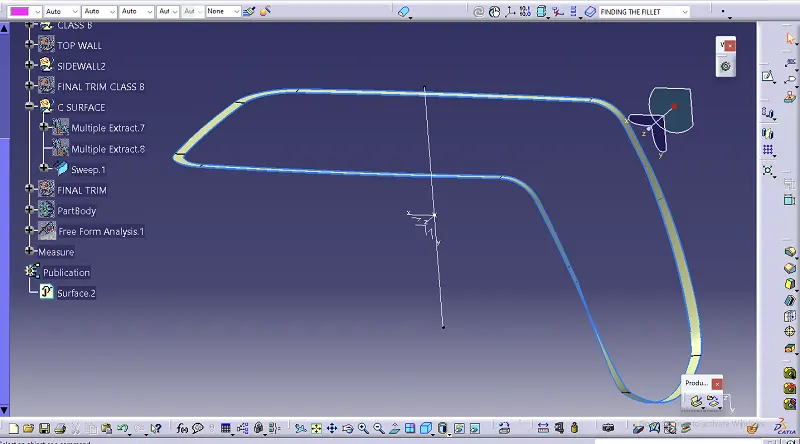

CLASS C:

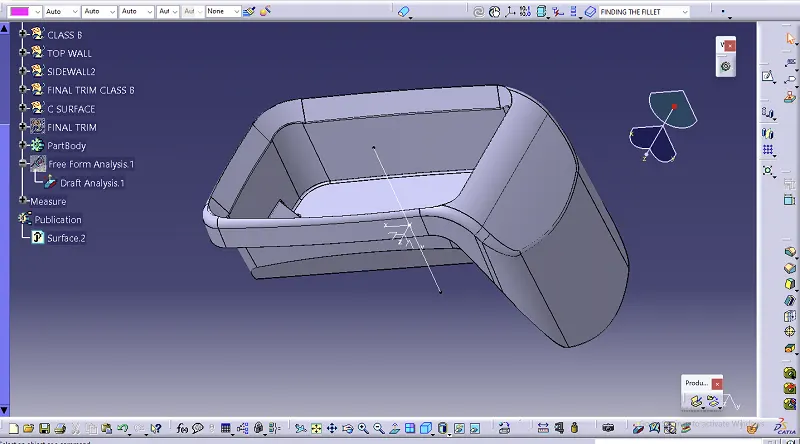

PART BODY:

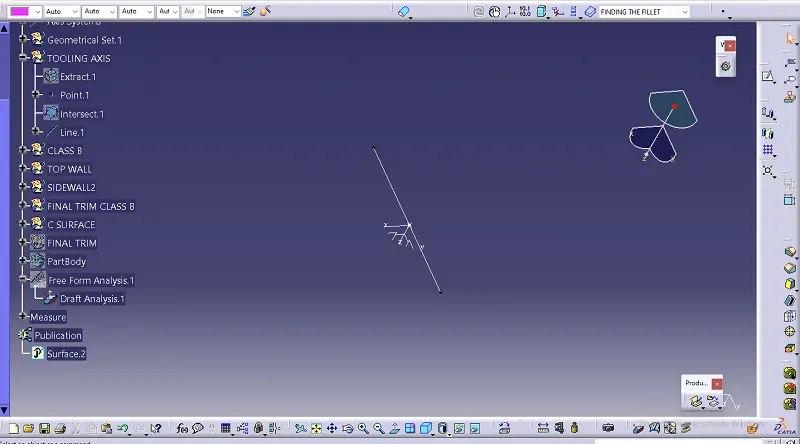

TOOLING AXIS
As we can observe from the figure that the draft analysis performed on the part model is proper and it has a draft angle of 2.9 degree.
Given below are the few number of steps followed:
step1. we have to create a tooling axis on class A by normal to surface method.
step2. After that we have to undertake a draft analysis on it.
step3. We have to extract each faces and perform extrapolation and trimming to acheive a class B component.
step4. Provide proper fillet as required.
step5. Create a sweep operation on class A component to create class C.
step6. Do trim and join operation parallely.
step7. import in part design and perform the draft analysis
