Week 8 - Challenge 3 - Coin Holder Design
DRAFTING ANALYSIS

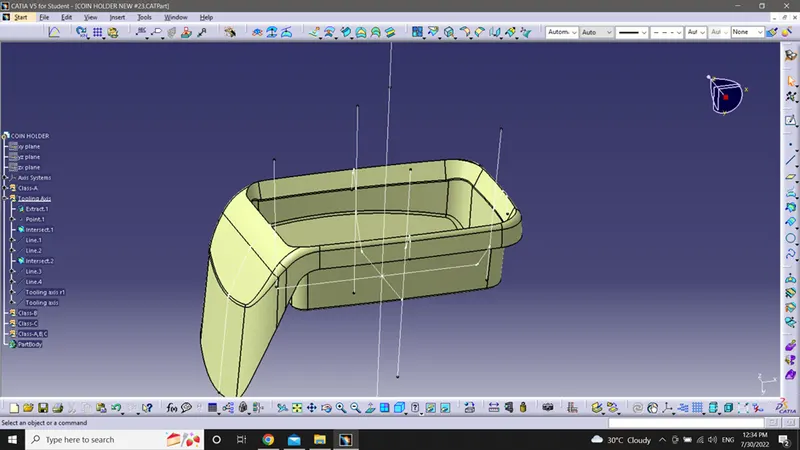

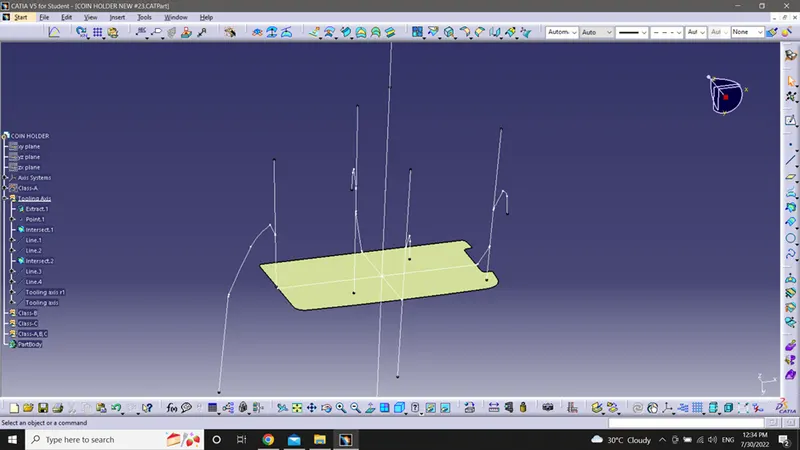

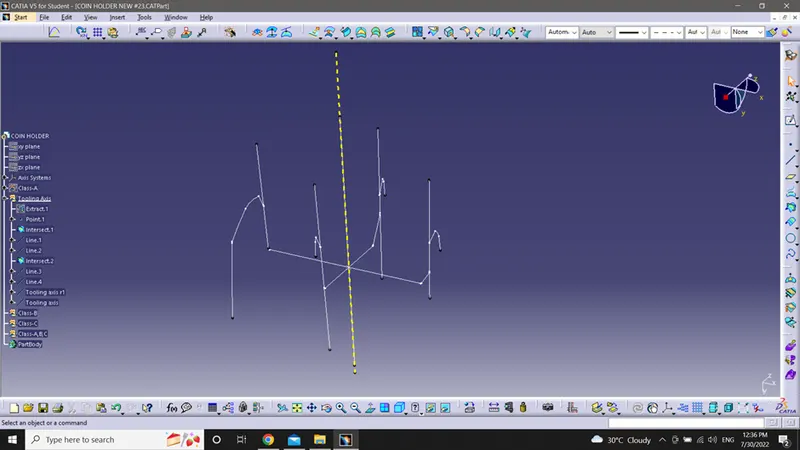

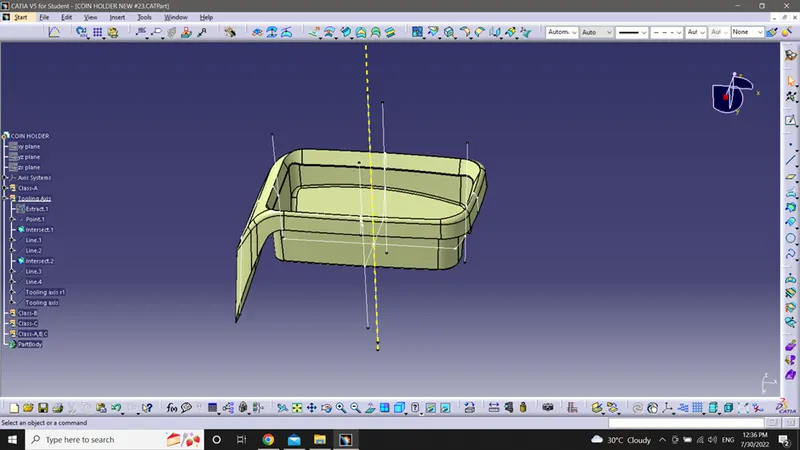

- Tooling axis is created using bisect line method
- Extracted the bottom surface of the coin holder and created a point on the centre.
- createdan axis system in that point.
- made 2 intersection with respect to new XY-plane and YZ-plane.
- from both intersect profiles created 2 line from each.
- And using the bisect method created the tooling axis.
- from both reference lines in the XY-plane and YZ-plane, we get the tooling axis in the same position and angle.

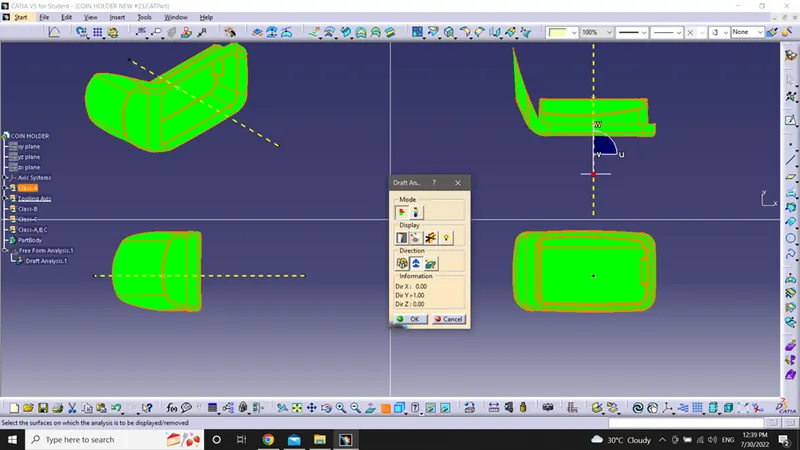

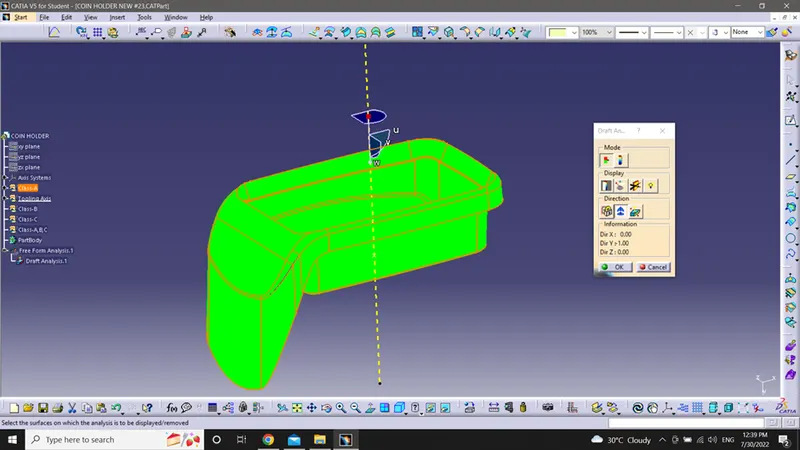

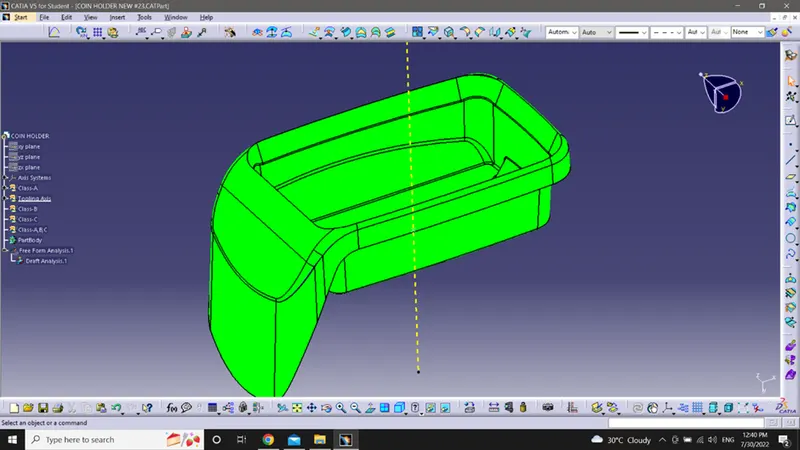

Class-A drafting Analysis

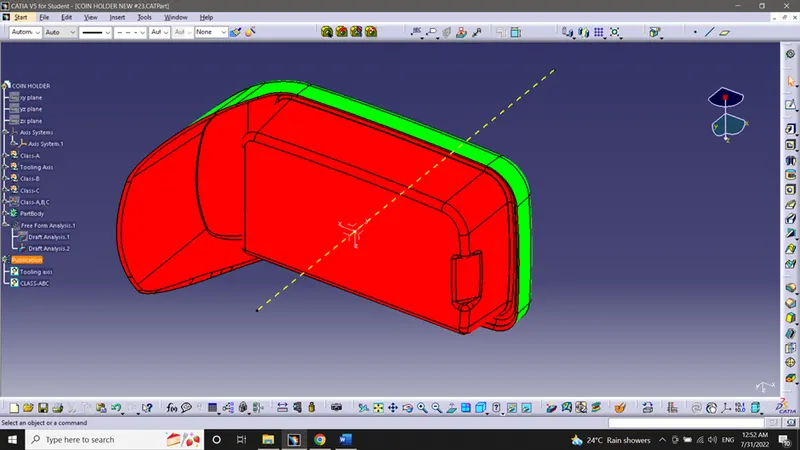

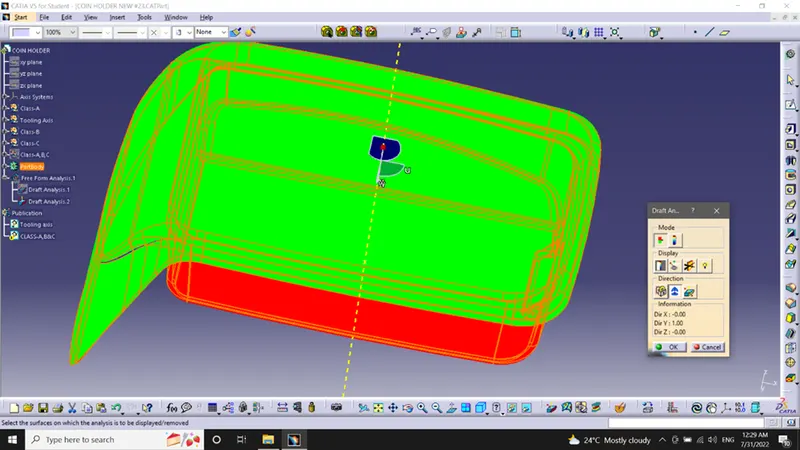

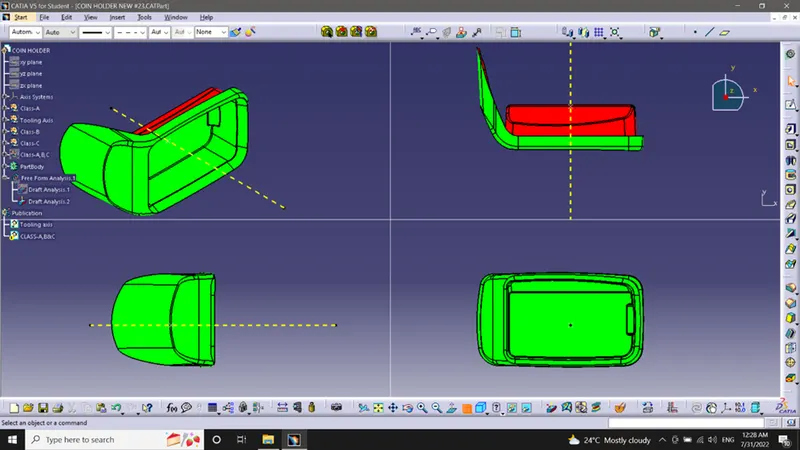

Drafting Analysis of final component
- Green color code implices the drafting angle greater than 3 degree
- Blue color code implices the drafting angle less than 3 degree and greater than zero.
- Red color implice negetive drafting angles.

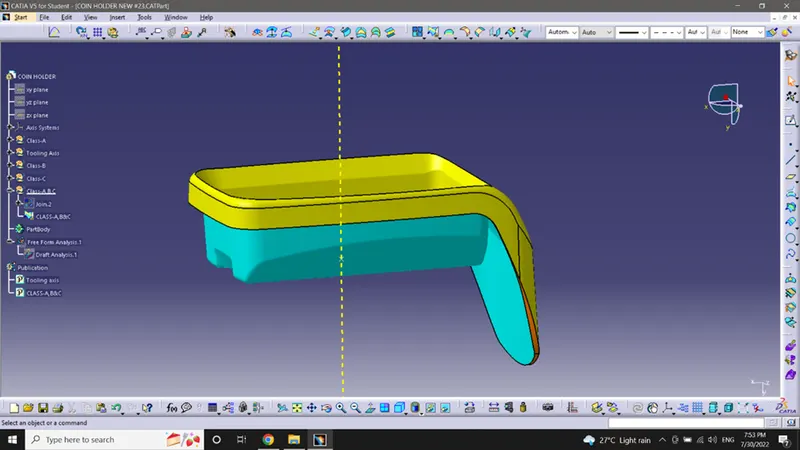

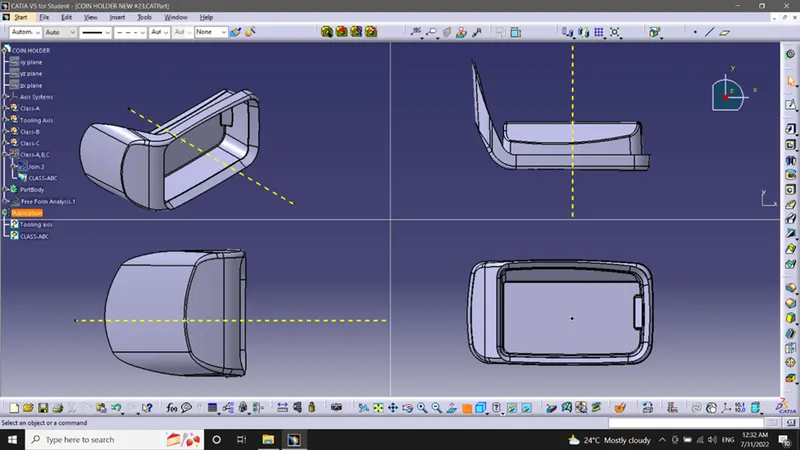

Different Views of the solid component

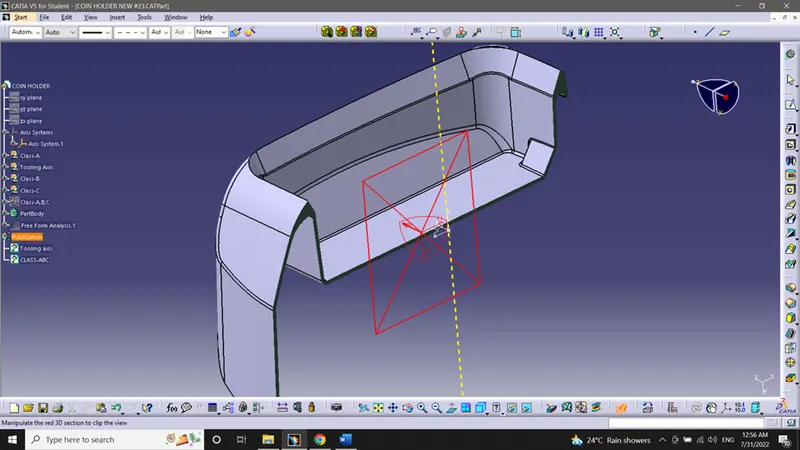

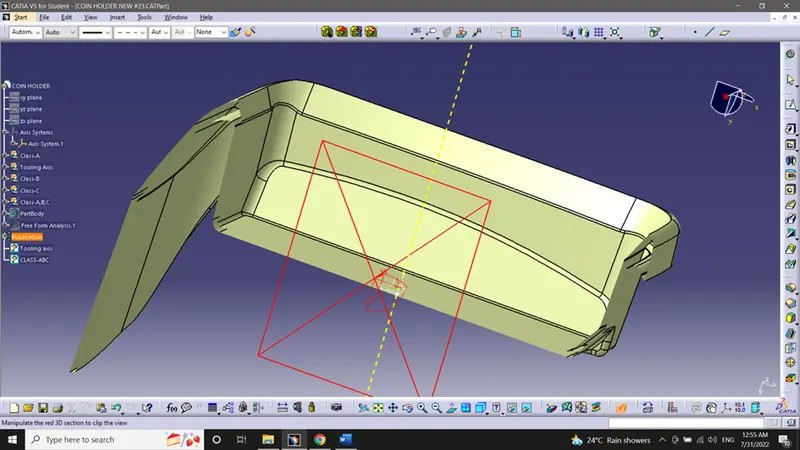

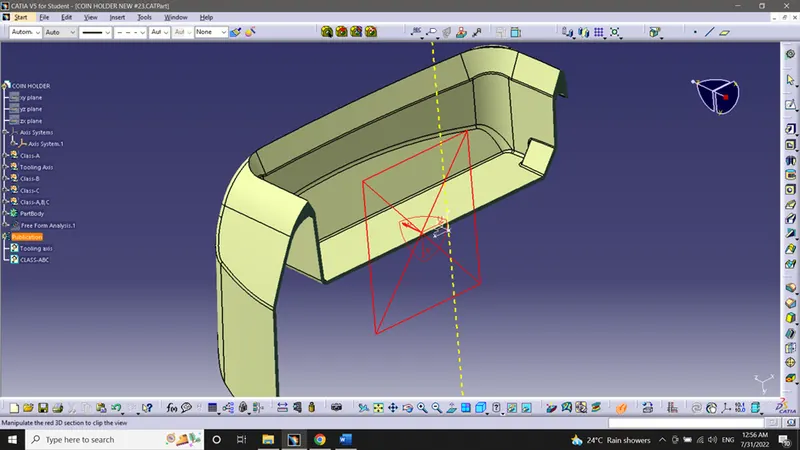

Sectional Views of surFace ClassA,B&C and Solid body
