Week 8 - Challenge 2 - Switch Bezel Design

Challenge-22 SWITCH BEZEL DESIGN

Objective :

• To esign switch bezel as per aut[omotive OEM standurd.
• Create B class and C class and tooling axis.
• Converting close surface into the solid inside part workbench and provide the thickness of 2.5mm.
• Performing draft analysis to verify the creation of the tooling axis and C class surface.

Software:

CATIA V5 (Geeneraytive shape design)

Abstact:

Im this project, I design a switch Bezel using Catia V5 . received input as Class A surface. I checkthe direction to eject the tool based on the component design. Later checked wether all faces that intersected wil clear the direction based on the tooling axis. I started working on the Draft analysis tool to check if our tooling direction clears the pathfor easy removed of material from the tool. After that, I go class B creation using advance tools from the surface followed by class C creation using the sweep command. after design A B C class surface, converting close surface into solid inside that part workbench.

Design Methodology with images:

Procidure for creating Tooling axis:

1. A reference point is created along the surface zero and new axis system is created.
2. The X direction along the class A and Y direction along the class A were used to create tooling difrection.

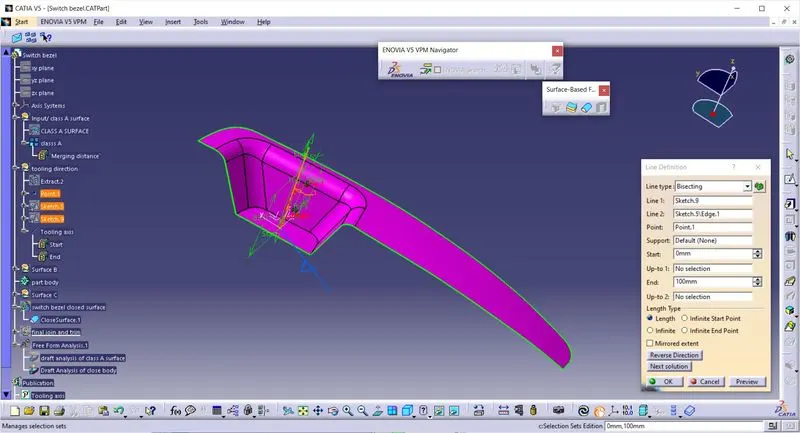

3. Finally the tooling axis created by bisecting the two lins and it is published. Class A surface operation commands class B. is developed.
4. The tooling axis determines the direction normall all the parts that are draft direction.
5. When viewing from toolng direction normal all the parts that are drafted should be visible soit gives an rough idea to determine product manufacturing in injection molding.

Procedure for B surface Creation:

• The next step is to design B surface for the input which is usually the surface where all engineering aspects and support creations are done.
• The B surface Creation is performed using surface operation in CATIA which an affect from class A with dimension proportional to the thickness of the part.
• In switch Bezel the surface is offset 2.5mm from the input which is the thickness of the part.
• The B surface is an extrapolated surface compared to A surface and forms the bottom skin of the part.

Procedure for C Surface Creation

• The next step is to from the C surface which is an intermediate surface between A and B and is used to give the closed surface appearance to the design.
• The surface is swept using the profile as boundary line of class A which is the guide curve with a subtype along draft direction.
• The direction of the sweep is the tooling direction formed earlier.
• Th draft angle for the sweep operation is provided which is 3 degree and surface is swept for length above the thickeness of the specified part.
• The surface is refined using smooth curve options to remove the complext and patches along the swept surface .
• Finally the class A and class C surfaces are joined together and connexity of sufaces should ube less than 0.003mm and the surfaces are merged.

Procedure for closed body creation

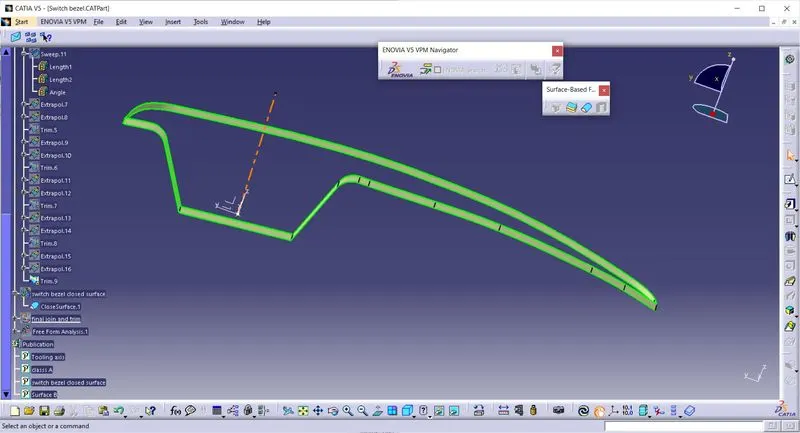

• The merged surface is then trimmed with B surface to form the closed surface.
• The closed surface is then vlidated to find the irregularities along the edges and imperfections along the edges were then corrected using operation like extrapolate and surface trim.

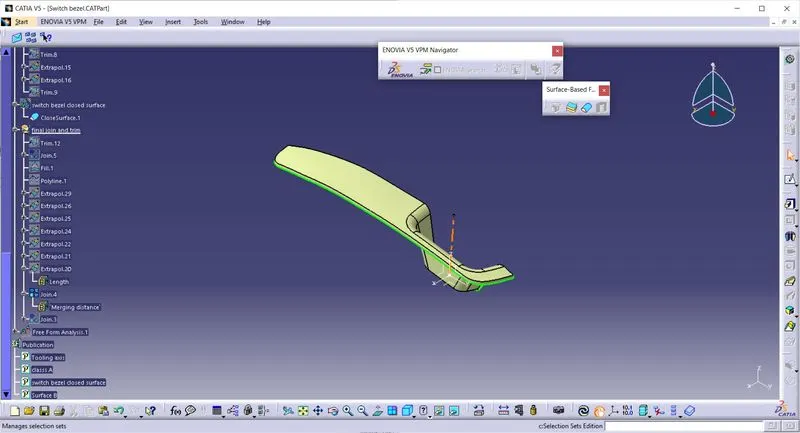

• This closed surface is the outer skin of the switch bezel and finally the part is formed by closed surface in part design workbench.
• The final part is measured to validate the uniform thickness of the part especially along the filleted edges.

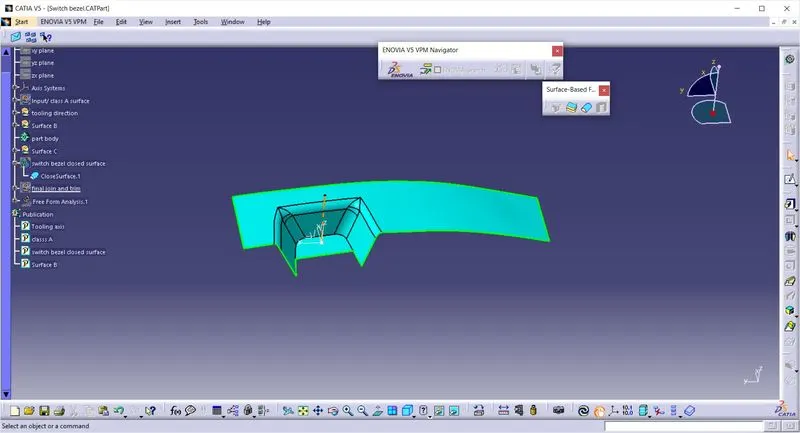

combination of Surface A and Surface C

Combination of surfac A, B and C :

Procedure for Draft Analysis Procedure

• The part created has to be changed to material mode in display frame.
• Then by enabling compass defination the axis system is pan along the direction of the part and aligned in line with the tooling direction.
• Lock direction is applied that fixes the compass and then the mode dialog box is formed by snapping at any point on the part.
• The color codes are classifiedand Draft Angle are applied.
• Then the running point analysis is used to hover around the part to analyze permissabl draft angles and the analysis is saved.

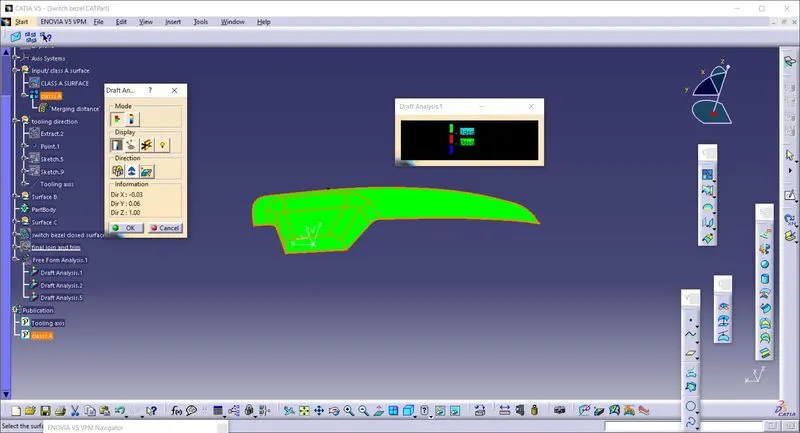

Draft Analysis of Class A surface

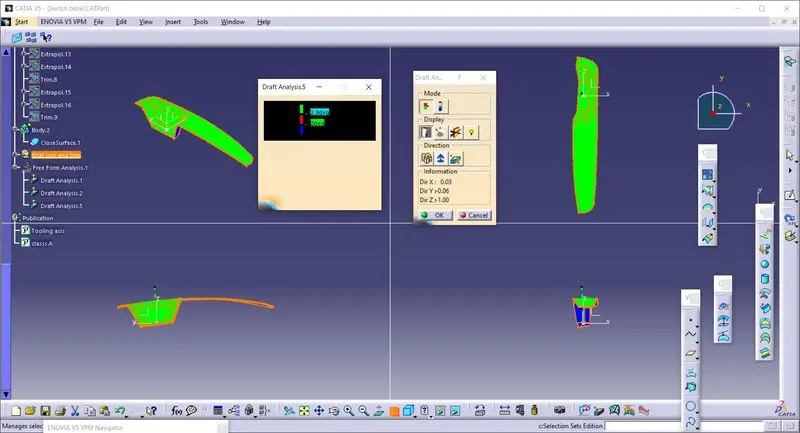

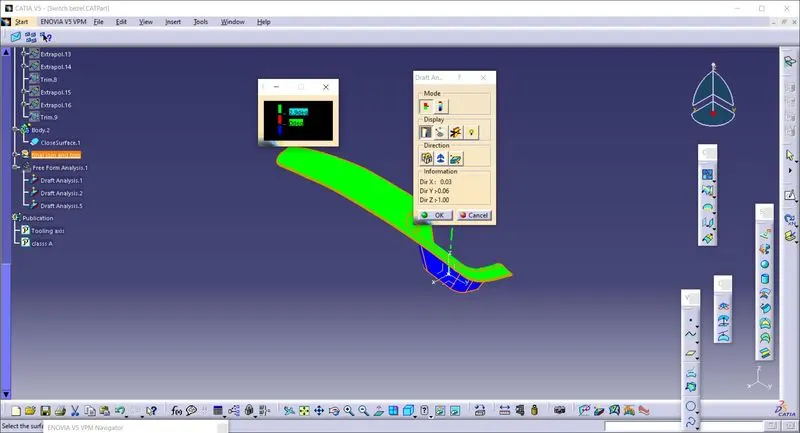

Draft Analysis of closed body:
