Week 8 - Challenge 2 - Switch Bezel Design

Aim : Switch Bezel Design

Objective: Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

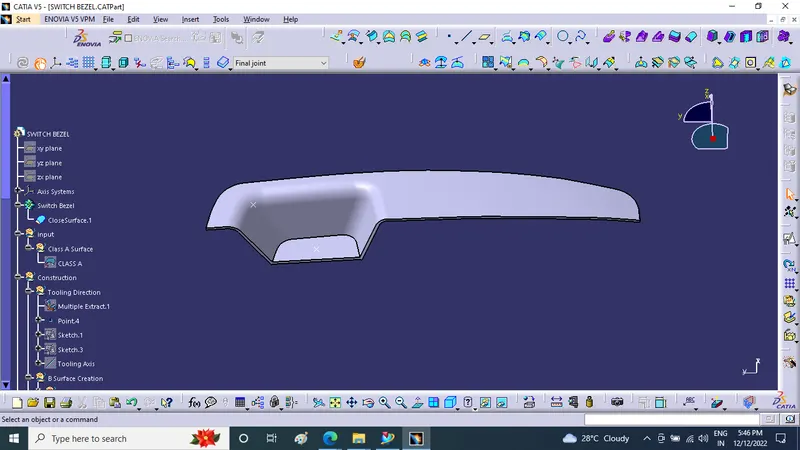

Proper Tree Structure

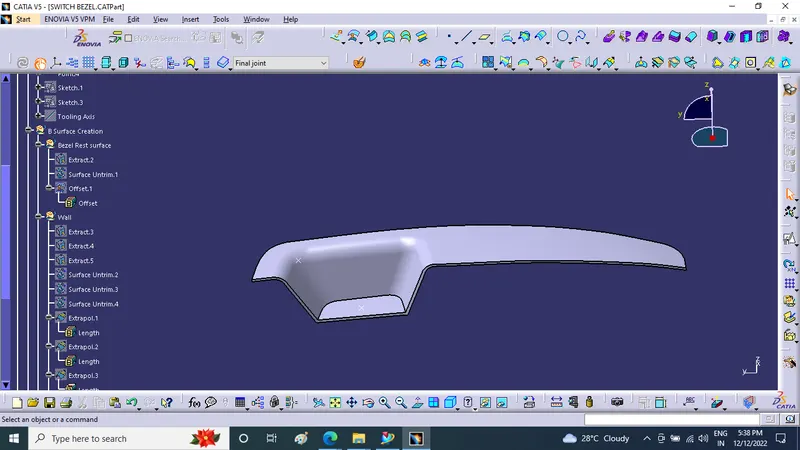

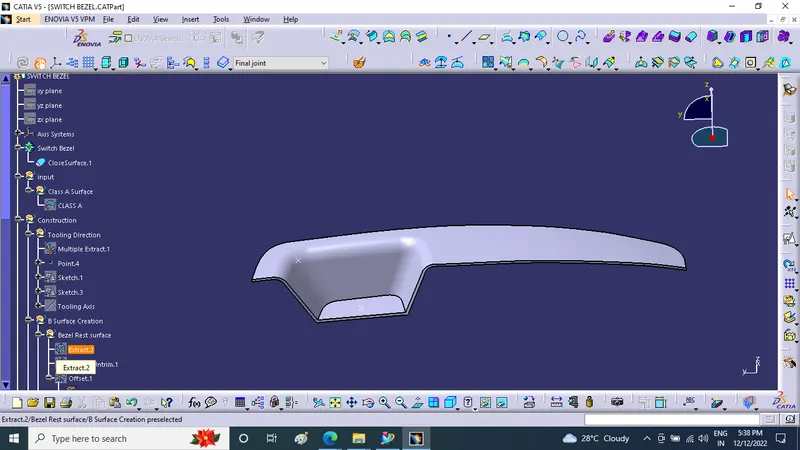

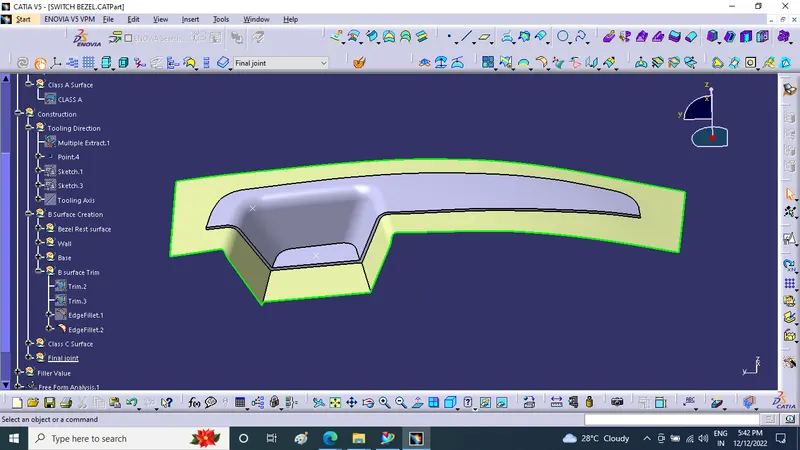

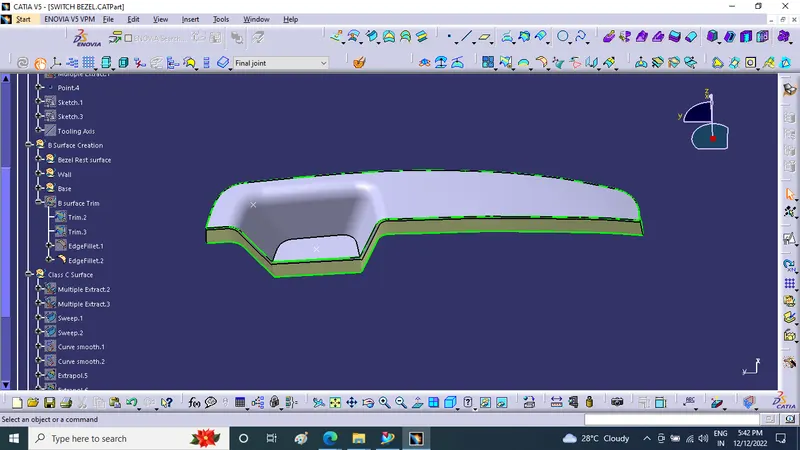

• Geometrical sets

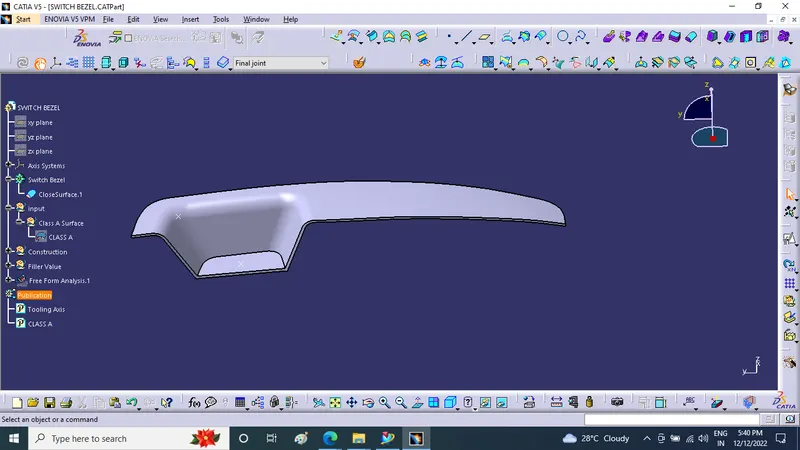

• Use the Close Surface feature to make a solid body from the surface.

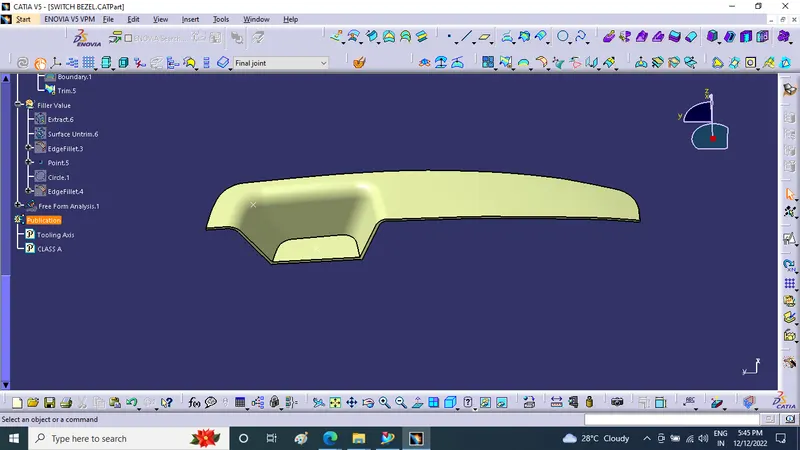

• Publications: Use the publication option and publish the below
  • Tooling Axis
  • Class A, B, and C surface

• Class A,

• Class B

• Class C surface

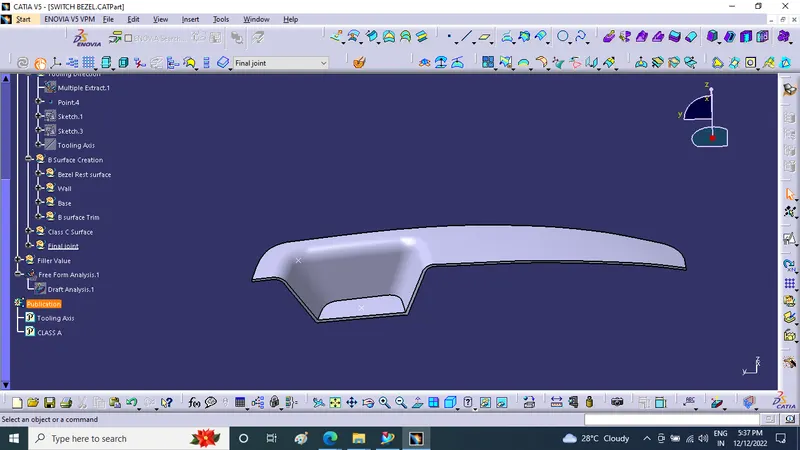

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

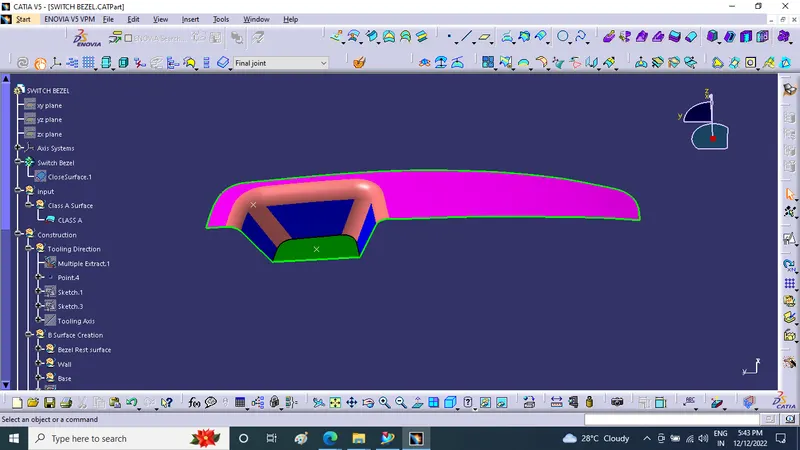

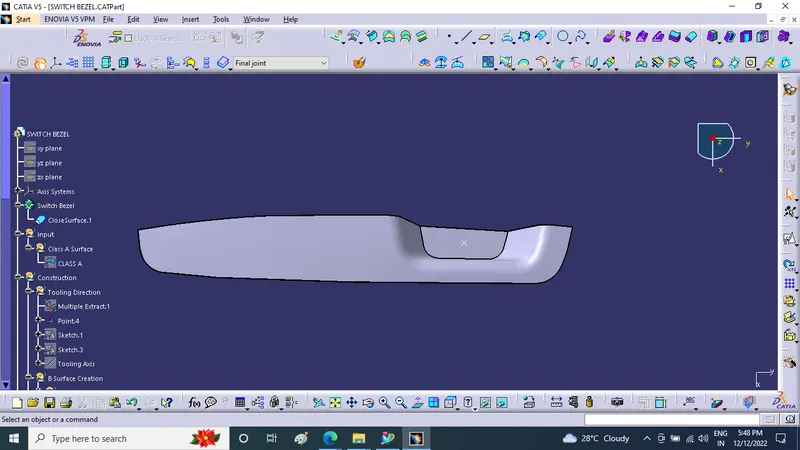

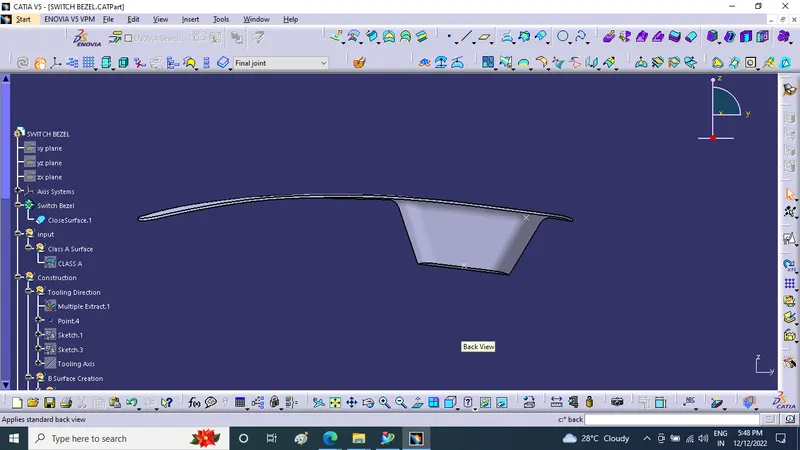

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

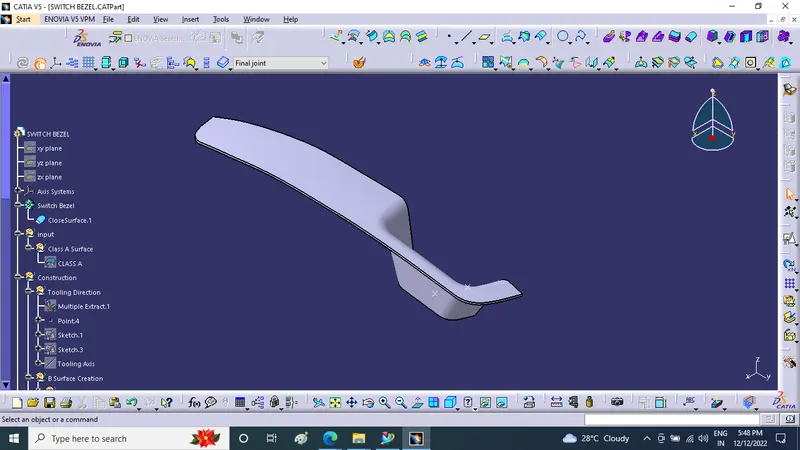

Isometric view

Front View

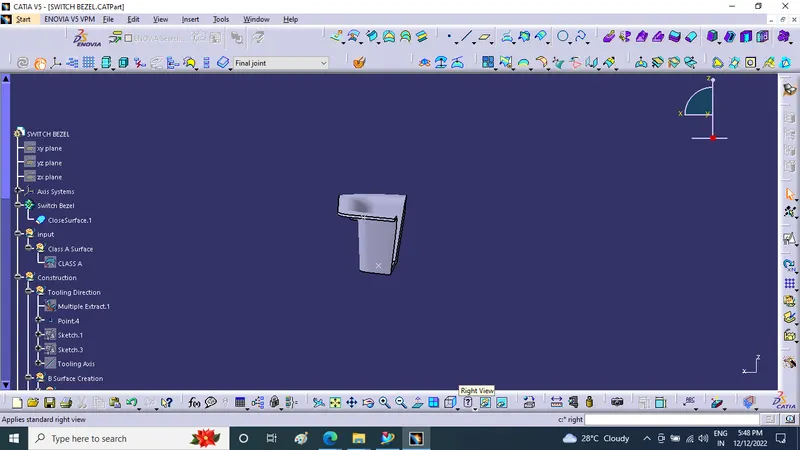

Side View

Top View

• Submission as an attachment
• CATpart is submitted as an attachment using the below Browse option.
