Switch Bezel Design
Objective
To Create the Switch Bezel Plastic component through the given Class-A surface.the tooling axis for the
given Class-A Surface should be created meeting the requirements of the draft angle and to perform the Draft
analysis on the model.
Aim
- Proper Tree Structure.
- Geometrical sets with proper name.
- All the sketches are to be created under the Geometrical set.
- Use the Close Surface feature to make a solid body from the surface.
- Publications: Use the publication option and publish the below
- Tooling Axis
- Class A, B, and C surface
Introduction
The control panel bezel is the frame part of the window switch that holds its switch covers and buttons
into place. Moulding is the method used to manufacture the plastic trims of an automotive by most OEM’s,
hence by considering the manufacturing consideration the switch bezel is designed.
Design consideration
- Class – A surface should be aesthetically smooth and good.
- Class – B surface should have all the supporting features like ribs.
- Parting Line should coincide with the B surface since flashing couldn’t affect the aesthetic of Class – A.
- Class – C surface should also pass the draft analysis.
CLASS A

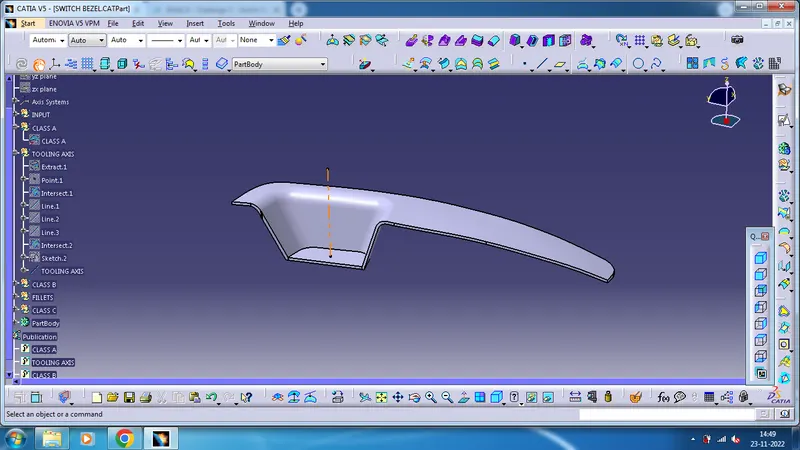

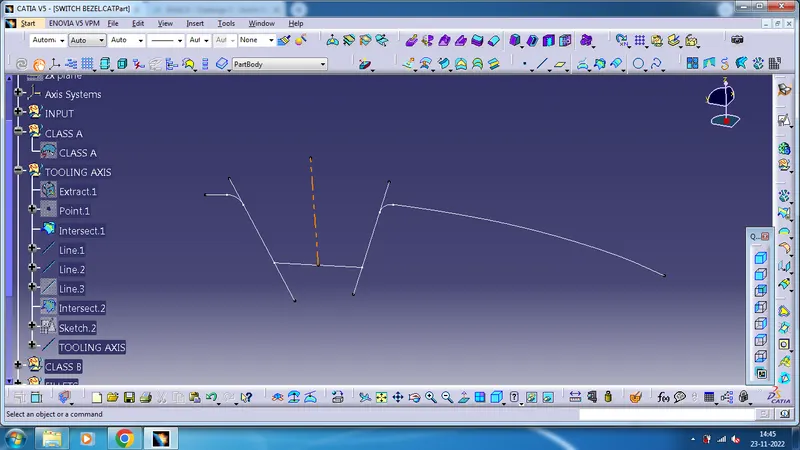

Tooling axis
The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate
pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and
that's the Dyeline or the Tooling Direction.

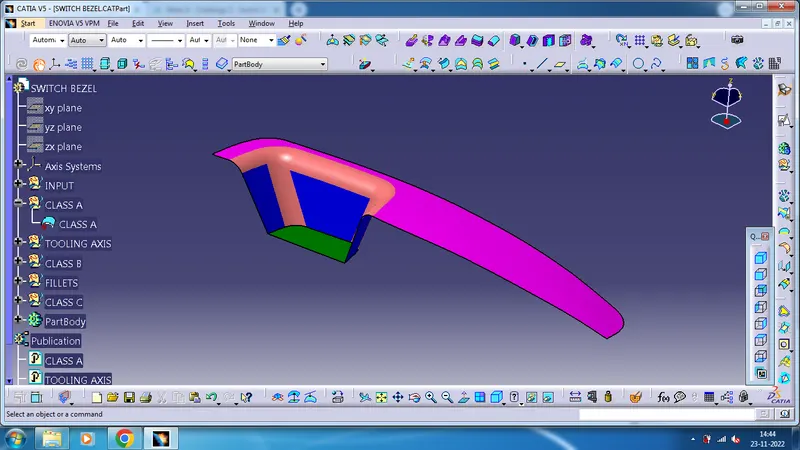

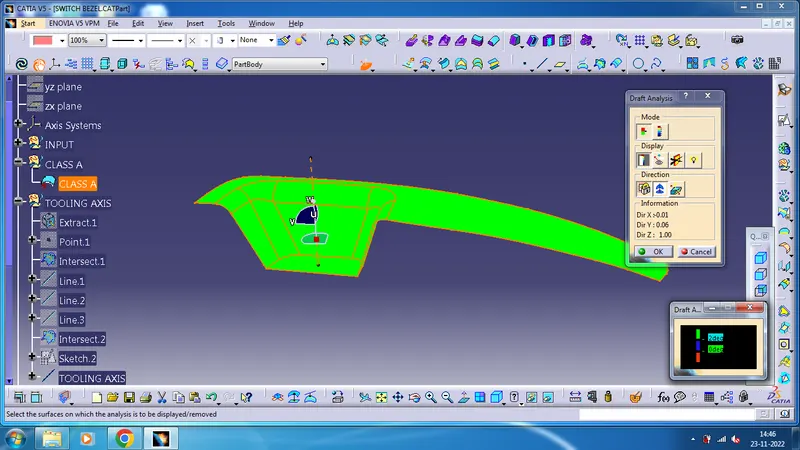

Draft analysis
The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This
type of analysis is performed based on color ranges identifying zones on the analyzed element where the
deviation from the draft direction at any point, corresponds to specified values.

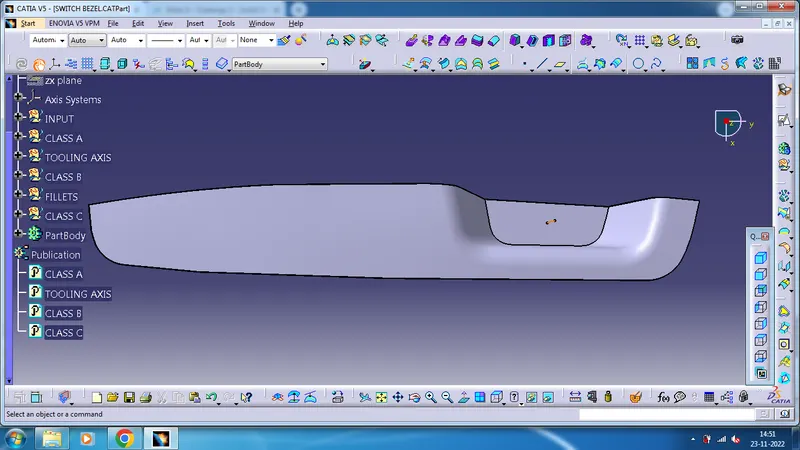

TREE STRUCTURE

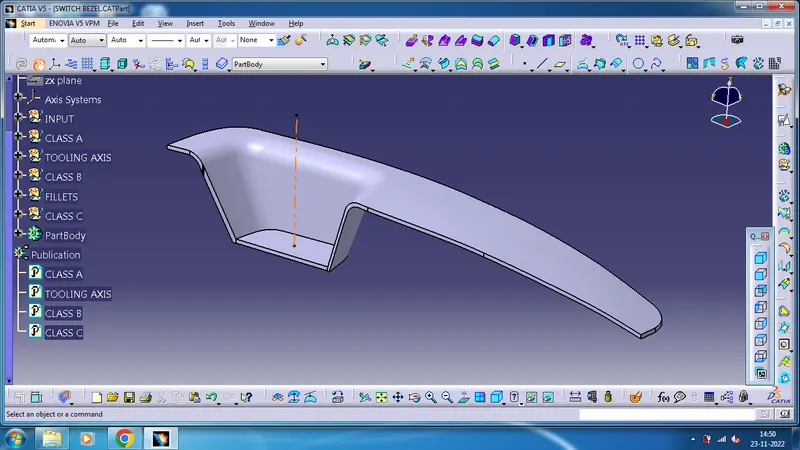

ISO METRIC VIEW

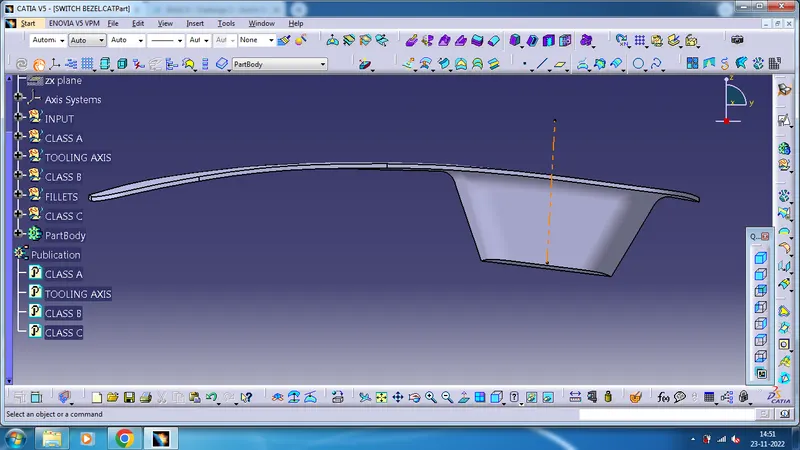

FRONT VIEW

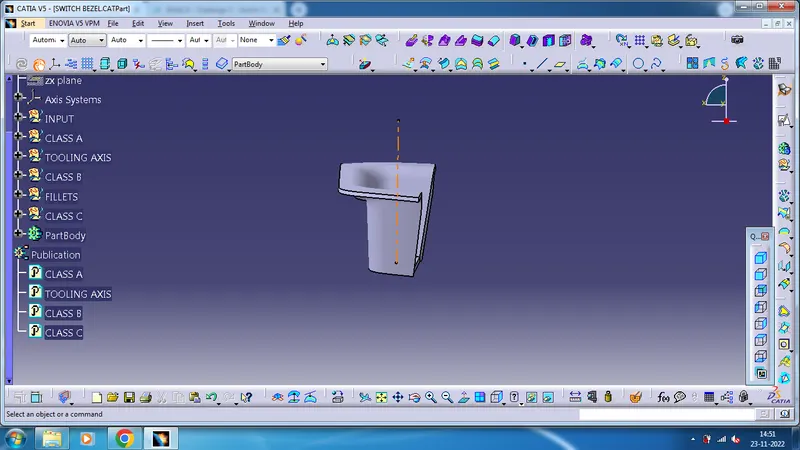

SIDE VIEW
TOP VIEW
conclusion
The model is succesfully completed as per the design requrements.
