Week 8 - Challenge 2 - Switch Bezel Design

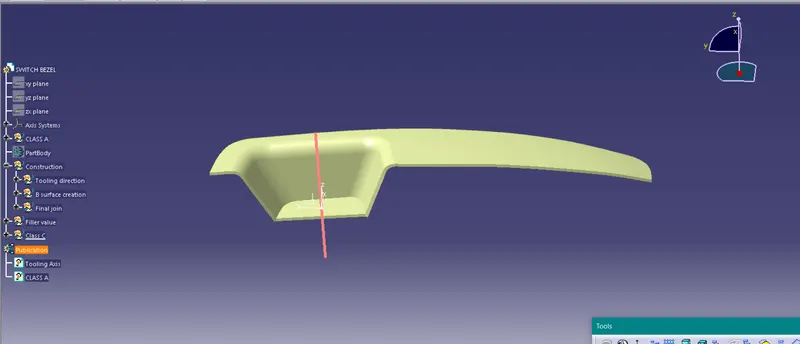

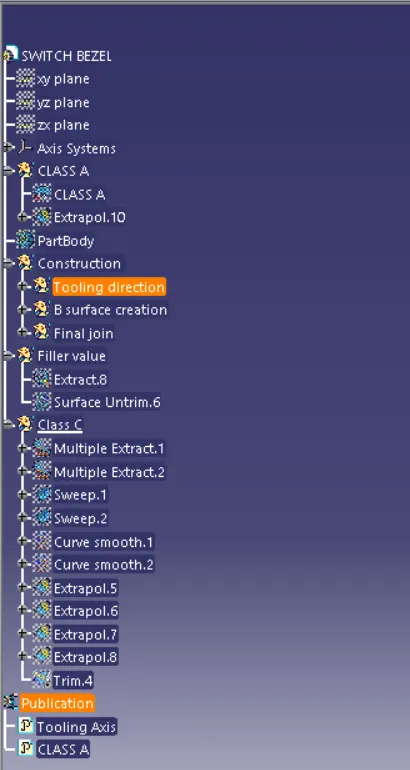

For the operation,we should look to the simple surfaces,And we have 3 simple surfaces in this part,the top surface the walls,and the base,For recongnising the tooling direction,,Created plane on the surface and place a point on centre of that surface ,Creat axis system on that point,here from the base a sketch is created,By using 3d intersection on the class a surface we ,we will get 2 lines in both the vertical direction,we have to get a mean line from two of these vertical surfaces and the other vertical surface,Drawing 2 lines with the reference of the intersection in both sides,We have to create a bisecting line of these two line and through the point ,So we get a tooling axis for the y direction,and next we create tooling axis for x direction,For creating it insert sketch in zx direction with reference point and make a cut section of the model and intersect it and draw lines on tthat projected reference,and draw another line from the origin with an angle 3 degree,After that we got 2 tooling axis,and we bisect it to get a final output that is the tooling axis,Then viewing the line in normal,we should be able to see all the surface to ensure the tooling axois is correct.

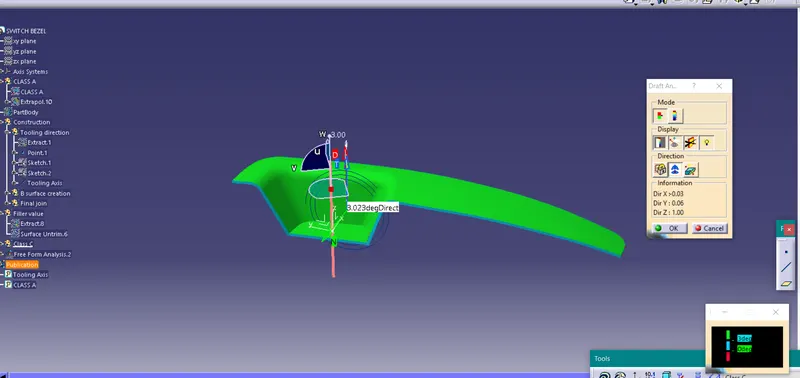

We can pick the draft feature analysis and take the compass option and drop it anywhere on the surface and find out the draft angle and if we pick on any surface we ll get the minimum draft angle required, Draft analysis will give us the draft angle on multiple surfaces without the need of the manual measurements.The first step is to change the shading style to “Shading with Material” .We can click on the direction compass and move the compass to the tooling axis We can click on the part and analysis it by the help of the color if it comes under the required value,We can analyze any part of the model by using the running point feature.
