Week 8 - Challenge 2 - Switch Bezel Design

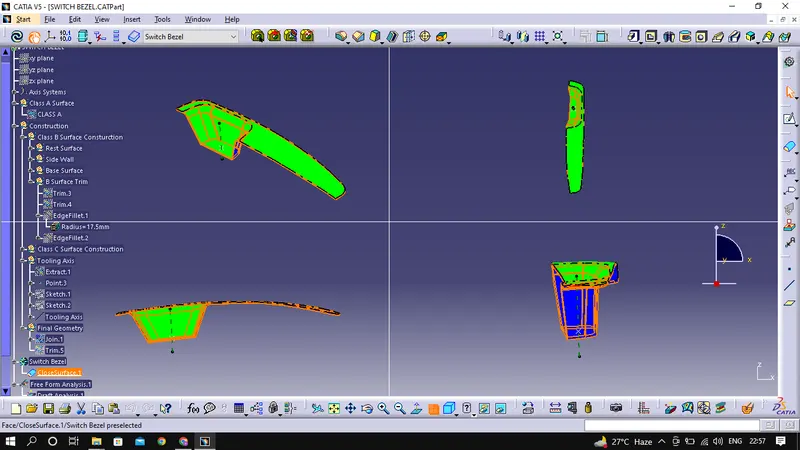

1. Below image represent all views with colour for draft analysis with colour code.

2. Below images for proper tree structure and Publication varificaation:

3. Draft Analysis of Class A Surface:

To make sure easy removal of the part from the die, sufficient draft should be provide on surface which is paraller to tooling axis because these surfaces are penedicular to the tolling direction.

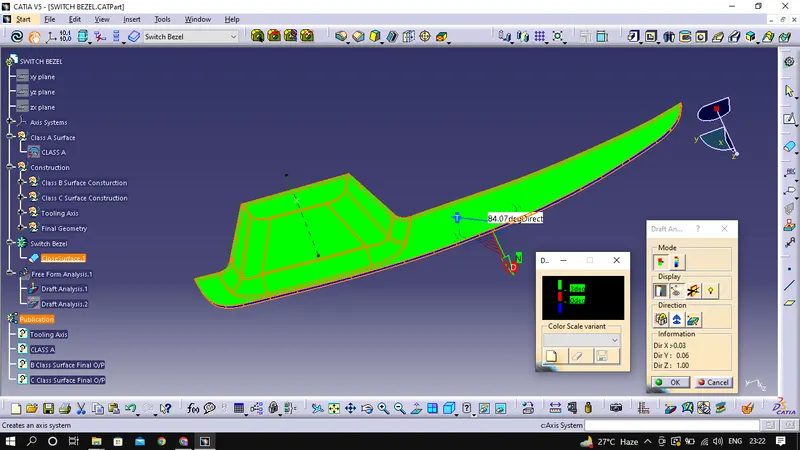

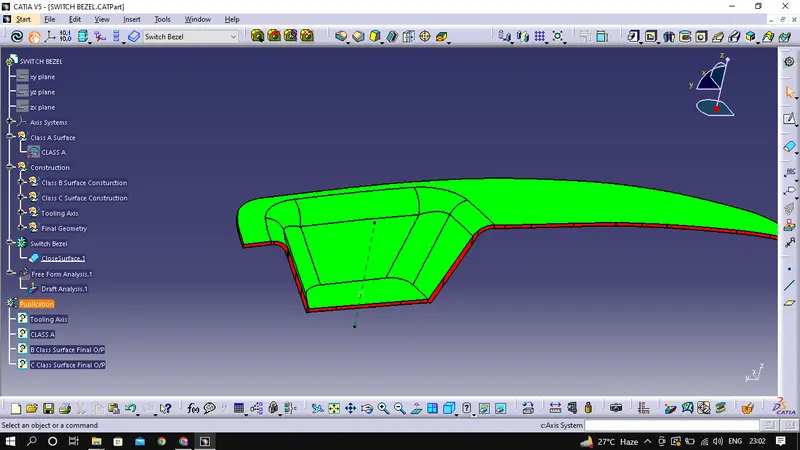

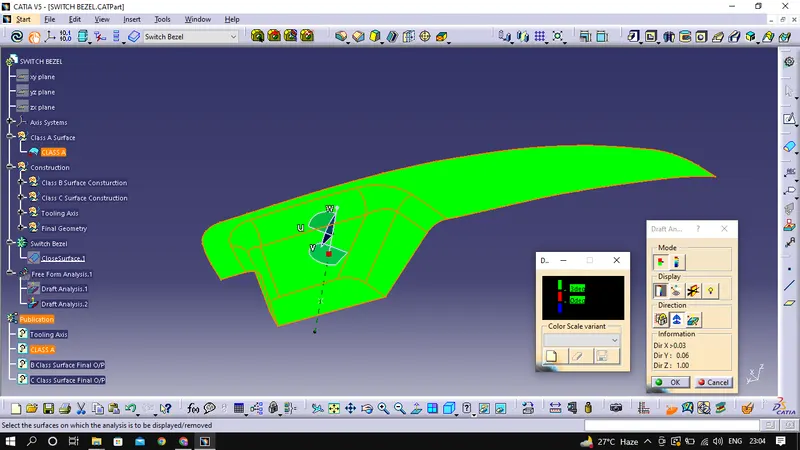

At first feasibile tooling axis has been decided (highlighted with green colour in below image), keeping the parameters in mind that part should be easily removale and havig cost efective tooling. After deciding the toolindg axis draft analysis has been done which can be seen at below attaced image. As we can see all surface are green which means it has 3 degree of draft, that mean this Class A surface is good to proceed further.

4. Draft Analysis of Plastic Component:

As per given Class A surface, class b and class c surface has been developed. With the help of Class A, B and C surface part has been design by using close body commad.

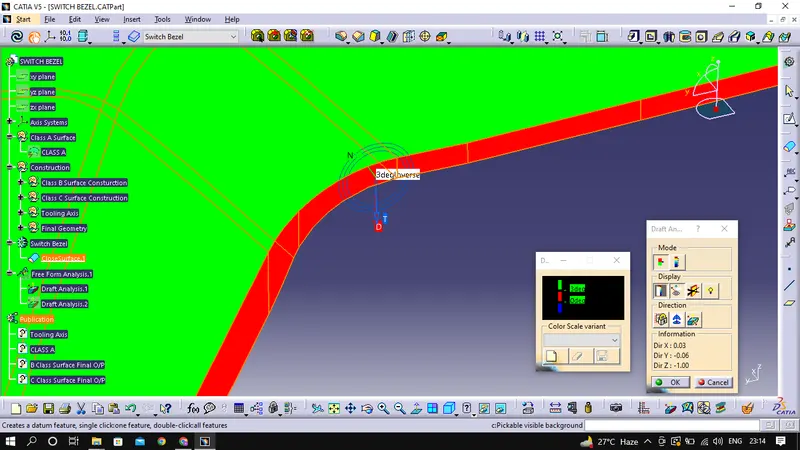

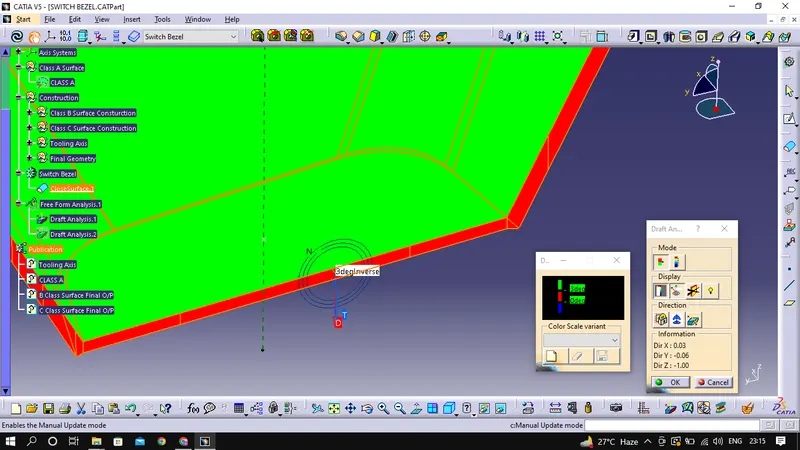

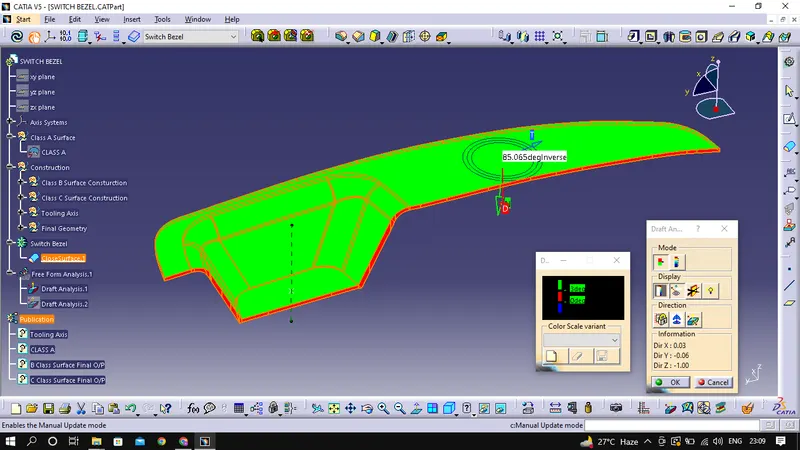

1. To insure the easy removal of the part draft analysis for the part has been carried out. As given in below image all surface on class A is green which mean its ok for plastic injection die moulding and througout the surface at least 3 degree draft maintained which is enough for easy removal of the part. As you can see there is red colour on class c surface, but when you meausre it its showing 3 degree which can be check in below images. It is showing red because the value is near by ~2.98 degree, but that is enough to insure the removal of part from the die. Same tooling axis has been used which was used earlier for class A surface.

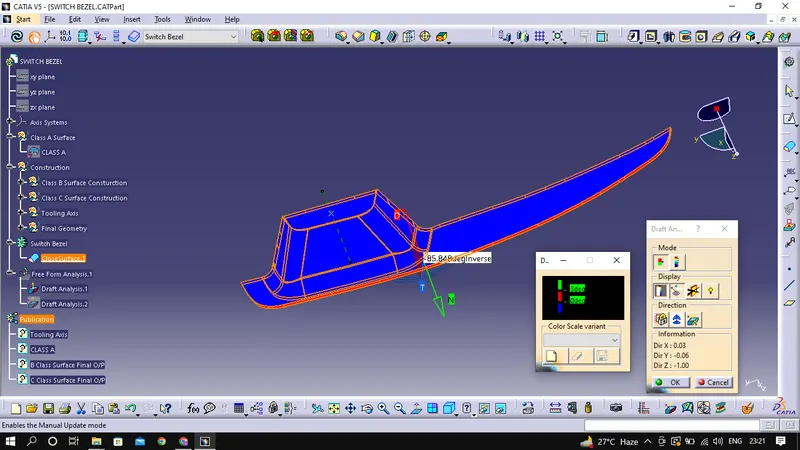

2. Bottom surface showing blue colour which means it has less than 0 degree draft but this surface will be clear from downward direction of lower half part of the die so if i switch the direction which is in next image, now you can seen now its green which means it is good to go further.
