Week 8 - Challenge 2 - Switch Bezel Design

Solution:-

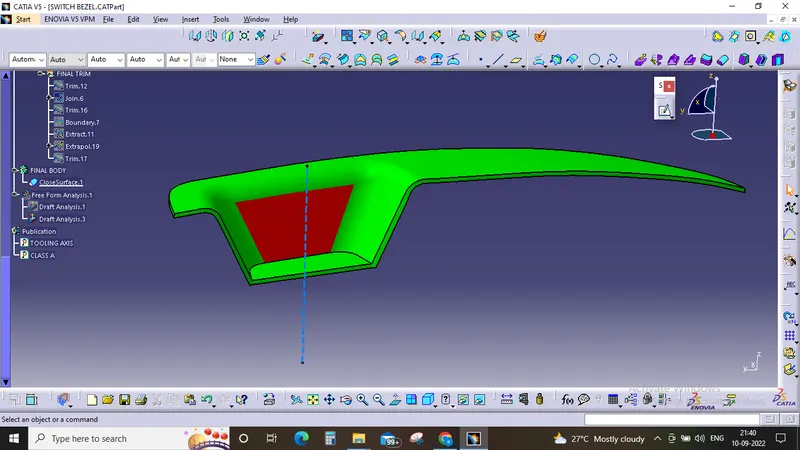

1) After the design check a sketch is drawn after extracting the refrence surface after figuring out the position of tooling axis

2) then the line was drawn in the sketch and named it as dummy tooling axis ,then the lines are drawn along the direction of the extract annd then they are bisected in the directon of tooling axis

3) For the base another sketch was created and by taking the dynamic section view and then intersect the component with the sketch drawn
