Week 8 - Challenge 1 - Base Bracket Design

Solution:-

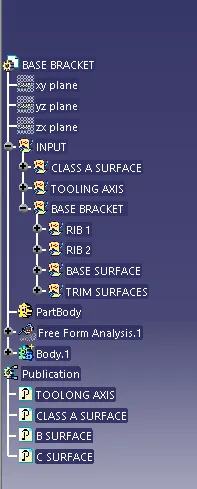

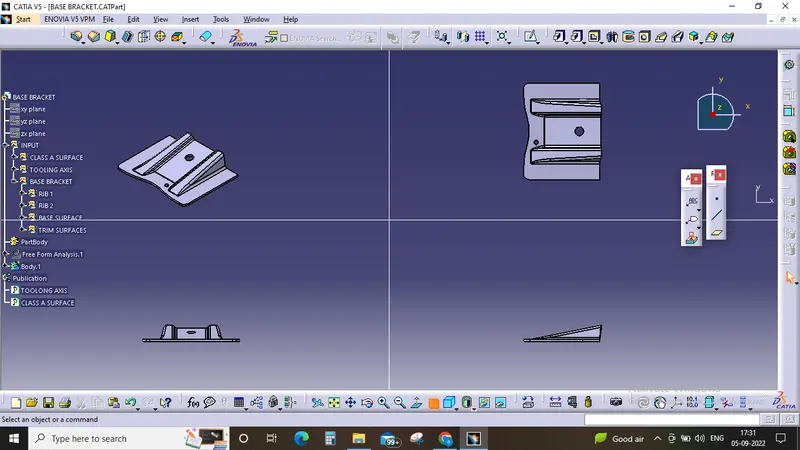

1) The design was checked before moving forward. A complete design check was taken on the given part using boundary and join command

2) then a plane was inserted which was mean to cover the major tooling axis as per our observation and then we intersected the plane and our component',then the dummy line was created on the component and we named it as a Dummy tooling axis

3) in the next step we draw lines along the intersect and then we bisect them together in the direction of dummy tooling axis and this is how we get the exact tooling axis which we desired..
