Week 8 - Challenge 2 - Switch Bezel Design

DESIGN CONSIDERATION.

• Class – A surface should be aesthetically smooth and good.
• Class – B surface should have all the supporting features like ribs.
• Parting Line should coincide with the B surface since flashing couldn’t affect the aesthetic of Class – A.
• Class – C surface should also pass the draft analysis

Tooling Direction.

• Considering the Ejection from the cavity of the mould after manufacturing the interior trim (switch bezel) must have the nominal 3-degree draft angle.
• Hence the tooling direction is created by considering the above factor and bisecting method is used.
• The base surface of the class – A was extracted and a point at the centre is created and an axis system was inserted to the point with the current feature is disabled.

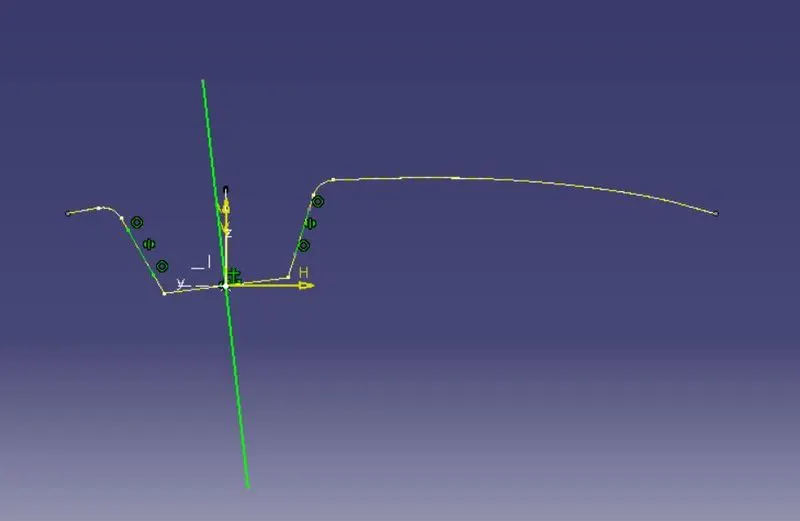

• Then, using project intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.
• Then bisecting lines with the two inclined lines were drawn.

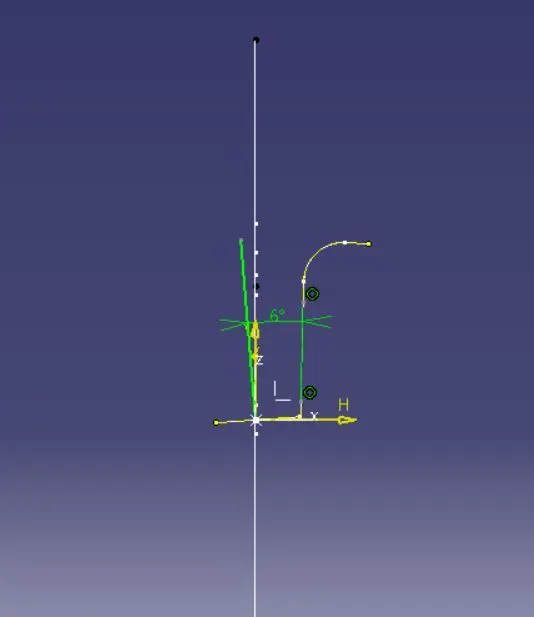

• Now the same procedure is done along the xz plane but on one side we don’t have inclined lines so the centre point is used to extrude a line along the z-direction and gave a measurement of 6 degrees.

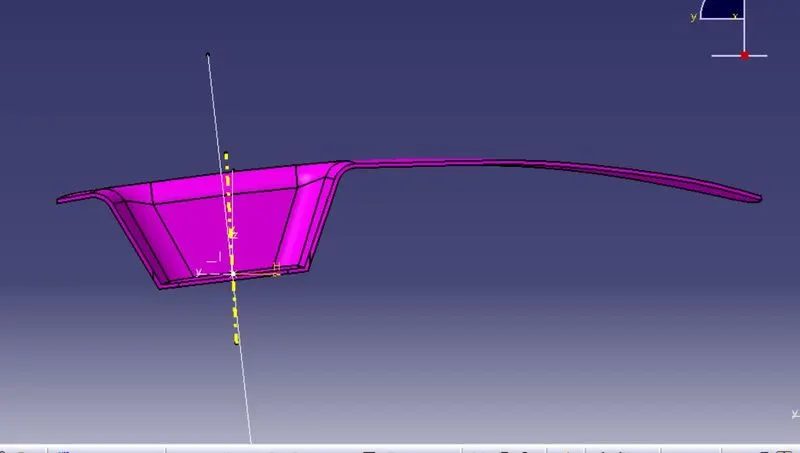

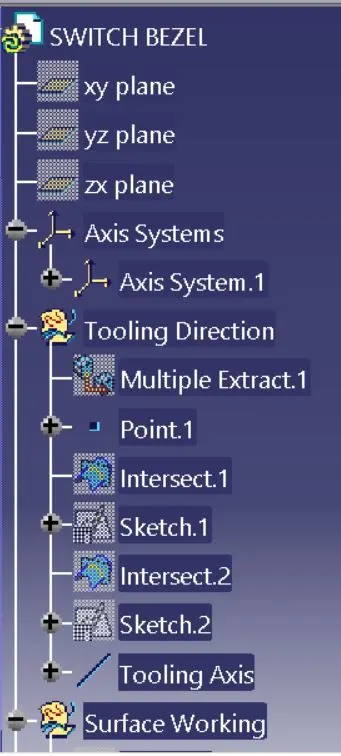

• With these two lines from sketches 1 and 2, the bisecting line is crated and published as Tooling Axis.


Draft Analysis.
No parts can be ejected from the tool if it is having a straight 90 degree profile from its base surface. A small draft angle is provided to each and every area of the component in order to get an easy removal of the component from the tool. Draft analysis technique is used to analyze whether our part model created in cad is manufacturable based on the draft condition applied. Here the part should get easily removed from the panel dies (in case of Sheet metal part) or Mold (in case of plastic). Here we are providing a direction in which components should eject inorder to get an easy removal of components from the tool. In other words it also lets us know whether the model is having a draft angle and how much is the draft angle from the tool direction.

• First the class – A surface is checked before creating the Class –B&C surface and finally the solid body must be analysed. Both can be done by following the below procedures.
• By changing the view mode to custom view parameters – Material mode then the feature draft analysis is enabled.

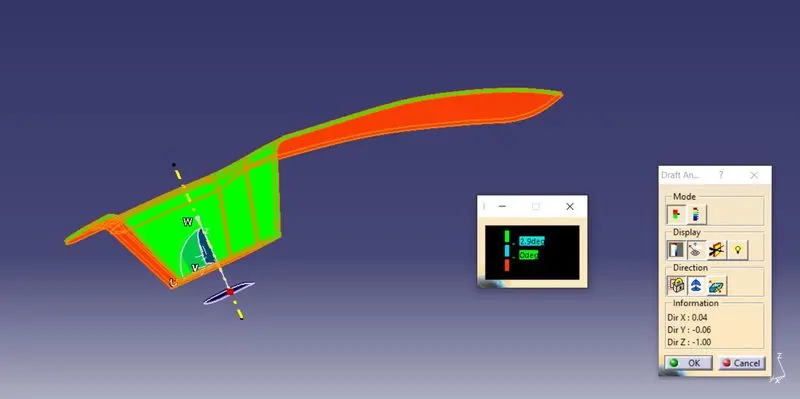

• Then the compass was activated and placed with the tooling axis by dragging the red pointer and then locked it.
• Then, by selecting the quick analysis mode, the nominal value will be 3 degrees and checked for the component's draft angle.

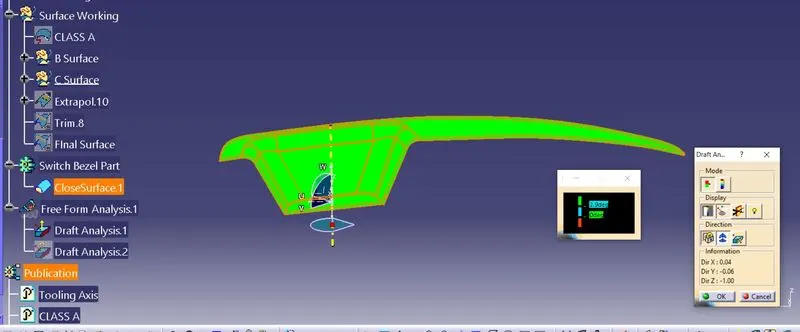

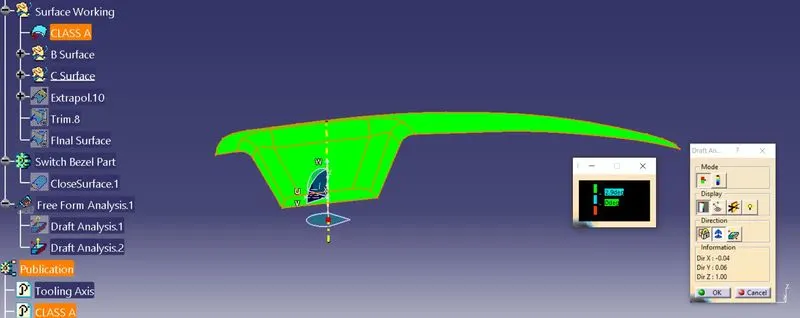

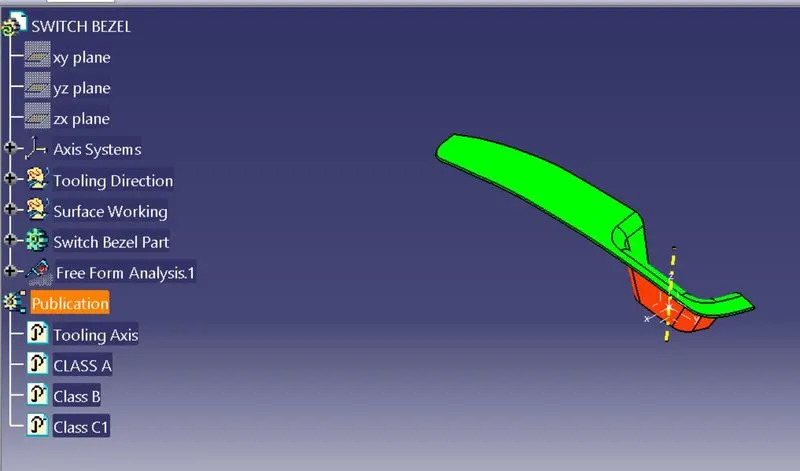

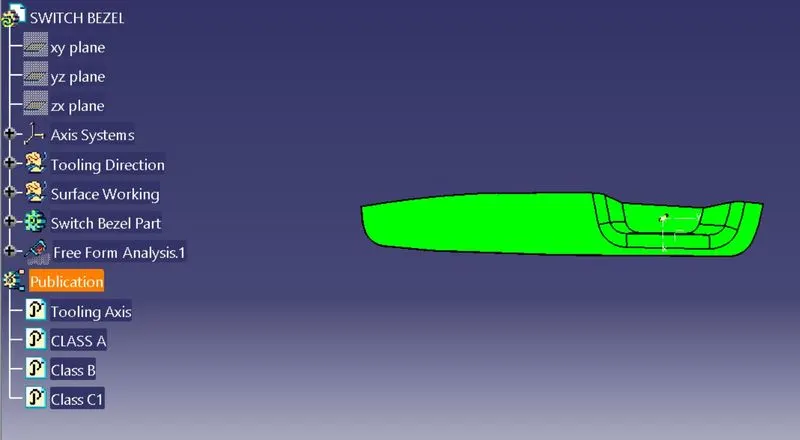

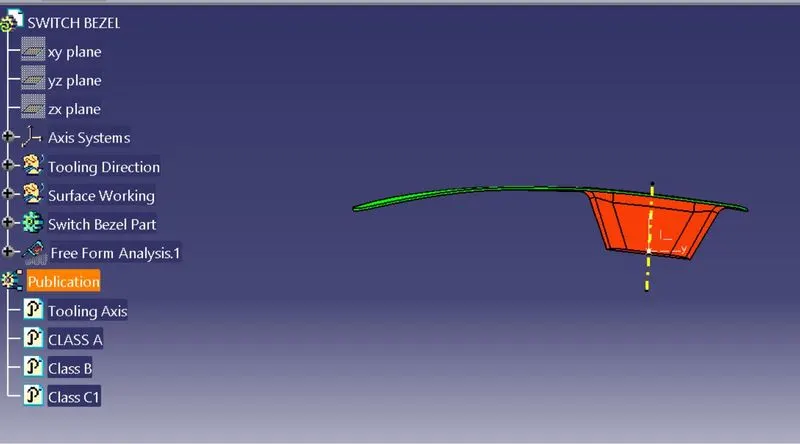

• The green colour area shows that it satisfies the 3-degree draft angle. If not satisfied then by using the Running point tool the area is measured and then altered to get a successful draft for the created tooling direction.

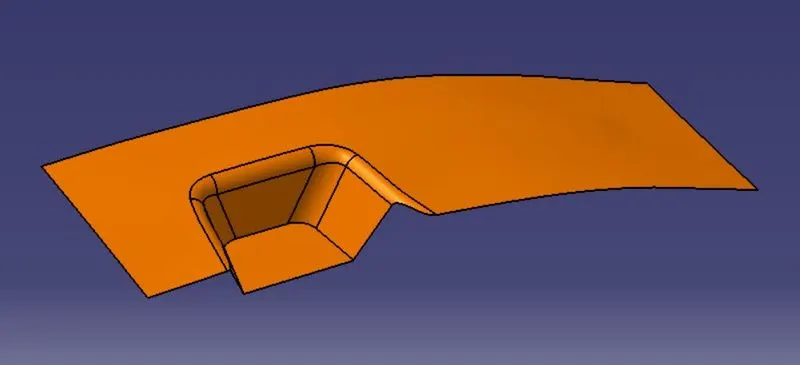

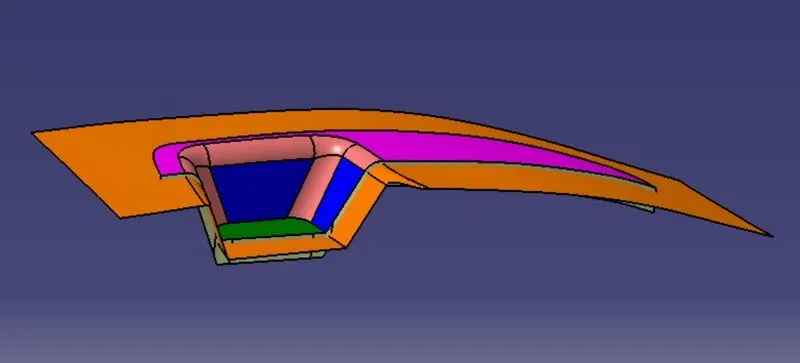

A Class Surface.

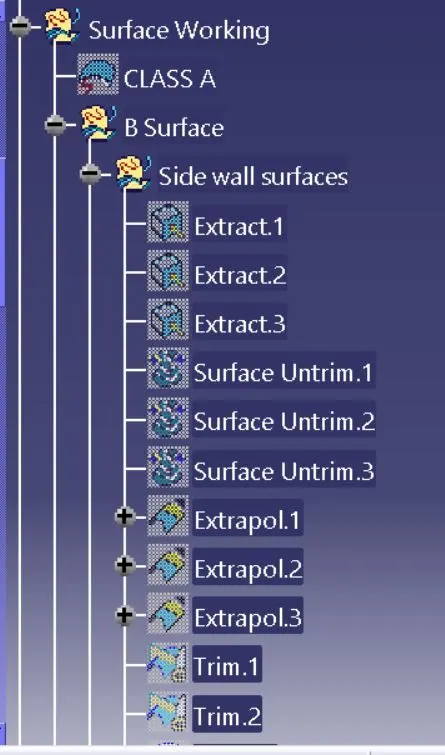

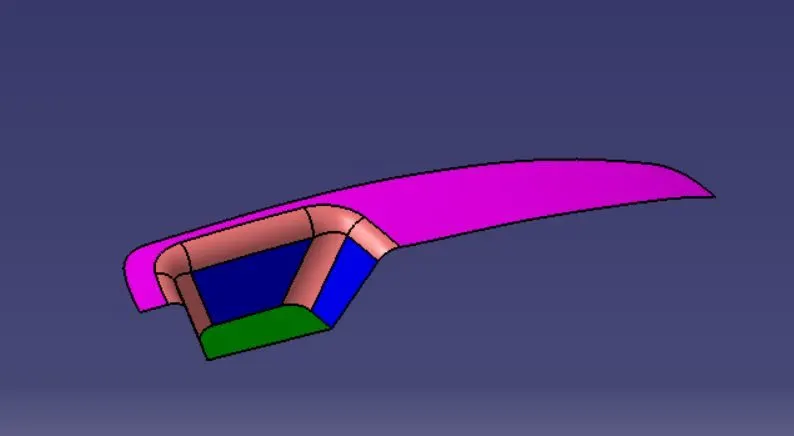

B Class Surface.

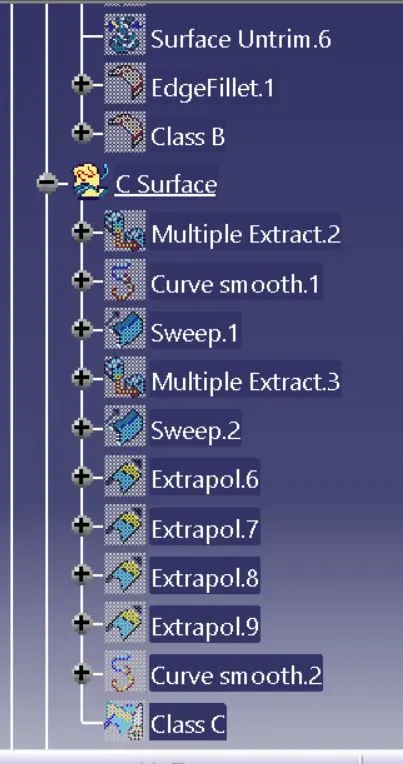

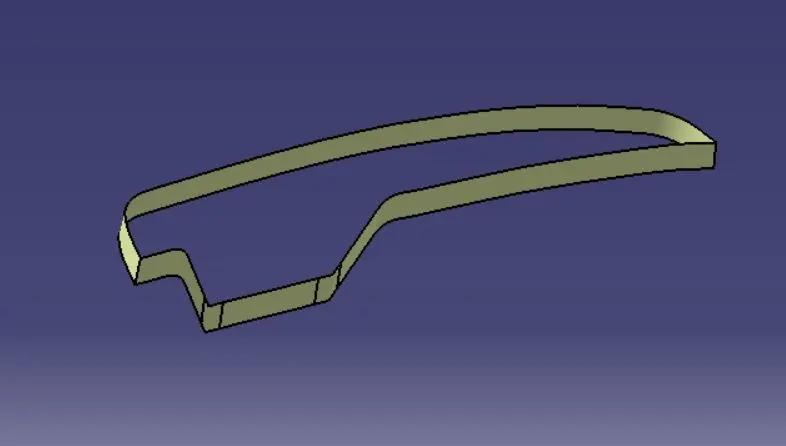

C Class Surface.

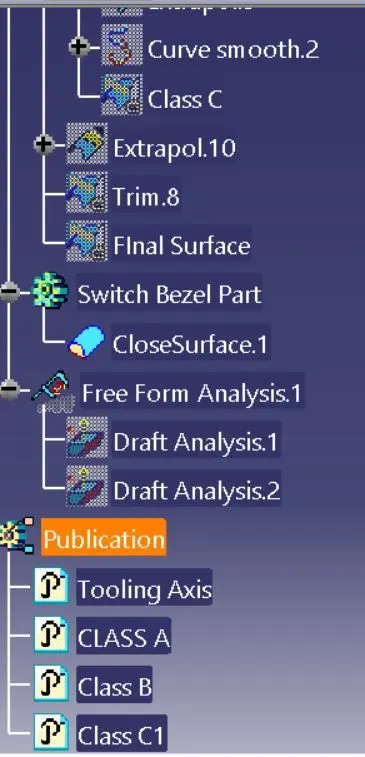

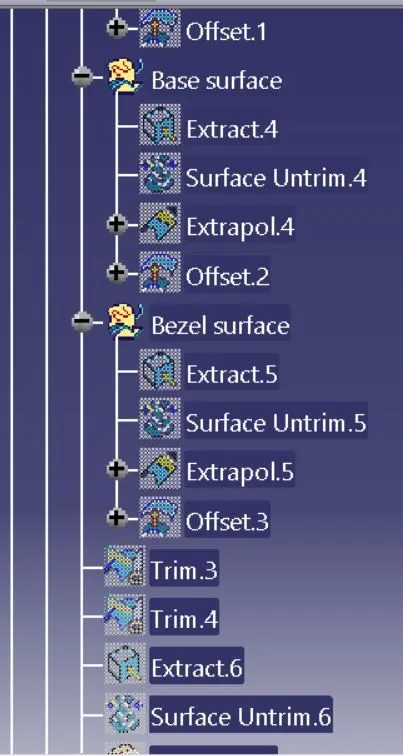

Tree Structure.

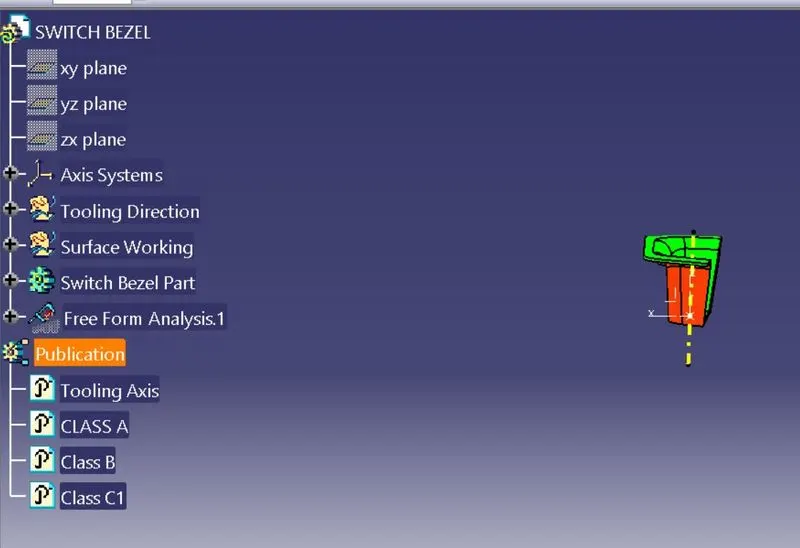

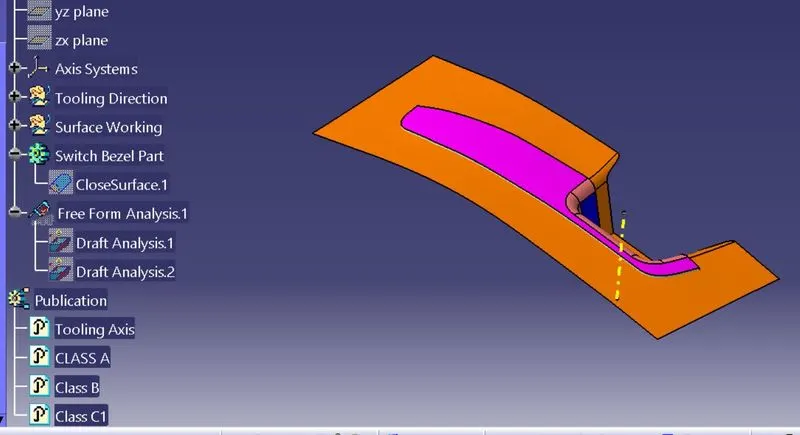

Publication.
