Week 8 - Challenge 2 - Switch Bezel Design

INTRO: Car underbody is most prone to corrosion. Underbody coating provides long-term protection from corrosion  to the parts like internal body panels, frame rails, and other inner cavities that are not physically accessible or observed easily ,but these areas are prone to corrosion. therfore , coating is essential.…

what is Bench-Marking? ans.) synonym for bench marking is comparison. when we  buy a mobile phone we basically compare few mobile phones based on their features, price, models and vaious aspects as per need , thus we are creating bench marks for mobile phone, in short we compared  them with many.  in automotive…

 ASSEMBLY 1         ASSEMBLY 2 ( CV JOINT):

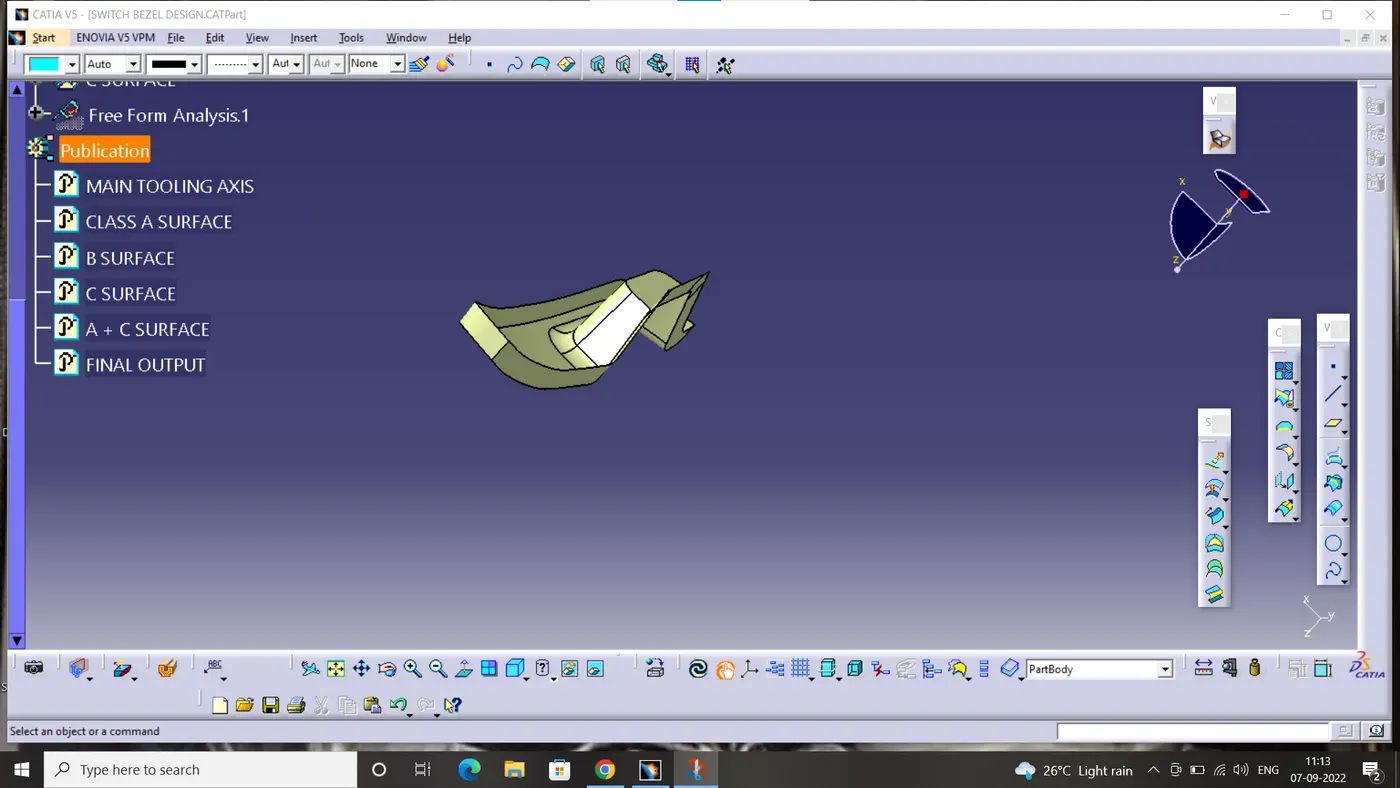

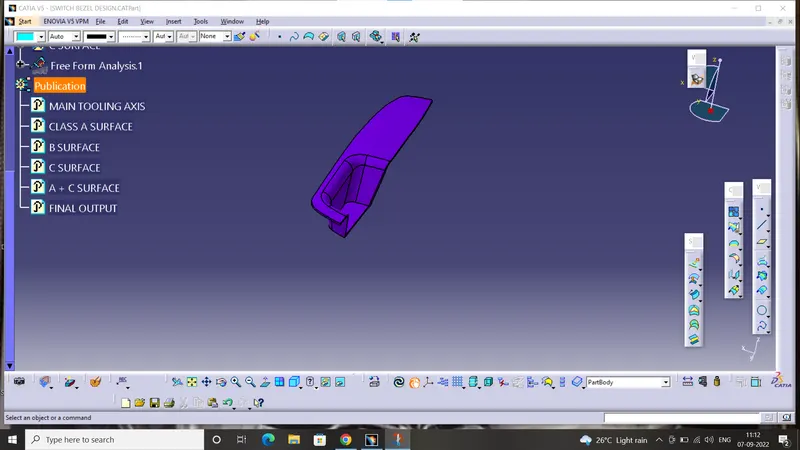

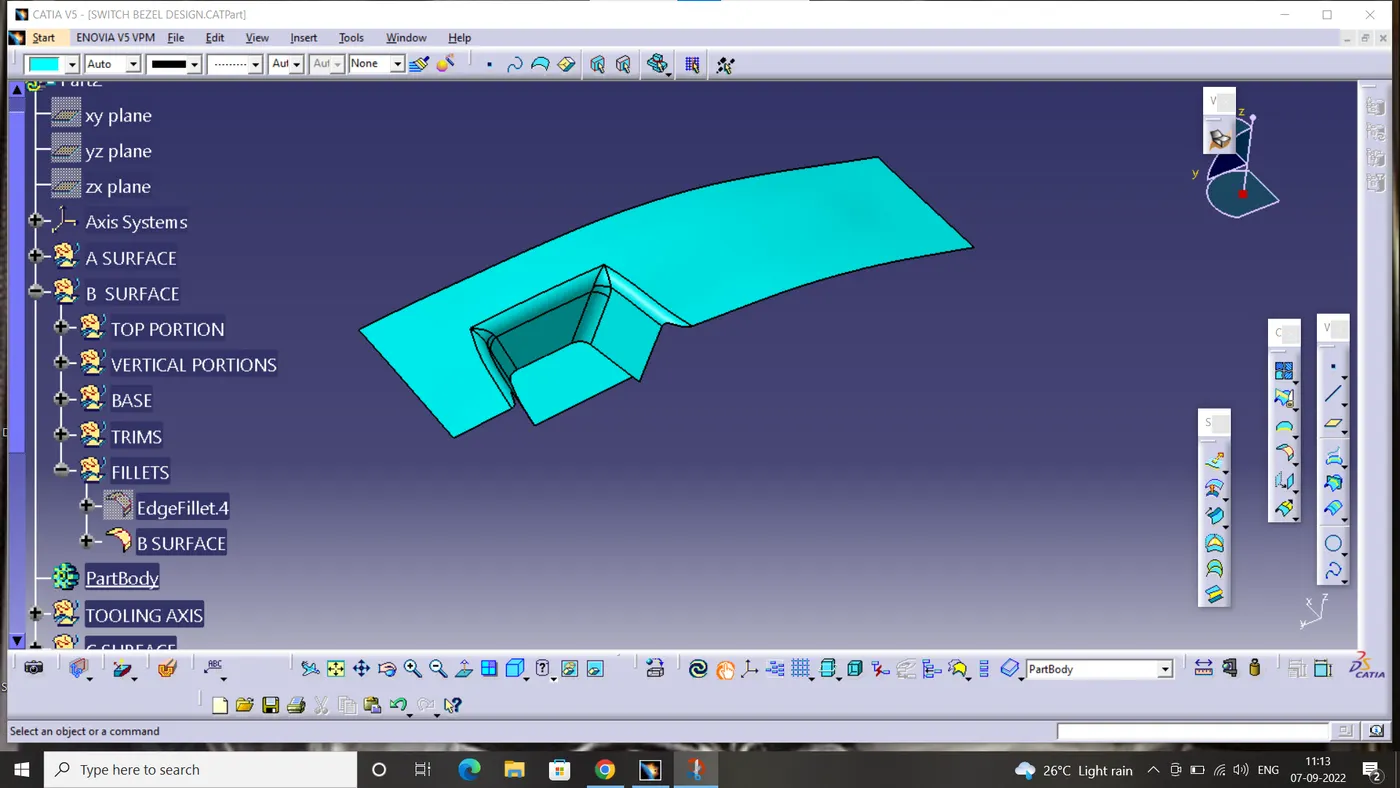

as the door trim lower s component  was already completed in previous challlenge, so for this same cat file was used to create engineering features as heat stakes and locators.  A and B surfaces are trimmed with C surface  and a solid part was made in part workbench using closed body command. therefore,…

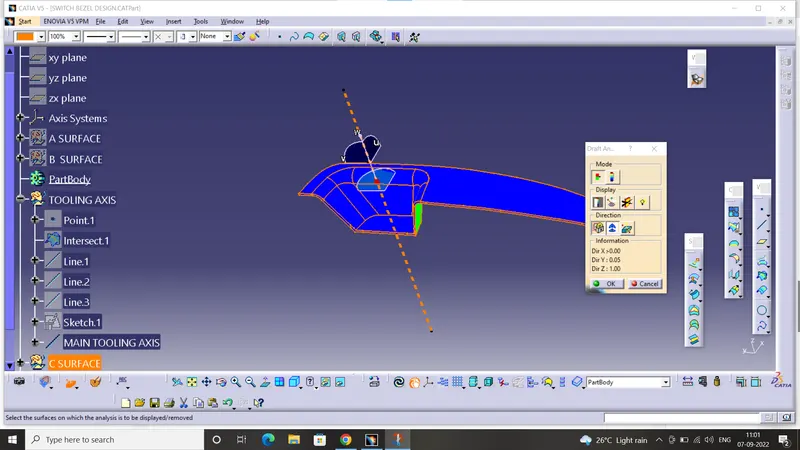

DRAFT ANALYSIS: for any  plastic component draft analysis is important from manufacturing point of view. without draft , manufacturing is possible but we may not get the expected product , mainly the walls of the product are not in expected geometry. therefore, minimal draft for plastic component is 3 degree. …

I HAVE DONE ALL THE REQUIRED.  ONLY I AM UNABLE TO REPLACE THE TRIM FOR INTERNAL INCLINED WALL. AFTER REPLACING IT WITH THE PREVIOUS TRIM, THE FINAL TRIM WITH C SURFACE IS DISTORTED.

this simulation contains set of models created with Simulink, Simscape, and Simscape Driveline.it includes BAJA ATV model with Continuously Variable Transmission(CVT). Simscape and Simscape Driveline have been used to complete the system. this above composited vehicle has many simulink blocks as well as simscape blocks…

Simulink model of Doorbell using solenoid block: simulink model for doorbell includes blocks from simscape also. since, we are operating simulink as well as simscape we will require converters time to time, that is ps-simulink converter and vice versa.  when the switch is closed the electromagnet receives electrical power…

 ANIMATION FOR 2R ROBOTIC ARM Before animating the robotic arm, we will create a simple plot or graph at some fixed theta or degree. here, theta1 is taken as 60 degree and theta2  is taken as 45 degree %INPUTSl1 = 1;l2 = 0.5;theta1 = 60;theta2 = 45; Below are the  positions of  starting point of arm1(x0,y0)…

Writting  code in MATLAB  for optimising the stalagmite function and findimg global maxima of given function. x = linspace(0,0.6,150);y = linspace(0,0.6,150);  x and y are one dimensional sets or array; [xx yy] = meshgrid(x,y); using meshgrid command we will be creating 2 dimensional arrays; following…

The Rankine cycle is an thermodynamic cycle on which  heat engines work,  steam turbines  allow mechanical work to be extracted out  from a fluid(water) as it moves between a heat source and condenser. thus  comparable with OTTO cycle, this cycle also follows four processes…

ODE are used to solve complex problems where dependent and independent variables are used. but doing it manually requires knowledge of integration as well as the calculation is lengthy and that too limited asnwers are possible. but,same if do it programically we get more range of data or solution set for ODE and …
