Week 8 - Challenge 2 - Switch Bezel Design

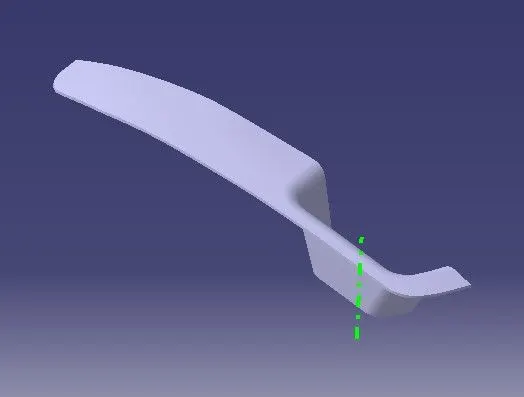

Isometric View

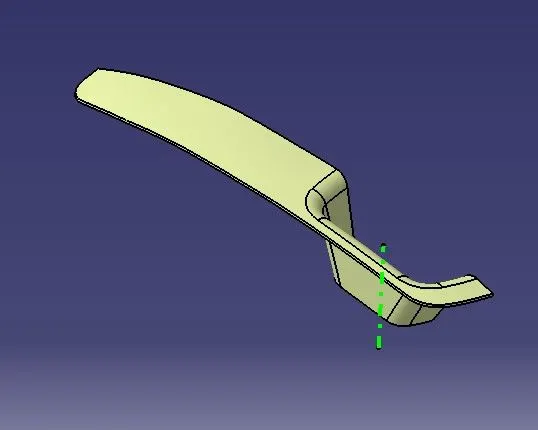

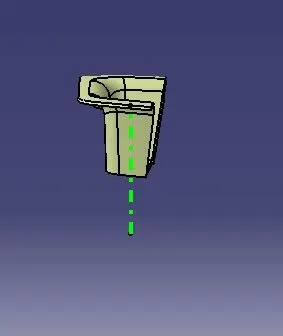

Front View

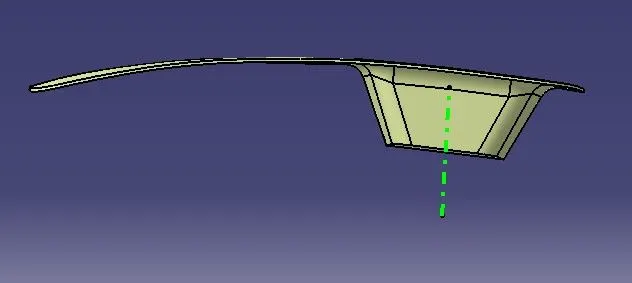

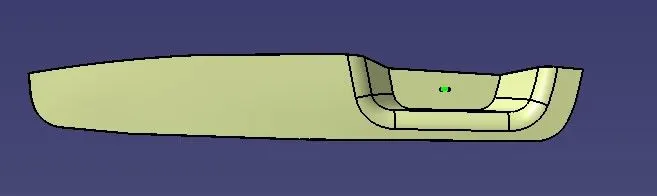

Side View

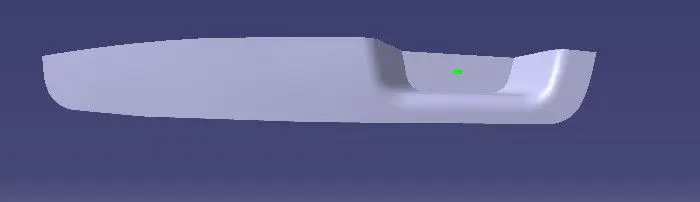

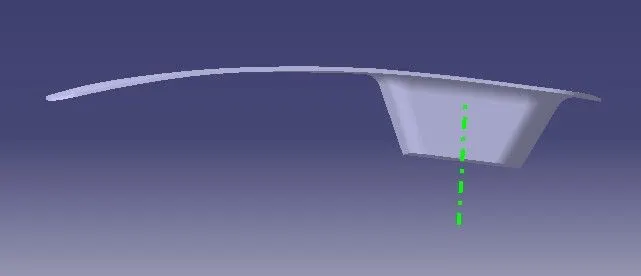

Top View

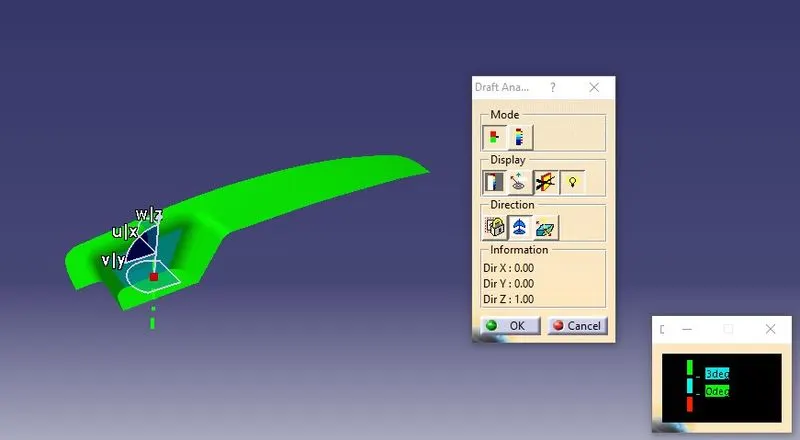

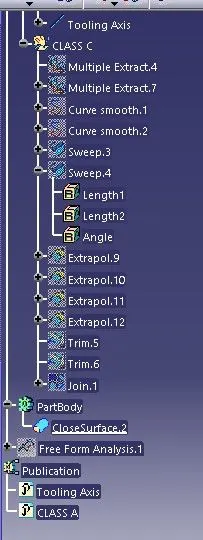

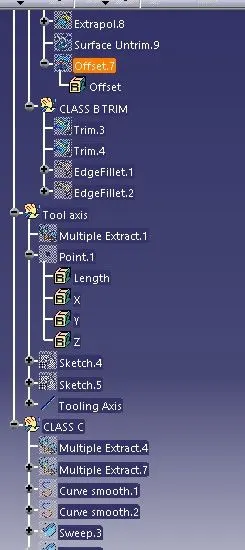

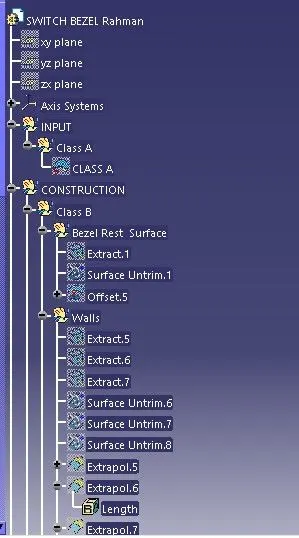

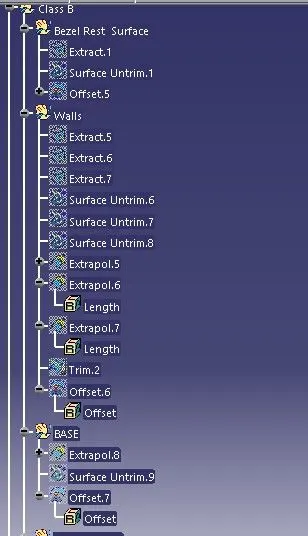

Draft Analysis

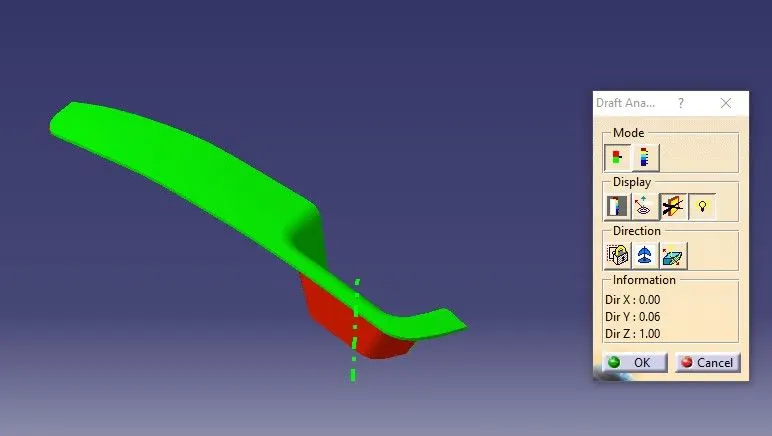

Draft Analysis is done to analyze the draft angle .this allows us to verify whether the product will be easily removed from the tool .when designing a product they need to be angled slightiy so that the tool can be pulled away from the object easily without deformation or damage .This slight angle is called draft I have given the condition for draft angle with a maximum deviation of 3 degrees, anything within that limit is shown in green, whicn means that the part is producible.
