Week 8 - Challenge 2 - Switch Bezel Design

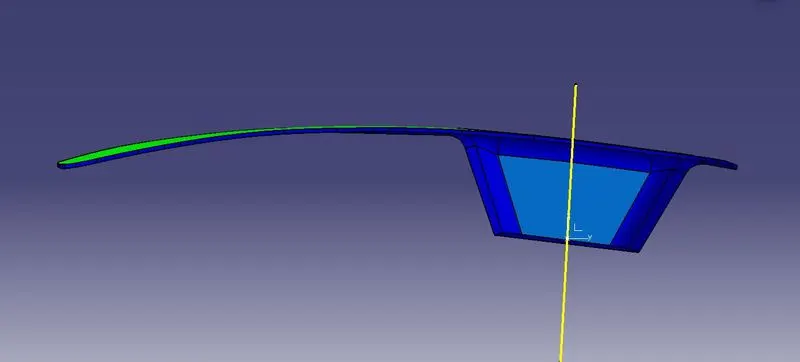

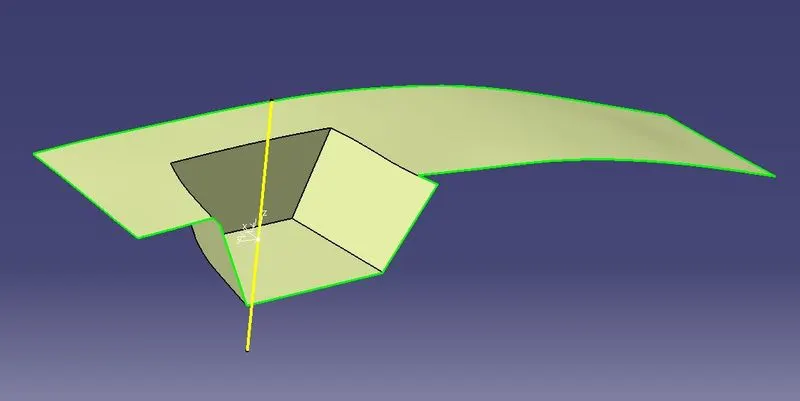

ISOMETRIC VIEW WITH FEATURES:

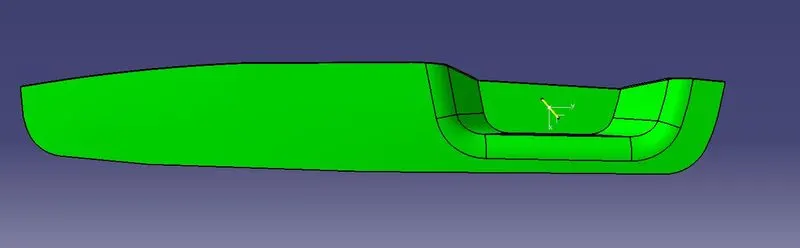

CLASS A SURFACE:

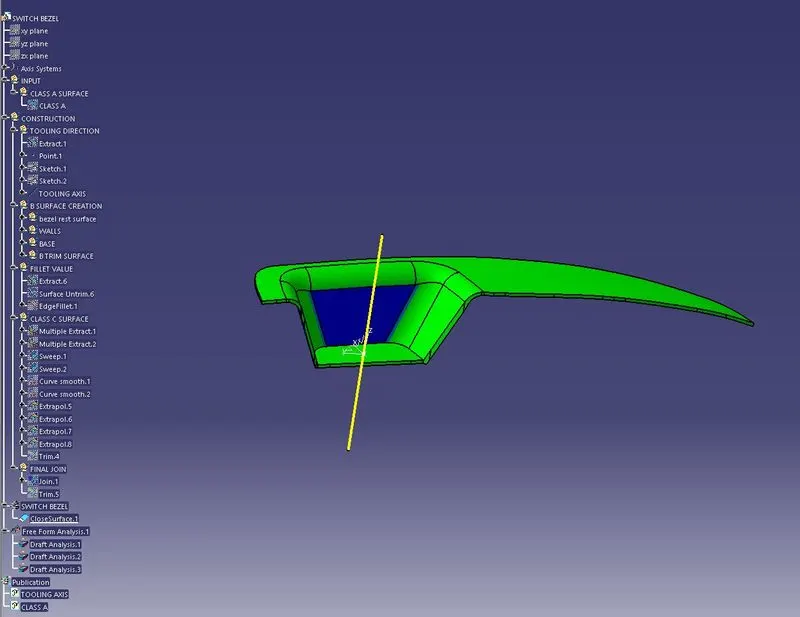

CLASS B SURFACE:

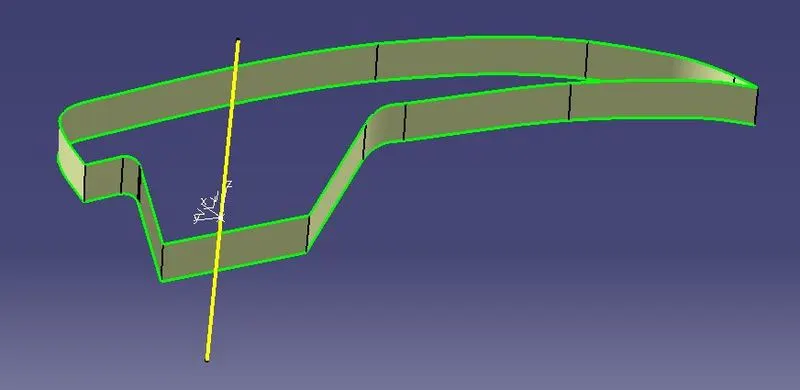

CLASS C SURFACE:

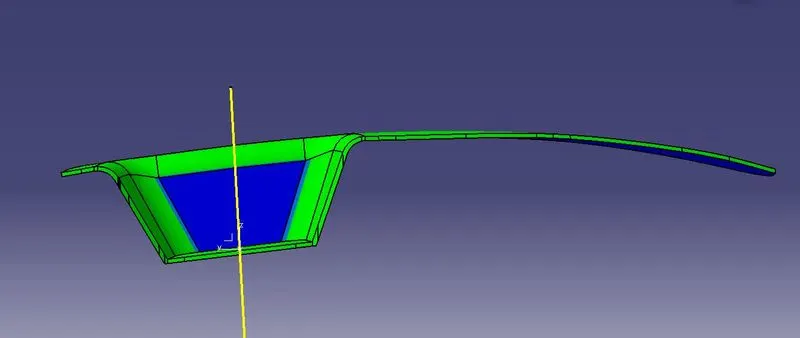

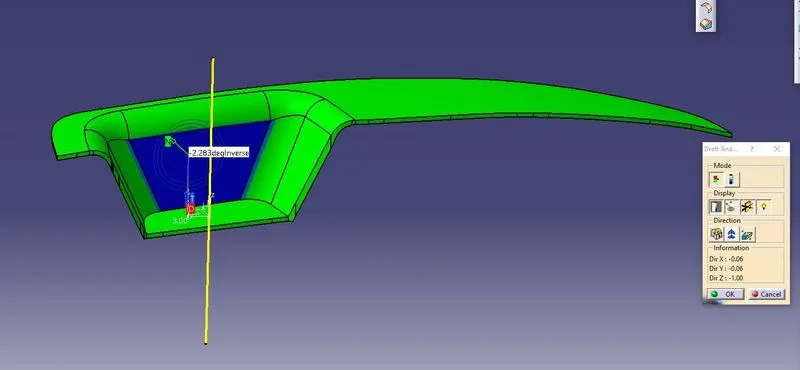

DRAFT ANALYSIS AND CREATION OF BISECTING LINE:

In this draft analysis I had given 6 deg of tooling axis angle to create the bisecting line,in the face of blue color deviation comes around 2.283 deg

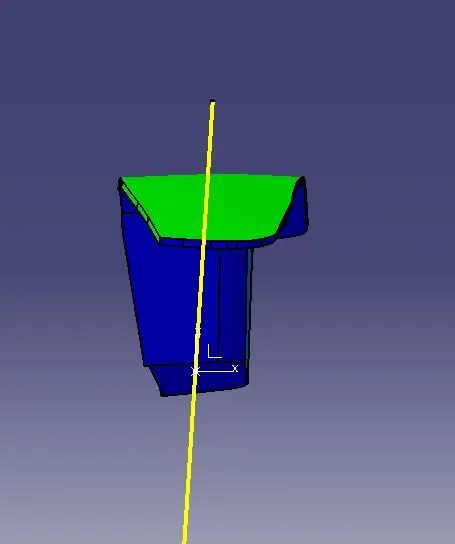

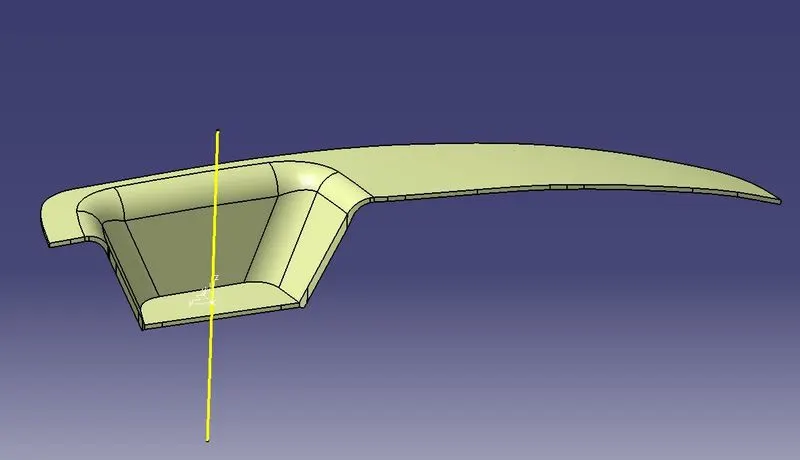

CLASS A,B,C TRIMED SURFACE:

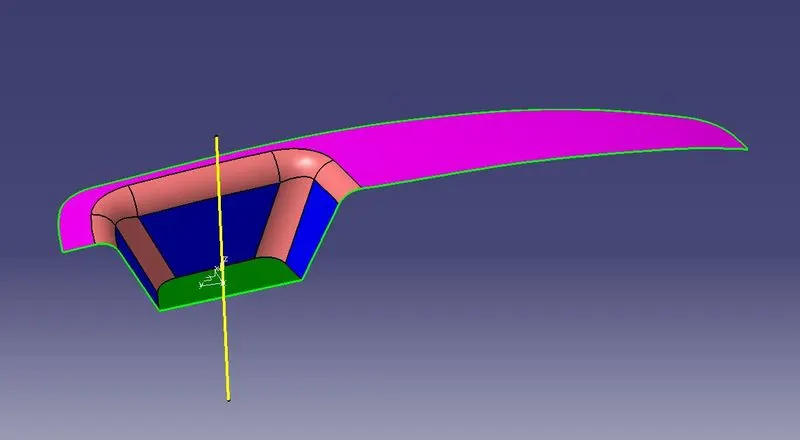

FRONT VIEW:

TOP VIEW:

BACK VIEW:

SIDE VIEW:
