Week 8 - Challenge 2 - Base Bracket Design

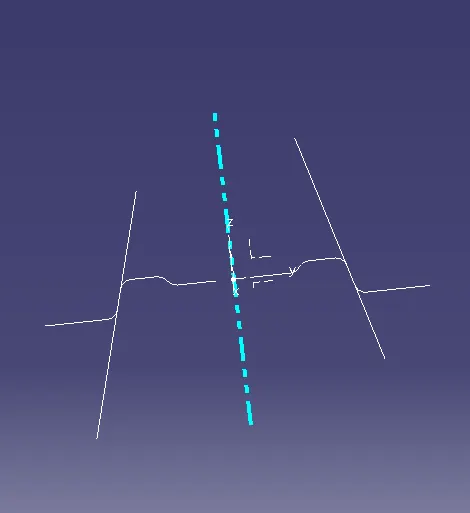

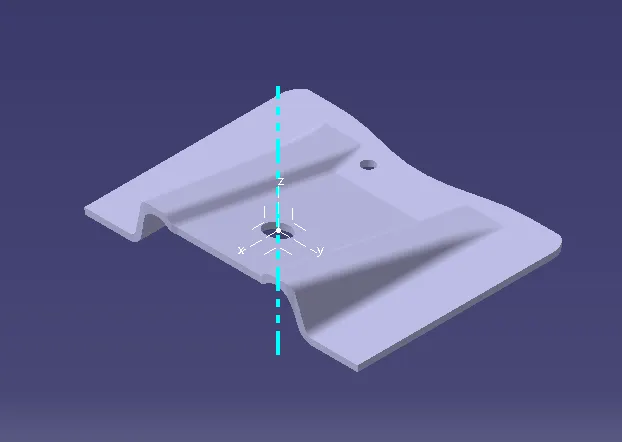

creation of the tooling axis by using intersection of the given bracket and yz plane. bisecting the two lines which are created from the intersection

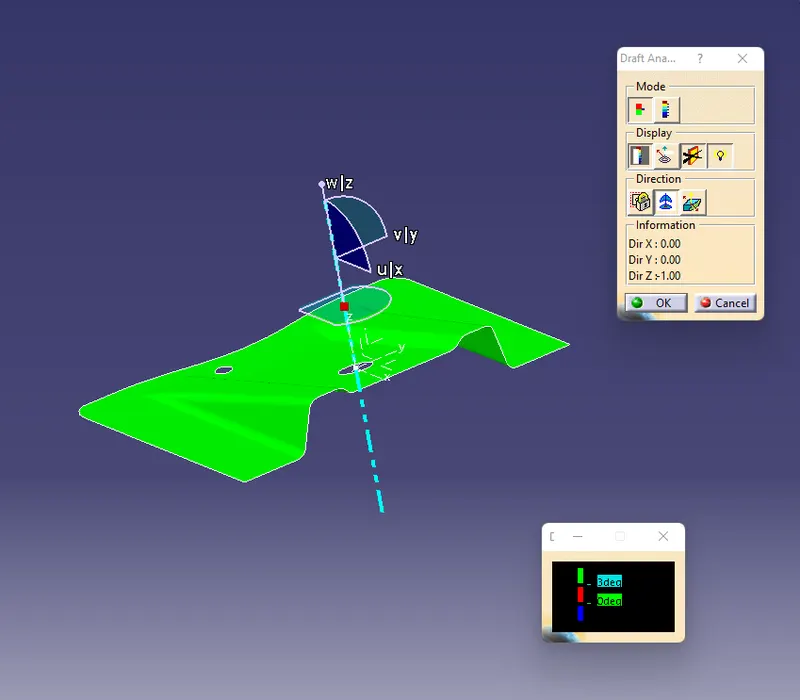

draft analysis is made by aligning the compass with tooling direction and locking the compass with tool direction and by clicking the mouse on body will give the draft analysis report

colour variant image

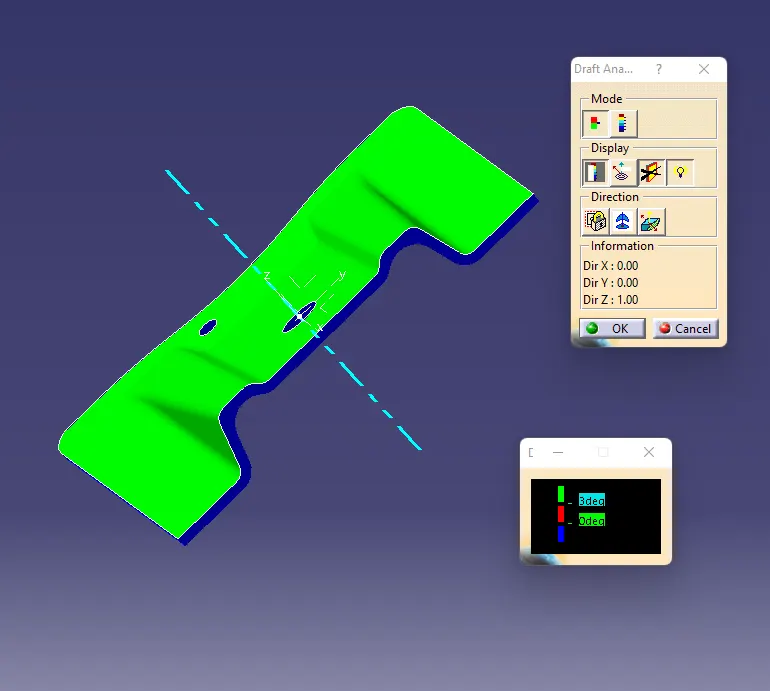

draft analysis of final surface

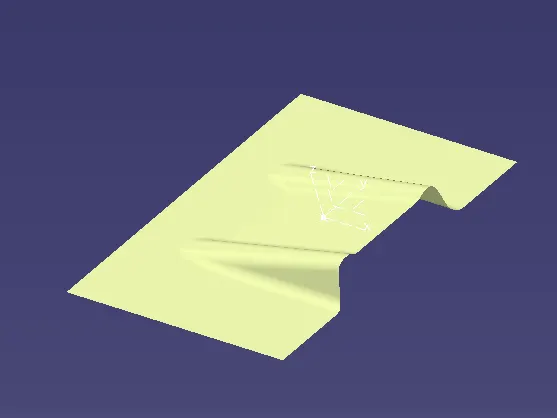

class b surface creation

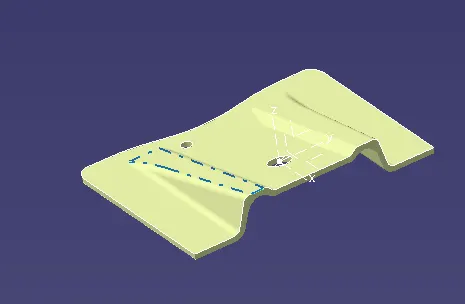

class c surface creation

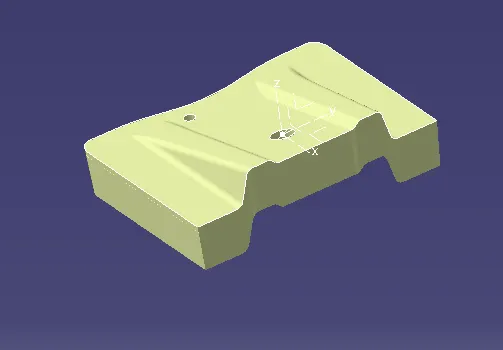

final surface

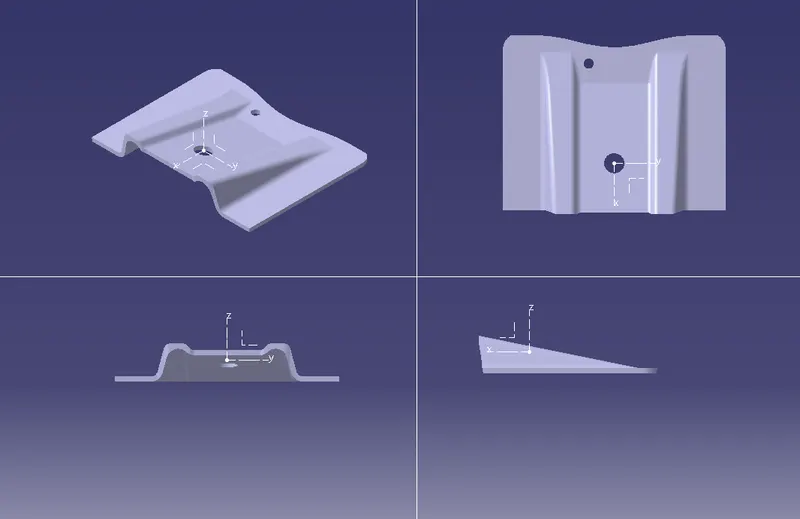

final part image

after all creation of all surfaces and part by using publication command creation of link of all final products
