Week 8 - Challenge 2 - Base Bracket Design

A DETAILED RIPORT ON TOOLING EXIS CREATION

AS the base backer had a large flat surface and holes from the z direction I choose the z direction and I used the bisecting method to get my tooling axis

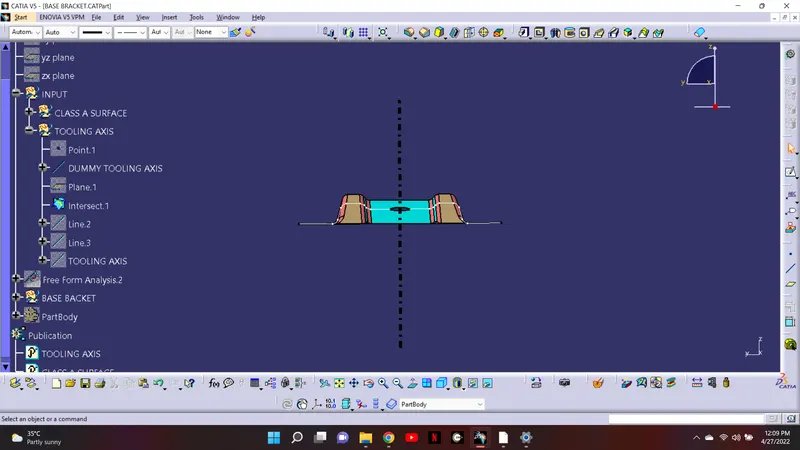

CREATION OF POINT ON THE HOLE TO GER THE DUMMY TOOLING AXIS

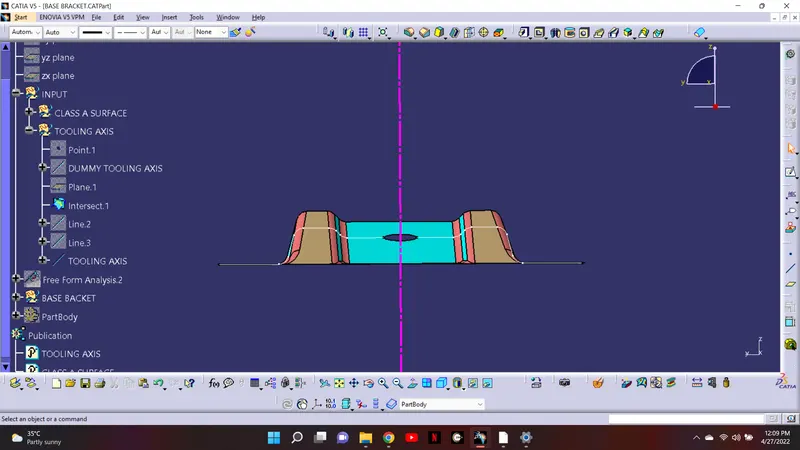

DONE A INTERECT OPERATION ON THE Y DIRECTION WHICH HAD THE MAXIMUM DRAFT

CREATION OF THE LINE ON THE MOST POSSIBLE DRAFT SLIDE

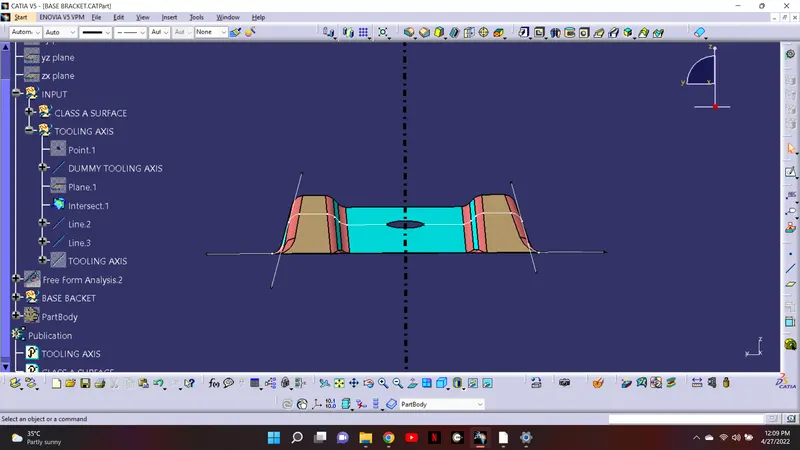

BISECTING THE TWO LINES WHICH HAS CREATED RESULTED IN THE TOOLING DIRECTION

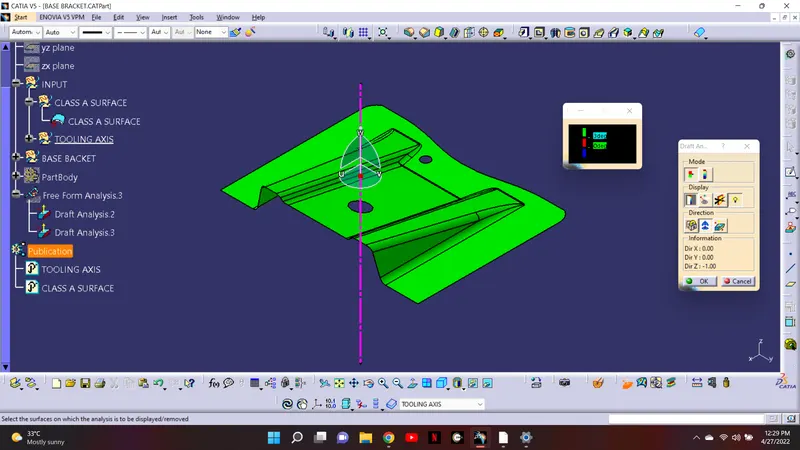

DRAFT ANALYSIS

THE COMPONENT HAS MAINTAINED WITH THE CONDITION OF 3 DEGREE

THE GREEN COLOUR OF THE SURFACE A INDICATES THEAT IT IS IN A SAFE CONDITION

The compass has been placed in the direction of the axis

Then is locked

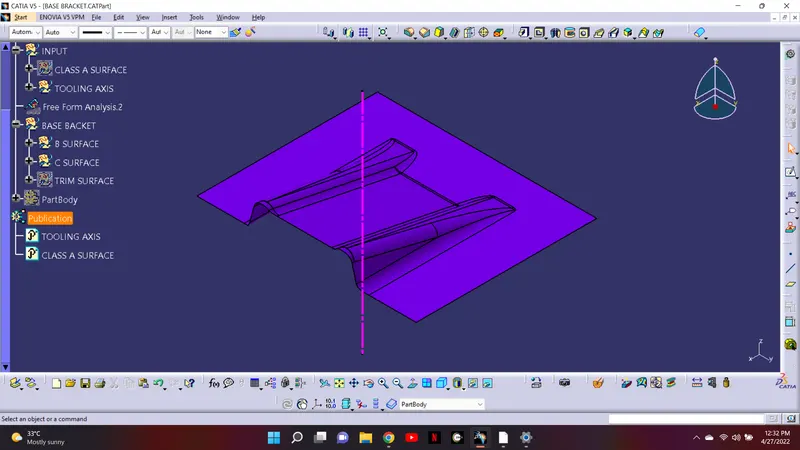

THE SHAPE CREATED CLASS B

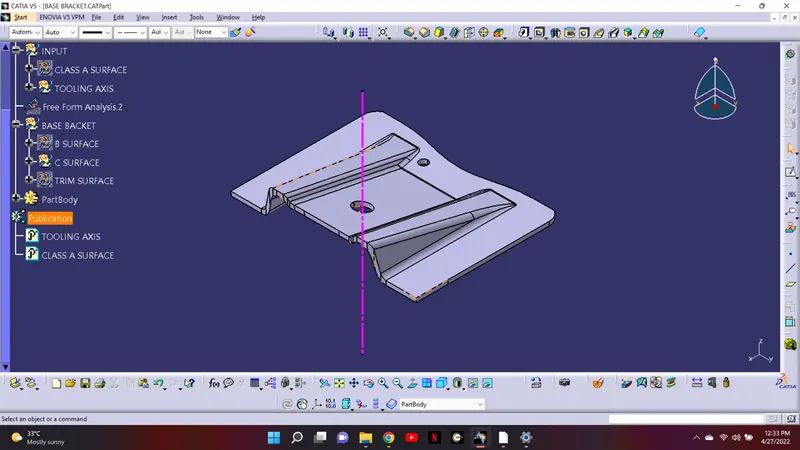

THE SHAPE CREATED CLASS C

class c in which surface is filled or cover between class A and class B is called c surface

We have selected the object to run the draft analysis

The blue condition says that draft is between0 to 2.9

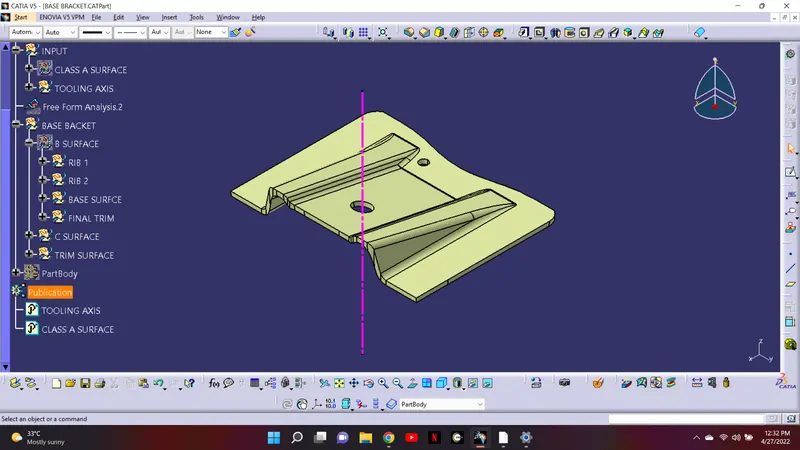

IMAGES OF COMPLETE MODEL

There is a running draft tool which allows to check the draft on dynamic point
