Week 8 - Challenge 2 - Base Bracket Design

Report

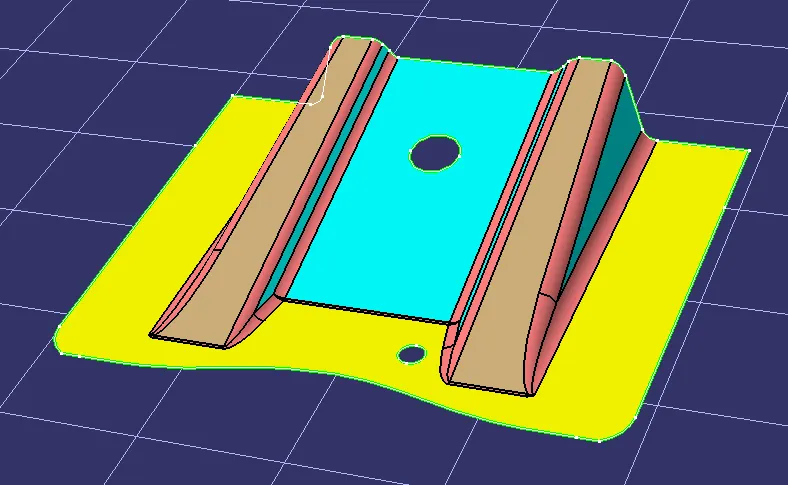

Aim:Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Procedure:

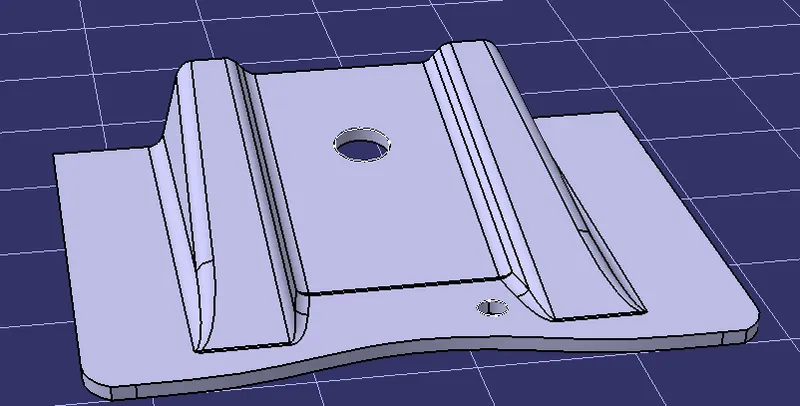

check conectivity using boundary

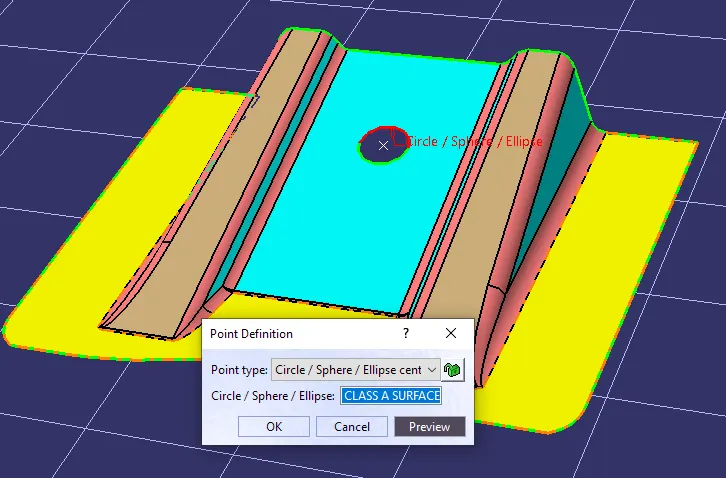

create a center of circle

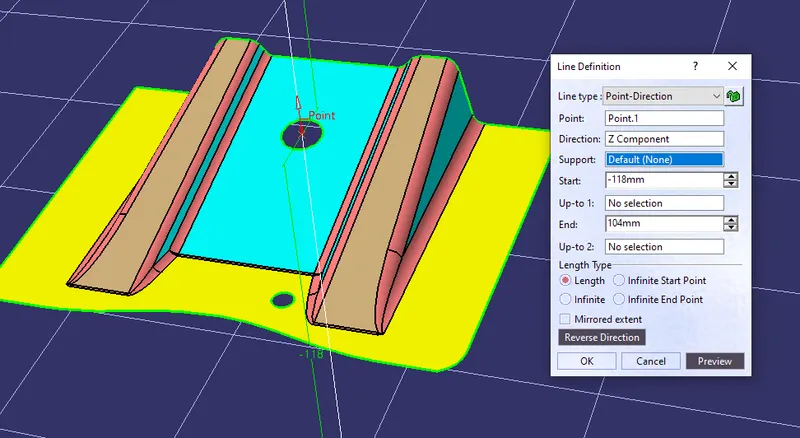

create a dummy tooling axis Z direction

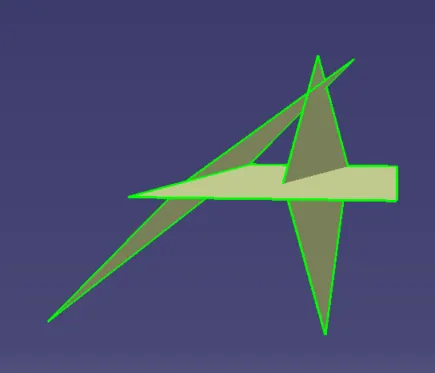

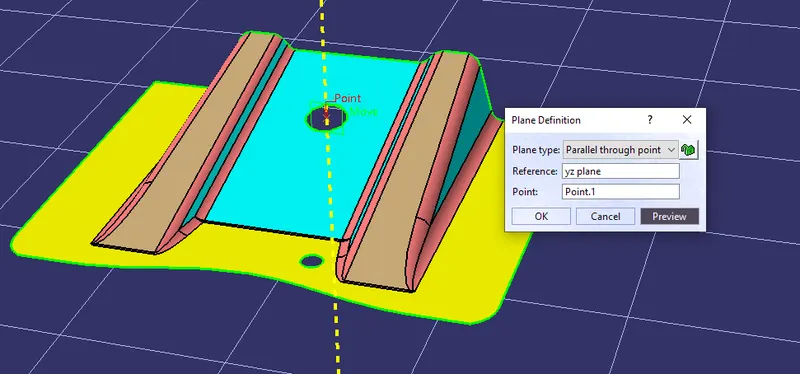

create a plane

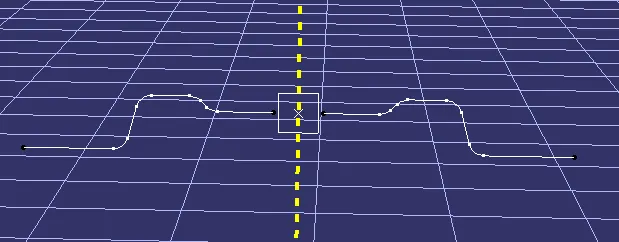

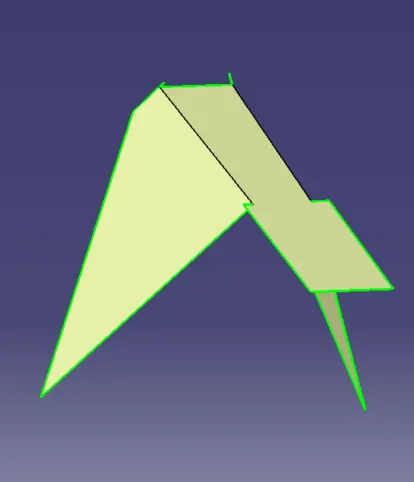

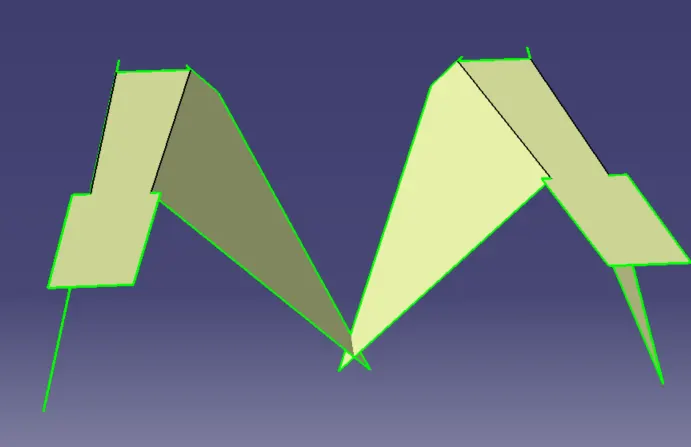

intersect plane and part

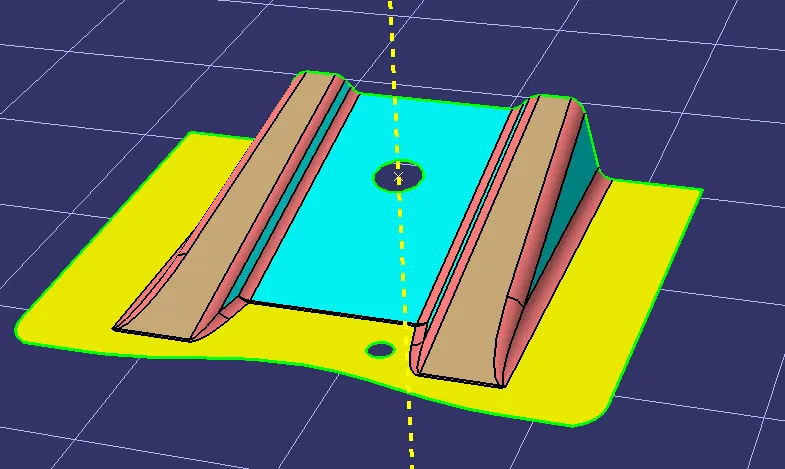

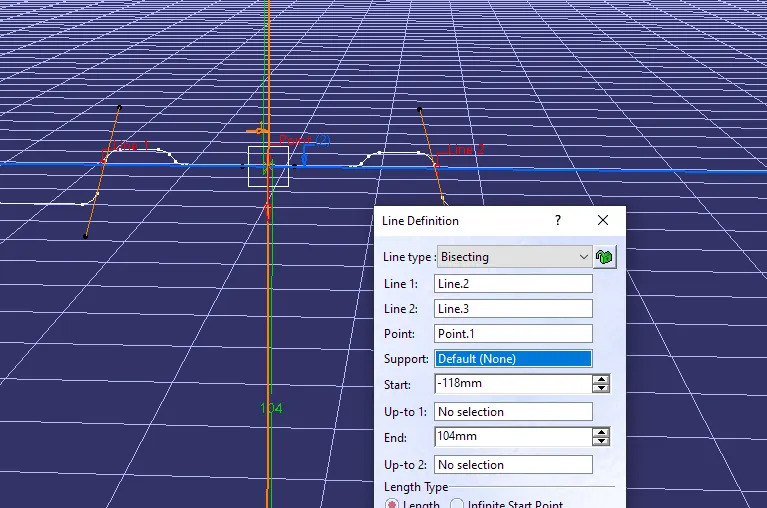

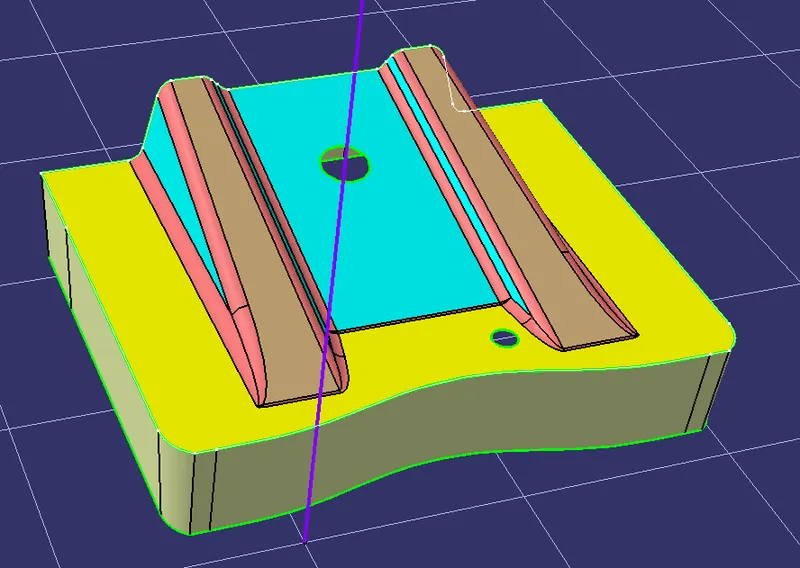

create a bisecting line, this is tooling axis

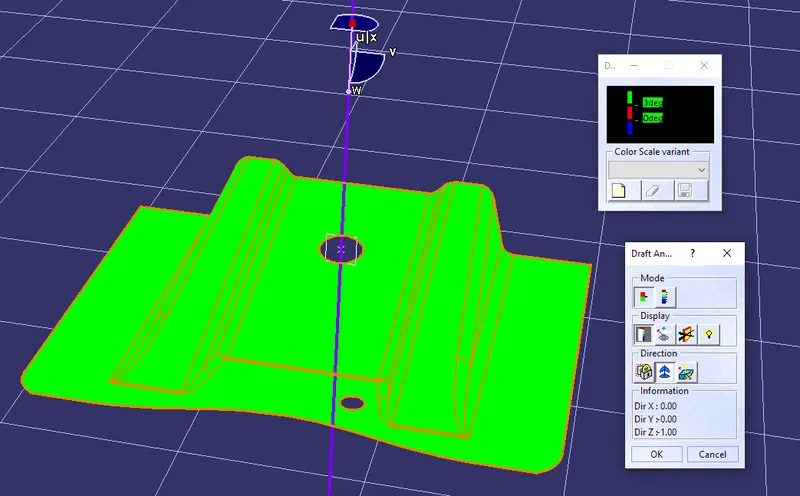

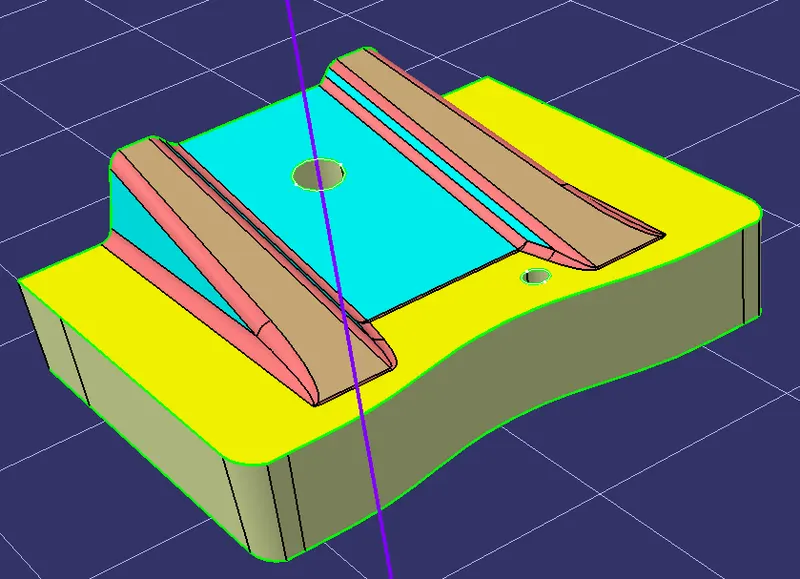

draft analysis

Create B surface

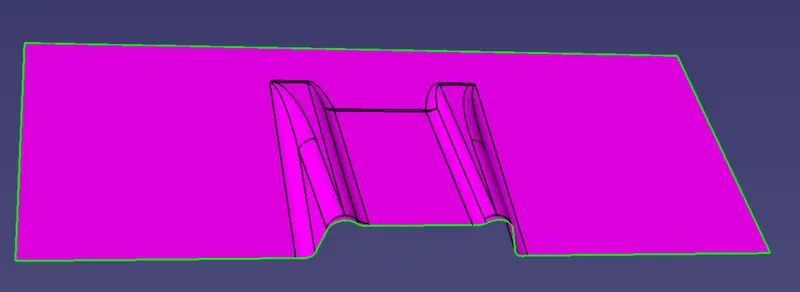

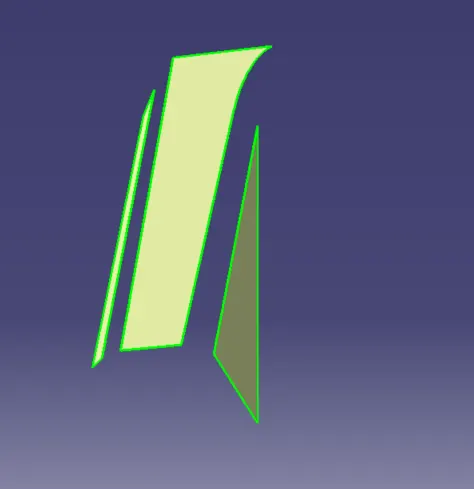

extract surfaces

untrim surfaces

extrapolate

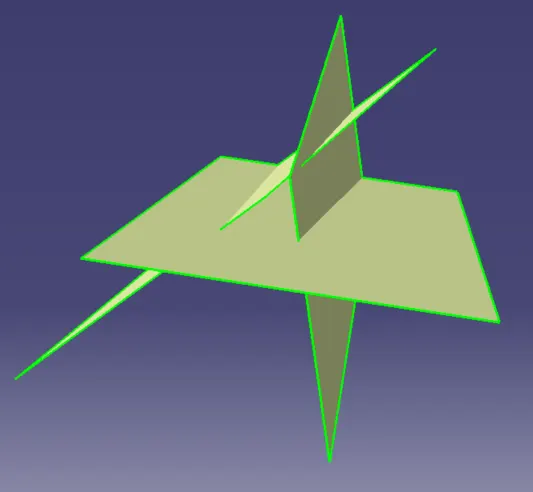

trim

same for the other side

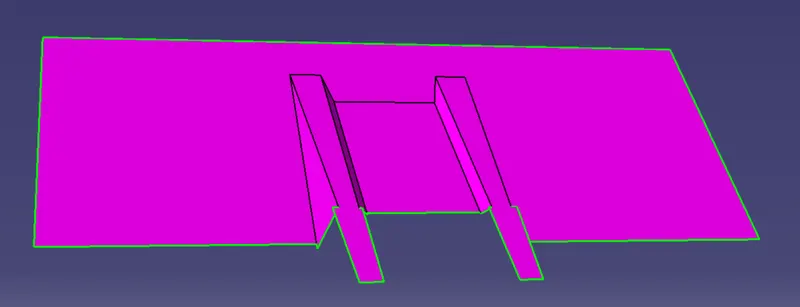

Offset other surfaces and use trim to create B surface

give fillet

create C surface

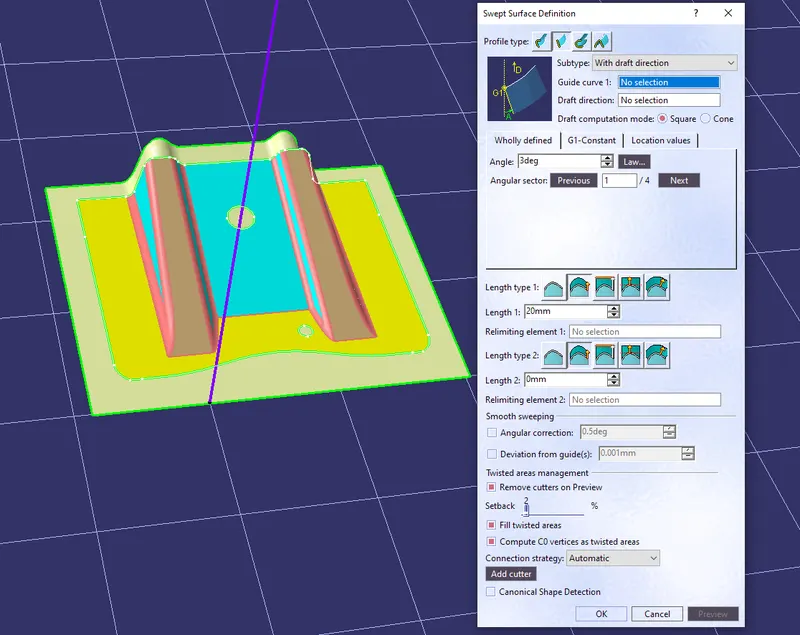

do the same sweep for holes

join A and C surface and trim with B surface

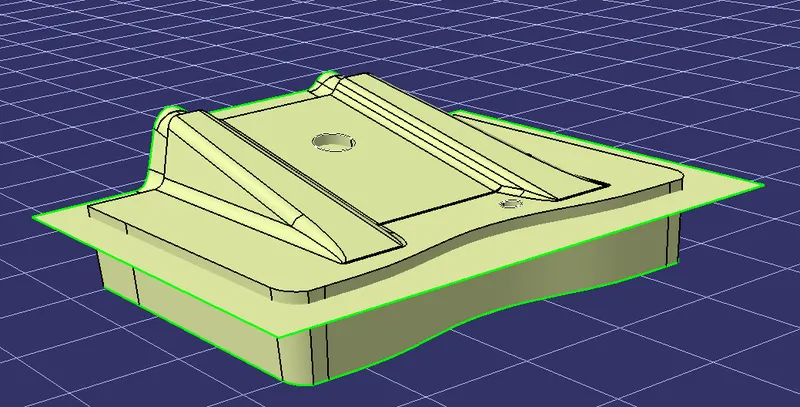

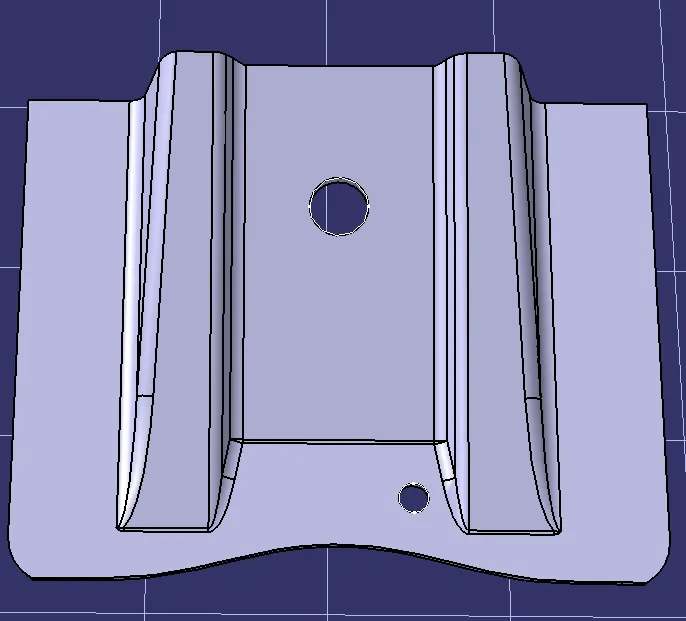

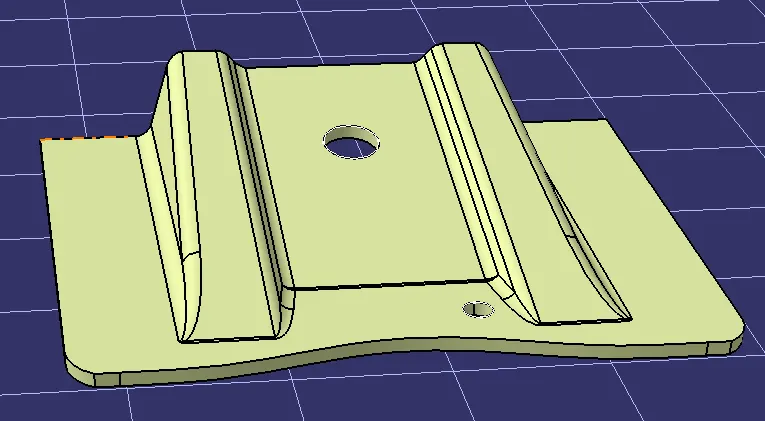

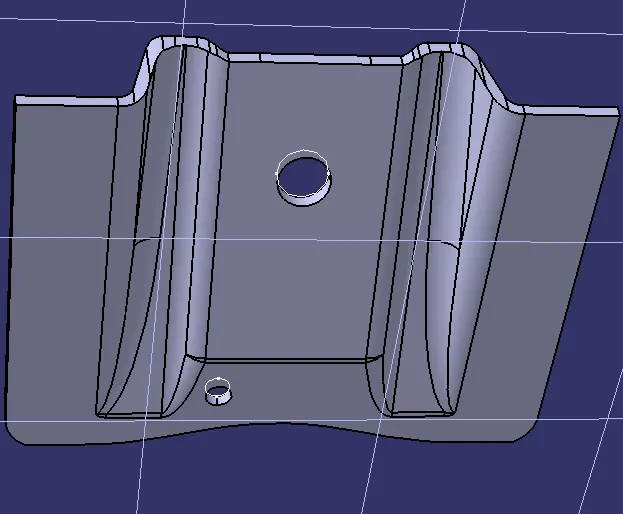

final result

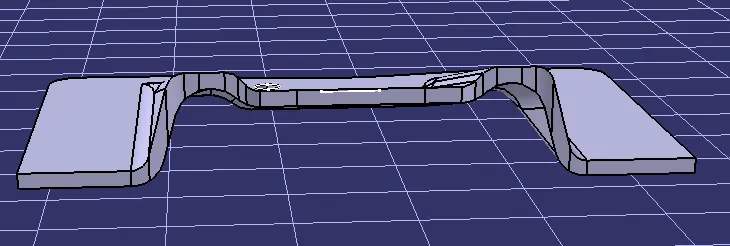

create a closed body

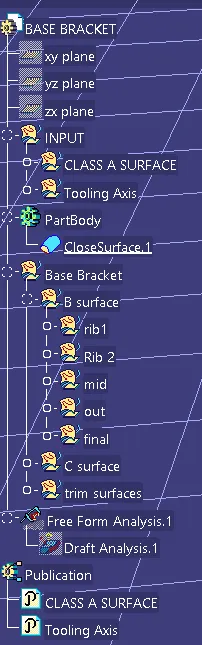

Tree Structure

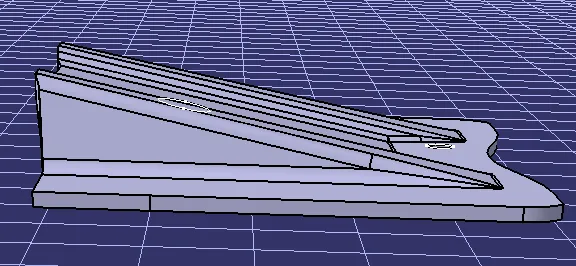

Views
