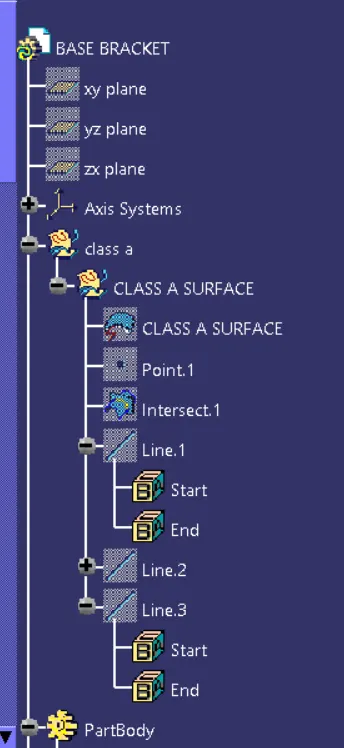

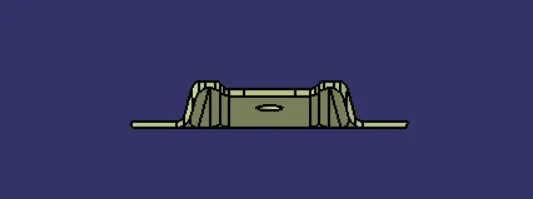

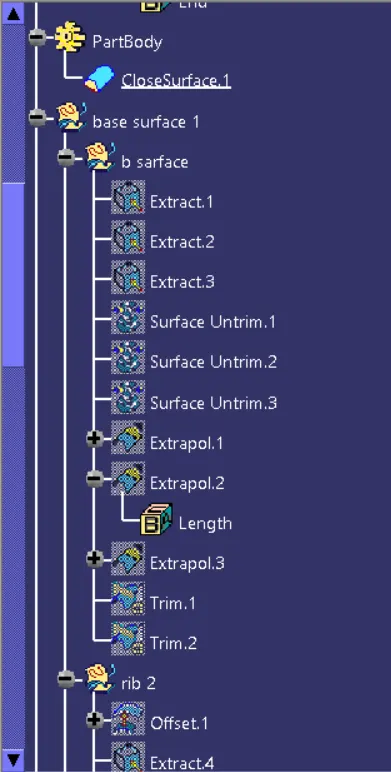

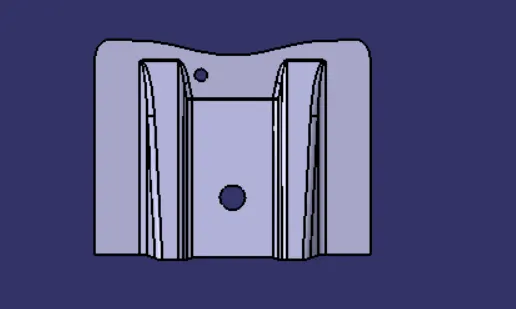

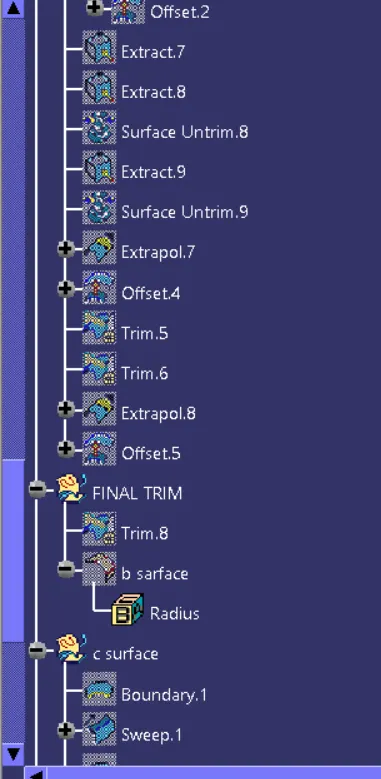

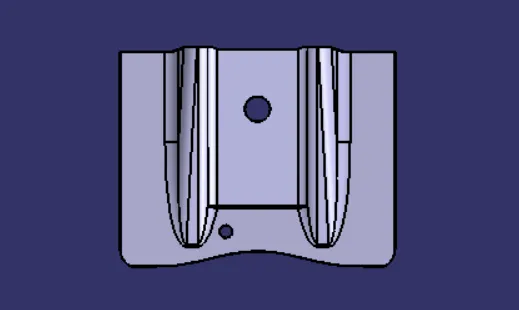

Week 8 - Challenge 2 - Base Bracket Design

====================================================

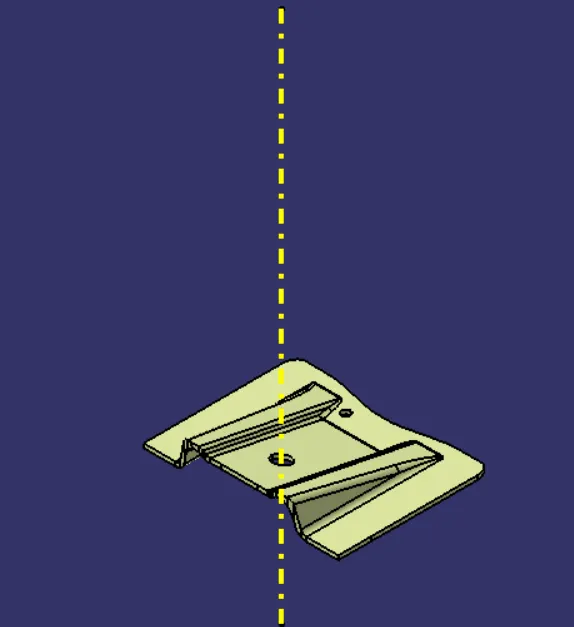

TOOLING AXIS

The machining process instantiation supports the absolute or relative coordinates for tool axis and machining directions.

Go to Tools > Options > Machining > Operation > MP instantiation option.

Select MP instantiation checkbox and edit the operation. The displayed values are changed at the tool axis and machining direction co-ordinates.

Edit the operation when MP instantiation checkbox is not selected. The displayed values are not changed at the tool axis and machining direction co-ordinates.

=======================

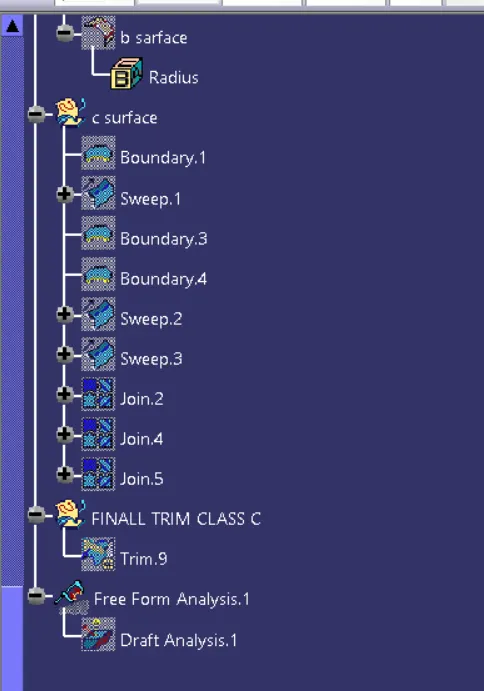

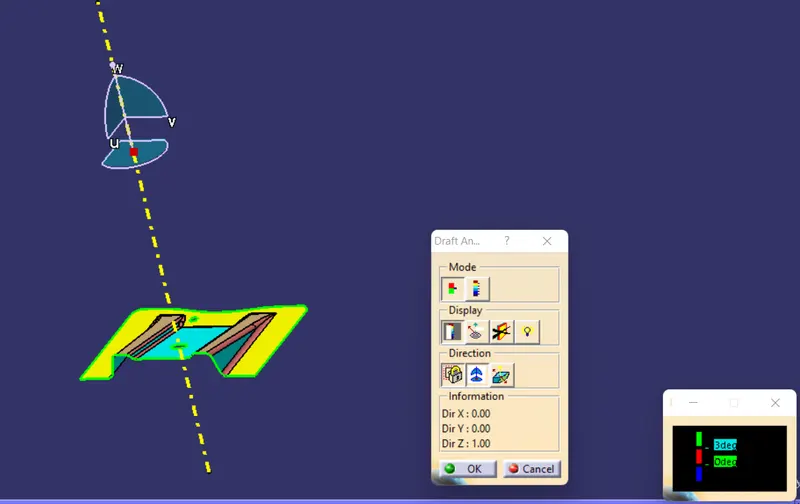

DRAFT ANALYSIS

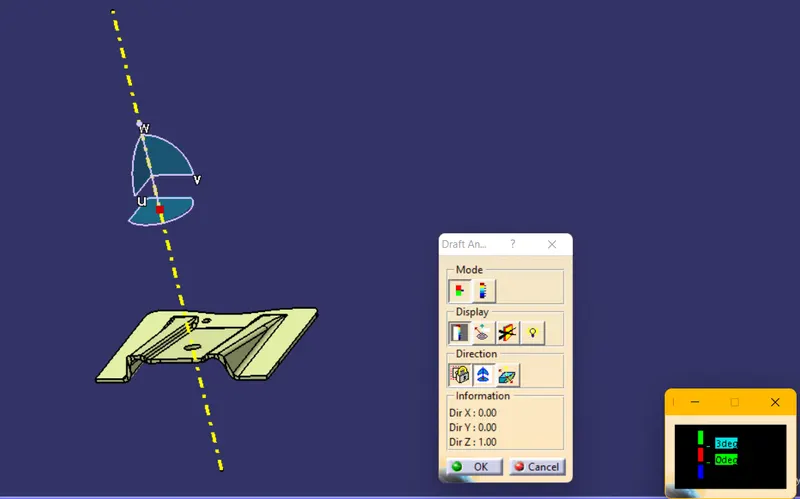

The Draft Analysis command enables you to detect if the part you drafted will be easily removed.

This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

If the No warning message if material mode is not ON option is selected in Tools > Options > Shape > FreeStyle > General tab, Mapping Analysis option area, it allows you to set the material mode to ON automatically.

This option sets the material mode to ON even if the Materials option in the View > Render Style > Customize View command is cleared. No warning message is displayed asking you to change the material mode. The material is automatically seen for analysis. After completion of the analysis, the material mode returns to its initial state.
If No warning message if material mode is not ON option is cleared, the warning message is displayed asking you to set the Materials mode to ON. The material mode is not automatically set and not seen during analysis.

==================================
