Week 8 - Challenge 2 - Base Bracket Design

Base Bracket Design

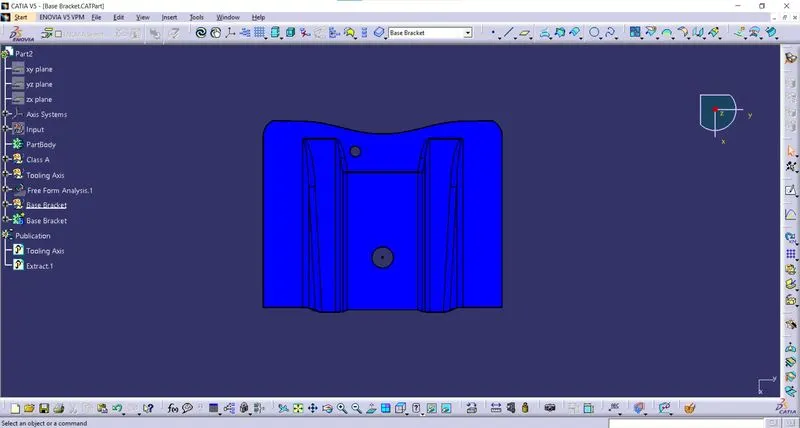

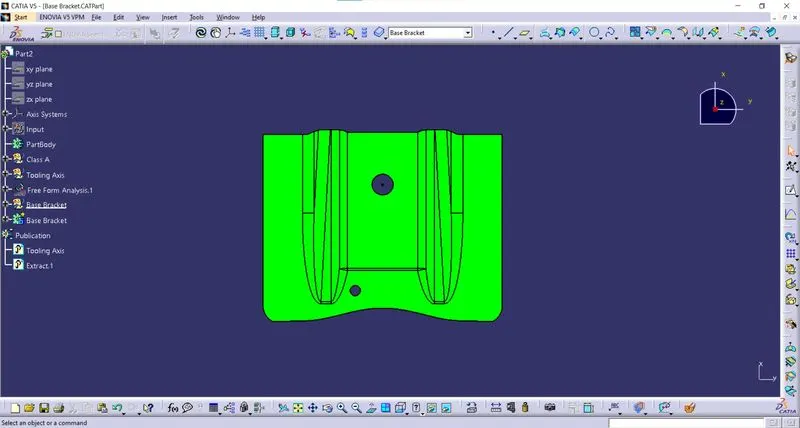

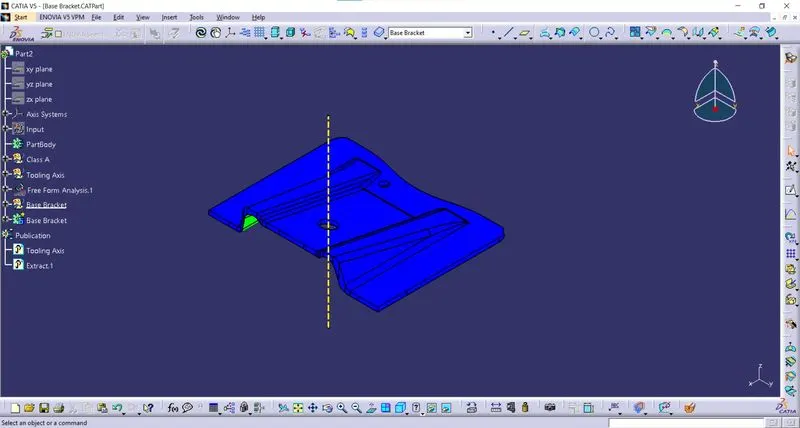

Draft Analysis: The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values

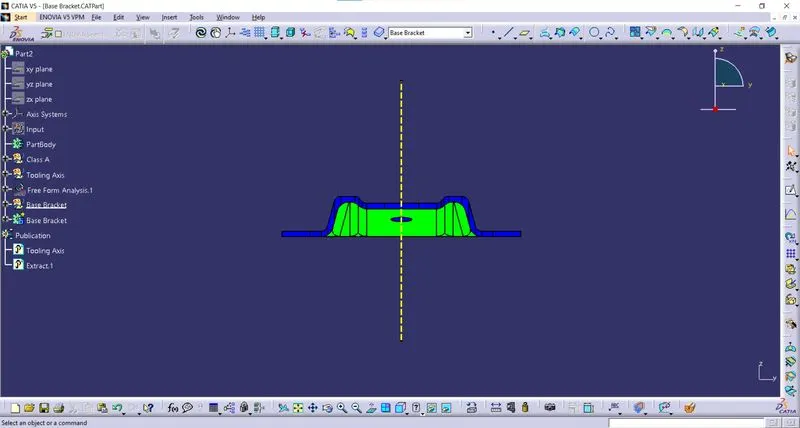

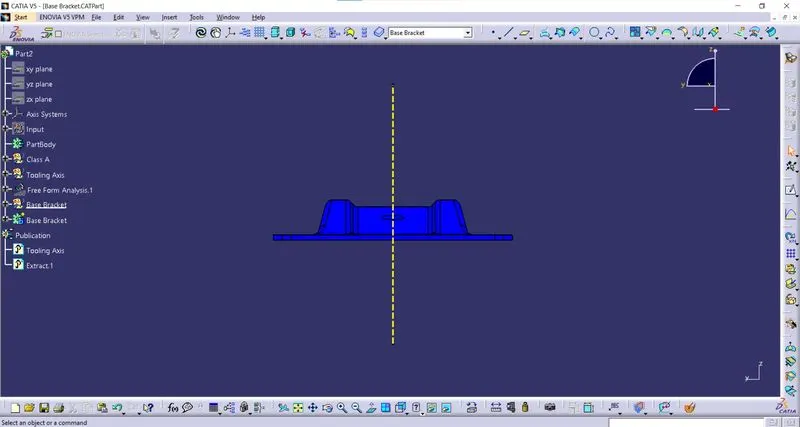

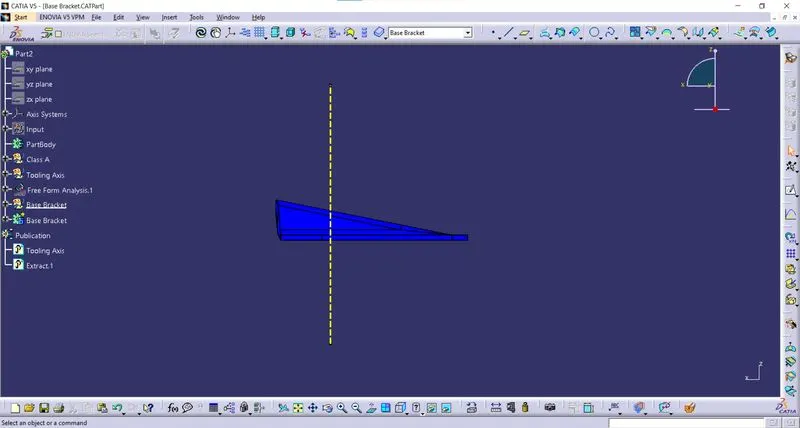

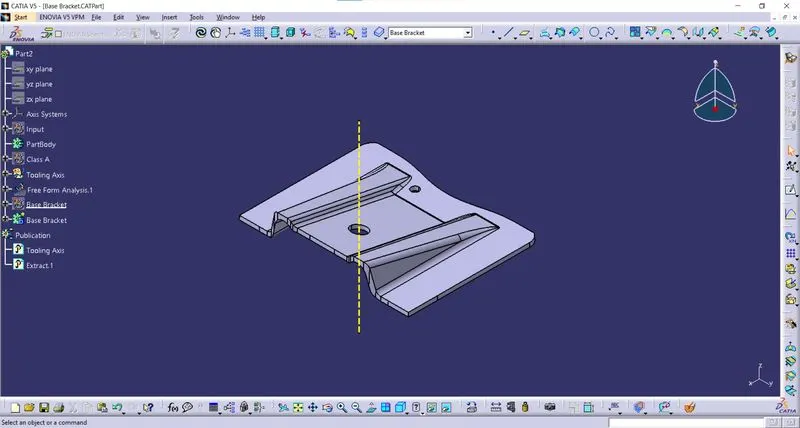

Tooling Direction: The Tooling Direction is basically the direction that the mould pulls apart. The mould is built in two separate pieces, basically. You have a cavity side and you have the core side. The core pulls apart from the cavity and that's the dyeline or the tooling direction.
