Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Report

Aim: create a tooling axis for a fan cover, perform draft analysis

Procedure:

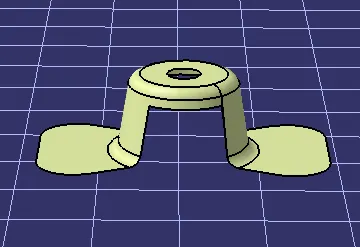

import model

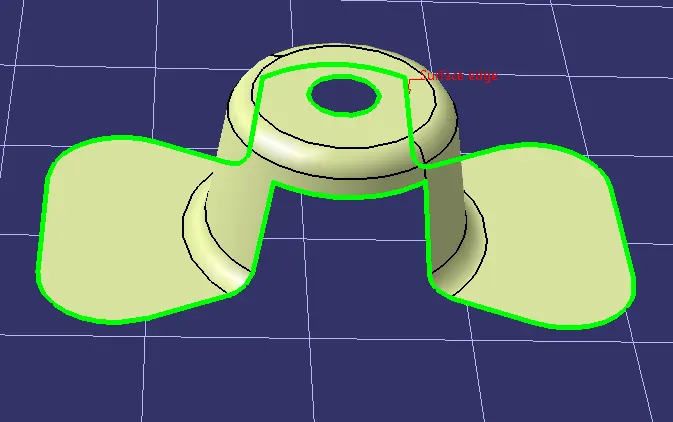

test boundary of the model to see connectivity

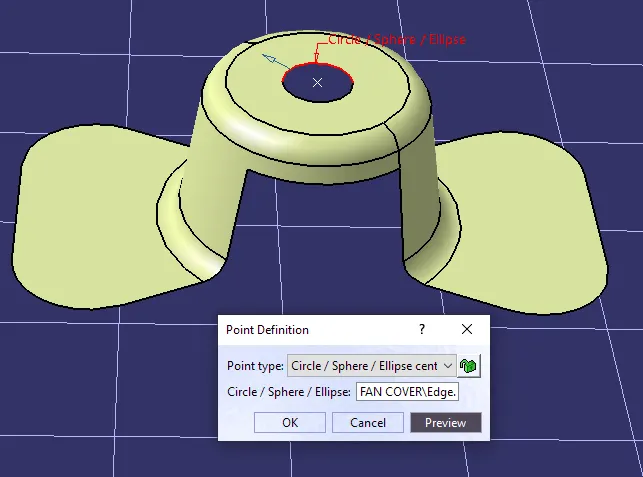

create center of circle

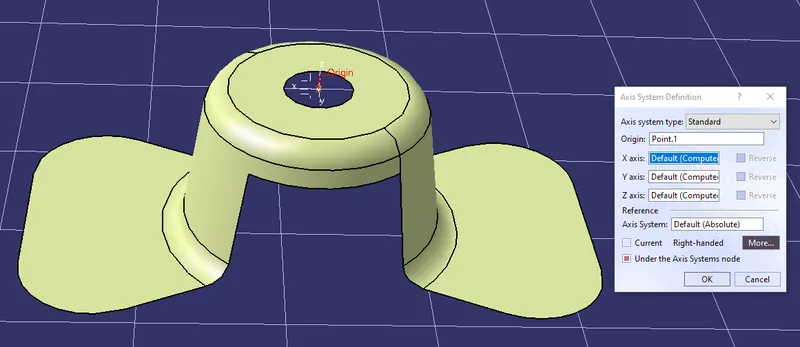

create an axis system

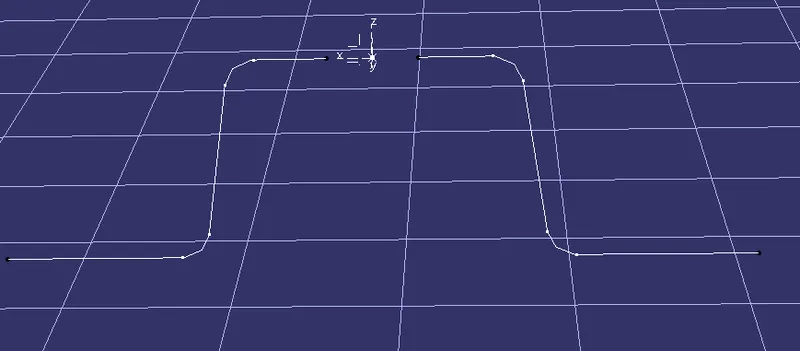

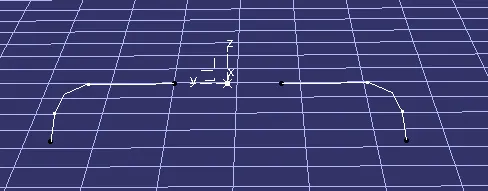

intersect part with xz plane

create dummy tooling axis

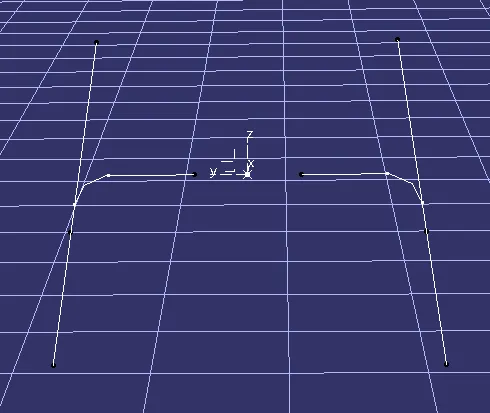

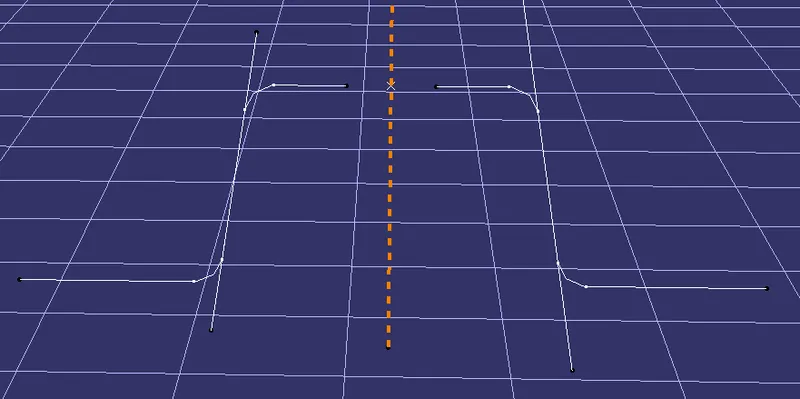

create 2 lines

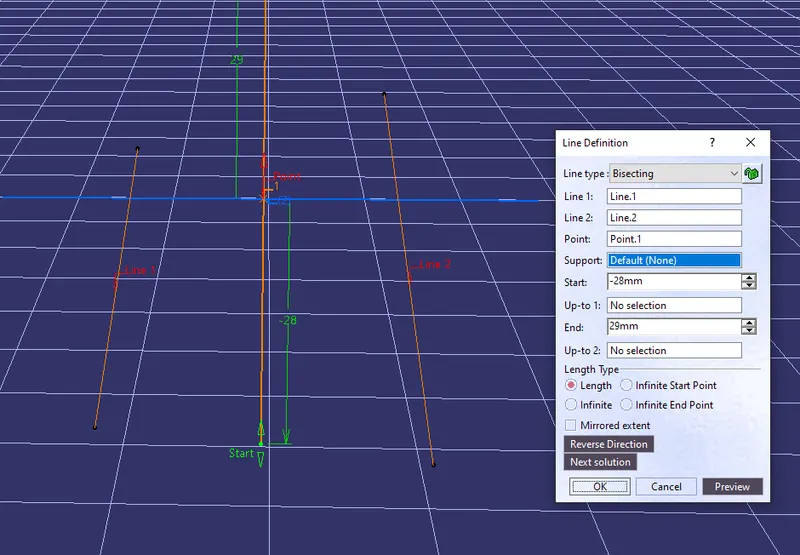

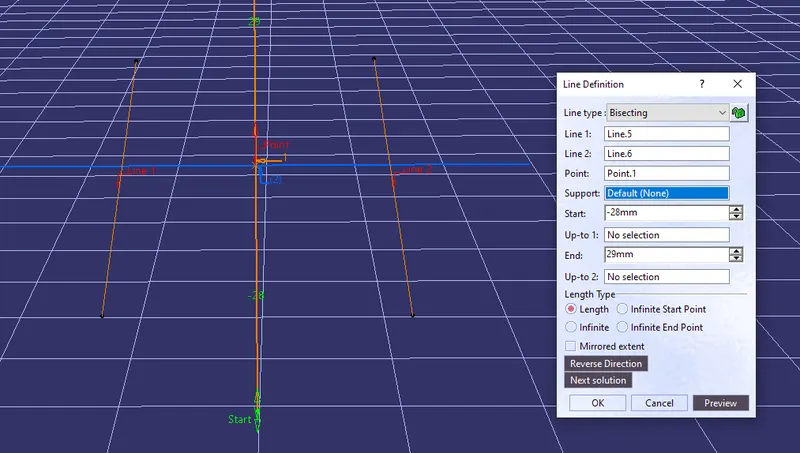

use bisecting to create x tooling axis

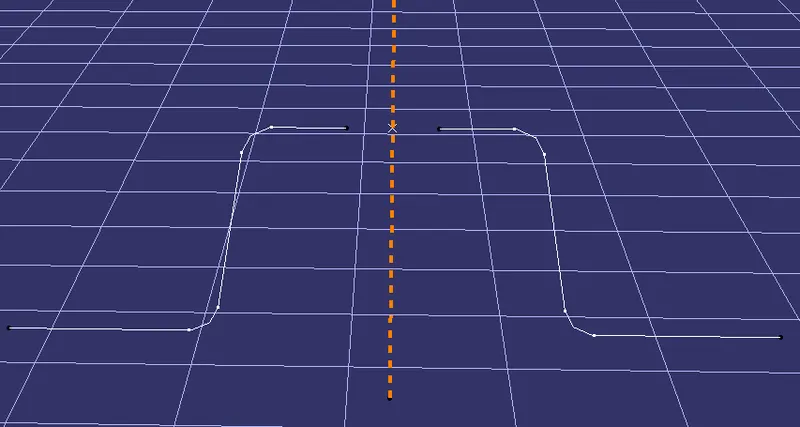

create y tooling axis

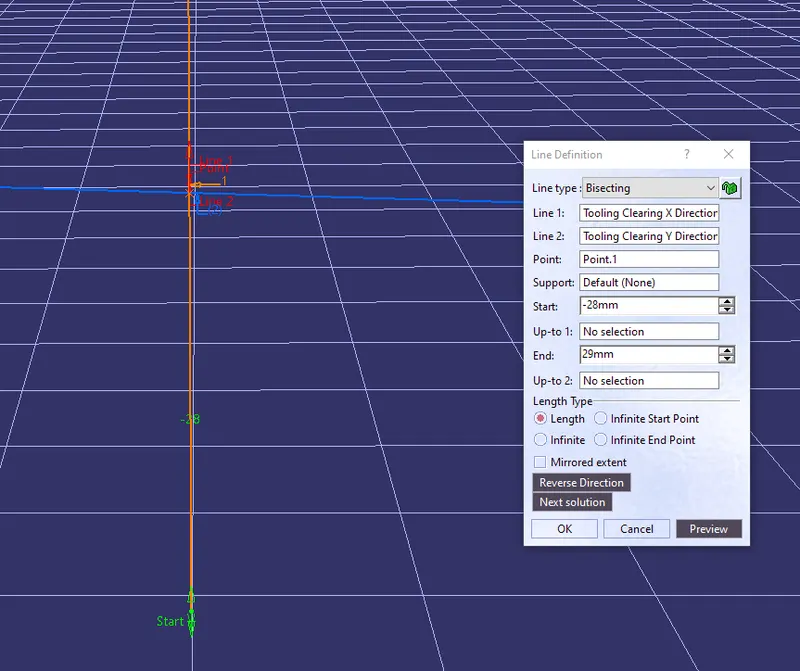

create tooling axis by bisecting x and y tooling axis

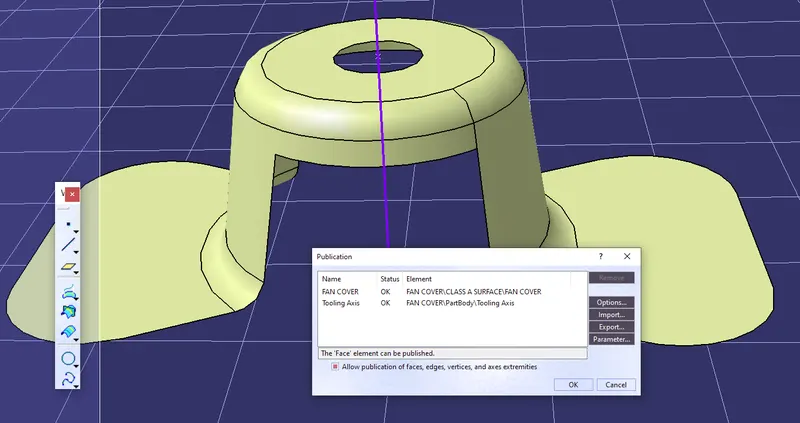

publish tooling axis and fan cover

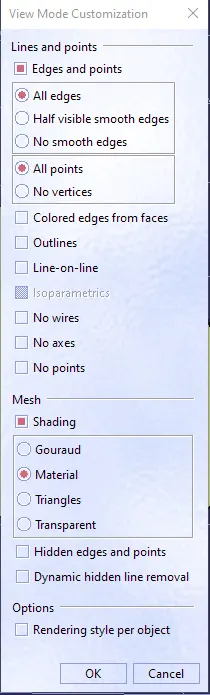

change to material view mode

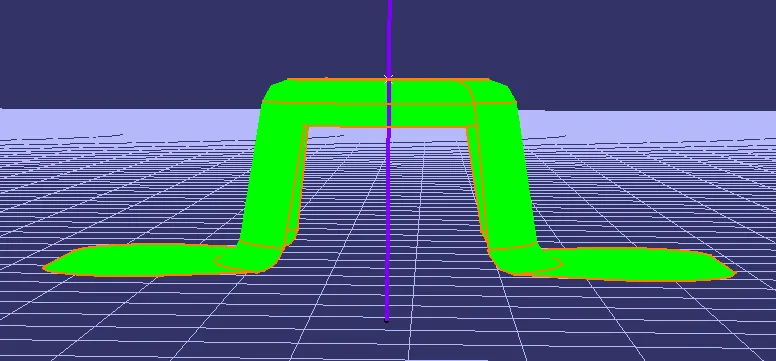

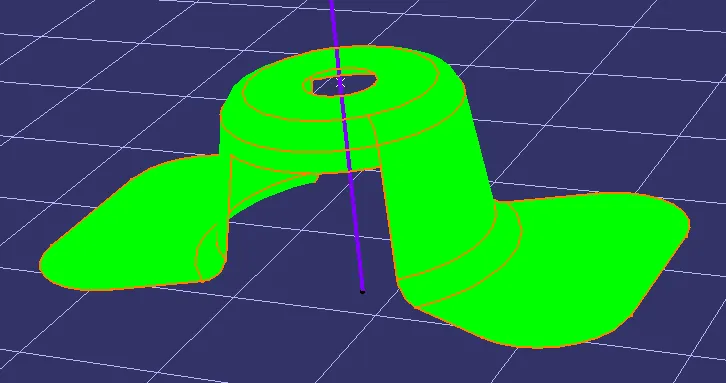

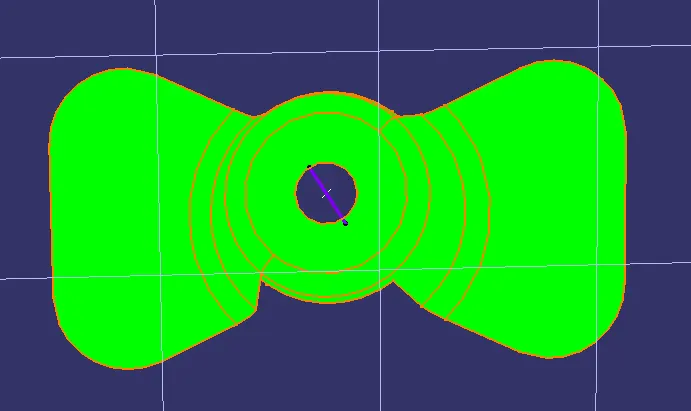

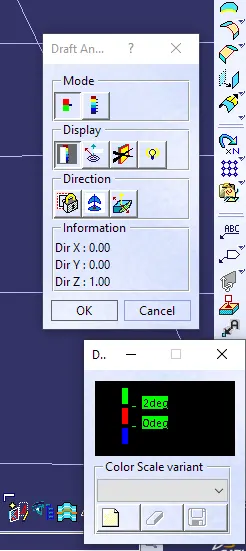

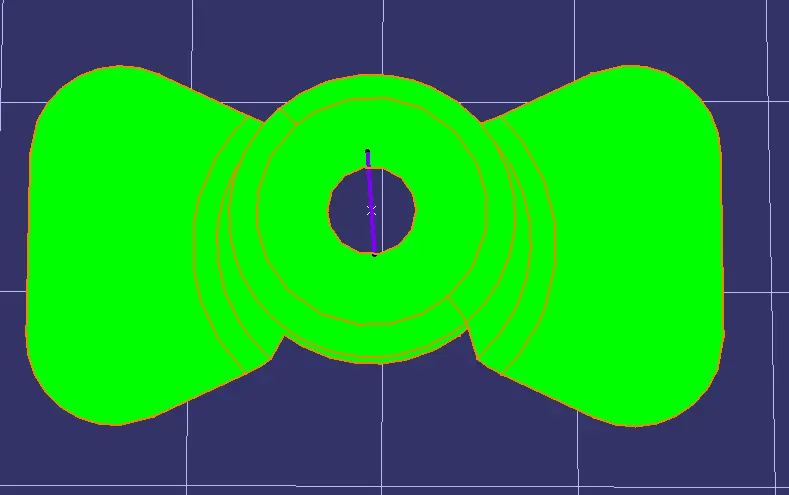

insert draft analysis

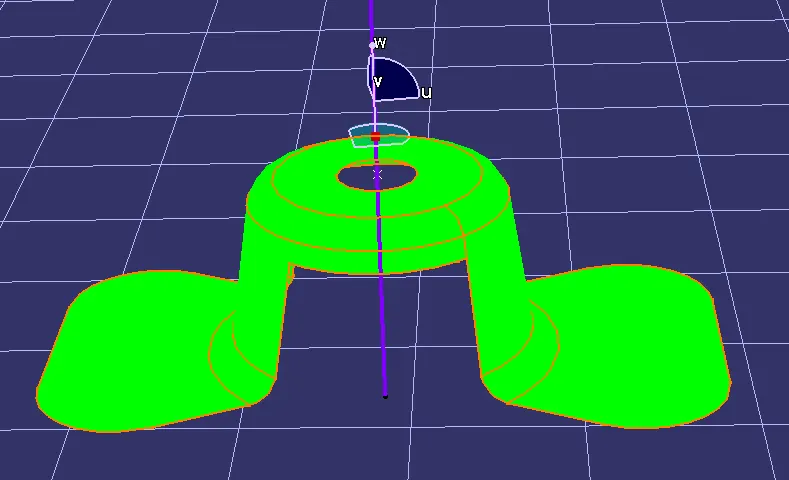

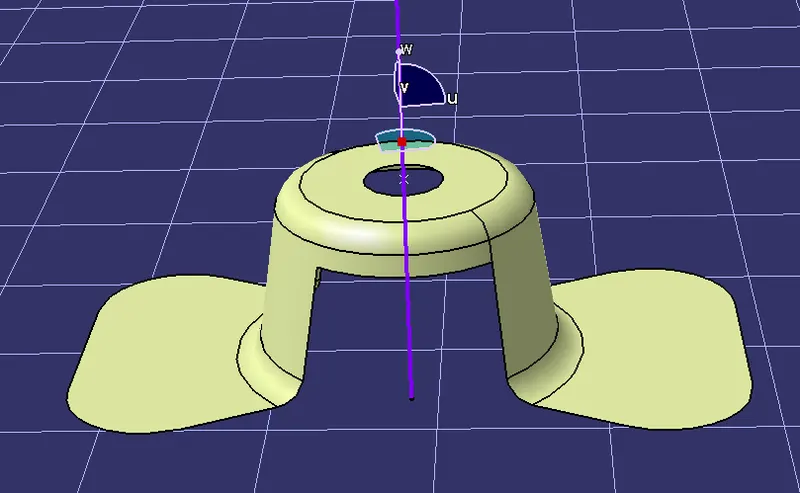

place compass on the tooling axis

select part

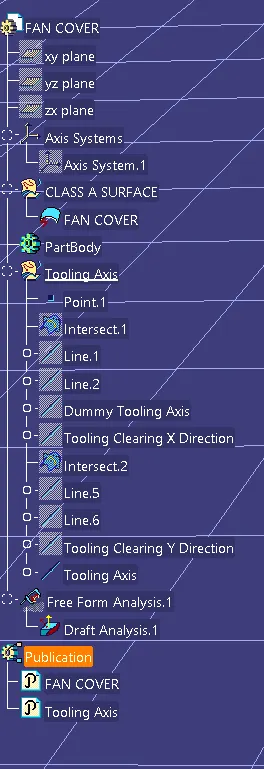

Structure Tree
