Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

ANSWER:

Create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model.

What is the draft?

it is defined as a modeled parts to make thwm easier to remove from molds. there are two of determining the objects to draft either by explicitly selecting the natural element,which makes the application detect the approximate focuses to use

major industries use the minimum draft angle is 3 degrees.

PROCESS:

First we check the continuity of the given first class -A surface

check the directiopns (X.Y,Z) axis and finally we decoded which is the best possible direction to produce a mold that direction of the axis is called dummy tooling axis

a fan with several drafted surfaces that is oriented in a part location that the draft analysis initially assumes z-axis direction

in z-z axis direction the faces are either positive or negative draft . so that the z- axis we have taken as the summy tooling axis we nees to crate to a perfect tooloing axis.

PROCESS:

TOOLING AXIS defined as thr direction in which the mold opens or closes the core cavity

create an axis system on a ppoint.

create an intersecting line on zx plane and a cass-a surface

Pulling direction: The direction corrssponds to the reference from which the draft faces are defined

Draft angle: this is the angle that the draft faces make with the pulling direction . this angle may be defined for the each faces

Parting element: this plane, face or surface cuts the partin teo and each portion is drafted accordingly to its previously defines direction

Neutral elemnent: this element defines a natural curve on which the drafted face will lie. this element will remain the same during the draft the neutral element5 and parting element may be the same element

STEPS:

• for checking the gaps present in it shape design , use join and the boundary options

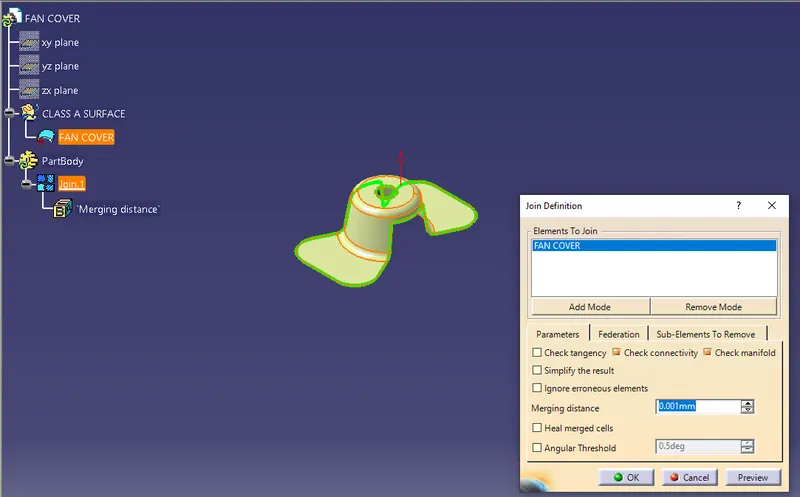

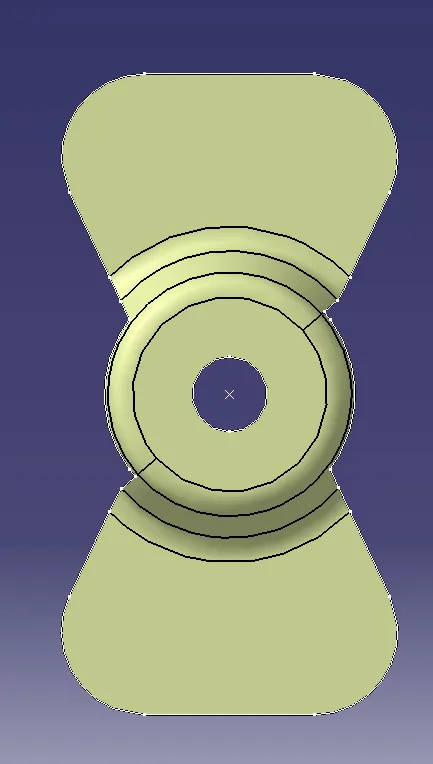

• use the join feature and select the fan cover . if there are any gaps we will get lines on tjhe model
• use boundary option to get the lines at the boundary of the fan cover.

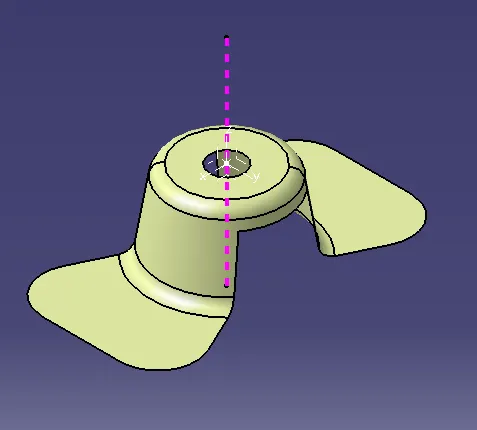

SEE THE FAN MODEL FOR DRAFT ANALYSIS IN ALL MTHER DIRECTIONS

since the z- aixs is the best tooling direction we make a point at the hole center

add the axis system at the z- axis with the center point

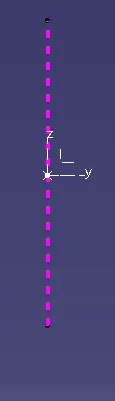

all the dummy tooling axis at the cenetr point.

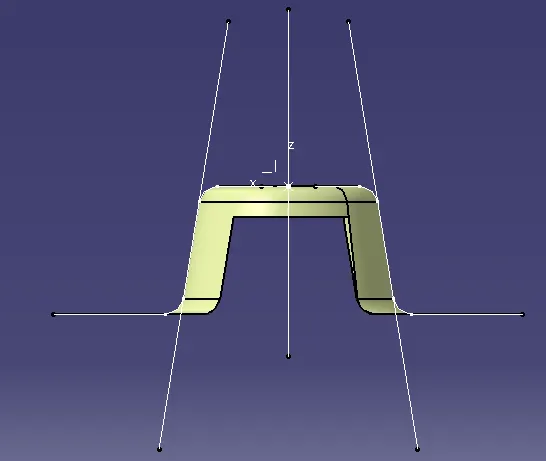

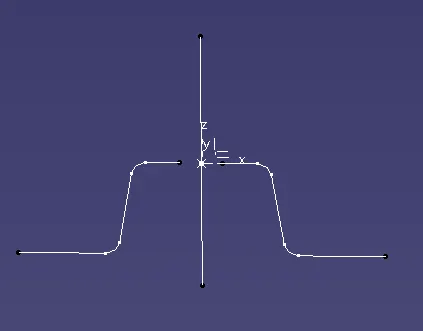

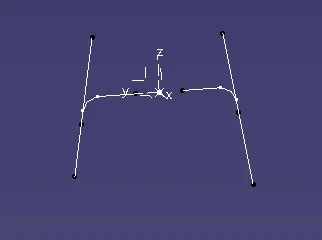

add two lines using point to point relation lines at the two end as shhown in the figure

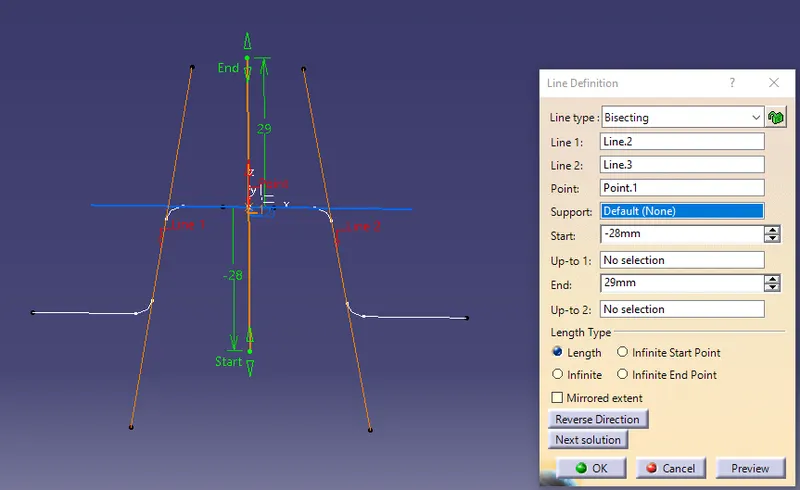

add the bisecting line for the two lines ,as shown below

we get the center point line at the center od the model. name it as x- axis tooling axis

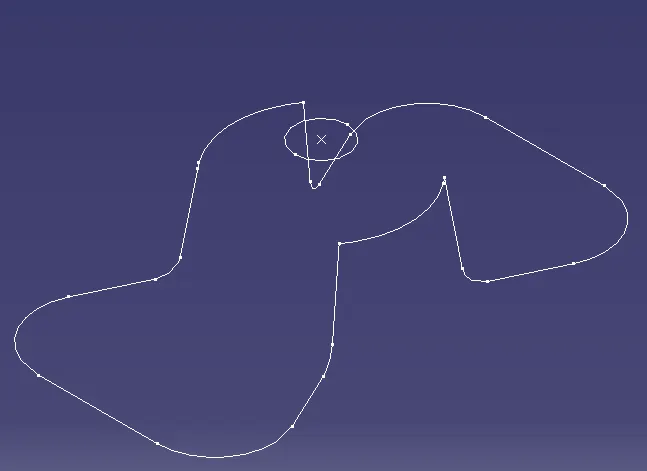

now make a intersection fo the different planes.

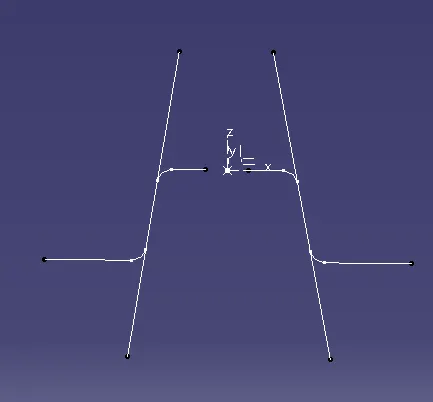

draw to lines using point to poin relation as shown in the figure

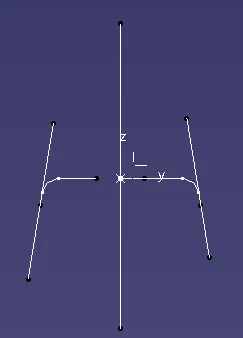

draw the bisecting line w.r.t to lines as shown in the below and name its a sa y tooling axis

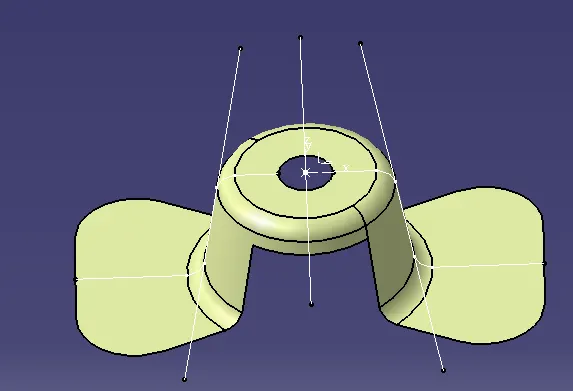

draw the bisectingg line using the x and the y axis tooling axis . the below direction axis is the proper tooling axis and chage the graphocal properties.

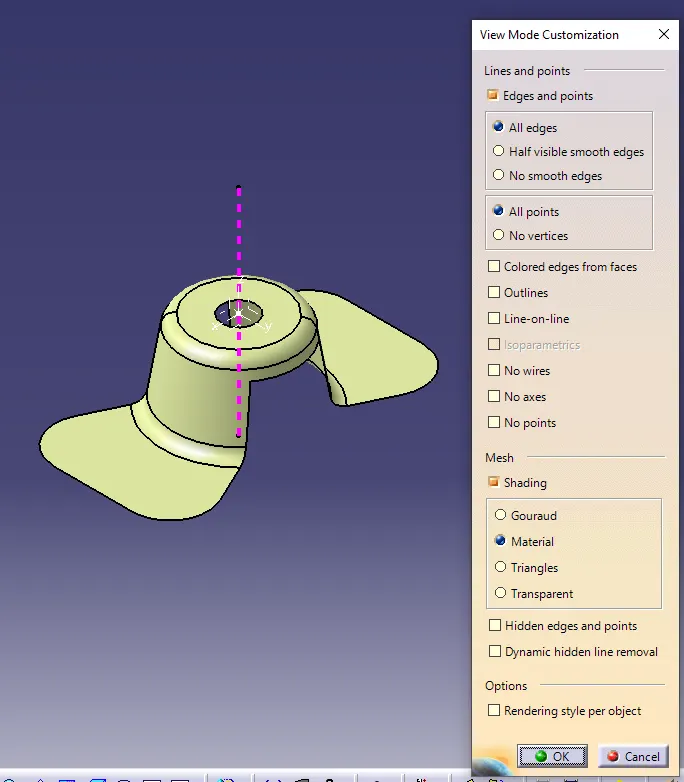

add the material as coustamization mode for draft analysis

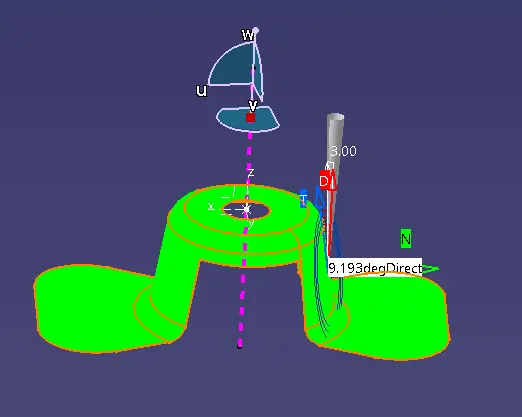

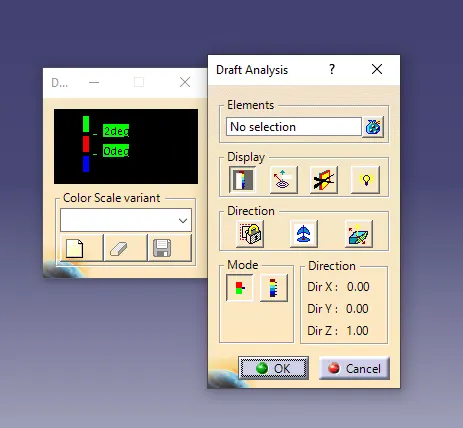

After selecting the draft analysuis we get these tweo diaglouge bx in tyhe first row , two modes are displayed

the second row is displayes amd the thired is direction, using ther modes we can use drafyting angles at the maximum and the minimum angles

the display is done using background light analysis in direction we can use the direction axis and lock it.

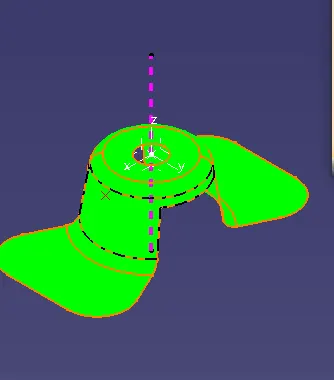

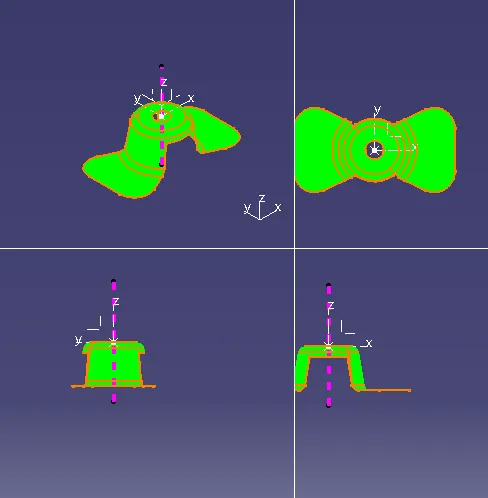

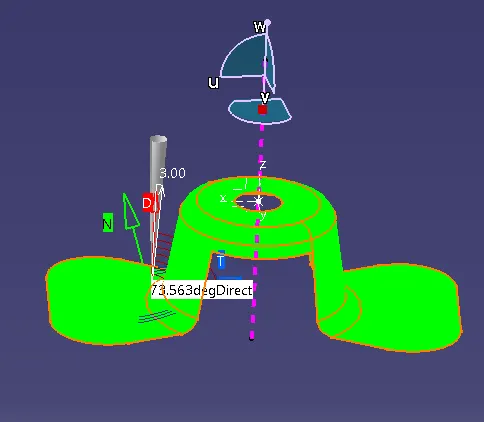

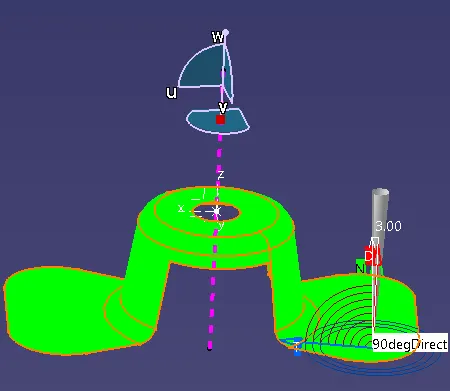

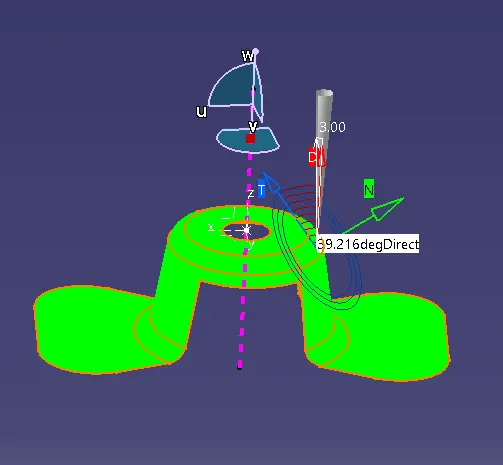

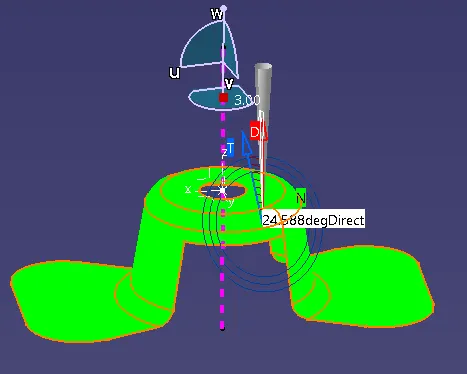

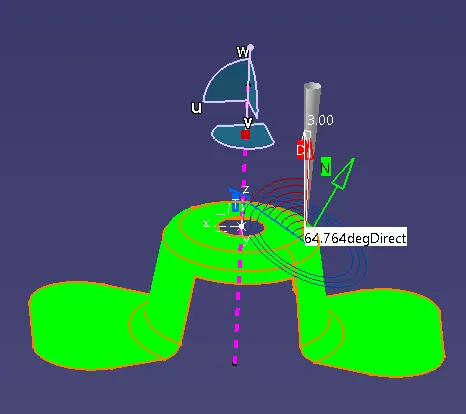

adjust the axis syystem using te direction 2nd option . after adding the axis do an analysis at each and every direction on the model as shown in the below the analysis is done on te fan cover. the below are done when drafting angle is 3 degree

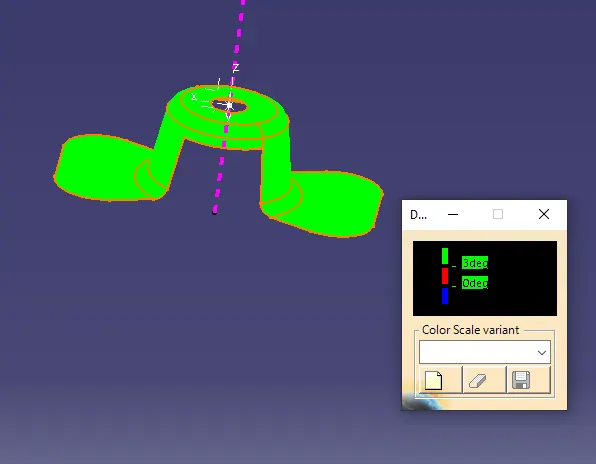

THE 3 DEGREE DRAFT ANGLE IS POSITIVE FOR MODELLING THE OBJECT.

at each and every fan cover place , we get the angle , at the each position.

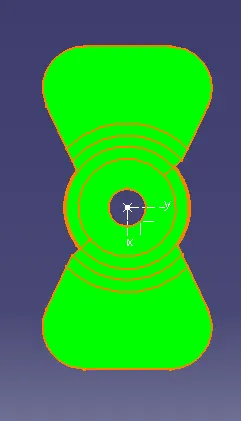

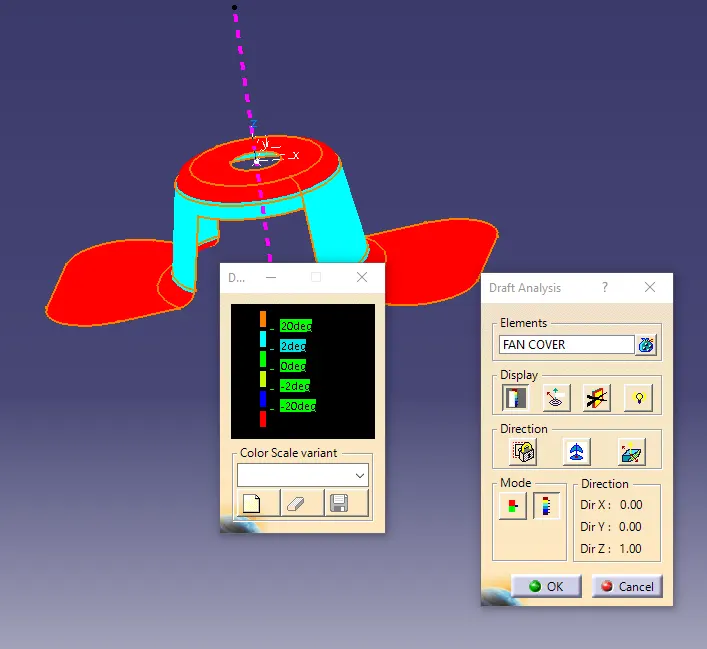

when we change the mode of analysis is done at the range of draft angles - 20 to 20 degrees

THE RED COLOUR IS DISPLAYED AS WHERE THE DRAFTING IS NOT POSSIBLE

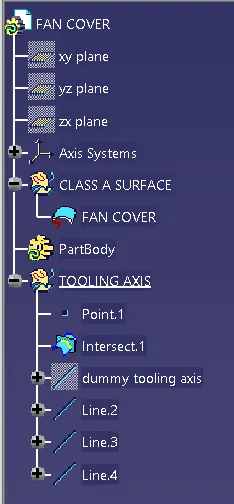

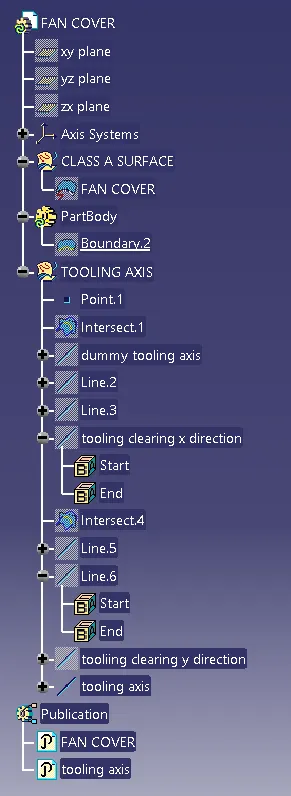

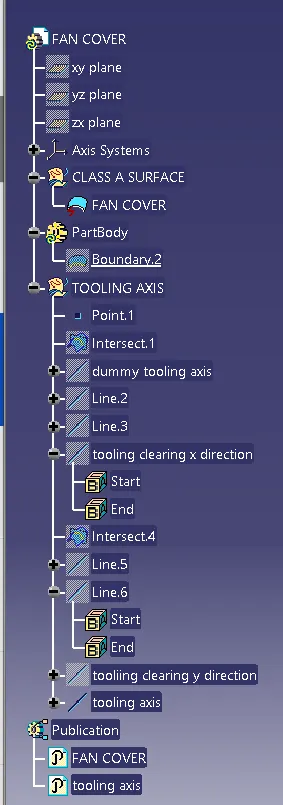

tree structure:

iso-metric view:

all views:

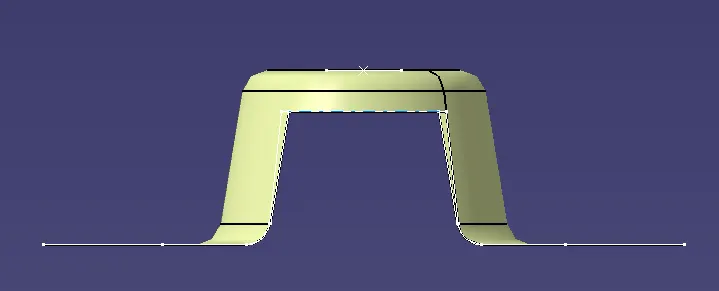

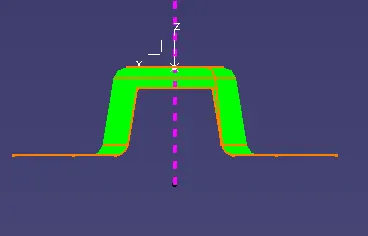

front view:

top view;

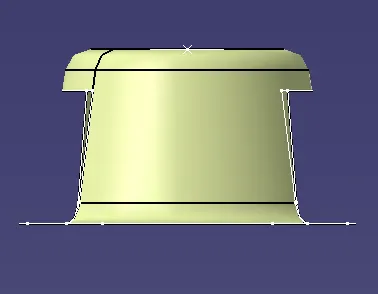

side view:

CONCLUSION :

THE DTAILED REPORT OF THE FAN COVER MODEL IS PERFOREMED BY USING DRAFT ANALYSIS .
