Week 8 - Challenge 1 - Base Bracket Design

REPORT FOR AN BASE BRACKET -

Explaining the Draft Analysis and the Tooling Axis creation.

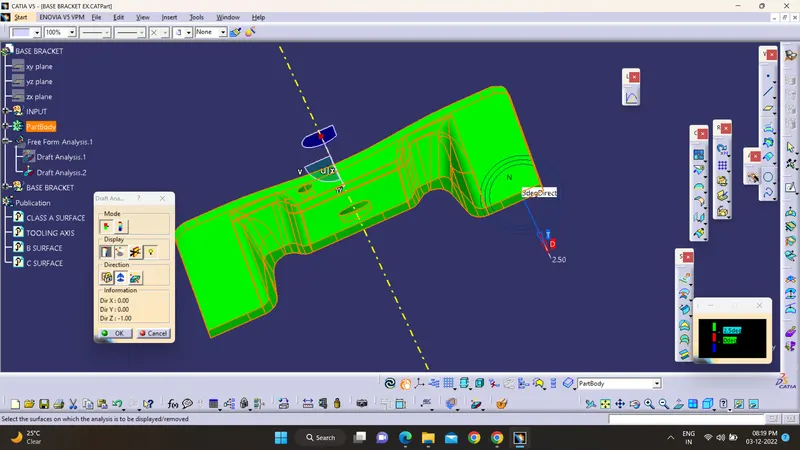

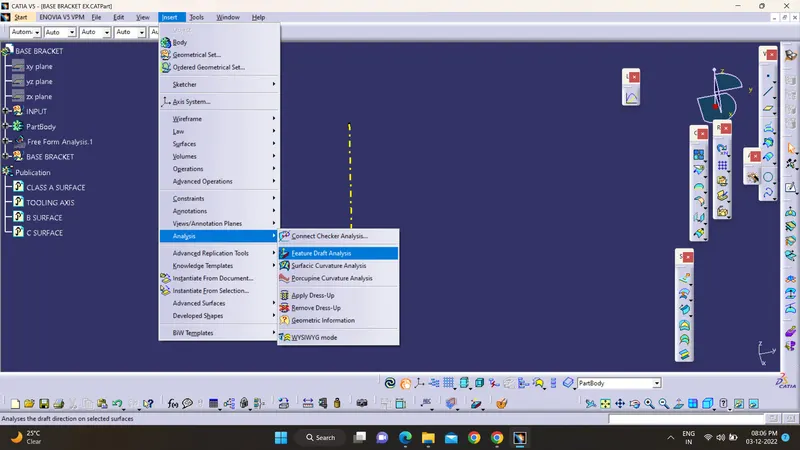

after that we need to perform Draft Analysis on CLOSED PART BODY and for that we need to attach Axis System to TOOLING AXIS after that we need to see the our surface having what Draft angle actually general draft angle ranges from 0.5 degree to 3 degree then we can see two colors on after draft anaysis it is of GREEN and Bottom of BLUE which represents that our Draft analysis is right and if we can see some RED patches on itr then our draft angle needs to be update or change then we need to check suitable draft value for it and need to Rectify that

Also some times we need to change sweep directins also for that we need to go in sweep and need to select another direction of sweep which from 1 to 4 and need to update it as to perform right Draft Analysis.

CLASS A SURFACE DRAFT ANALYSIS

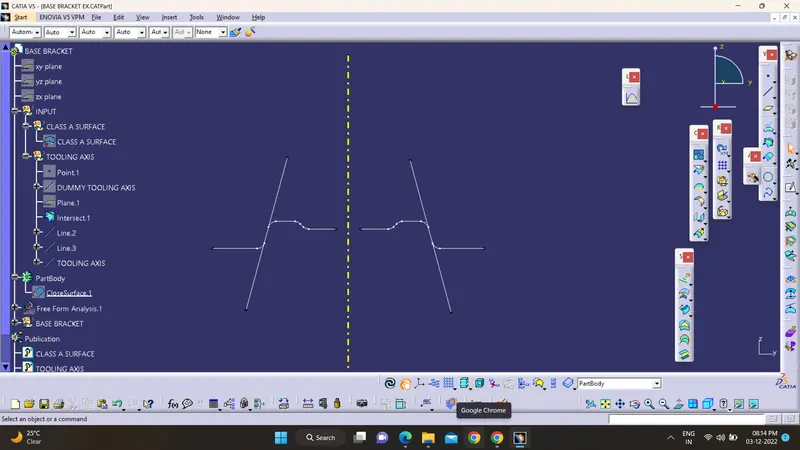

way of creating the tooling axis, particularly the Bisecting method is -

first of all we need to select the Class A Surface and from Intersection we weill get boundry along X-axis direction from there two parellel lines with angle of nearly 5 degree and then we need to take 2 vertices from there and need to extend those two lines along Z- axis direction bothe upward and downward and after that we need to take bisecting line with thiose two parallel line and need to create one point on Dummy axis centre and need to take bisecting line and that will be our MAIN TOOLING AXIS.

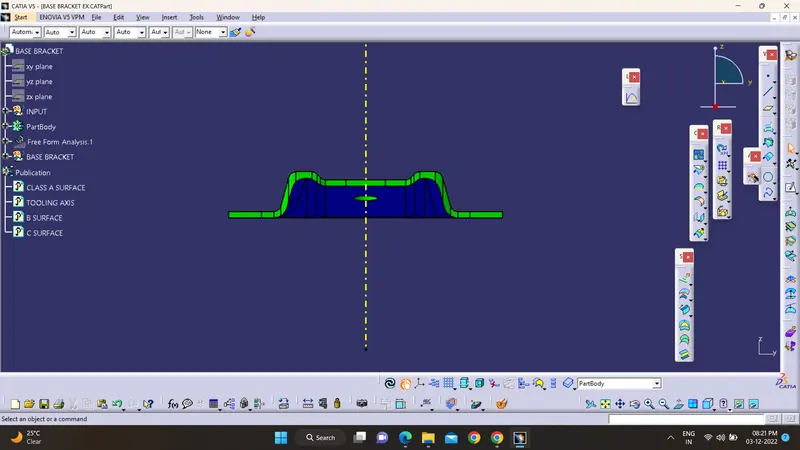

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

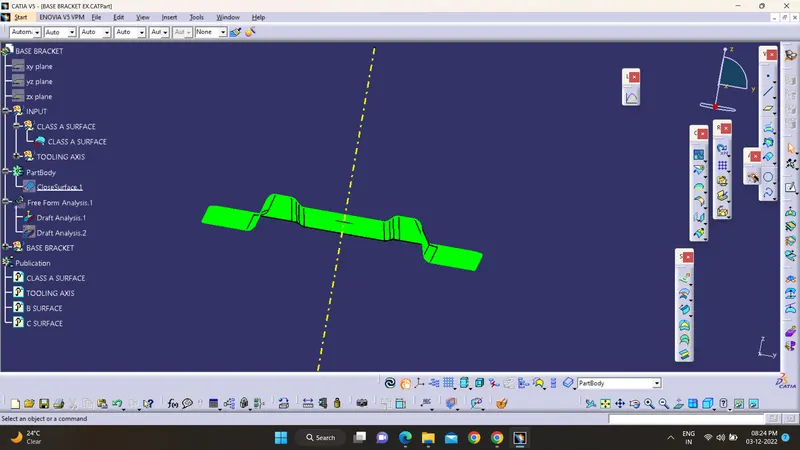

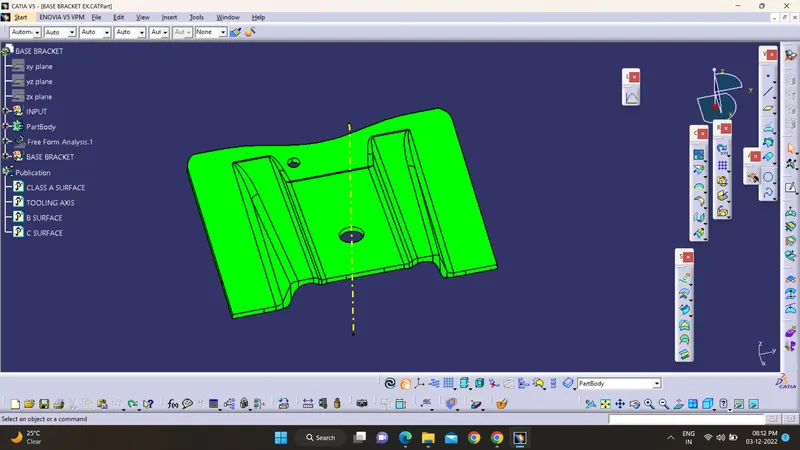

Image of the complete Draft analysis

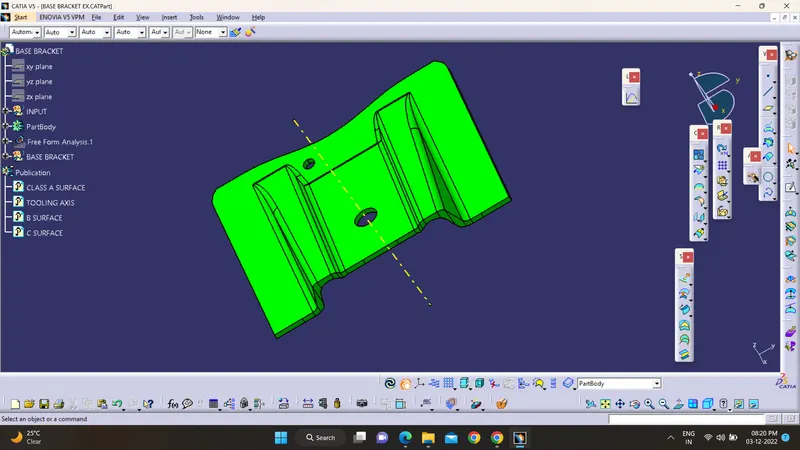

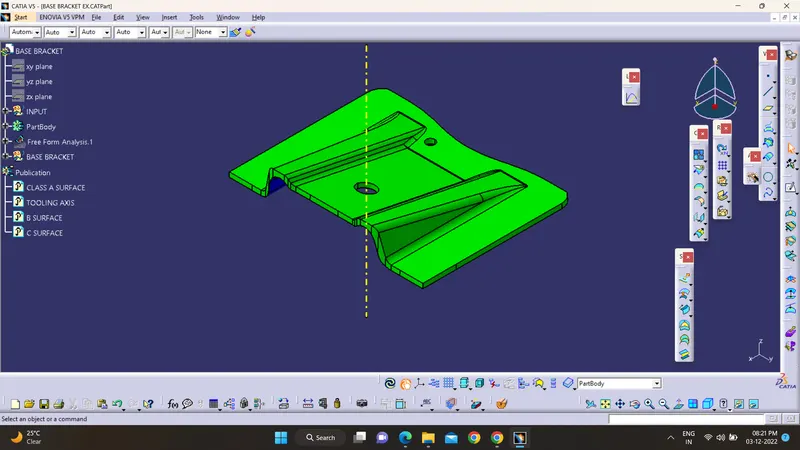

ISO VIEW

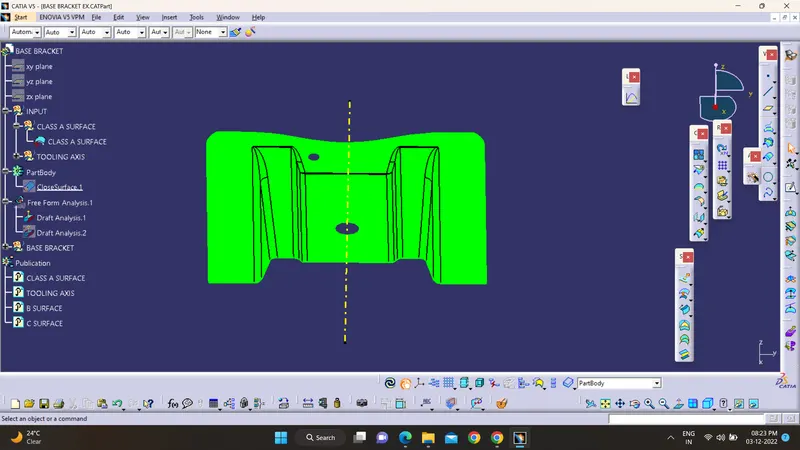

FRONT VIEW

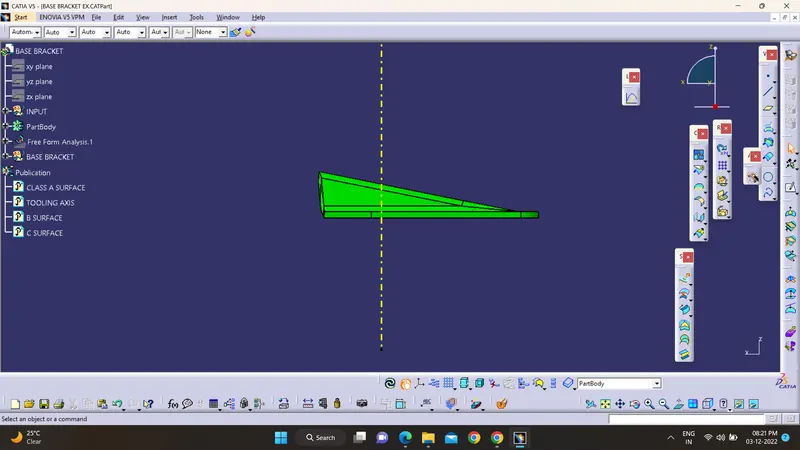

SIDE VIEW

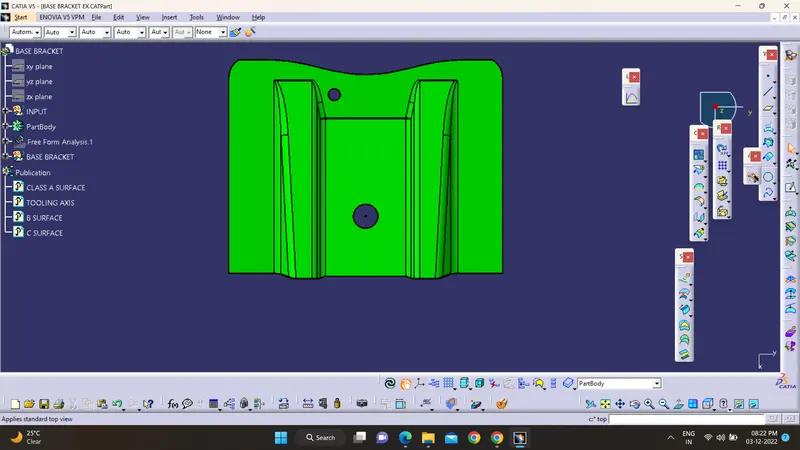

TOP VIEW
