Week 8 - Challenge 1 - Base Bracket Design

Aim:

To be able to create solid from the given Class-A surface, by considering tooling axis and draft analysis.

REPORT ON DRAFT ANALYSIS

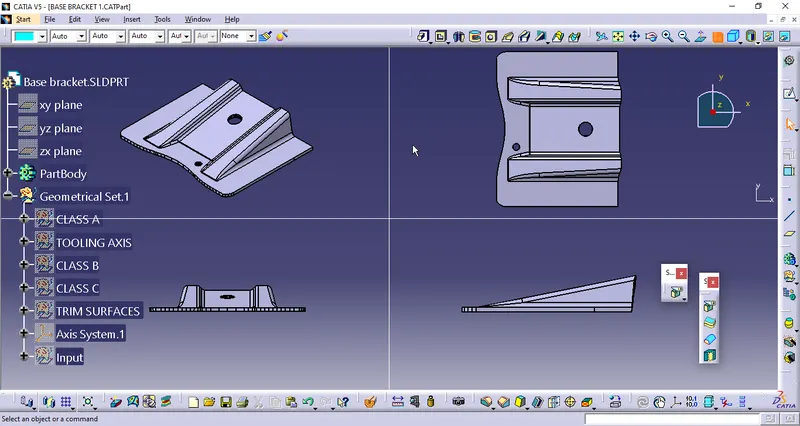

Given Class A Surface:

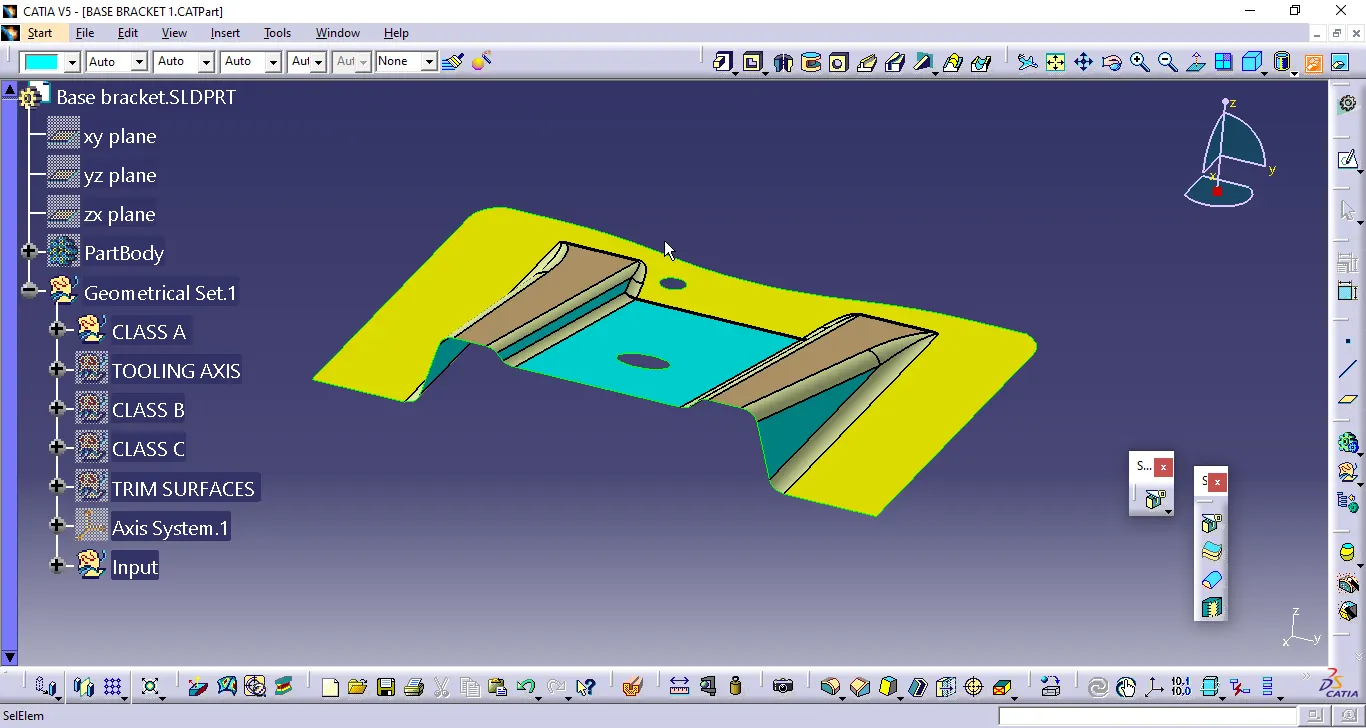

Class A surface is one which is provided to us, check the connectivity of the Class A Surface ensure that there is no gap between the component, using join command.

Tooling Axis:

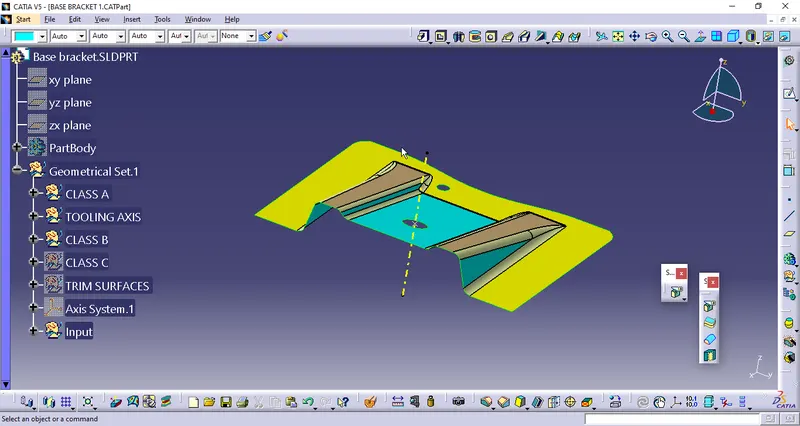

A tooling axis is created at the center of hole of the class A surface using line definition and point, the tooling axis is nothing but the mould opens or cavity opens.

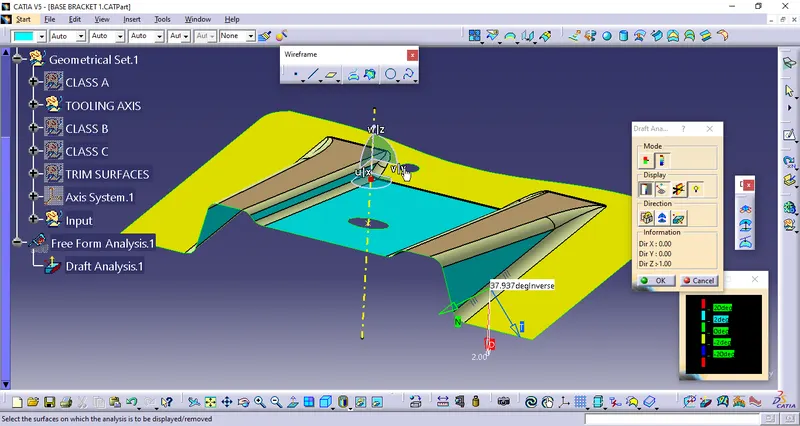

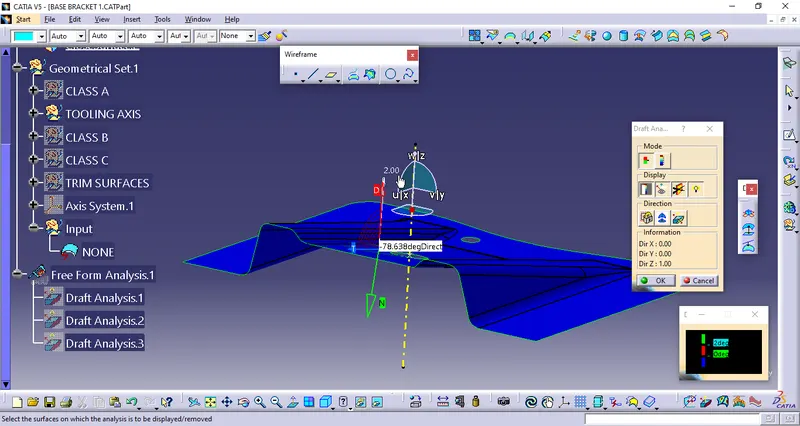

Draft Analysis:

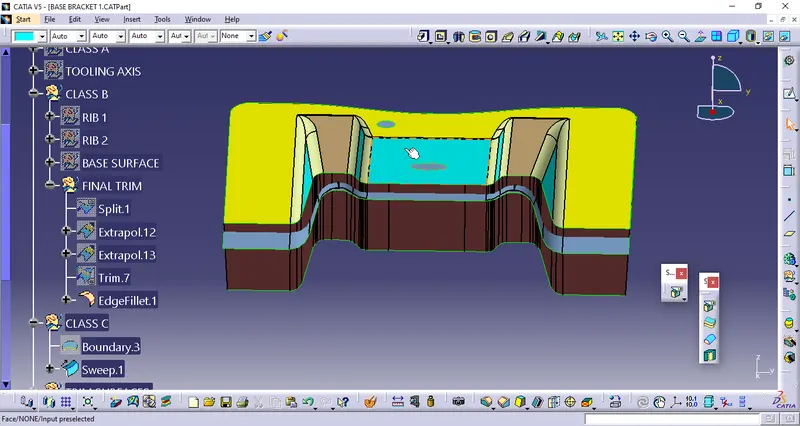

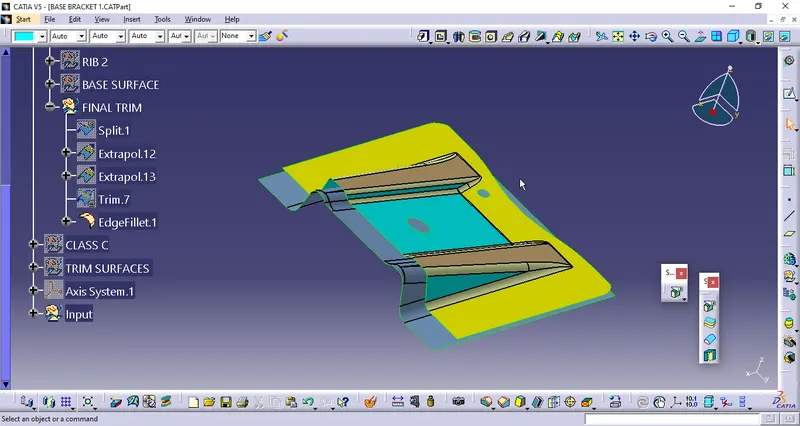

Class B Surface:

Class B surface is created by extracting the surface from the class A and offsetting that surface according to the required thickness( which is 2.5mm for given part). the extracted surface should be little bigger then the original class A surface wich can be done by using extrapolating command which incerace the size of the boundry.

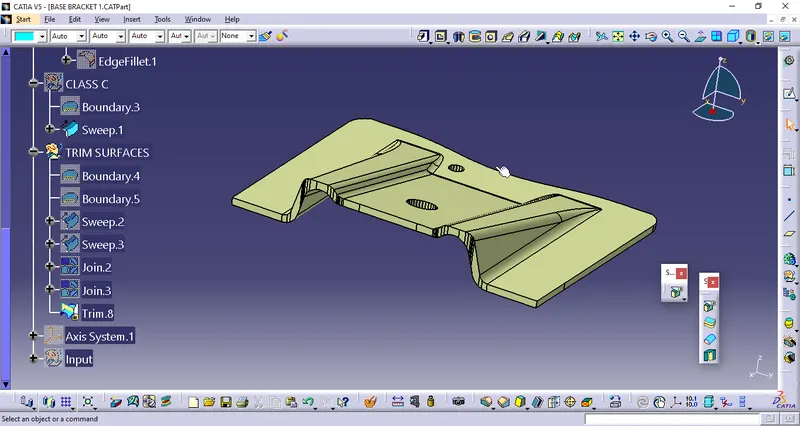

Class C Surface:

Class C surface is created by using swept command which created a suface according to the selected boundary.

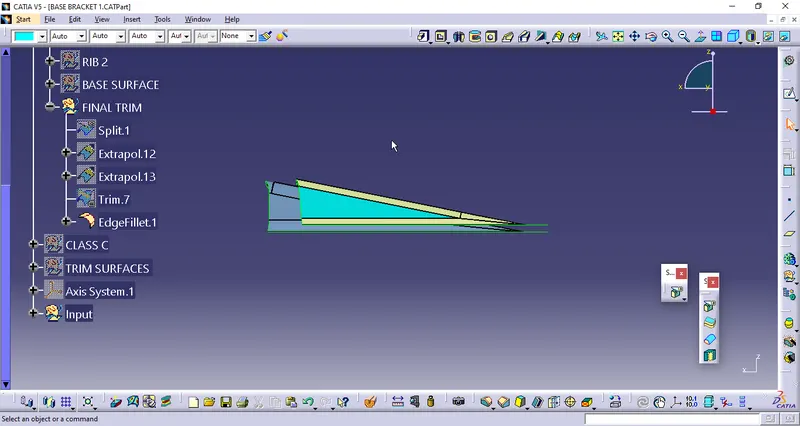

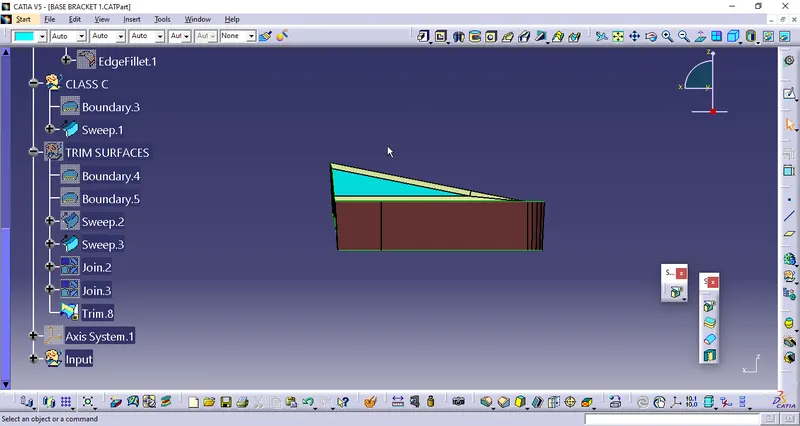

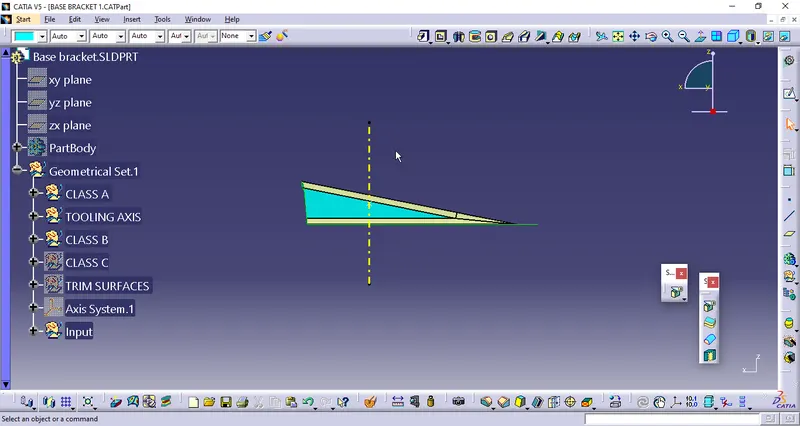

Final Trim:

In this step the C surface is trimmed according to the thickness of the part or till the b surface usinng trim command which cuts the excess or unwanted area till the selected point.

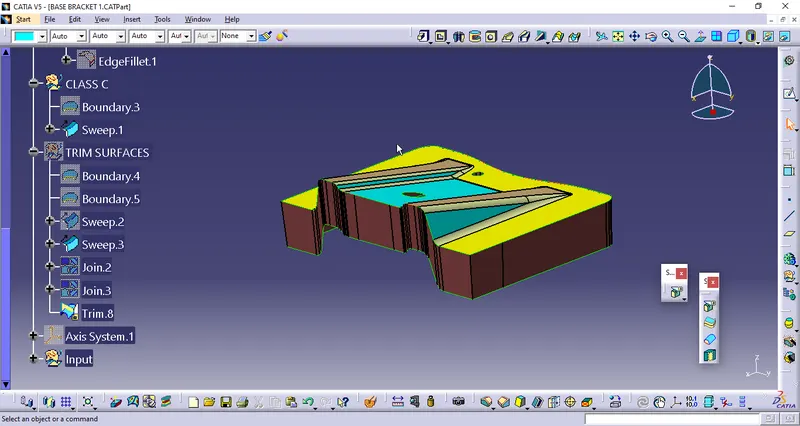

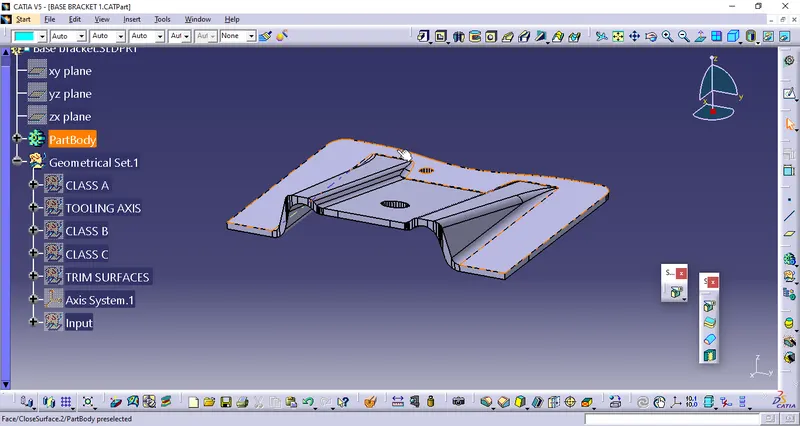

Solid Body:

Creating a solid body out of the final result that we get after trimming the c surface till b surface using the closed surface command which makes a solid surface between the closed surface.
