Week 8 - Challenge 1 - Base Bracket Design

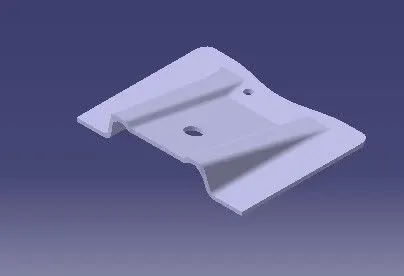

Isometric View

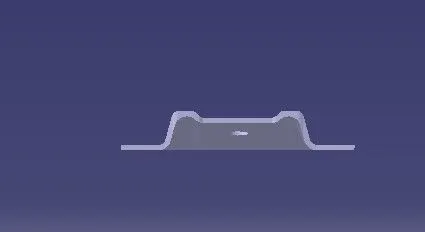

Front View
Side View

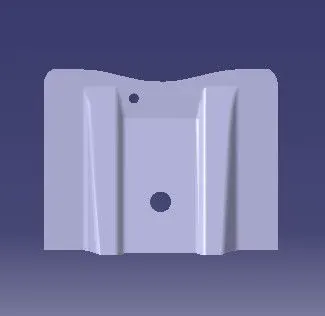

Top View

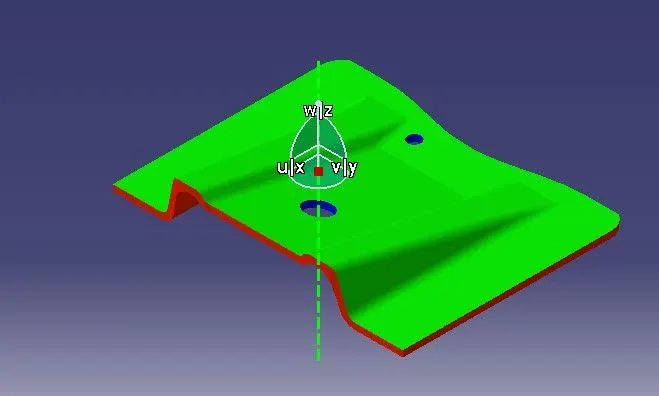

Draft analysis
CLASS A Surface

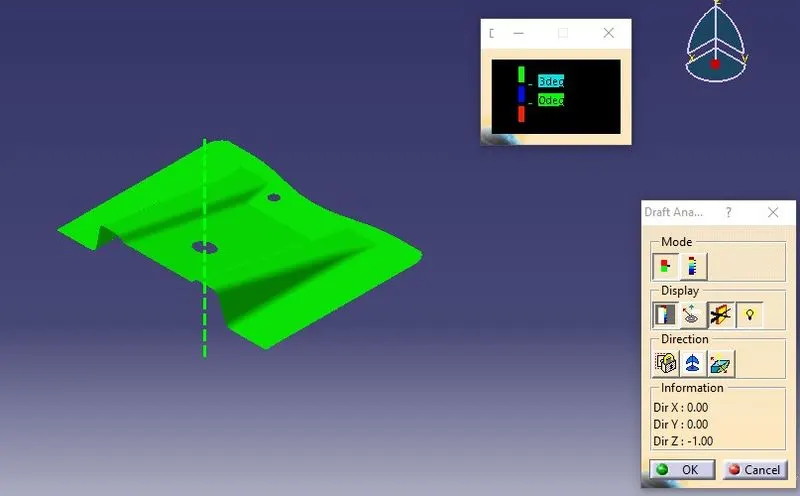

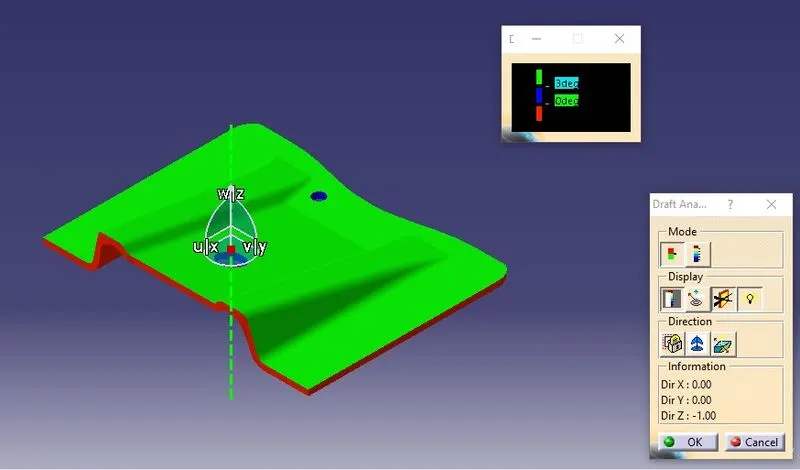

Draft Analysis:
Draft Analysis is done to analyze the draft angle .this allows us to verify whether the product will be easily removed from the tool .when designing a product they need to be angled slightiy so that the tool can be pulled away from the object easily without deformation or damage .This slight angle is called draft I have given the condition for draft angle with a maximum deviation of 3 degrees, anything within that limit is shown in green, whicn means that the part is producible.
