Week 8 - Challenge 1 - Base Bracket Design

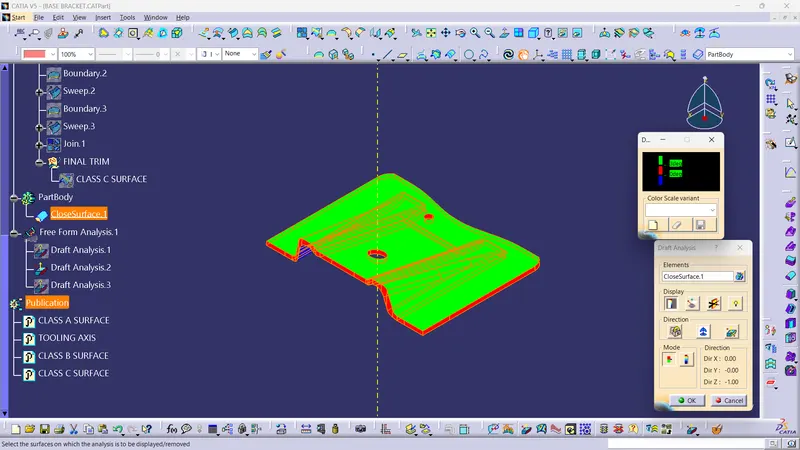

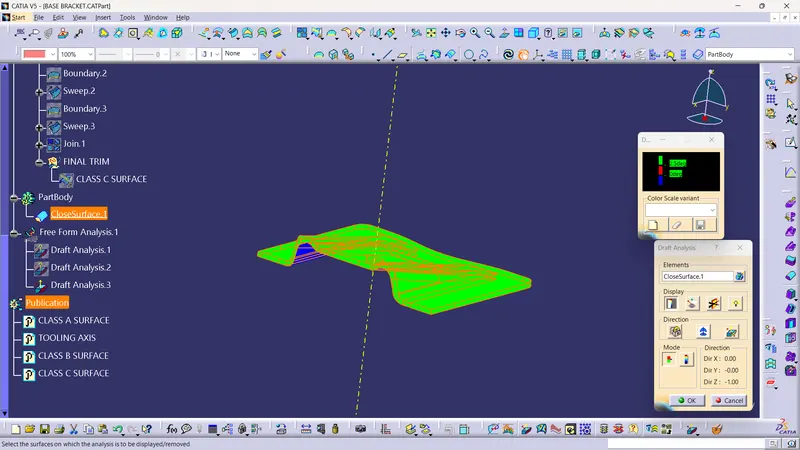

Draft analysis report

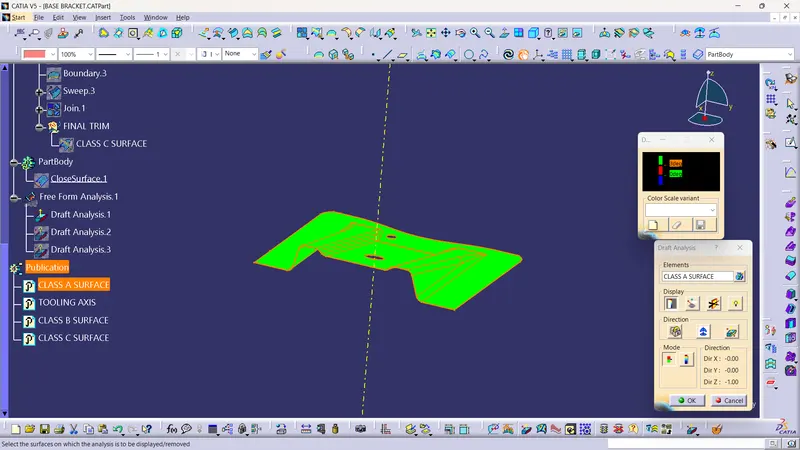

Class-A surface

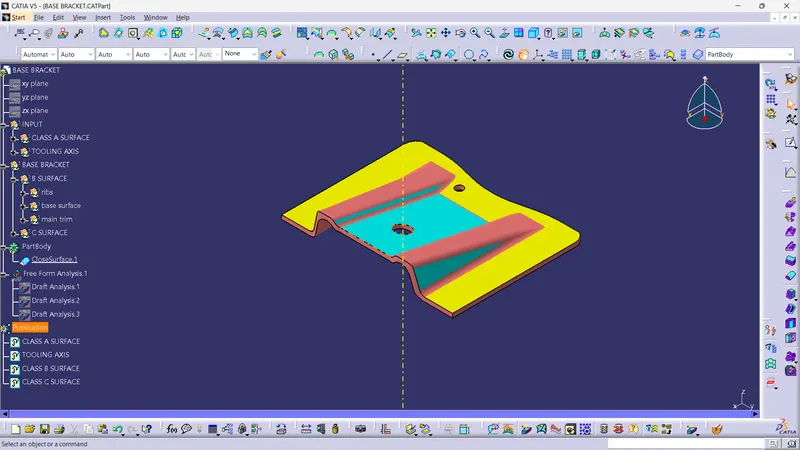

Final plastic component

Due to some reasons my Drafting Angle on the curve was lower than 3°, so I reduced it to 2.5° .

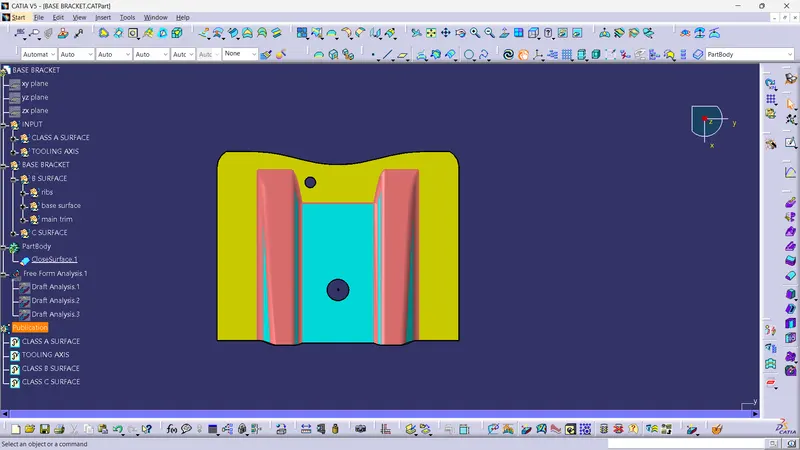

Solid model

(Isometric, Front, Side, and Top View)
