Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

DOOR HANDLE

EXTRACT THE NORMAL SURFACE FROM THE CLASS A SURFACE. FORM THE POINT ON THAT AND THEN MAKE LINE WITH POINT-DIRECTION, NORMAL TO THAT POINT.

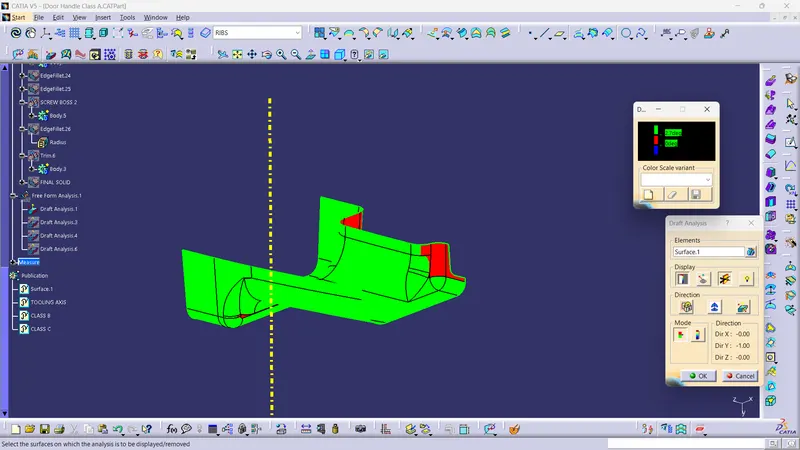

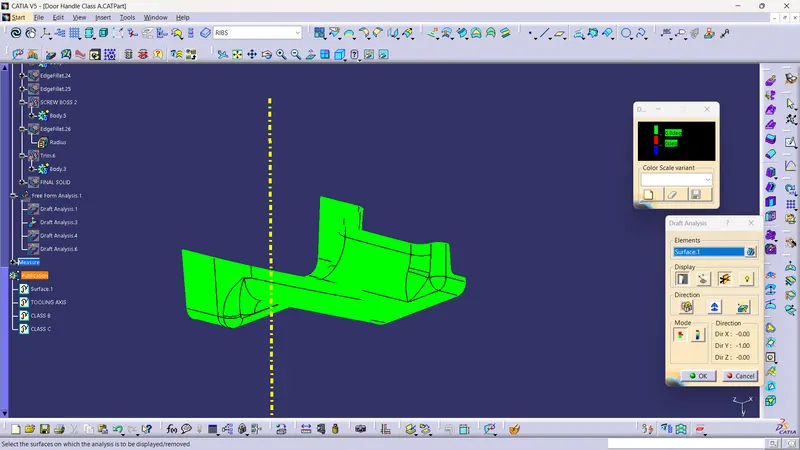

CHECK THE DRAFT ANYLASIS AND REDUCED THE ANGLE TO 0.9 DEGREE AND WITH CHECK ON THE SURFACE DRAFT.

LATER I ALSO CHECK BY TILTING THE TOOLING AXIS IN +3 TO -3.

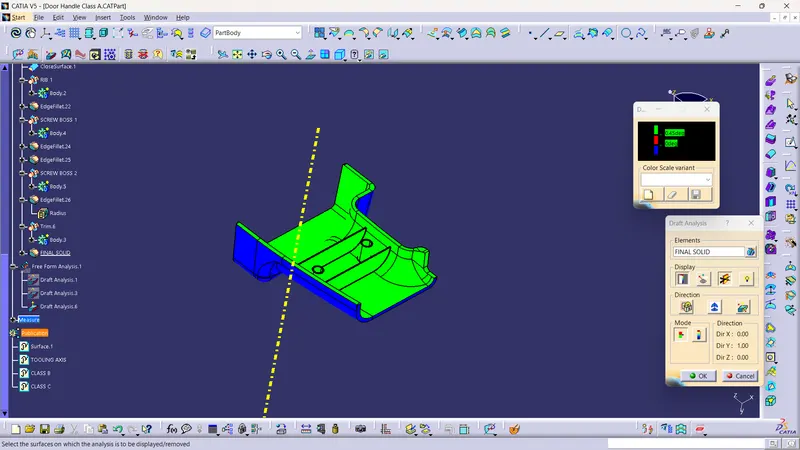

AFTER MAKING WHOLE CLOSED SOLID WITH CLOSED SURFACE + RIBS + BOSSES, FORM THE DRAFTING ANYLASIS FOR THE SOLID WHICH BRINGS THE DRAFTING ANGLE TILL 0.45 DEGREE TO CLEAR THE DRAFTING ANGLE.

.

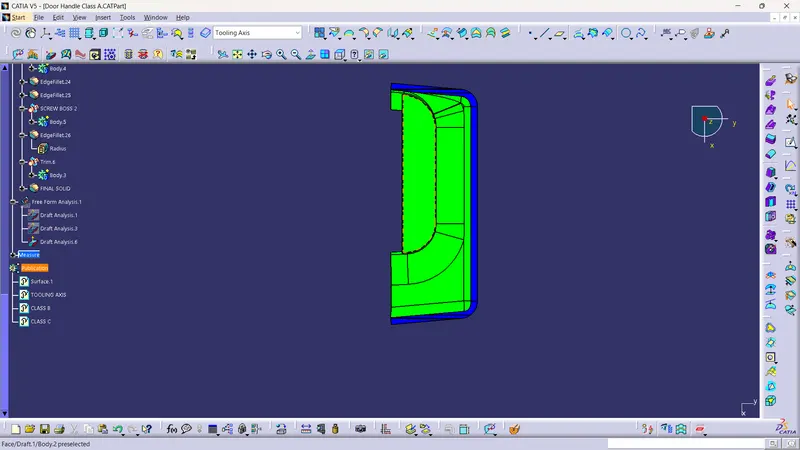

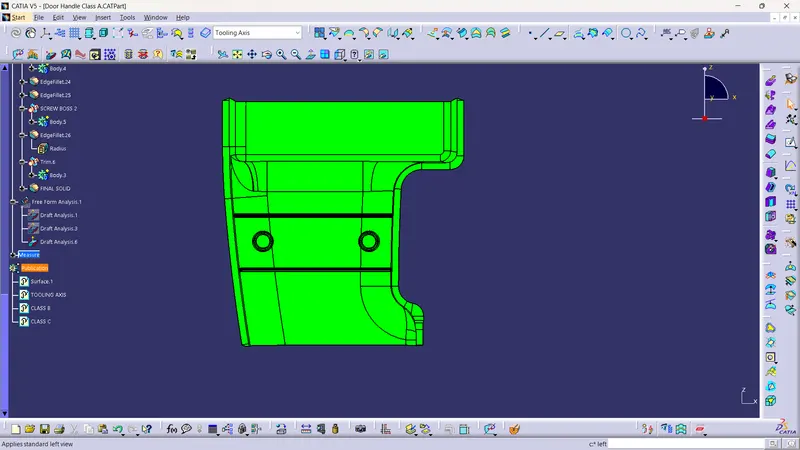

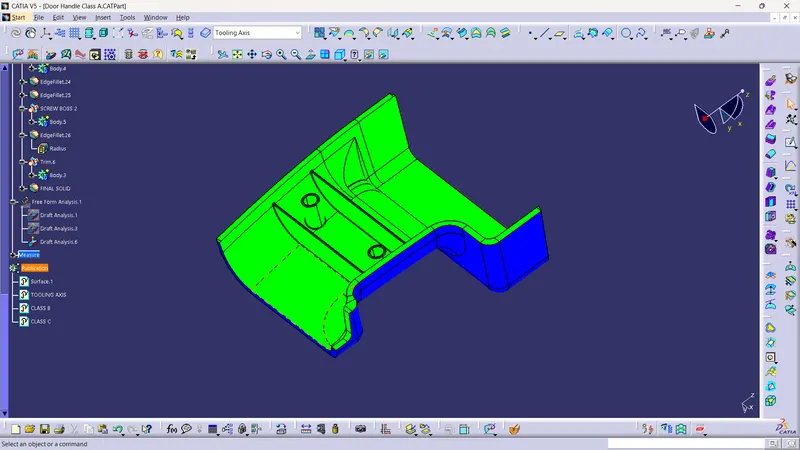

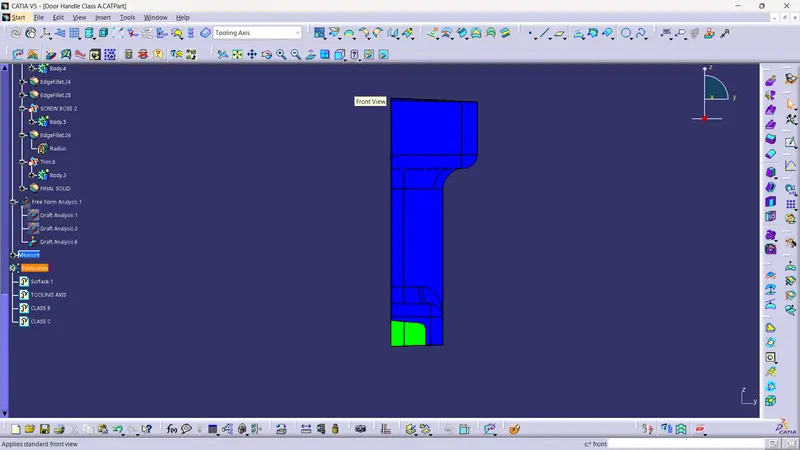

Isometric, Front, Side, and Top View
