Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

TOOLING AXIS WAS MADE BY EXTRACTING SURFACE , POINT ON IT AND LINE FROM POINT DIRECTION ON Y AXIS AS REQUIRED HERE

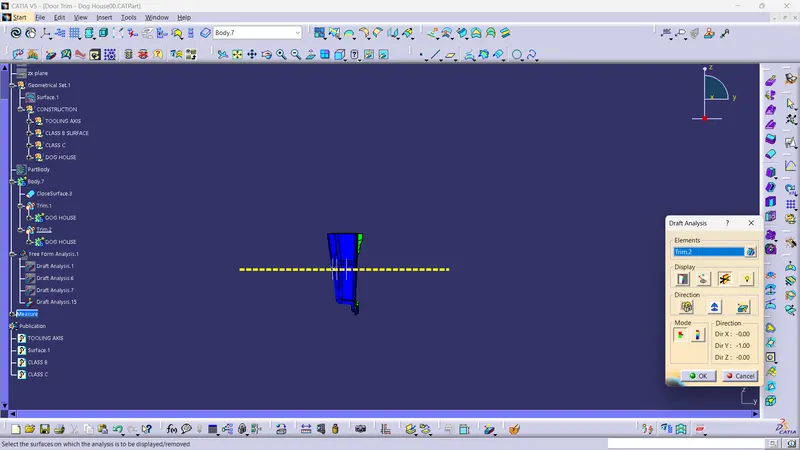

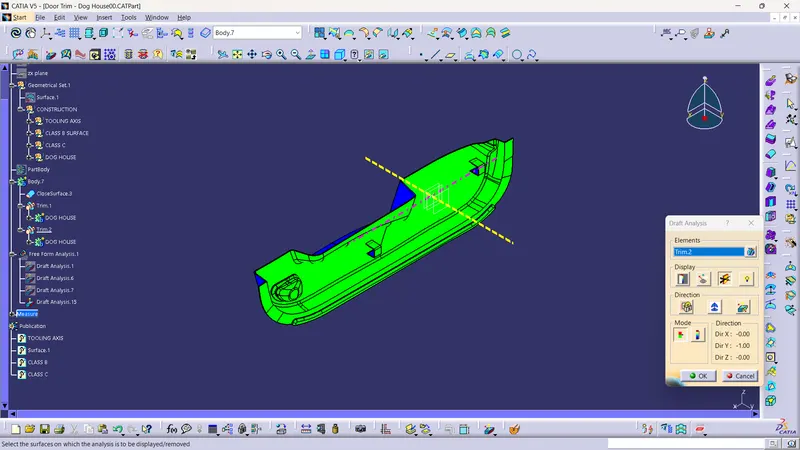

DRAFT ANYLASIS IS DONE BY PLACING COMPASS ON THE TOOLING AXIS, SELECT SURFACE AS ELEMENT AND CHECK DRAFTING ANGLE

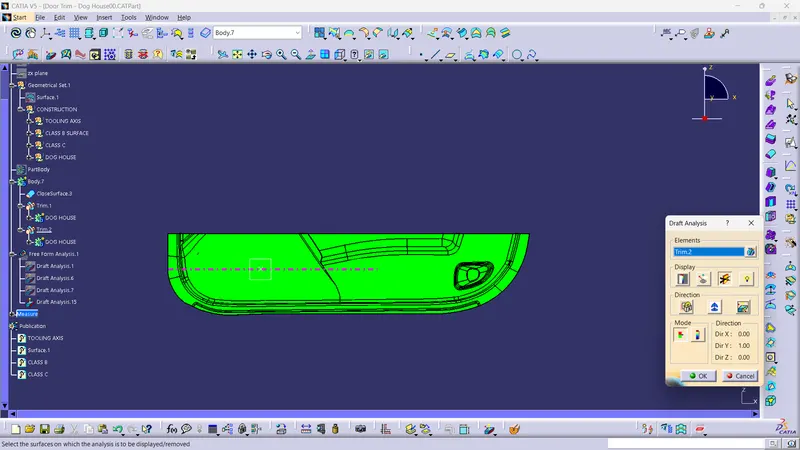

FOR CLOSE-SURFACE PUT COMPASS ON TOOLING AXIS, SELECT CLOSED SURFACE AS ELEMENT AND CHECK COLOUR OF DRAFTING SIDES AND ANGLES.

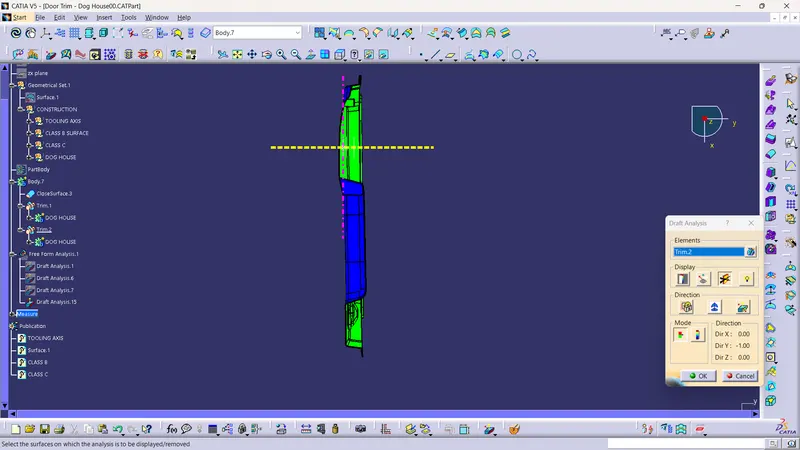

FOR DOG HOUSE MAKE SIDE CORE AXIS ALSO FOR INTERIOR SURFACE BY TAKING POINT OF TOOLING AXIS AND FORM LINE ON X DIRECTION. PUT COMPASS ON TOOLING AND SIDE CORE AXIS, CHECK ANGLE FOR DOG HOUSE.

SCREENSHOTS
