Week 8 - Challenge 1 - Base Bracket Design

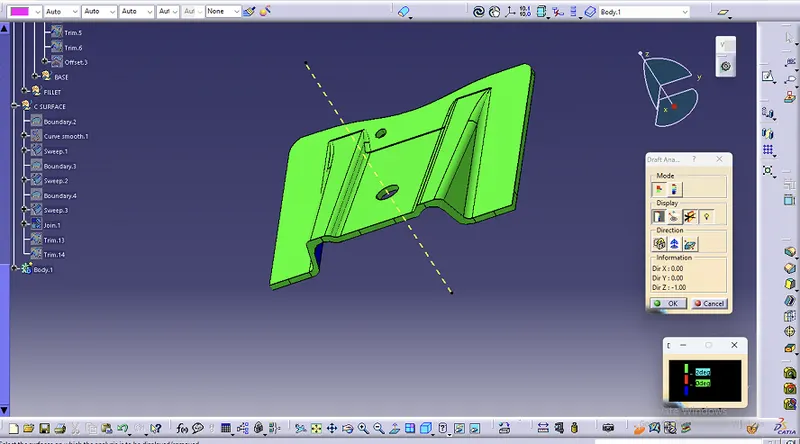

PART MODEL AND ITS DRAFT ANALYSIS

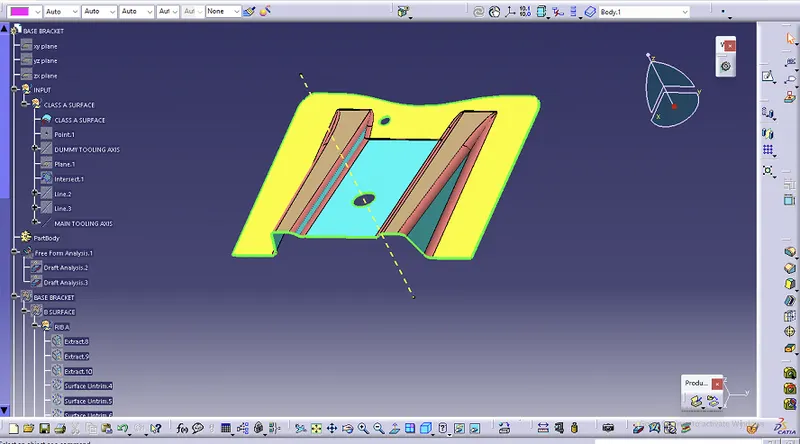

TOOLING AXIS & CLASS A

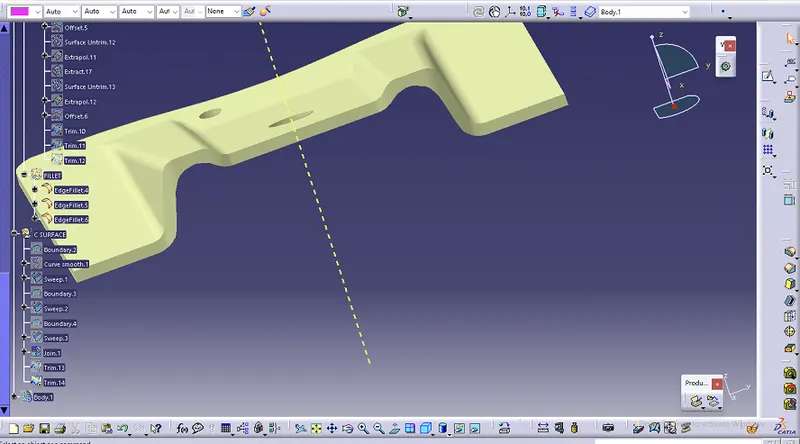

CLASS B

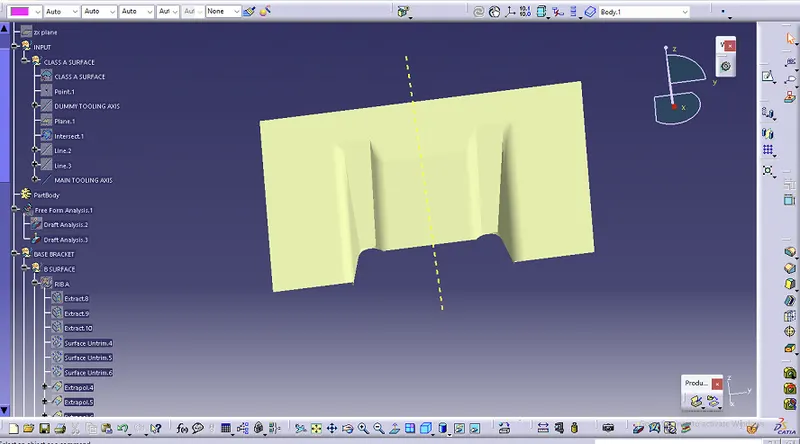

CLASS C

As we can observe from the figure that the draft analysis performed on the part model is proper and it has a draft angle of 2 degree.

Given below are the few number of steps followed:

step1. we have to create a dummy tool axis on the class A provided.

step2. After that we have to undertake a draft analysis on it.

step3. We have to extract each faces and perform extrapolation and trimming to acheive a class B component.

step4. Provide proper fillet as required.

step5. Create a sweep operation on class A component to create class C.

step6. Do trim and join operation parallely.

step7. import in part design and perform the draft analysis
