Week 8 & 9 - Four Bar Mechanism

Modify either the Bistop function or the motion curve that we apply to the revolute joint to stop the trunk lid exactly when the trunk lid comes in contact with the body of the car.    Solution: Model with graphics imported: Default Motion curve: Motion vs Time_s Hyperview results: at t=3.11sec. collision is detected.…

    • Kolli Surya Teja

      updated on 13 Jan 2022

    Modify either the Bistop function or the motion curve that we apply to the revolute joint to stop the trunk lid exactly when the trunk lid comes in contact with the body of the car.



    Solution:

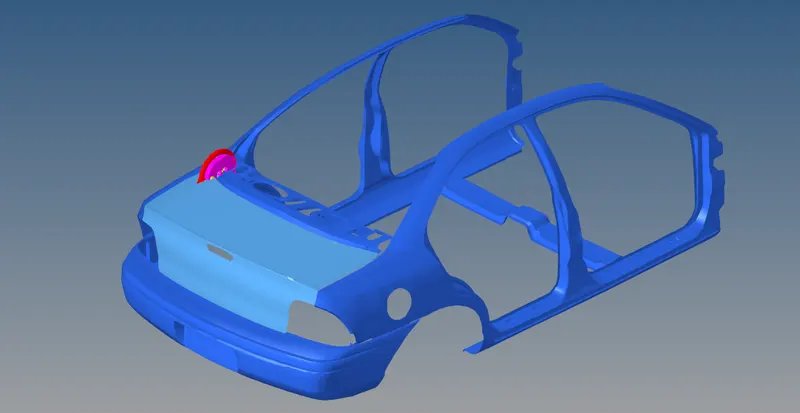

    Model with graphics imported:

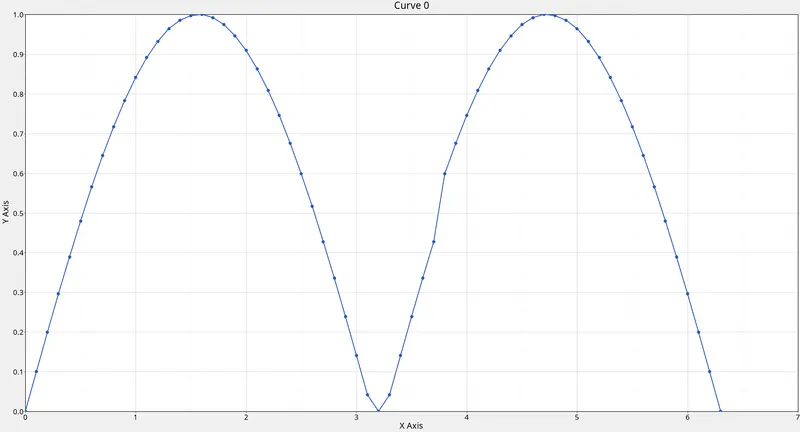

    Default Motion curve:

    Motion vs Time_s

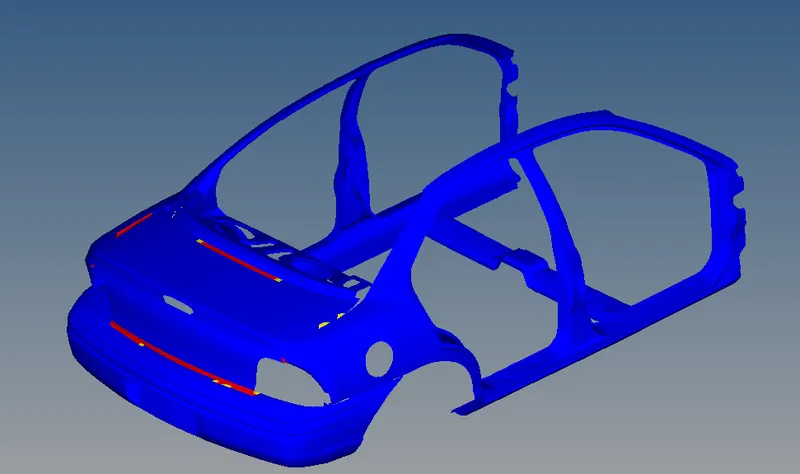

    Hyperview results:

    at t=3.11sec. collision is detected.

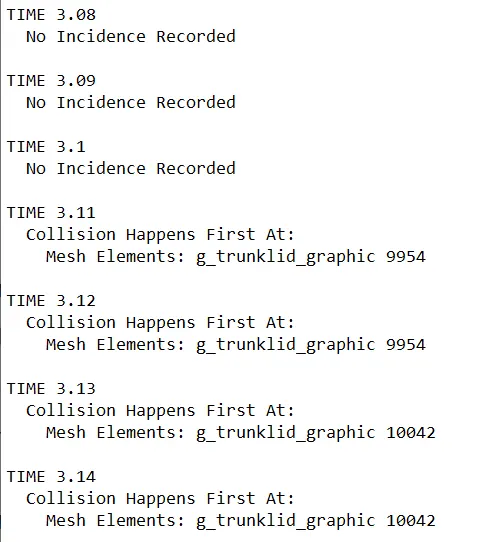

    Collision summary log:

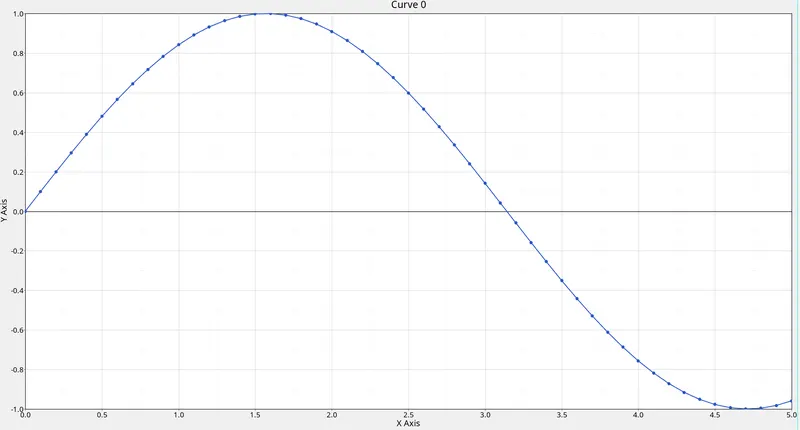

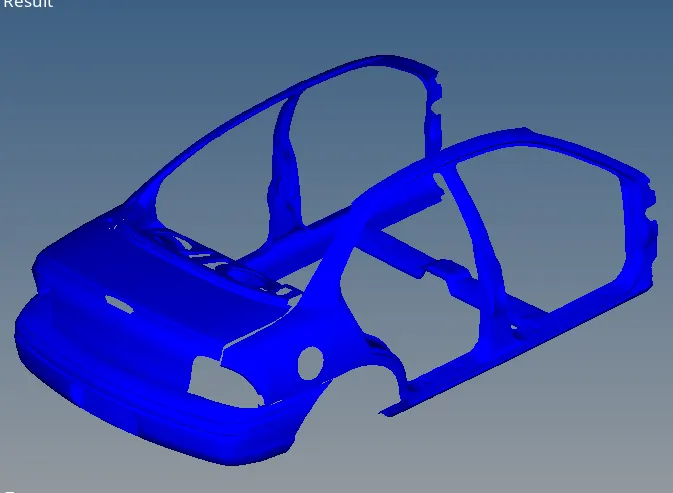

    Modified Motion Curve:
