Week 8-3D Tetra Meshing Challenge

REPORT:

MODEL 1

AIM:TO FIND THE TETRAMESH OF THE MODEL WITH GIVEN QUALITY CRITERIAS.

PROCEDURE:

1.UPLOAD THE MODEL IN THE HYPERMESH SELECTING RADIOSS.

2.SELECT FOR SOLID IN THE MODEL,DELETE THE SOLID.

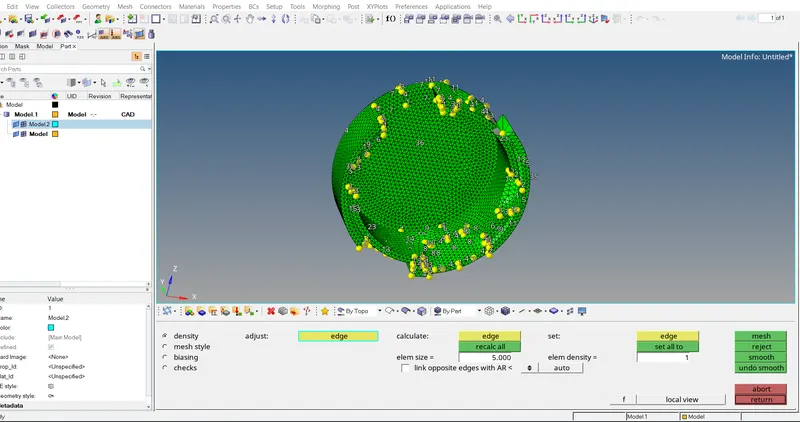

3.SELECT THE AUTOMESH AND MESH THE MODEL WITH GIVEN CRITERIA.THE 2D MESH IS COMPLETE.

4.CHECK FOR THE QUALITY IN THE MESHING,IF THERE IS ANY SORT OUT THE MESH.

5.GO TO 3D PANEL,SELCT TETRAMESH FROM THE PANEL,SELECT THE MODEL,THEN MESH IT.THE TETRA MESH IS READY.

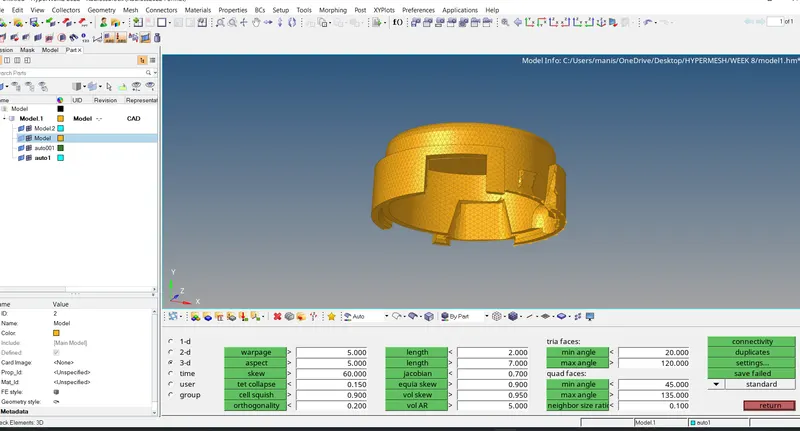

6.GO TO TOOLS,CLICK QUALITY CRITERIA CHECK FOR LENGTH AND TET.

7.CHECK FOR ANY MESH PROBLEMS THEN REMESH TGE TETRA MODEL.CHECK AGAIN FOR THE QUALITY,IF THERE IS ANY THEN SOLVE THE PROBLEM.

MODEL 2 AND 3

AIM:TO PRODUCE QUICK TETRA MESH OF THE MODEL.

PROCEDURE:

1.UPLOAD THE MODEL IN HYPERMESH.

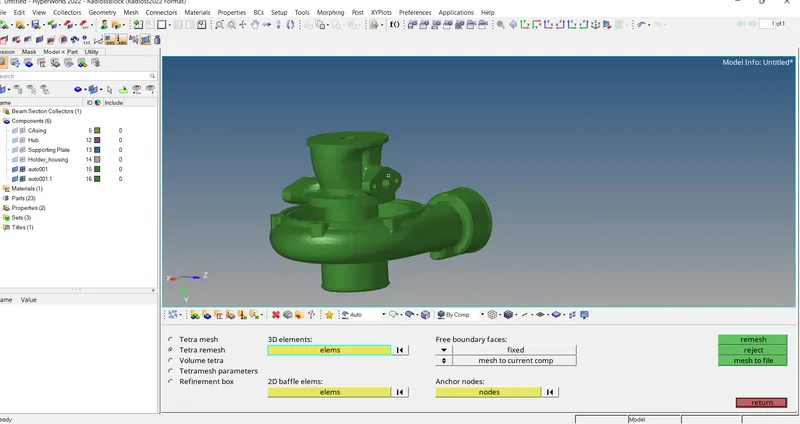

2.THEN SELECT 3D PANEL GO TO TETRAMESH,SELECT THE MODEL ,THEN CLOCK MESH.THE TETRAMESH IS READY OR

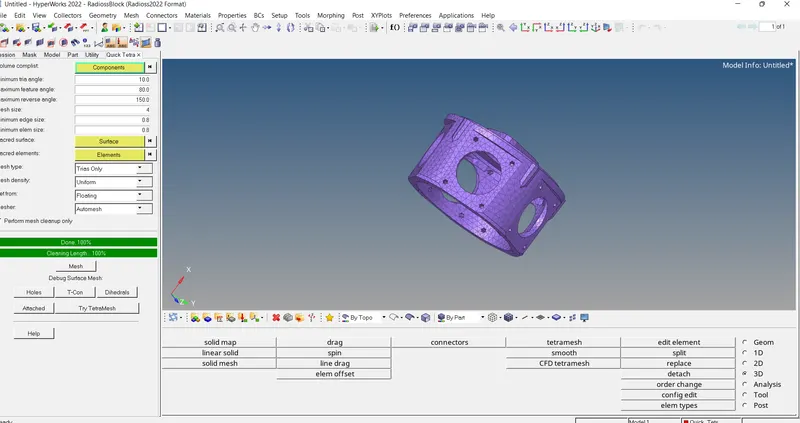

3.GO TO VIEW ON THE TOP LEFT, SELECT HYPERMESH>UTILITY>QUICK TETRAMESH>SELECT THE COMPONENT>GIVE THE MESH SIZE>THEN MESH.

4.CHECK FOR QUALITY CRITERIA AND TET FAILURE.

PROBLEM FACED:

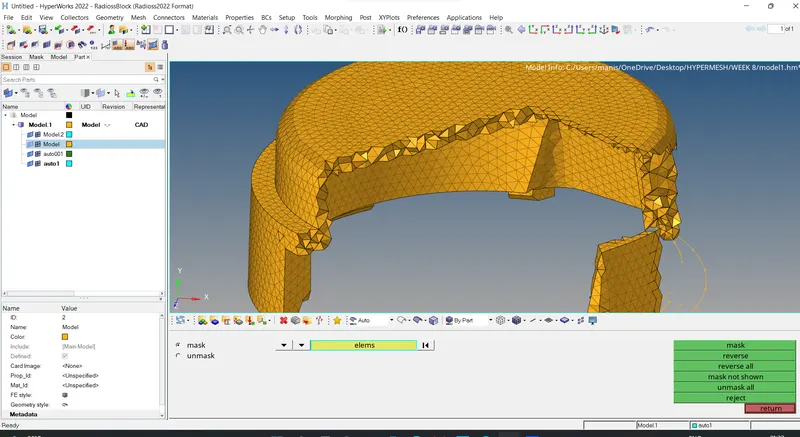

1.IN THE THIRD MODEL TRYING THE EXCAVATE THE TETRAM MODEL WAS DELETING THE MODEL .

2.SOLVING THE QUALITY AND THE TETRAMESH WAS TOUGH.
