Week 8-3D Tetra Meshing Challenge
3D Tetra Meshing Challenge
AIM:

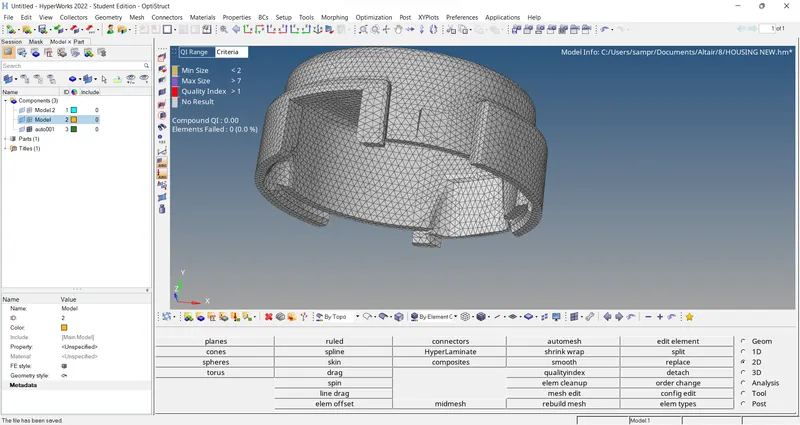

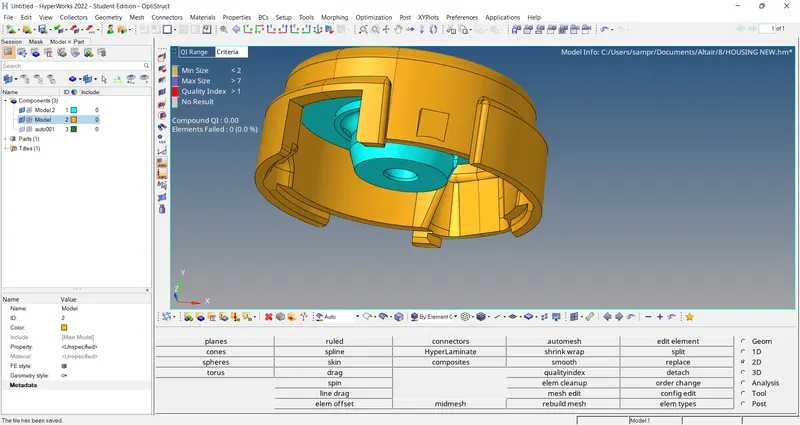

- Create a Teramesh for Housing component with the following quality criteria.
TetraMesh Generation Method: 2D to 3D Conversion
Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units
Tet collapse: 0.15
PROCESS:
- Download the model and import it into hypermesh

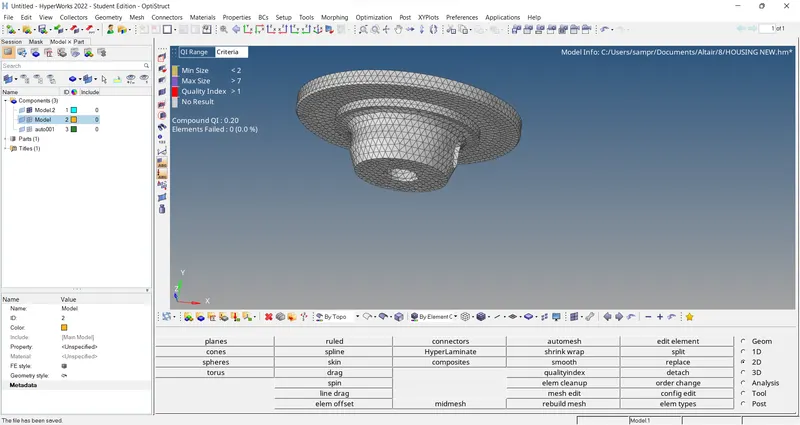

- For each component make a surface mesh of trias

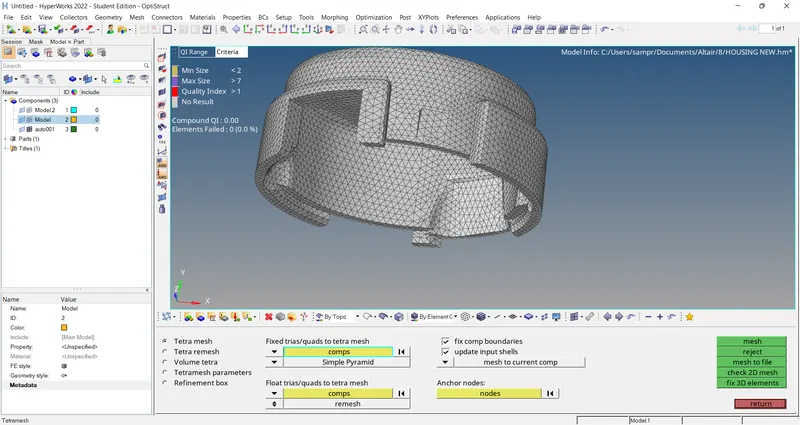

- Later Use the tetramesh and build it with given target element length in 3D
- Check the quality criteria and clear if any

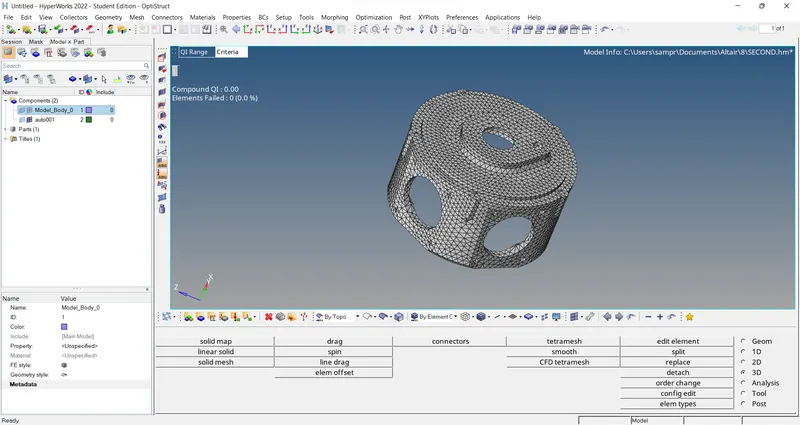

- For the given model, Create a 3D Tetramesh with the following quality criteria.
TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh
Target Element size: 3 Units.
Tet Collapse: 0.15
PROCESS:
- Download the model and import it into hypermesh

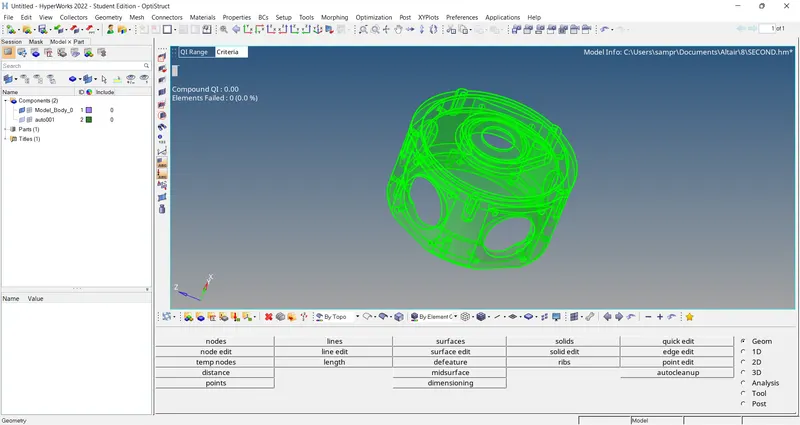

- The given component has a solid

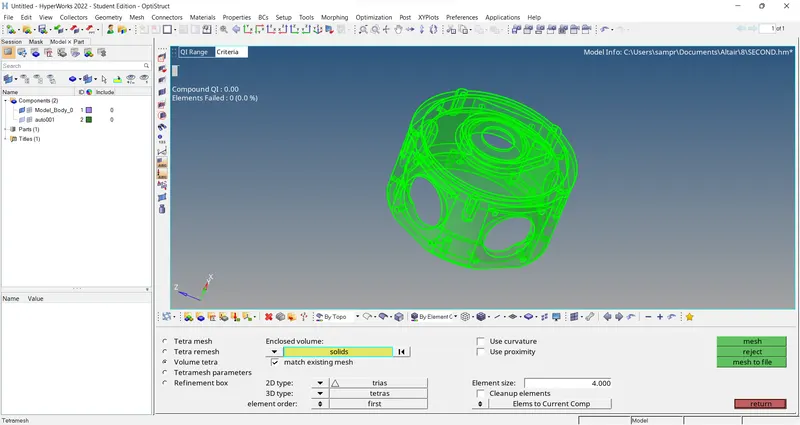

- To perform the solid mesh we use the volume mesh
- The quality is checked and cleared if any

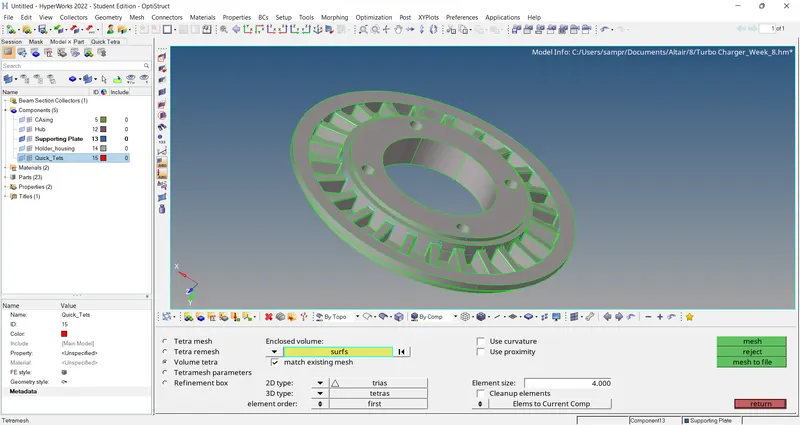

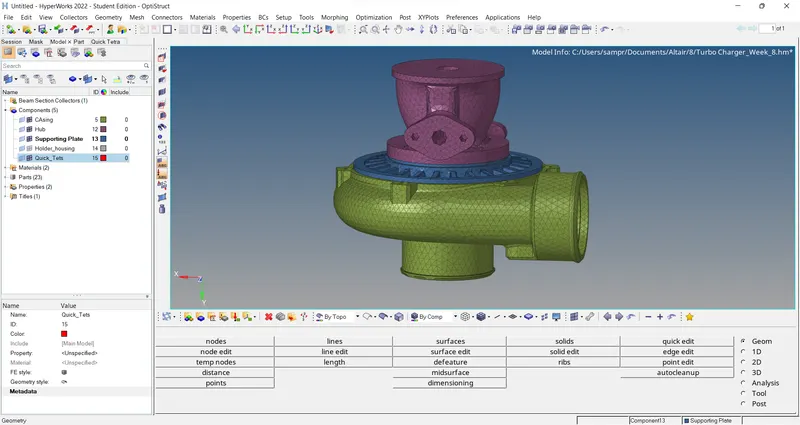

- For the given assembly model, Create a 3D Tetramesh with the following quality criteria.
TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh
Target Element size: 4 Units.
Tet Collapse: 0.15
PROCESS:
- Download the model and import it into hypermesh
- The given components have a duplicate surfaces

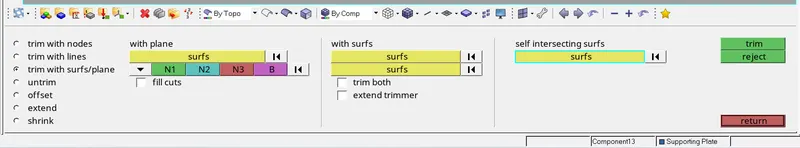

- We clear it with self-intersecting and delete the duplicates

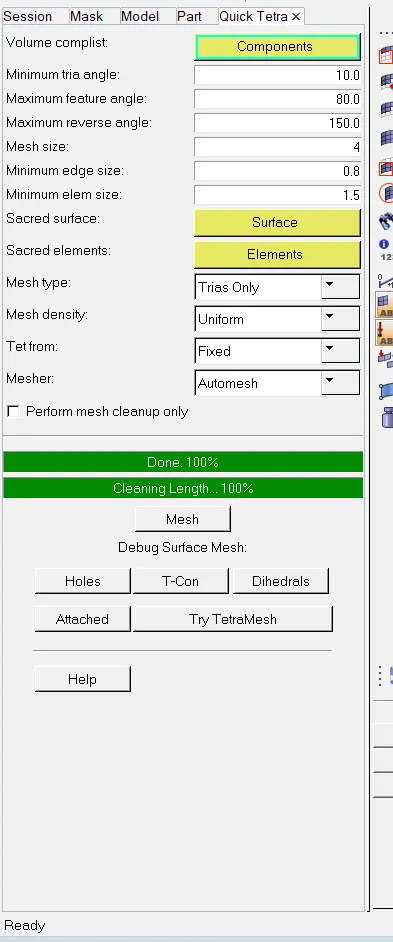

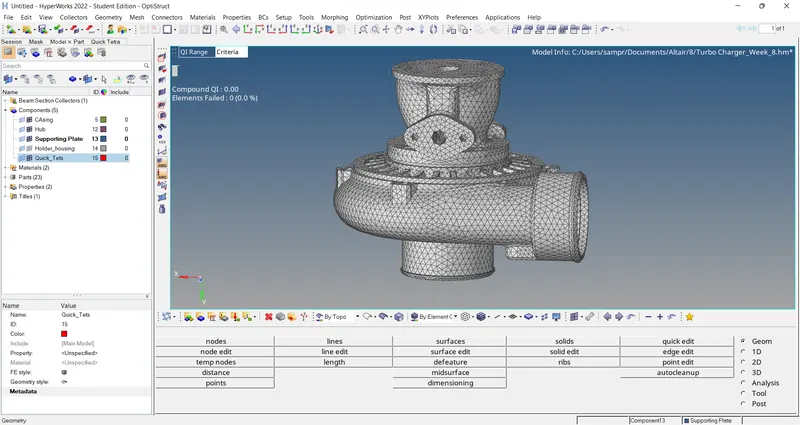

- For a perticular component is turned on and the quick mesh is selected with a given target length

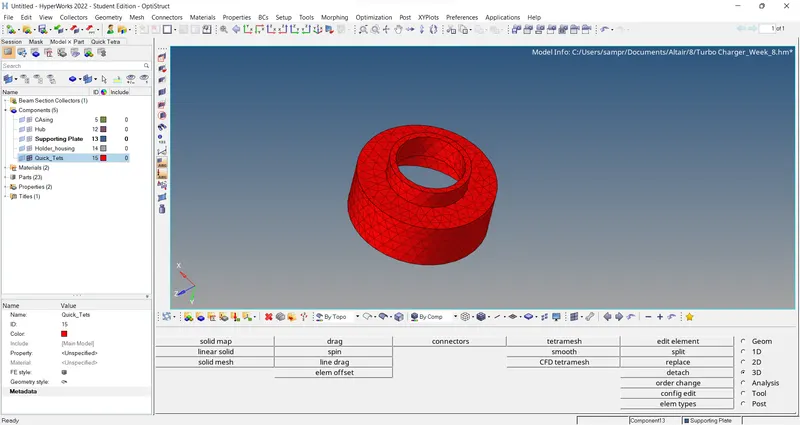

- The mesh is formed

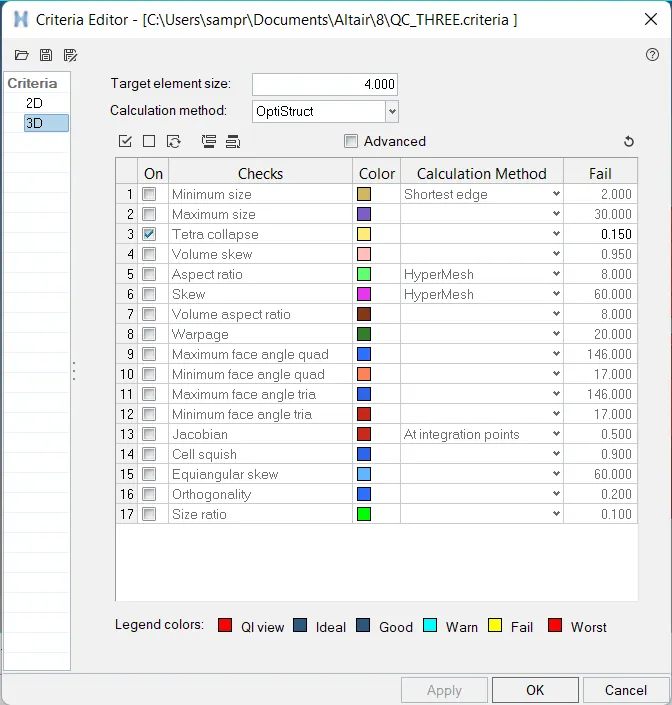

- Then it is checked for the quality and cleared if there

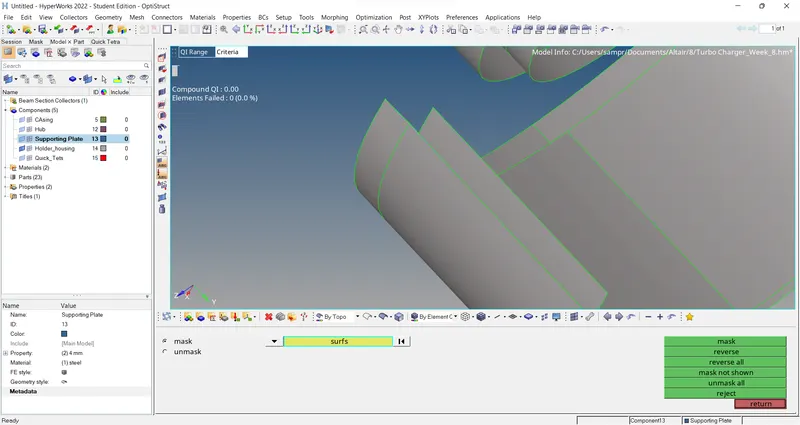

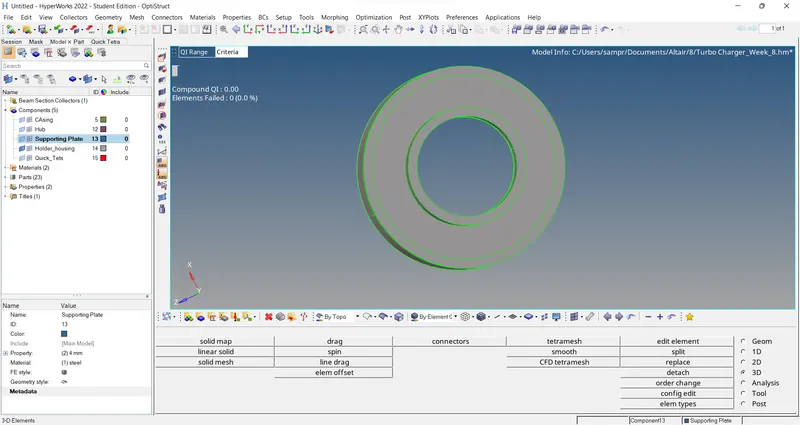

- For the rest of them we go with volume mesh
Final
