Week 8:- 3D Finishing Challenge 2
3D FINISH
The 3D finish is the process where design is completely finishing and ready to finalsimulation and 2D details.
In 3D finish we perform and ensure following below points.
-Hole concentricity and hole sizes,All parts should check and conform hole sizes and there position each other for fitment.
-Machining Area,The machining are for each and every part define for better assembly.
-Nominality,All unit dimensions are maintained by nominality to faciliate easy assambly and machining.
-Hole color standard,
Cream-Machining area.
Yellow-Threaded hole.
Blue-Dowel Hole.
Cyan-Simple hole.
-Fatner implementation,As per requirment of load on part fastner should implement.
-Avoiding clash between parts,Prper gap is maintained between parts to avoid the clash.
-Myler spliting as per panel profile,Spliting myler was conformed while finishing design.
-Proper rename of parts/assemblies as per standard,For identify each and every part in assemblies we can rename properly.

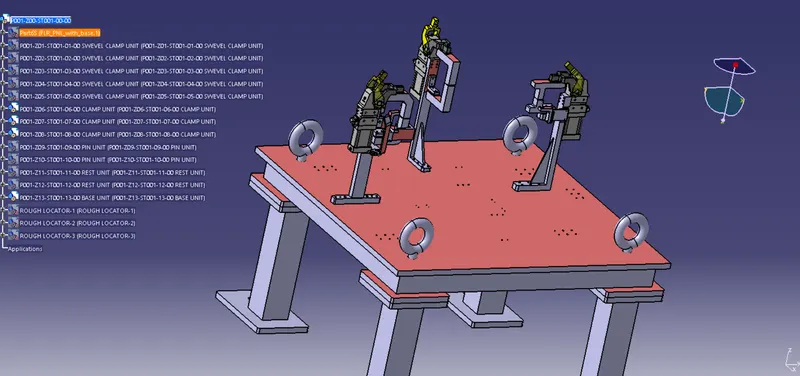

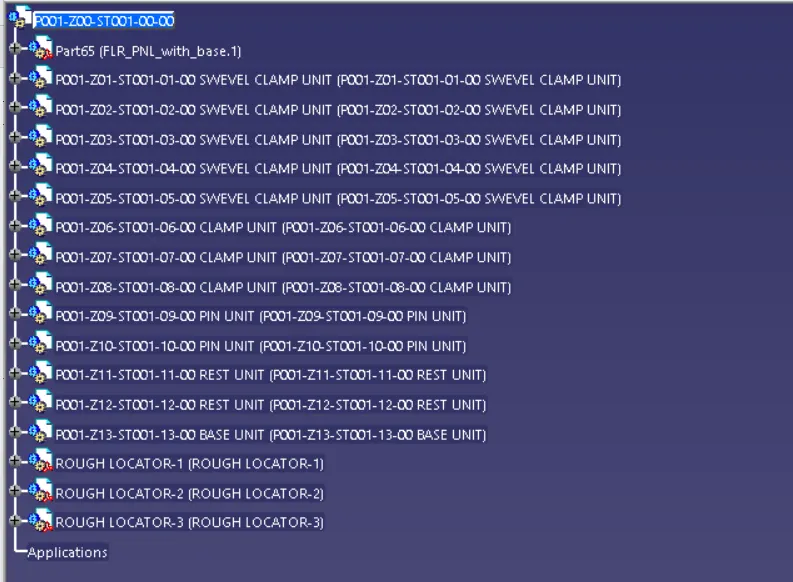

1.Renaming and structuring of design tree.

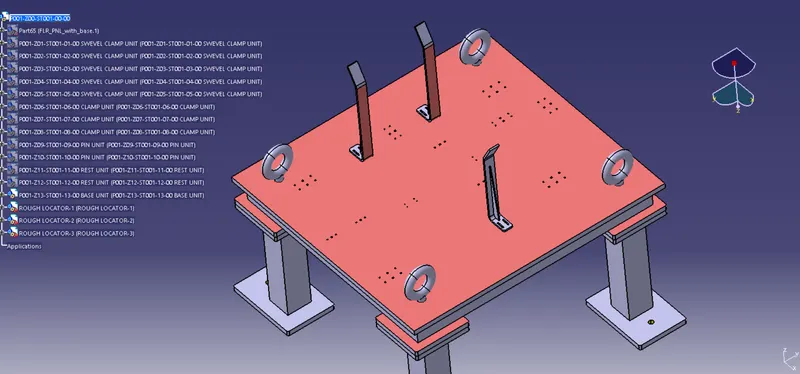

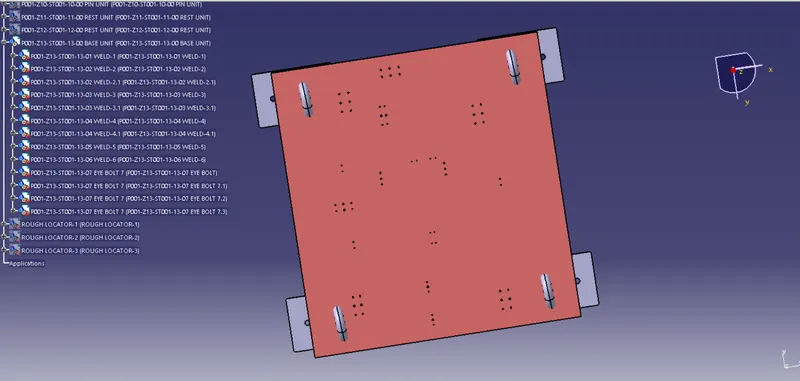

2.Base Unit
Checking parameter Action
Rename of design tree Done
Marking machining area Done
Nominality Done
Holes colouring standard Done

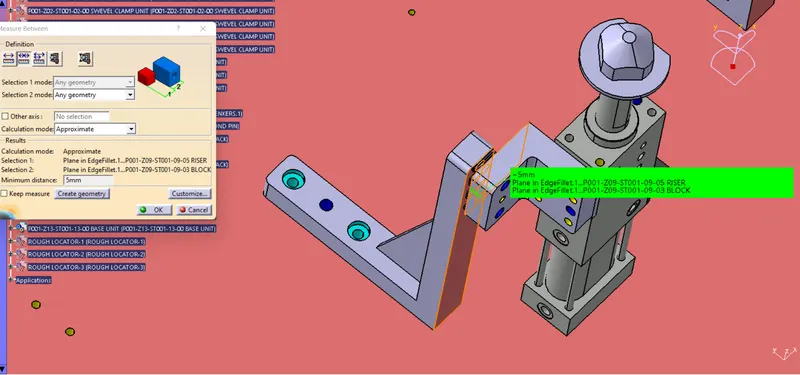

Proper butting between two parts Done

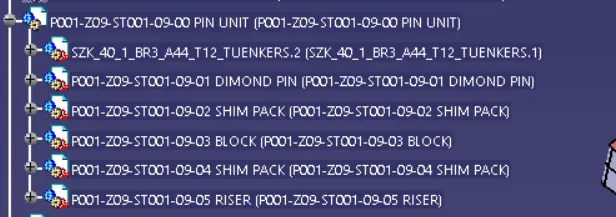

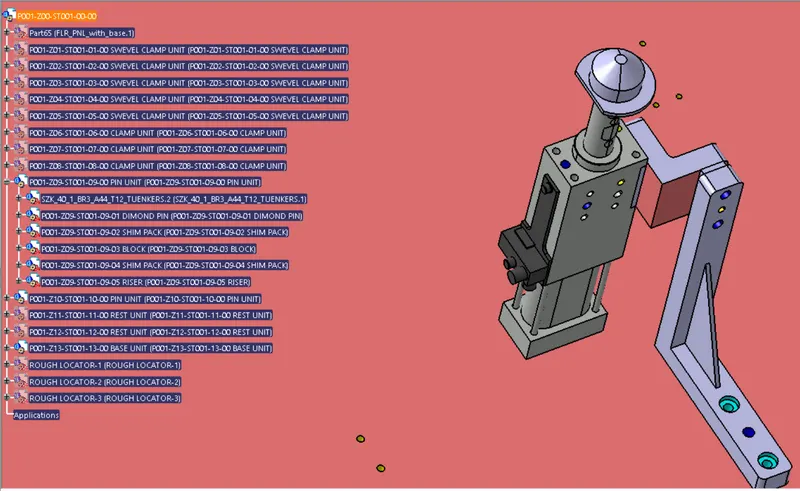

3.Rectratable pin Unit
Checking parameter Action
Rename of design tree Done
Marking machining area Done
Nominality Done
Holes colouring standard Done
Proper butting between two parts Done

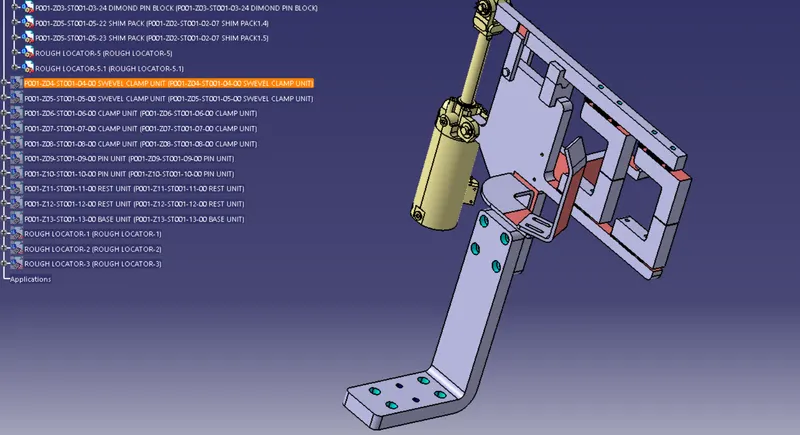

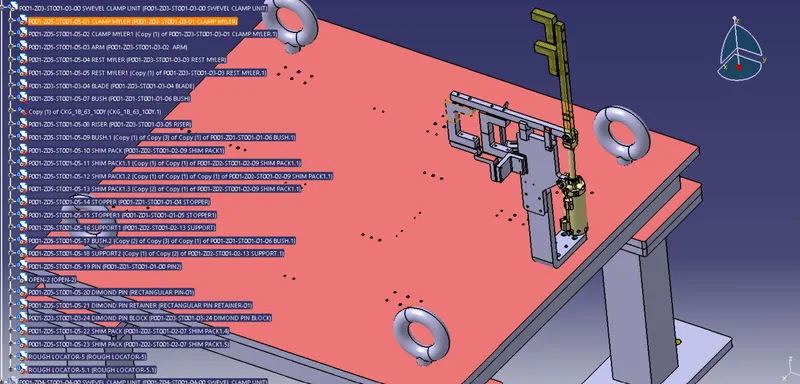

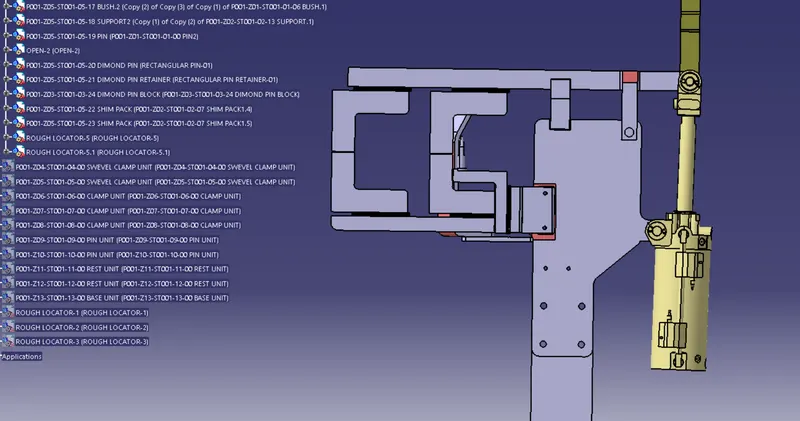

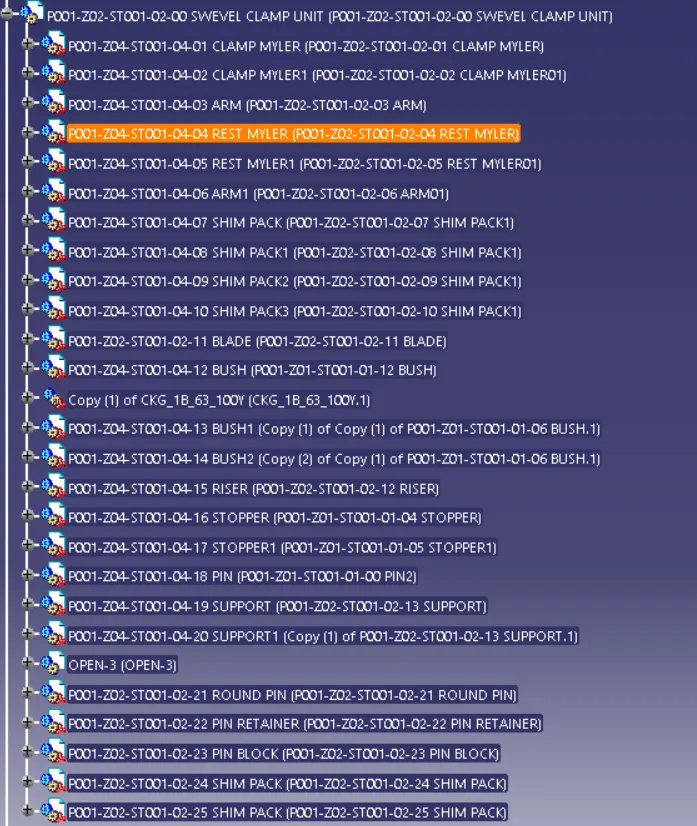

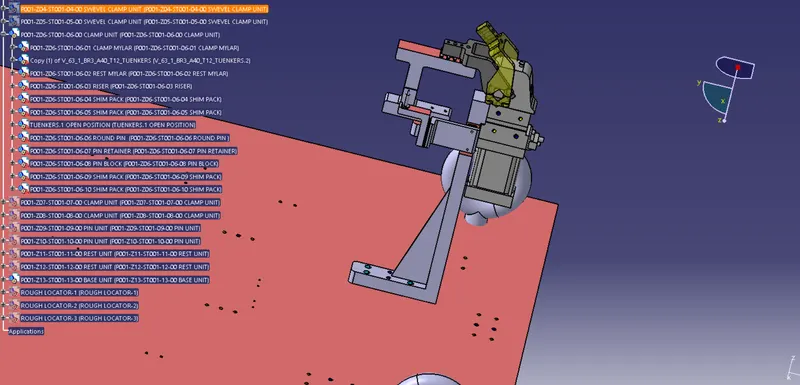

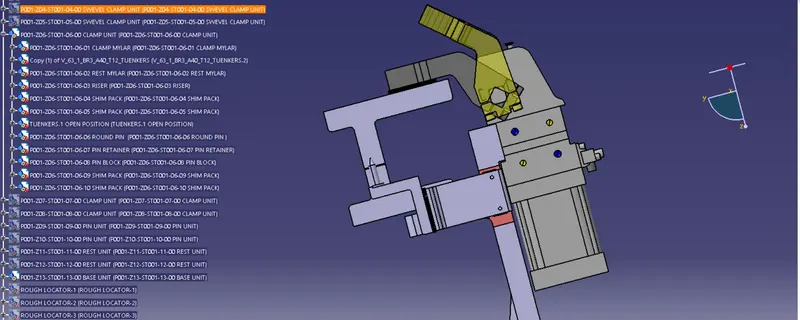

3.Swevel clamp Unit
Checking parameter Action
Rename of design tree Done
Marking machining area Done
Nominality Done
Holes colouring standard Done
Proper butting between two parts Done
Splitting Myler Done

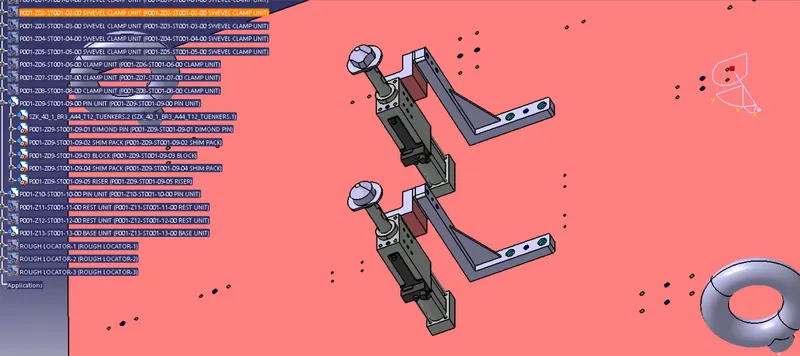

4.Clamp Unit
Checking parameter Action
Rename of design tree Done
Marking machining area Done
Nominality Done
Holes colouring standard Done
Proper butting between two parts Done
Splitting Myler Done

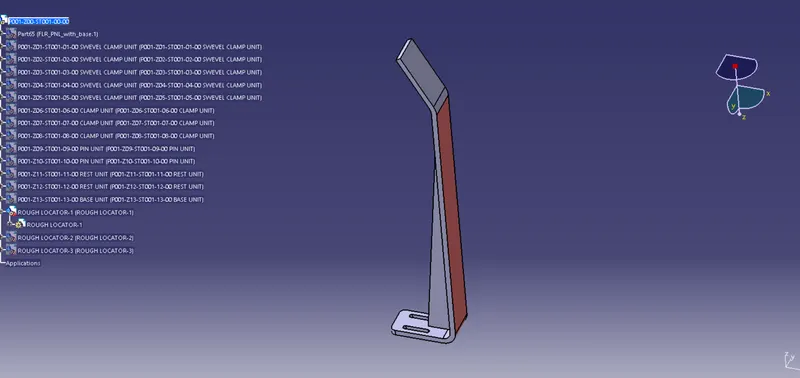

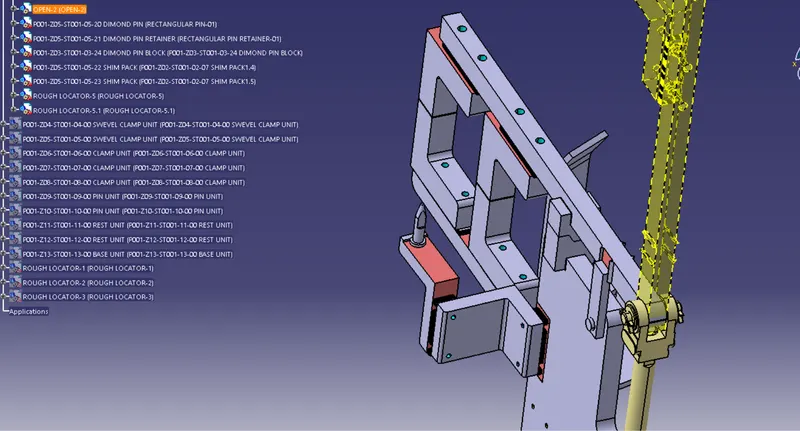

4.Rough Locator
Checking parameter Action
Rename of design tree Done
Marking machining area Done
Nominality Done
Proper butting Done

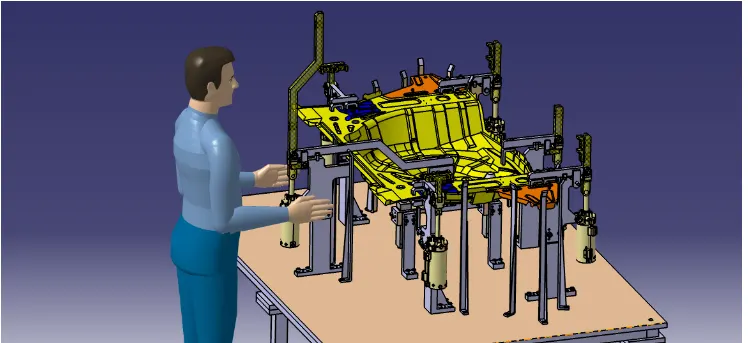

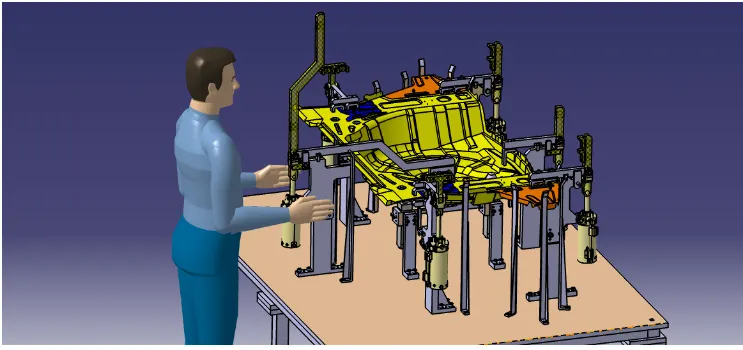

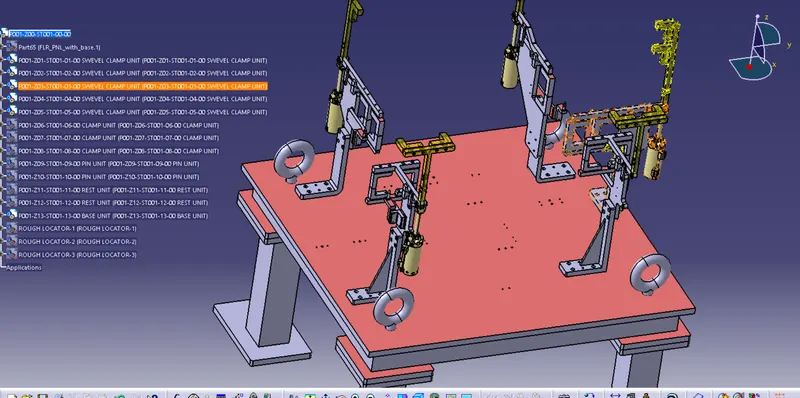

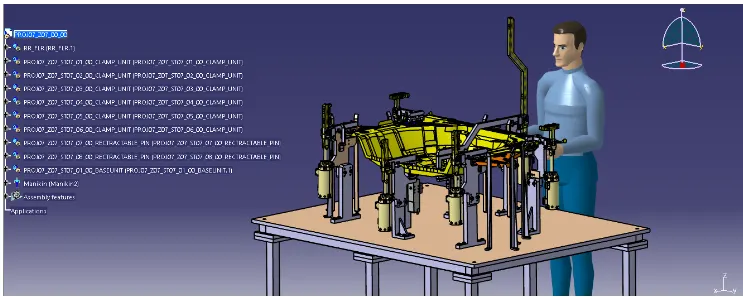

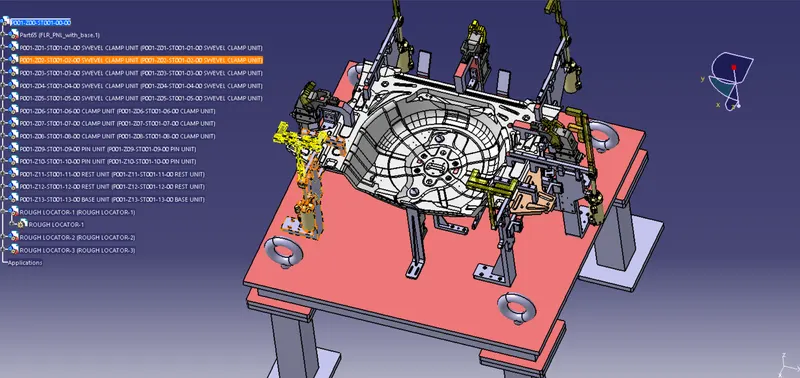

A FULL IMAGE OF FIXTURE ASSEMBLY
