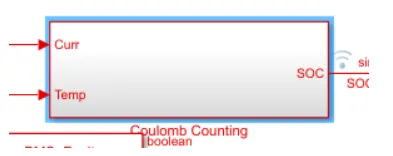

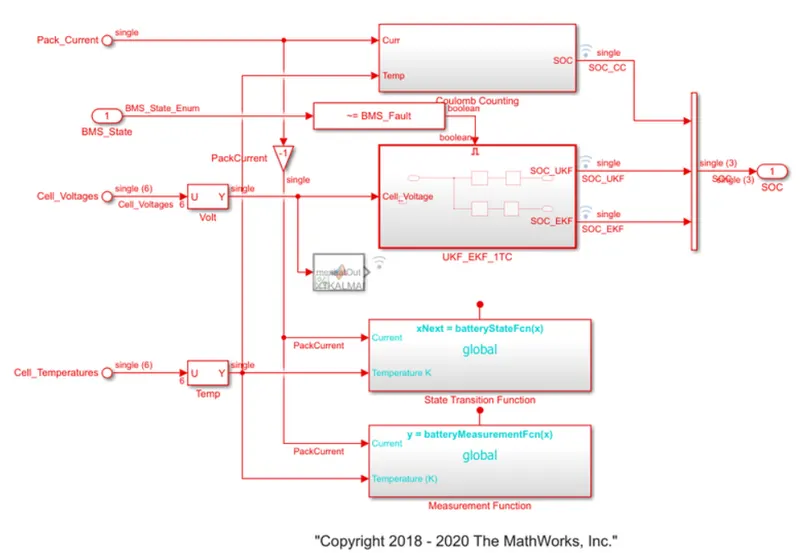

Week 7 State of charge estimation

Overall model- Battery subsystem- Configuring: Battery- Here we are connected 10 'Table based' battery in series, the maximum positive terminal(1) and maximum negative terminal(2) are given as output terminals from  battery subsystem. The thermal port and SOC are enabled for each cells as selecting 'Instrumented,Shown…

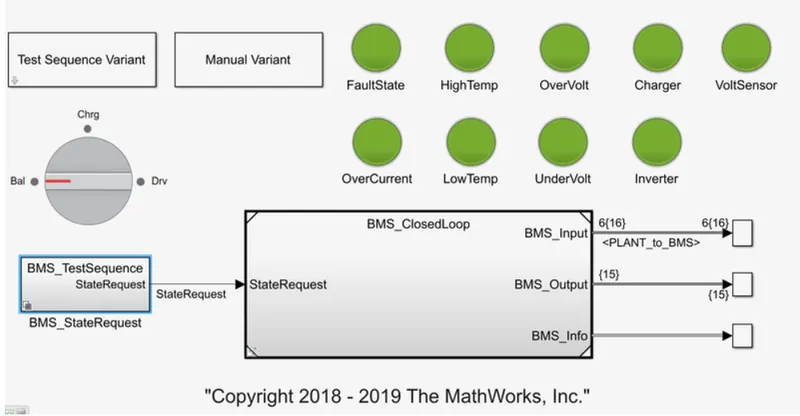

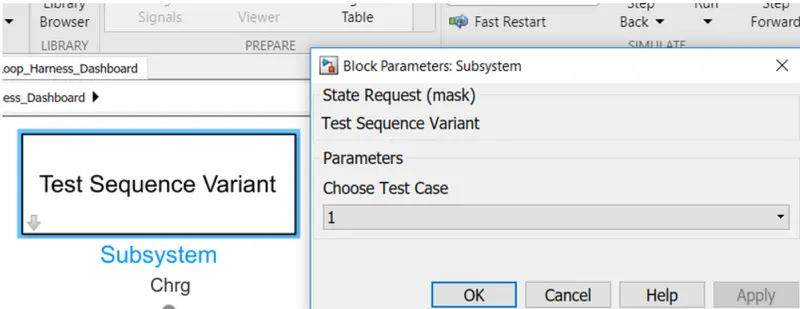

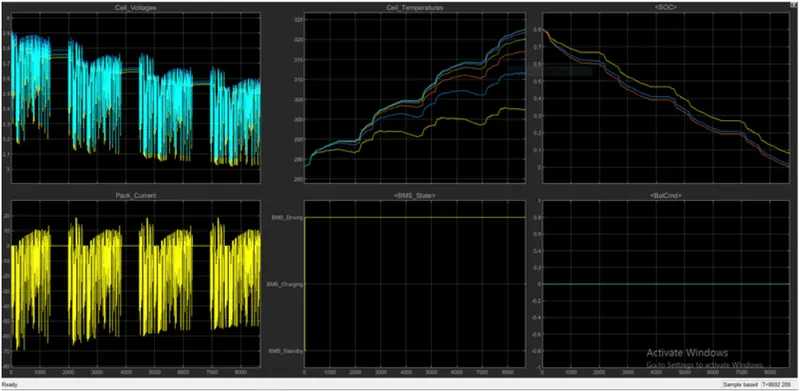

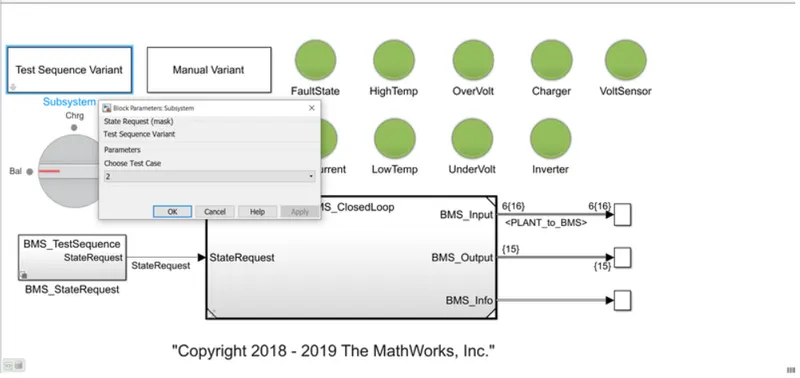

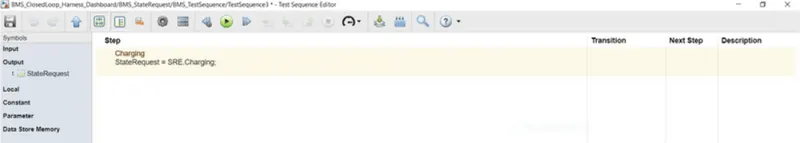

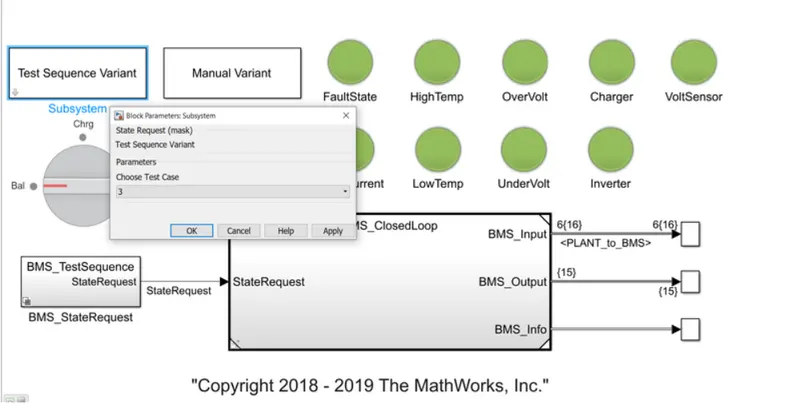

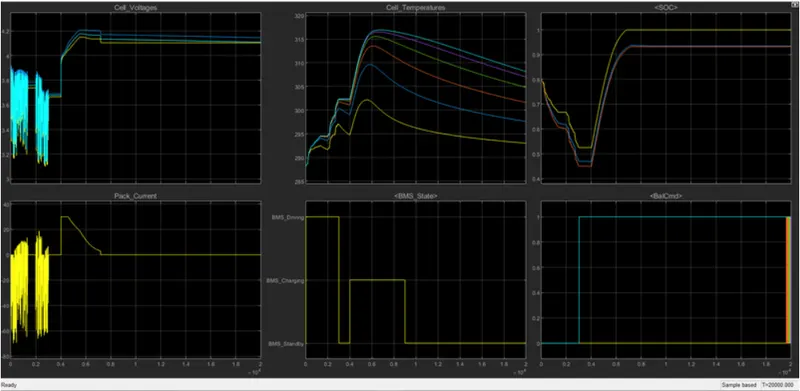

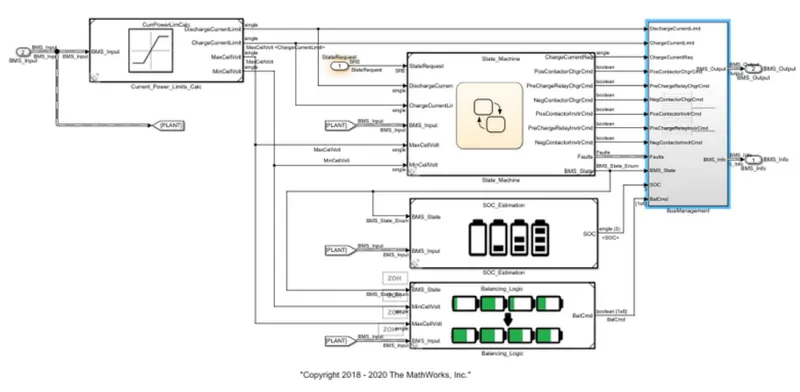

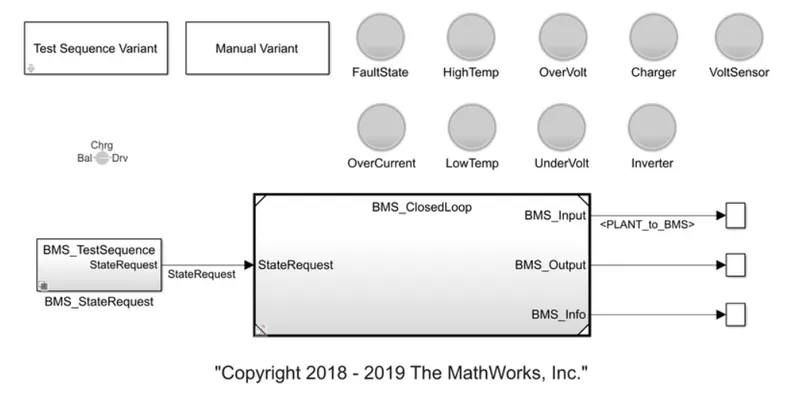

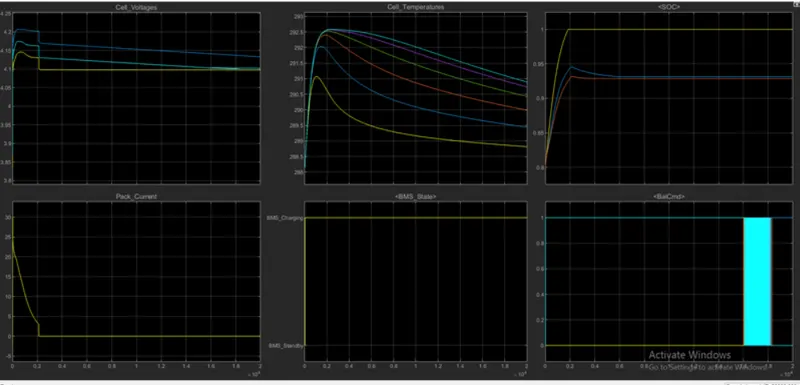

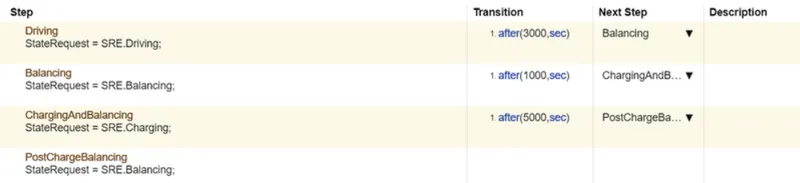

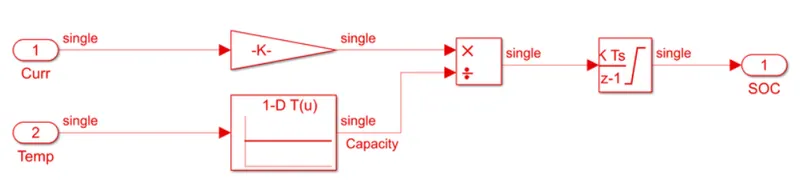

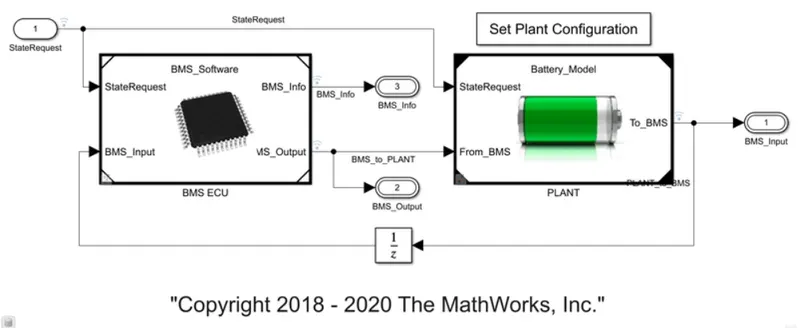

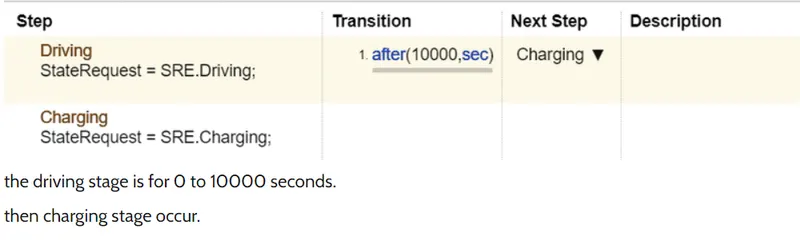

1:-Simulate the 3 test cases from harness dashboard and write a detailed report on the results Now,at  first we have to simulate 3 test cases from harness dashboard.The battery model harness dash board is represented below. 1)Click on the Test Sequence Varient Block and select test case as 1 Now by clicking on the…

1. TYPES OF LITHIUM ION BATTERIES: Lithium Cobalt Oxide (LiCoO2) — LCO: Its high specific energy makes Li-cobalt the popular choice for mobile phones, laptops and digital cameras. The battery consists of a cobalt oxide cathode and a graphite carbon anode. The cathode has a layered structure and during discharge,…

Final Project - Modelling an Electric Vehicle with a Lithium-Ion Battery   Aim: To create a SIMULINK model of an electric vehicle (EV) that is powered by a lithium-ion battery with speed control implementation using a PID controller.   Theory: Electric Vehicles (EVs) are vehicles that are powered by electrical…

Part A: Ans1. Airbus { A300, A310, A318, A319, A320,   A321, A330, A340, A350, A380} weight = 500 to 600 tonnes Boeing { B737, B747, B747-8,  B757, B767, B777, B787} weight = 200 to  300 tonnes Single-Engine Piston weight = 5…

Ans.1) For a defined driving cycle, calculate the energy required for braking. The Energy of Traction of wheels mainly compromises of Drag and Braking Energy. Where Braking Energy contributes the highest. In Fig.1.1. We can notice that when a standard driving cycle undergoes changes in speed, acceleration and deceleration.…

 Ans1.A: In the MATLAB/SIMULINK documentation, we can search for the simulation model of the 'Speed control of a DC Motor using BJT H-bridge'. It is used to generate a chopped voltage and to control the speed of the DC motor. This model can be opened in SIMULINK from the documentation itself. As the name suggests,…

AIM: To understand different power convertors found in EV vehicles. To understand duty cycle ratio and Power electronics on he vehicle control To design a mathematical model of a DC Motor using Simulink.  Author perpective on Induction motor vs DC brushless motors by Walley Rippel. OBJECTIVE 1: Which types of…

Ans1. Mapped model To run the simulation with predefined commands and set of look up tables, mapped model is selected. Mapped model simulation takes less time to simulate. Mapped model simulation can also be known as static model simulation since, it does not involve the real-time outputs from the subsystems. Dynamic model…

AIM- Using ADVISOR tool for following simulation. THEORY- You may benefit from using ADVISOR if you want to: estimate the fuel economy of vehicles that have not yet been built learn about how conventional, hybrid, or electric vehicles use (and lose) energy throughout their drivetrains compare relative tailpipe…

In the model the simulation blocks used & their purpose are as follows : Constant – The Constant block generates a real or complex constant value signal. StateFlowChart – Stateflow provides a graphical language that includes state transition diagrams, flow charts, state transition tables, and truth tables. You can use…

                          To Make a Simulink model of Doorbell using solenoid block.   Working of Model Pulse Generator creates an input signal of pulse with 1 unit amplitude, 4 sec period, having 50% pulse width with 2-sec delay for the model. Then…
