Week 7 - Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

Objective :

In this challenge you are going to simulate the isentropic flow through a quasi 1D subsonic-supersonic nozzle. You will derive both the conservation and non-conservation forms of the governing equations and sovle them using the MacCormack's technique. You need to determine the steady-state temperature distribution for the flow-field variables and investigate the difference between the two forms of governing equations by comparing their solutions.

we need to show the following plots inside our report
1. Steady-state distribution of primitive variables inside the nozzle
2. Time-wise variation of the primitive variables
3. Variation of Mass flow rate distribution inside the nozzle at different time steps during the time-marching process
4. Comparison of Normalized mass flow rate distributions of both forms

Expected Results:

• Perform a grid independence test on the solution and expain all your findings.
• The code must be modular. You need to write separate functions to solve both forms.
• Discuss all the plots you are providing with observed inferences.

Main code :

%writting the function for non conservation form using macormac method

function [mass_flow_rate_c, presure_c, mach_num_c, rho_c, v_c, T_c, rho_trottle_c, v_trottle_c, T_trottle_c, mass_flow_rate_trottle_c, presure_trottle_c, mach_num_trottle_c]=conservation_form(x,dx,n,gamma,nt,CFL)

%[mass_flow_rate_c, presure_c, mach_num_c, rho_c, v_c, T_c, rho_trottle_c, v_trottle_c, T_trottle_c, mass_flow_rate_trottle_c, presure_trottle_c, mach_num_trottle_c]=conservation_form(x,dx,n,gamma,nt,CFL);

%defining the intial boundry condition for density and tempreture

for m =1:n

if(x(m) >=0 && x(m) <=0.5)

rho_c(m)=1;

T_c(m) =1;

elseif (x(m) >=0.5 && x(m) <=1.5)

rho_c(m)=1-0.366*(x(m)-0.5);

T_c(m) =1-0.167*(x(m)-0.5);

elseif (x(m) >=1.5 && x(m) <=3.5)

rho_c(m)=0.634-0.3879*(x(m)-1.5);

T_c(m) =0.833-0.3507*(x(m)-1.5);

end

end

%defining for velocity

a=1+2.2*(x-1.5).^2;

v_c =0.59./(rho_c.*a);

presure_c=rho_c.*T_c;

% defining the trottle

trottle = find(a==1);

% defing the initiel solution variabels

U1 =rho_c.*a;

U2 =rho_c.*a.*v_c;

U3 =rho_c.*a.*(T_c./(gamma-1))+((gamma/2).*v_c.^2);

%defining the time loop

for k =1:nt

%defining the time step

dt =min(CFL.*dx./(sqrt(T_c)+v_c));

%defing the old values

U1_old=U1;

U2_old=U2;

U3_old=U3;

%calculating the flux

F1=U2;

F2=((U2.^2)./U1)+((gamma-1)/gamma)*(U3-(gamma/2)*((U2.^2)./U1));

F3=((gamma*U2.*U3)./U1)-(gamma*(gamma-1)*((U2.^3)./(2*U1.^2)));

% calculatinf the predector method

for j = 2:n-1

% calculating the souse term

J2(j)=(1/gamma)*rho_c(j)*T_c(j)*((a(j+1)-a(j))/dx);

% continuty eqution

dU1_dt_p(j)=-((F1(j+1)-F1(j))/dx);

% momentum equation

dU2_dt_p(j)=-((F2(j+1)-F2(j))/dx)+J2(j);

%energy equation

dU3_dt_p(j)=-((F3(j+1)-F3(j))/dx);

% updating the soluton vector

U1(j)=U1(j)+dU1_dt_p(j)*dt;

U2(j)=U2(j)+dU2_dt_p(j)*dt;

U3(j)=U3(j)+dU3_dt_p(j)*dt;

end

%updating the flux

F1=U2;

F2=((U2.^2)./U1)+((gamma-1)/gamma)*(U3-(gamma*0.5*(U2.^2)./U1));

F3=((gamma*U2.*U3)./U1)-((gamma*0.5*(gamma-1)*(U2.^3)./(U1.^2)));

% know calculating for currector method

for j=2:n-1

% calculating the souse term

J2(j)=(1/gamma)*rho_c(j)*T_c(j)*((a(j)-a(j-1))/dx);

% continuty eqution

dU1_dt_c(j)=-((F1(j)-F1(j-1))/dx);

% momentum equation

dU2_dt_c(j)=-((F2(j)-F2(j-1))/dx)+J2(j);

%energy equation

dU3_dt_c(j)=-((F3(j)-F3(j-1))/dx);

end

%computing the avarege value

dU1_dt_av=0.5*(dU1_dt_p+dU1_dt_c);

dU2_dt_av=0.5*(dU2_dt_p+dU2_dt_c);

dU3_dt_av=0.5*(dU3_dt_p+dU3_dt_c);

% calculating the final solution

for m=2:n-1

U1(m)=U1_old(m)+dU1_dt_av(m)*dt;

U2(m)=U2_old(m)+dU2_dt_av(m)*dt;

U3(m)=U3_old(m)+dU3_dt_av(m)*dt;

end

%appliying the boundry conditions

% at inlets

U1(1)=rho_c(1)*a(1);

U2(1)=2*U2(2)-U2(3);

v_c(1)=U2(1)./U1(1);

U3(1)=U1(1)*((T_c(1)/(gamma-1))+((gamma/2)*(v_c(1)).^2));

%at outlet

U1(n)=2*U1(n-1)-U1(n-2);

U2(n)=2*U2(n-1)-U2(n-2);

U3(n)=2*U3(n-1)-U3(n-2);

%final primitive value update

rho_c=U1./a;

v_c=U2./U1;

T_c=(gamma-1)*((U3./U1)-(gamma/2)*(v_c).^2);

% defing the mass flow rate

%defing the flow rate

mass_flow_rate_c = rho_c.*a.*v_c;

presure_c = rho_c.*T_c;

mach_num_c = (v_c./sqrt(T_c));

% calculating the variables at trottle

rho_trottle_c(k) = rho_c(trottle);

T_trottle_c(k) = T_c(trottle);

v_trottle_c(k) = v_c(trottle);

mass_flow_rate_trottle_c(k) = mass_flow_rate_c(trottle);

presure_trottle_c(k) = presure_c(trottle);

mach_num_trottle_c(k) = mach_num_c(trottle);

%comparing the non dimensional mass flow at different time step

%plotting

figure(2);

if k == 50

plot(x,mass_flow_rate_c,'b','linewidth',1)

hold on

elseif k == 150

plot(x,mass_flow_rate_c,'c','linewidth',1)

hold on

elseif k == 200

plot(x,mass_flow_rate_c,'k','linewidth',1)

hold on

elseif k == 400

plot(x,mass_flow_rate_c,'g','linewidth',1)

hold on

elseif k == 800

plot(x,mass_flow_rate_c,'m','linewidth',1)

hold on

end

end

%labeling

xlabel('domain')

ylabel('mass flow rate conservation')

title('camparing the non dimensinal mass flow rate at diffrent time steps-conservation form ')

legend({'50th time step','150th time step','200th time step','400th time step','800th time step'})

grid on

%writting the function for non conservation form using macormac method

function [mass_flow_rate_nc, presure_nc, mach_num_nc, rho_nc, v_nc, T_nc, rho_trottle_nc, v_trottle_nc, T_trottle_nc, mass_flow_rate_trottle_nc, presure_trottle_nc, mach_num_trottle_nc]=non_conservative_form_original(x,dx,n,gamma,nt,CFL)

%defining the intial boundry condition

rho_nc=1 - 0.3146*x;

T_nc =1 - 0.2341*x;

v_nc=(0.1+1.09*x).*T_nc.^0.5;

%area of the nozzel

a = 1+2.2*(x-1.5).^2;

% defing trottle

trottle = find(a==1);

%defing the time loop

%defing the nodes

for k =1:nt

dt =min(CFL.*dx./(sqrt(T_nc)+v_nc));

%defing the old values

rho_old=rho_nc;

T_old=T_nc;

v_old =v_nc;

%know we have to solve for pridictor method

for j =2:n-1

% simplifying the speciel terms there fore we have equation for continity momentum energy in that equation we are %descritizing using forword scheme

dv_dx =(v_nc(j+1)-v_nc(j))./dx;

drho_dx =(rho_nc(j+1)-rho_nc(j))./dx;

dT_dx =(T_nc(j+1)-T_nc(j))./dx;

dlog_a_dx =(log(a(j+1))-log(a(j)))./dx;

% continuty equation

drho_dt_p(j)=-rho_nc(j)*dv_dx-rho_nc(j)*v_nc(j)*dlog_a_dx-v_nc(j)*drho_dx;

%momemtum equation

dv_dt_p(j)=-v_nc(j)*dv_dx-(1/gamma)*(dT_dx+(T_nc(j)*drho_dx/rho_nc(j)));

% energy equation

dT_dt_p(j)=-v_nc(j)*dT_dx-(gamma-1)*T_nc(j)*(dv_dx+v_nc(j)*dlog_a_dx);

% updating the solution

rho_nc(j)=rho_nc(j)+drho_dt_p(j)*dt;

v_nc(j)=v_nc(j)+dv_dt_p(j)*dt;

T_nc(j)=T_nc(j)+dT_dt_p(j)*dt;

end

%know we have to define the equations fo currector methods

% simplifying the speciel terms there fore we have equation for continity momentum energy in that equation we are descritizing using backword scheme

for j=2:n-1

dv_dx =(v_nc(j)-v_nc(j-1))./dx;

drho_dx =(rho_nc(j)-rho_nc(j-1))./dx;

dT_dx =(T_nc(j)-T_nc(j-1))./dx;

dlog_a_dx =(log(a(j))-log(a(j-1)))./dx;

% continuty equation

drho_dt_c(j)=-rho_nc(j)*dv_dx-rho_nc(j)*v_nc(j)*dlog_a_dx-v_nc(j)*drho_dx;

%momemtum equation

dv_dt_c(j)=-v_nc(j)*dv_dx-(1/gamma)*(dT_dx+(T_nc(j)*drho_dx/rho_nc(j)));

% energy equation

dT_dt_c(j)=-v_nc(j)*dT_dx-(gamma-1)*T_nc(j)*(dv_dx+v_nc(j)*dlog_a_dx);

end

% computing the averege vtime deravetion or averege solution

drho_dt_av =0.5.*(drho_dt_p+drho_dt_c);

dv_dt_av =0.5.*(dv_dt_p+dv_dt_c);

dT_dt_av =0.5.*(dT_dt_p+dT_dt_c);

% final solution

for m=2:n-1

rho_nc(m)=rho_old(m)+(drho_dt_av(m))*dt;

v_nc(m)=v_old(m)+(dv_dt_av(m))*dt;

T_nc(m)=T_old(m)+(dT_dt_av(m))*dt;

end

% appling the baoundry conditions

%AT INLET

rho_nc(1)=1;

v_nc(1)=2*v_nc(2)-v_nc(3);

T_nc(1)=1;

% at oulet

rho_nc(n)=2*rho_nc(n-1)-rho_nc(n-2);

v_nc(n)=2*v_nc(n-1)-v_nc(n-2);

T_nc(n)=2*T_nc(n-1)-T_nc(n-2);

%defing the flow rate

mass_flow_rate_nc=rho_nc.*a.*v_nc;

presure_nc=rho_nc.*T_nc;

mach_num_nc=(v_nc./sqrt(T_nc));

% calculating the variables at trottle

%trottle=find(a==1);

rho_trottle_nc(k) = rho_nc(trottle);

T_trottle_nc(k) = T_nc(trottle);

v_trottle_nc(k) = v_nc(trottle);

mass_flow_rate_trottle_nc(k) = mass_flow_rate_nc(trottle);

presure_trottle_nc(k) = presure_nc(trottle);

mach_num_trottle_nc(k) = mach_num_nc(trottle);

%comparing the non dimensional mass flow at different time step

%plotting

figure(1);

if k == 50

plot(x,mass_flow_rate_nc,'b','linewidth',1)

hold on

elseif k == 150

plot(x,mass_flow_rate_nc,'c','linewidth',1)

elseif k == 200

plot(x,mass_flow_rate_nc,'m','linewidth',1)

elseif k == 400

plot(x,mass_flow_rate_nc,'r','linewidth',1)

elseif k == 800

plot(x,mass_flow_rate_nc,'k','linewidth',1)

end

end

%labeling

xlabel('domain')

ylabel('mass flow rate non conservation')

title('camparing the non dimensinal mass flow rate at diffrent time steps-non conservation form ')

legend({'50th time step','150th time step','200th time step','400th time step','800th time step'})

grid on

Outputs from the code :

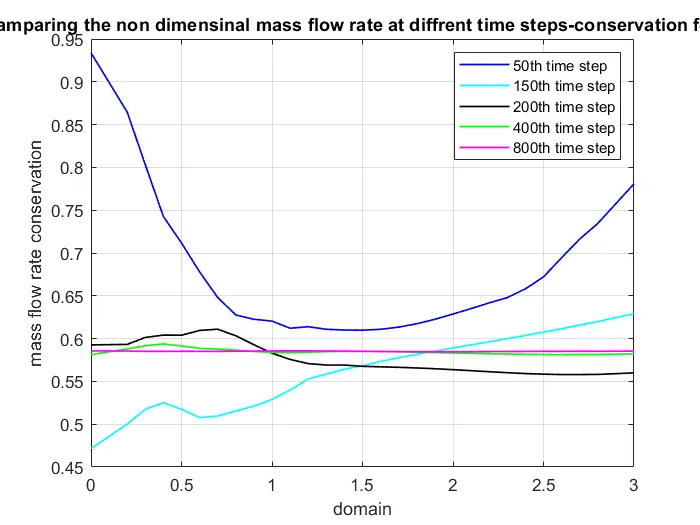

from the above figure here we are plotting the mass flow rate againts the different time step and variation of this values are exactly same as shown in andreson book.

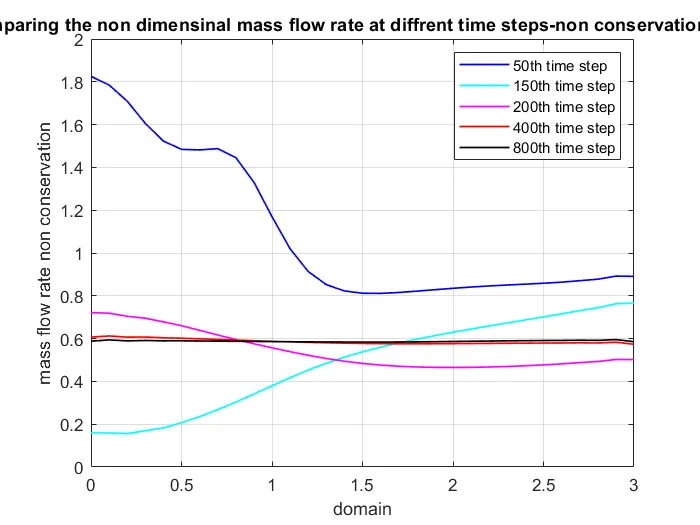

ifrom the above figure its showing the variation of non consarvation mass flow rate againt the diffrent time steps and the variation is same as shown in anderson book.

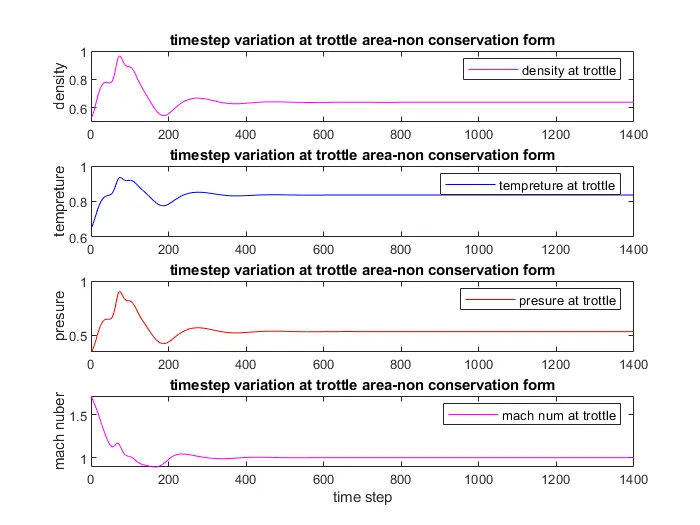

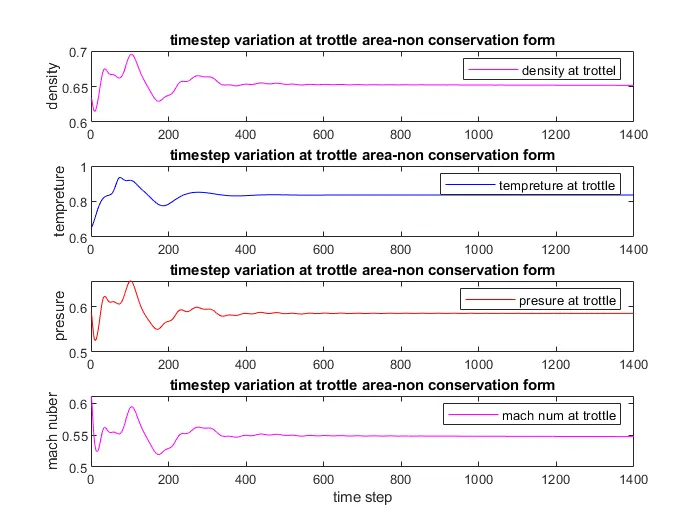

from the above figure its showing the variation of density,time,velocity and mach number at trottle with respect the given time step

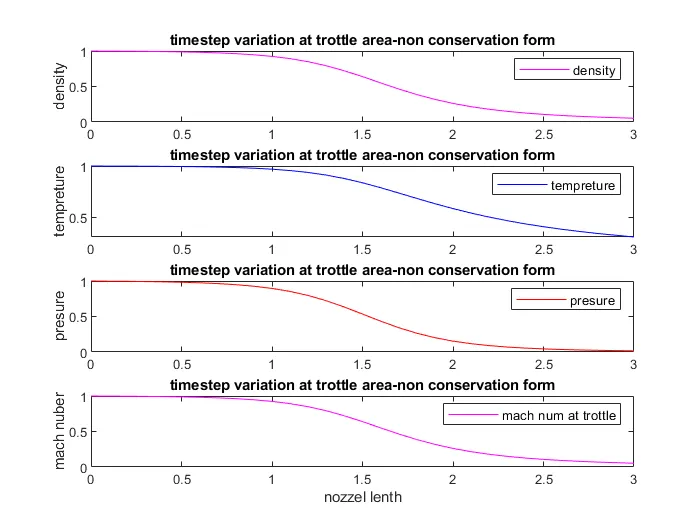

from the above figure its shown that the varion of variables with respect to the nozzel lenth of the non conservation form.

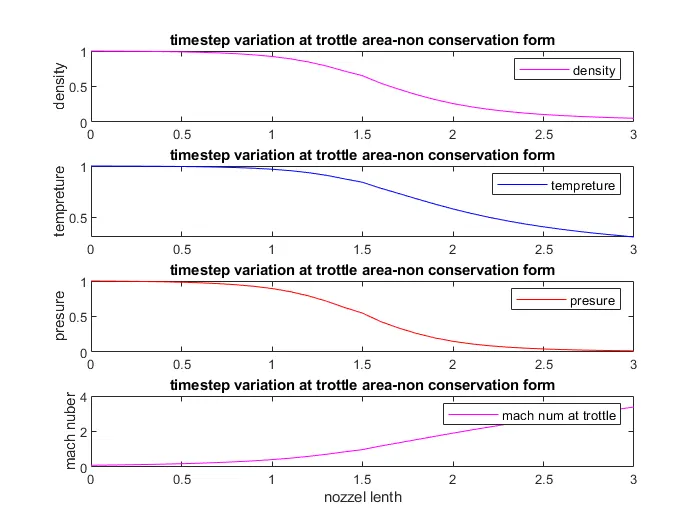

from the above figure its shown that the varion of variables with respect to the nozzel lenth of the conservation form.

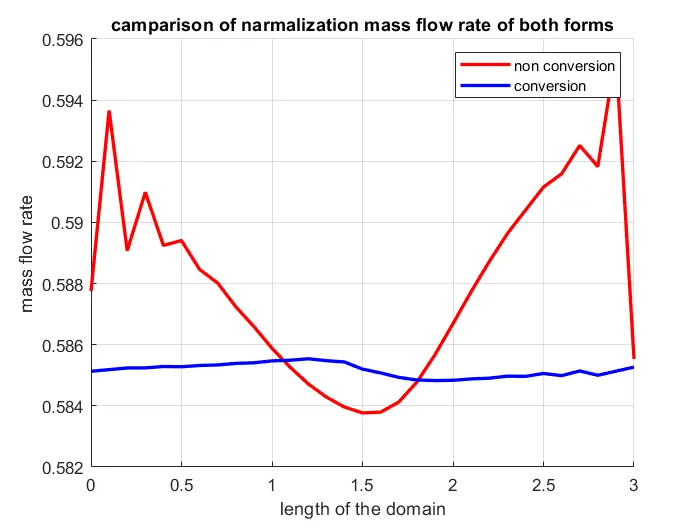

from the above figure shows the mass flow rate comparition of conservation and non conservation form.
