Week 7- Meshing of Backdoor Challenge
Objective:
Mesh the backdoor geometry of a car that is provided and it should pass the quality criteria given below.
Target Element size - 5 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 3 Units |
| 6 | Max. Length | 7 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 30 |
| 10 | Max angle Tria | 110 |
| 10 | Tria % | 15 |

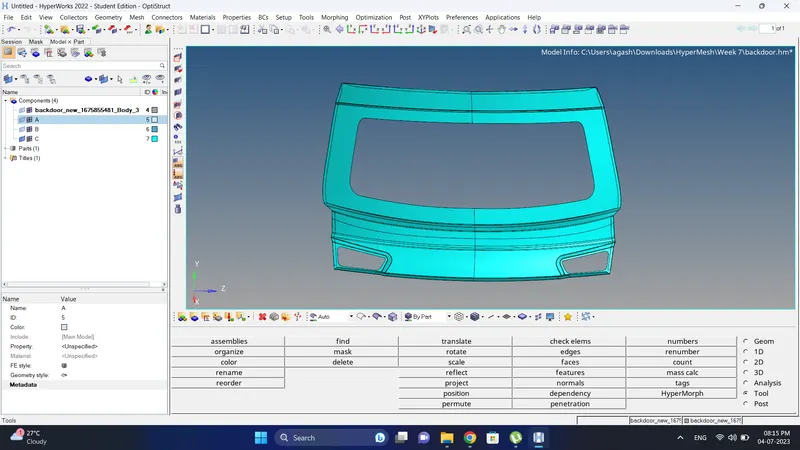

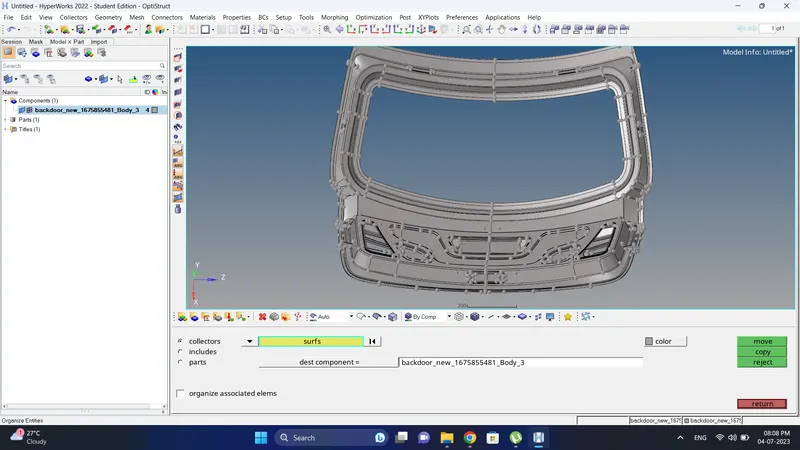

Cad Model Image:
Initial
Procedure:

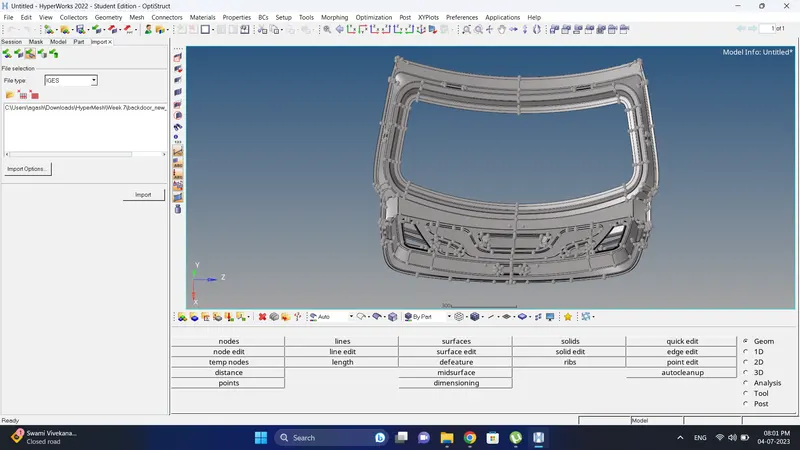

1. Import the Model.

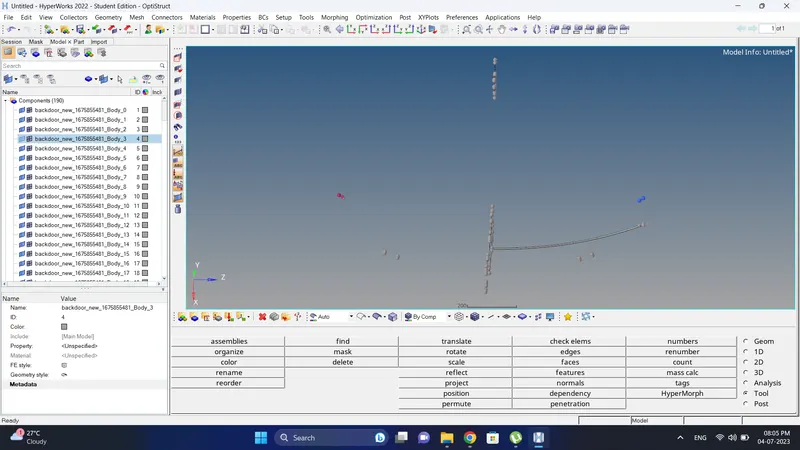

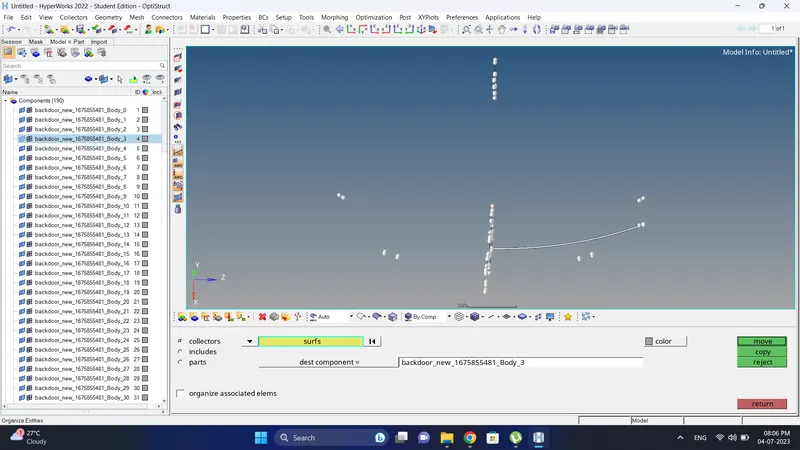

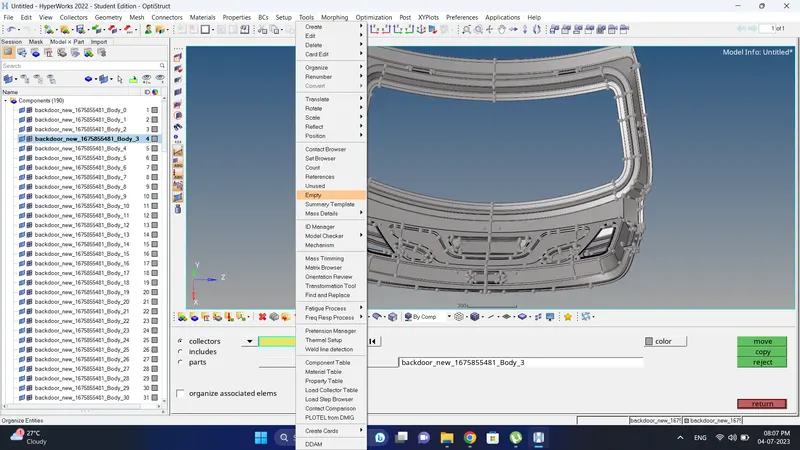

2. Since in Component there are 190 component id. Move the other surfaces to the main component id using Tool-Organize option.

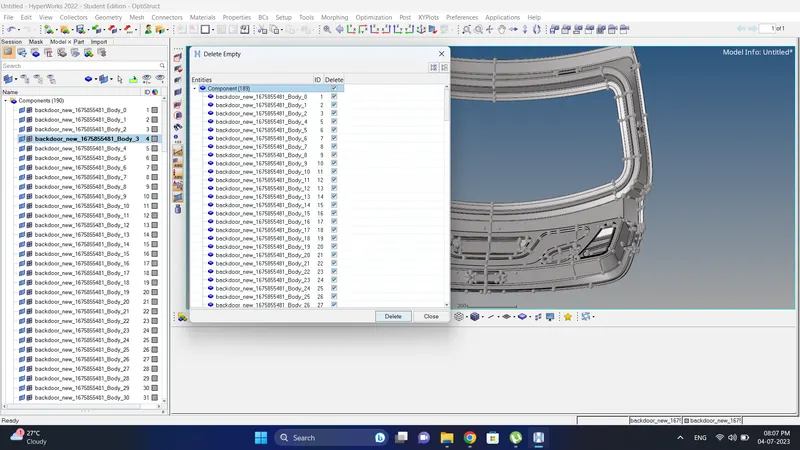

3. After that delete the empty Component id by going to Tool-Empty, select all id and delete them.

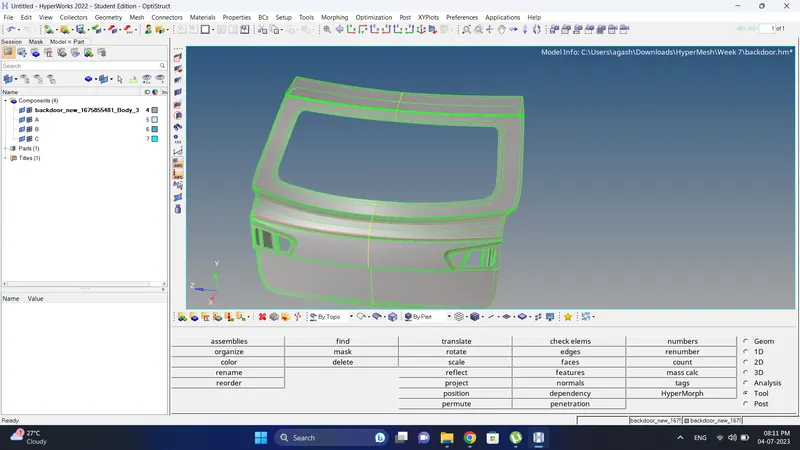

4. This Model is made up three sheet metal which are connected to each other.
Create a three different component id A, B and C.

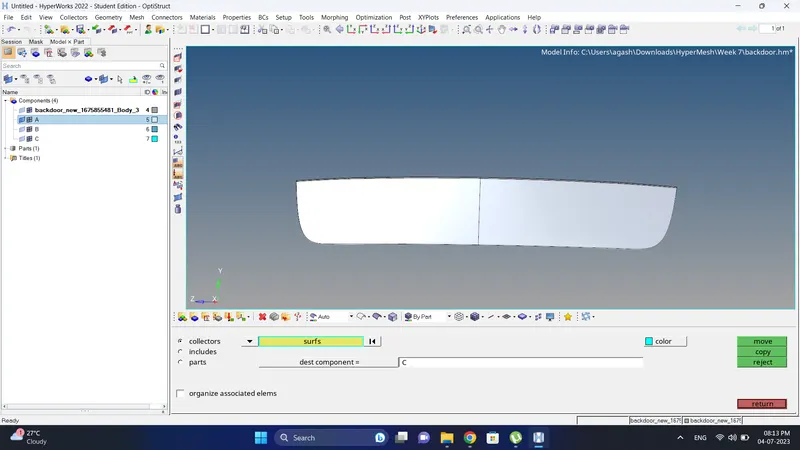

5. Using Tool-Organize option move this three different Sheet to different component id.

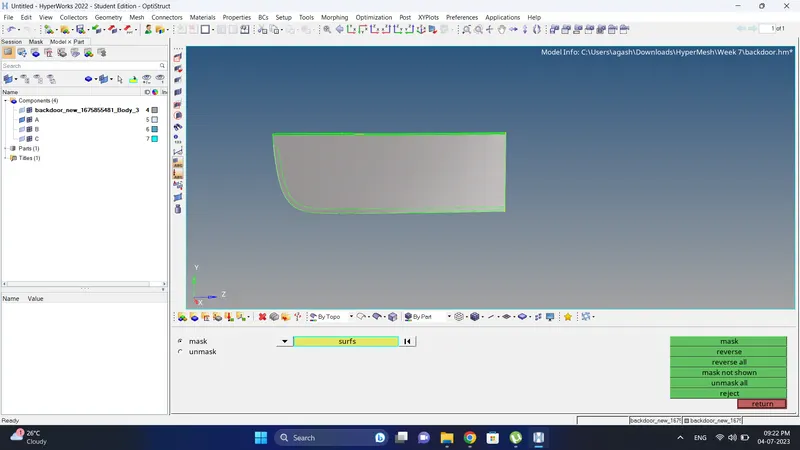

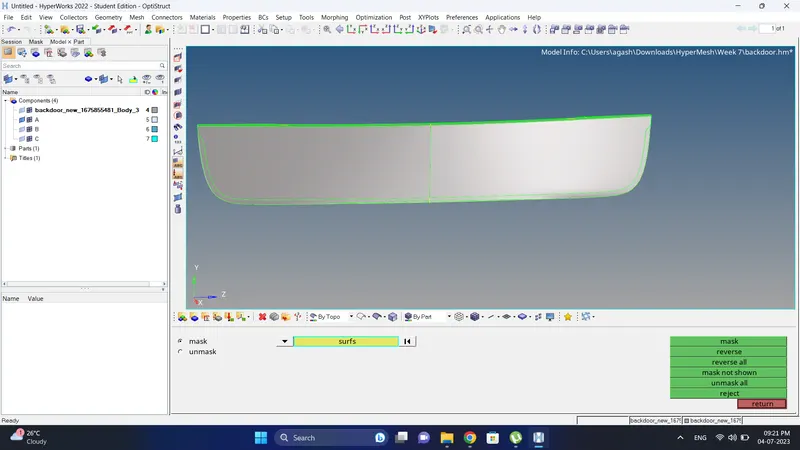

6. Only Visible component A, check the surface. If the surface is fine, since its symmetric component mask the half.

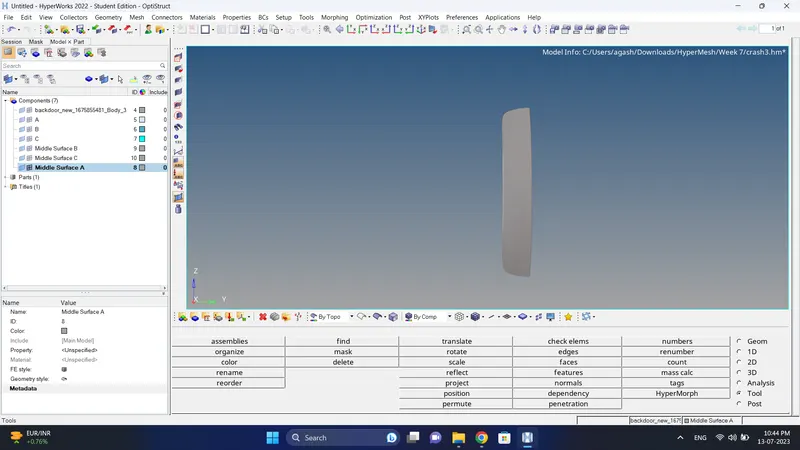

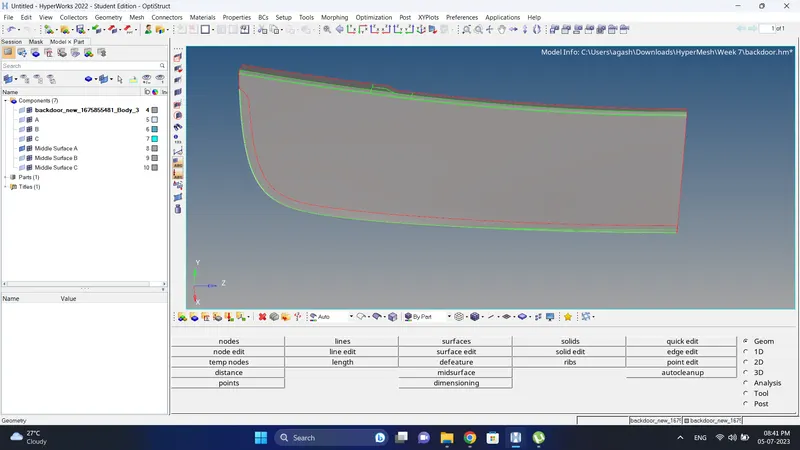

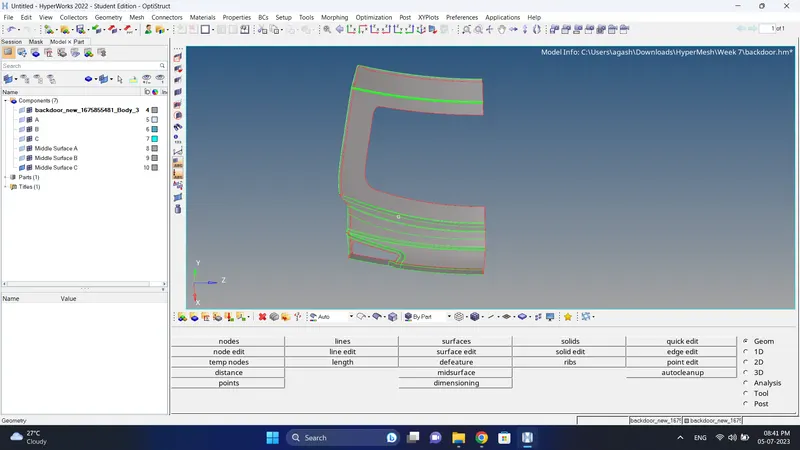

7. Create a mid surface using Geometry - Mid surface.

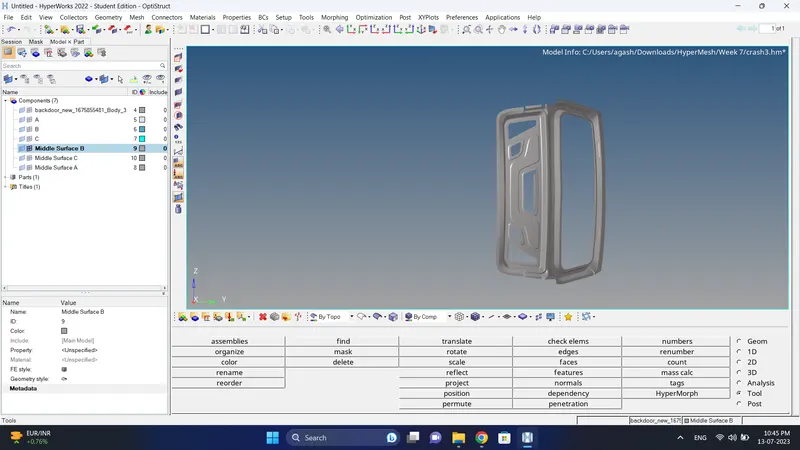

8. Similarly create mid surface for B and C.

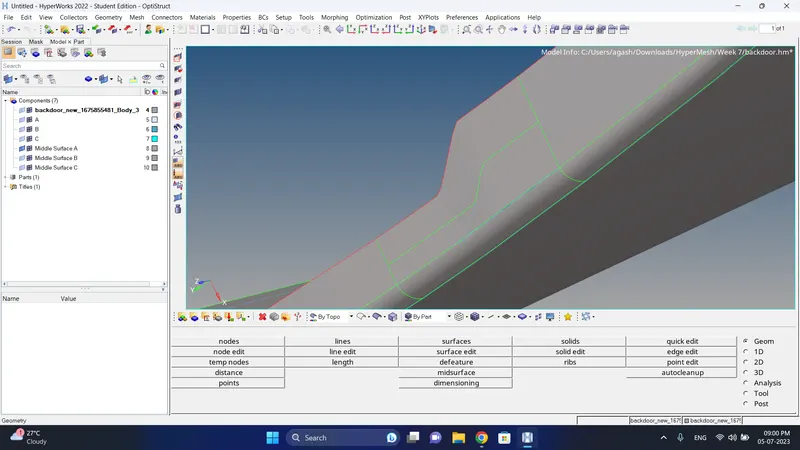

9. Do the geomtric cleanup of component id A,B and C.

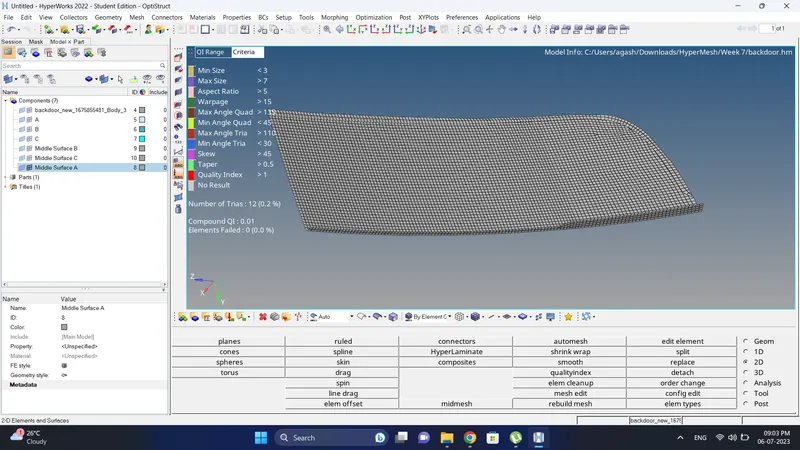

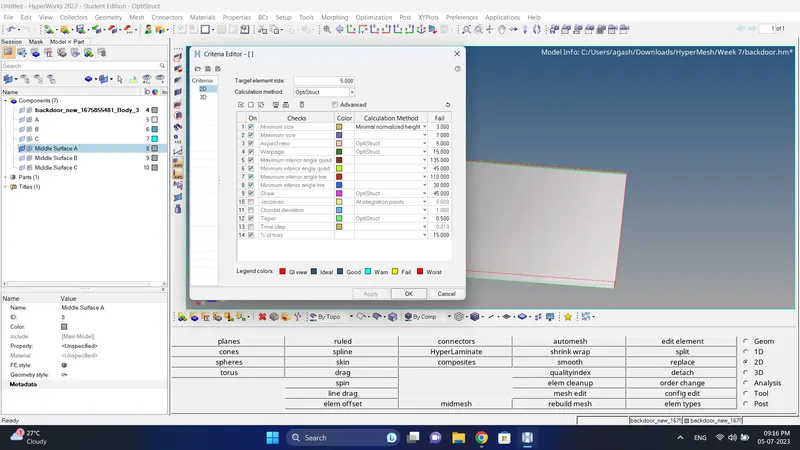

10. Input the mesh quality criteria.

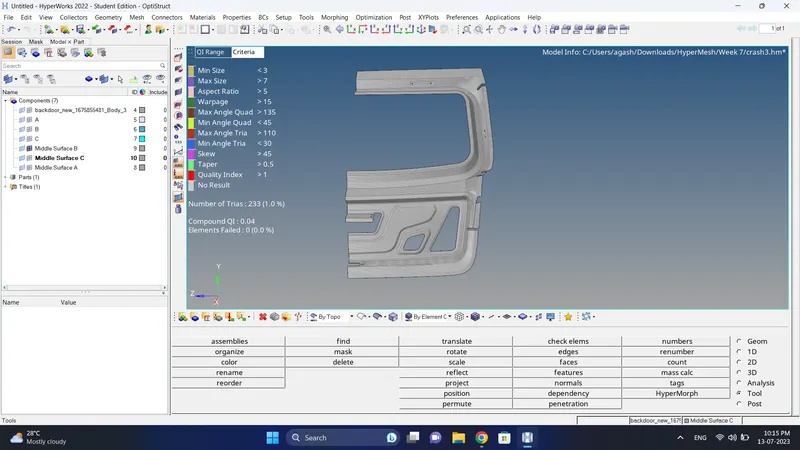

11. Mesh the component A while fixing the quality.
12. Do the same with component B and C.

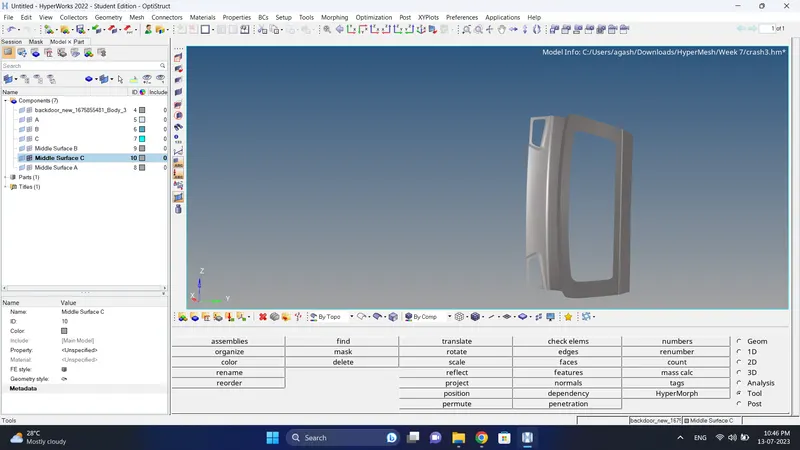

13. Duplicate the element in symmetric Mid surface A, B and C using Tool-Reflect option.

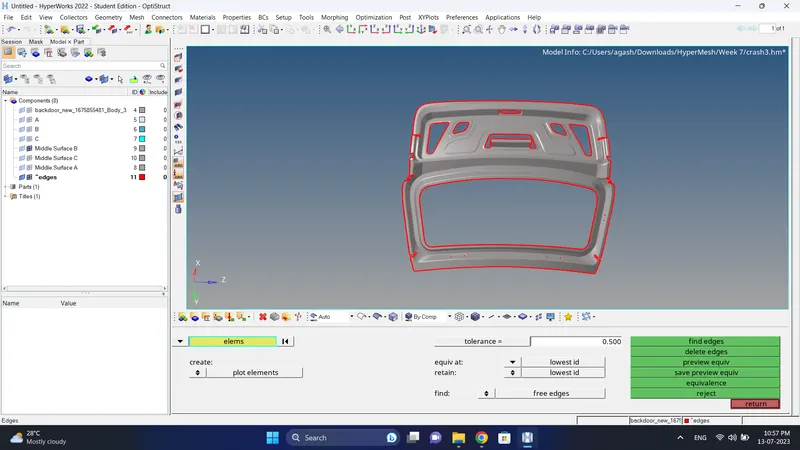

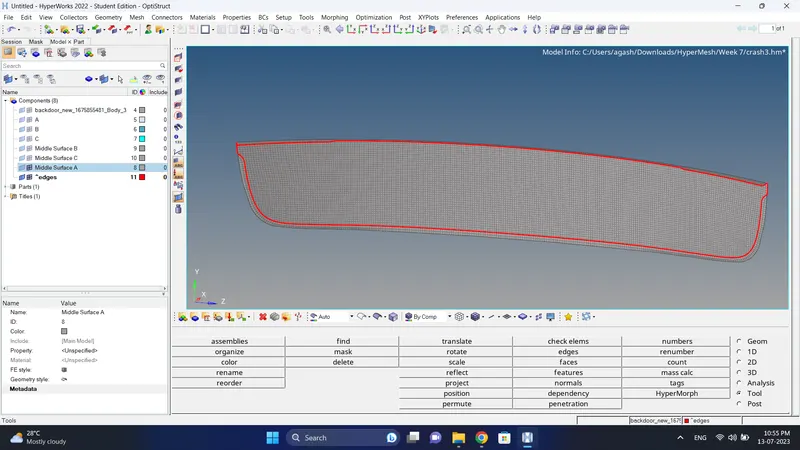

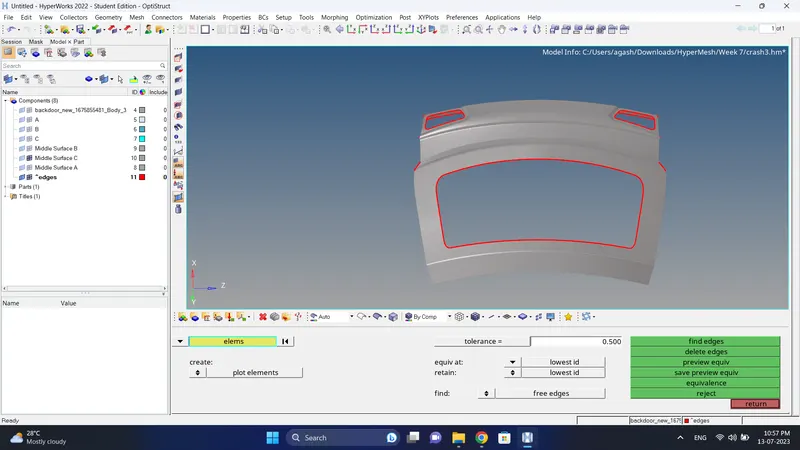

14. Check for free edges if necessary equivalance it using Tool-Edges option.

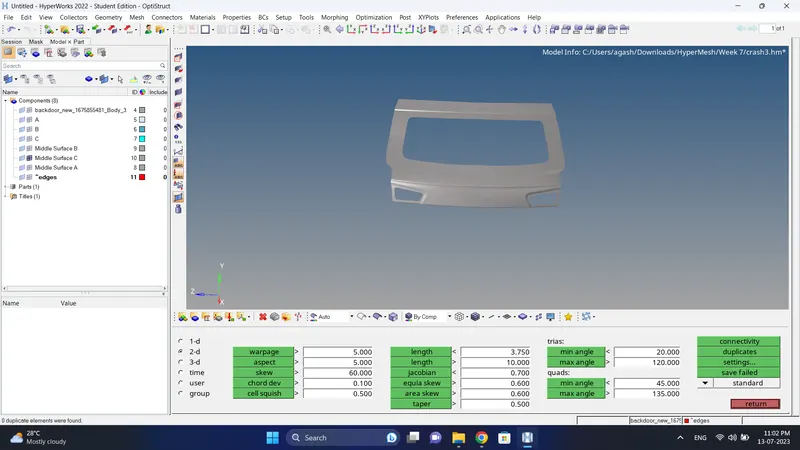

15. Check for the duplicate elements and if there are duplicate delete them.

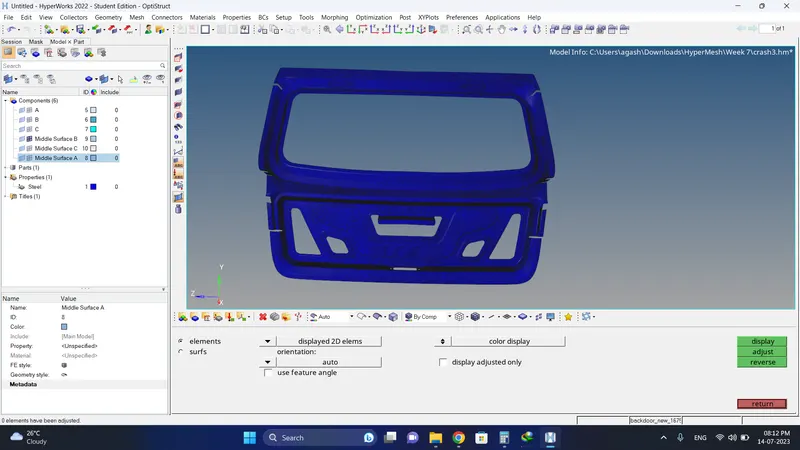

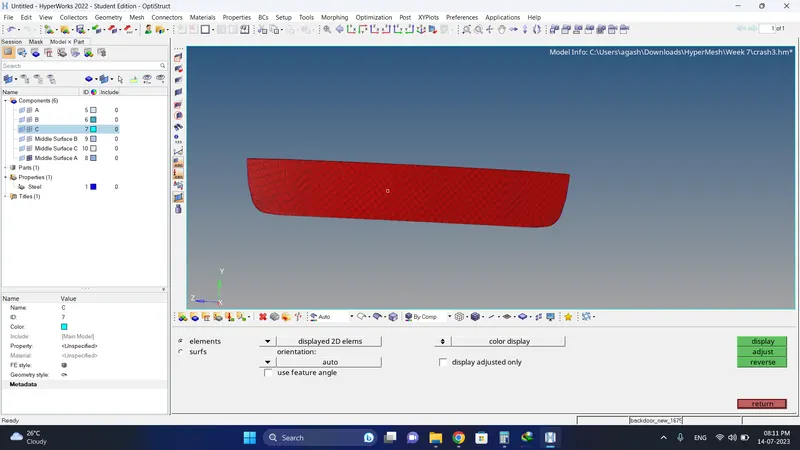

16. Check normals for mid surface A, B and C.
If needed adjust them.

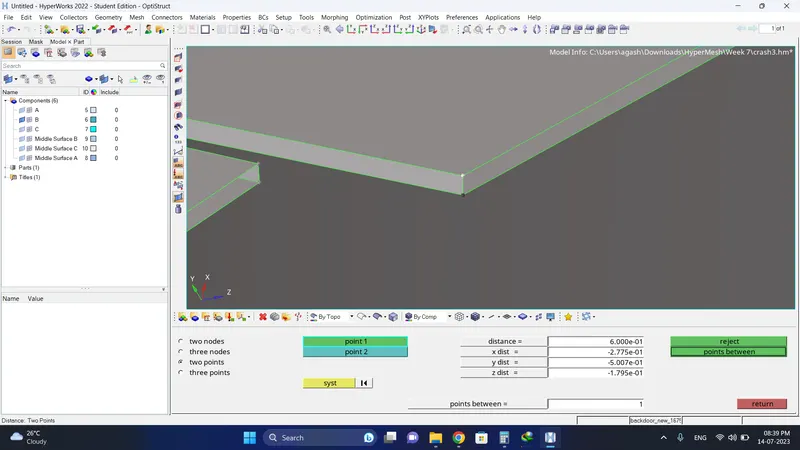

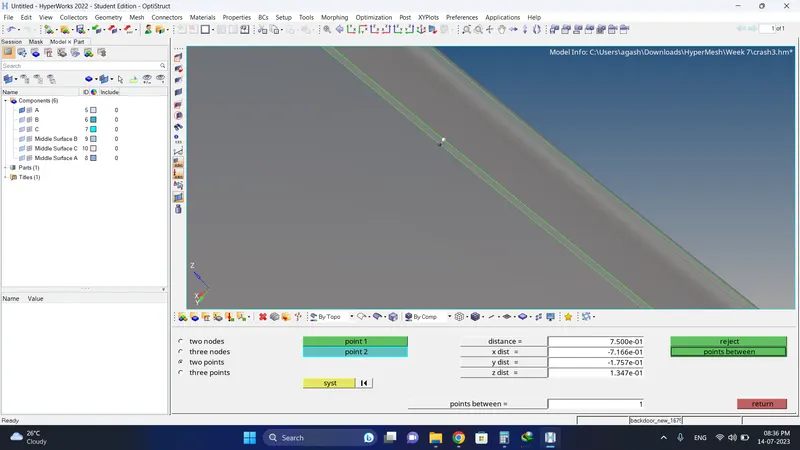

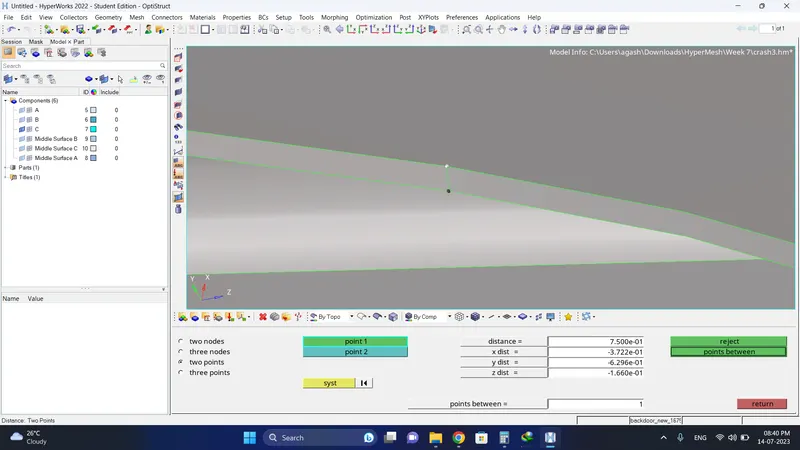

17. Check thickness of component A, B and C.

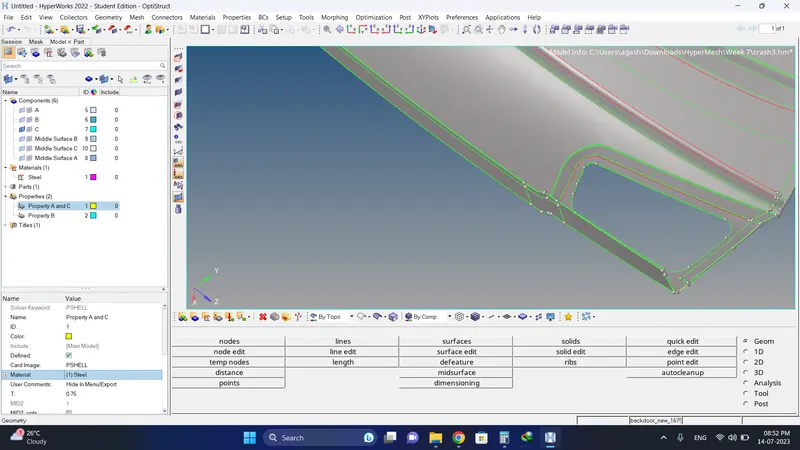

If component having different thickness create different properties and give thickness.
18. Create a material card and assign to the property.

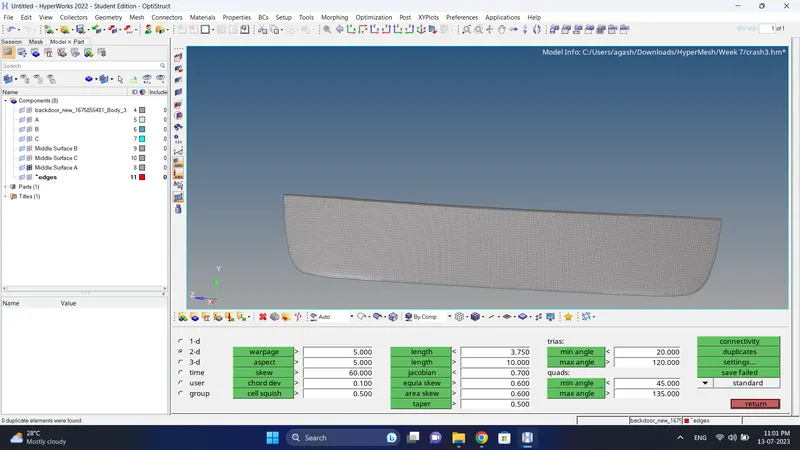

19. Do the final check.

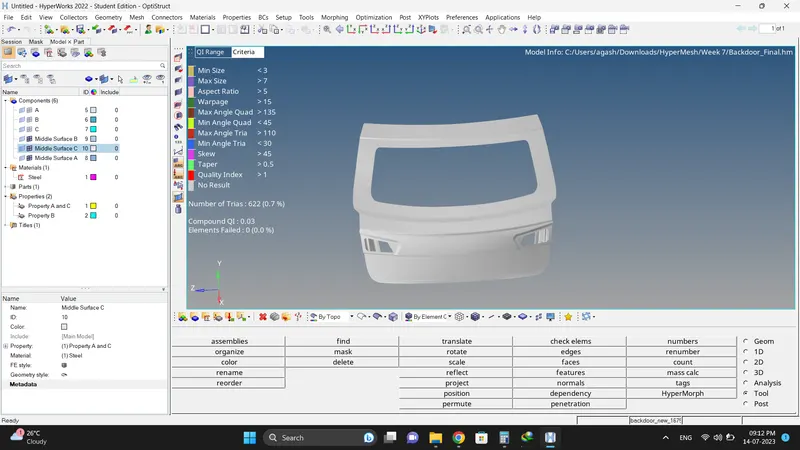

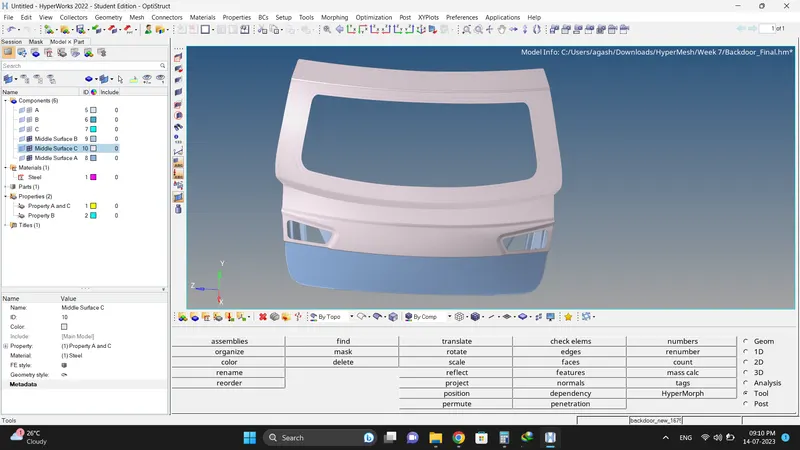

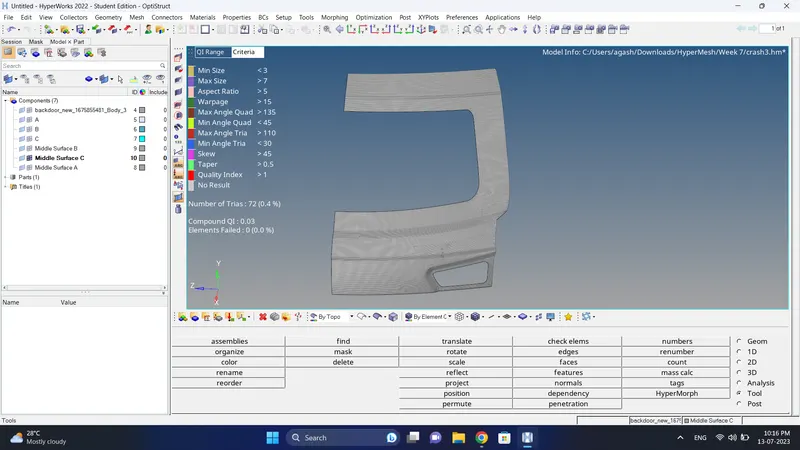

Final Model Image:
Result:
Mesh of the backdoor geometry of a car is done successfully as per given mesh parameters.
