Week 7-Long Piston With Cam
AIM: To perform the simulation for Long Piston with Cam.
PROCEDURE:

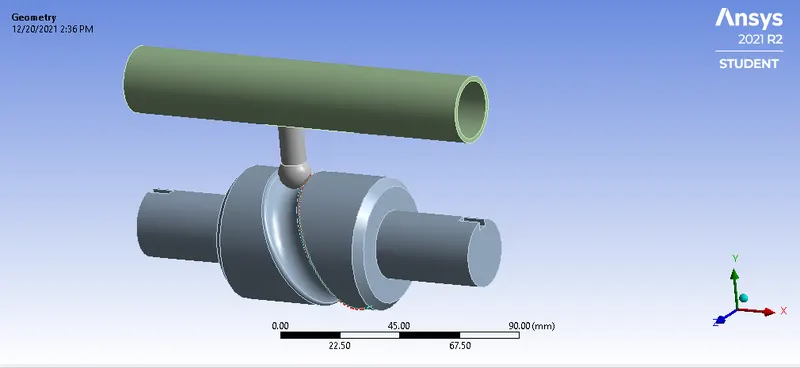

- So first we will import the given model in ANSYS workbench using trasient structural module.

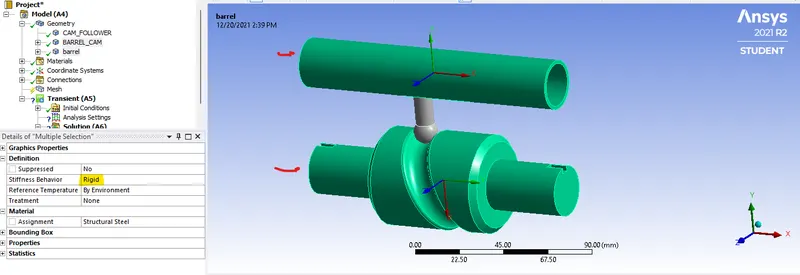

- Now after this we will assign the RIGID behaviour to the Barrel and Barrel-Cam. So because of the solver will consoder them as a point masses located at the center of mass.

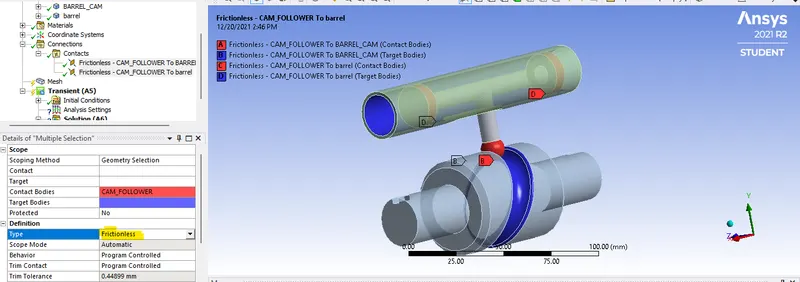

- After that we are assigning the contacts between the all the geometry. And we will set the type as frictionless.

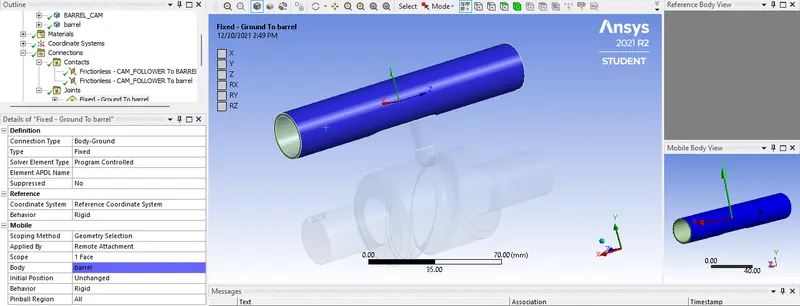

- Next is to assign the joints. So first we will fixed the barrel and assing the rotational motion to the barrel_cam.

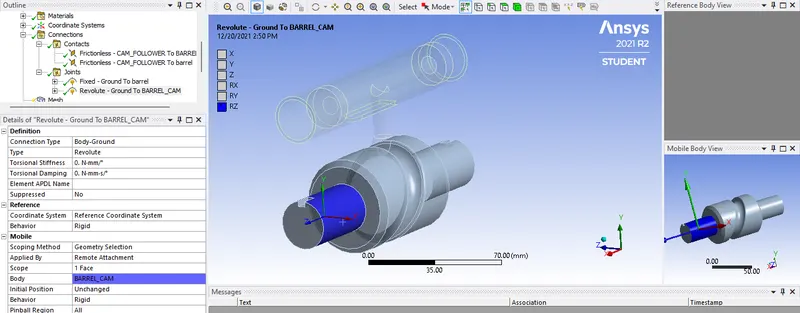

- Next is revolute joints.

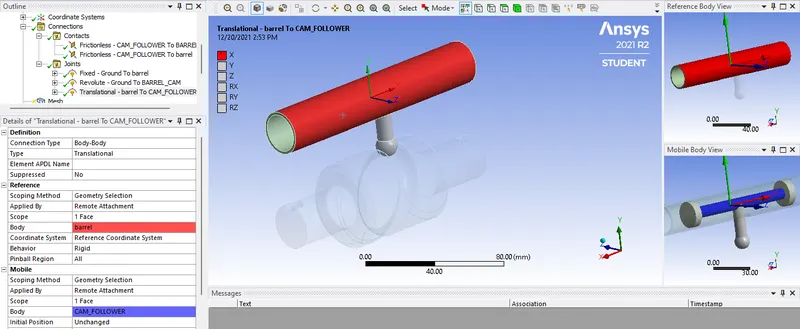

- After that we will assign the body to body joint to the barrel and follwer.

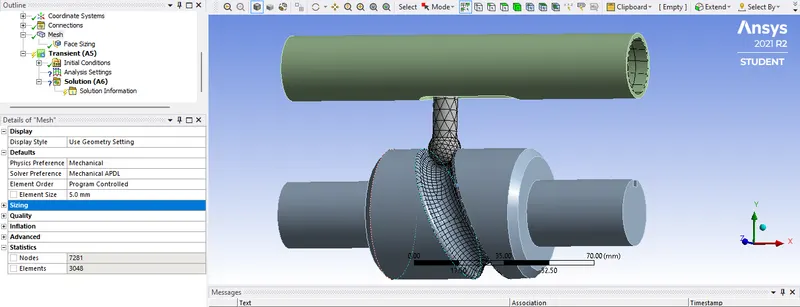

- Next is meshing. Select the mesh size as 5mm and after that selet the sizing and slect the area of contact and give the mesh size as 2mm.

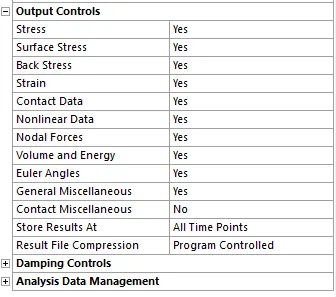

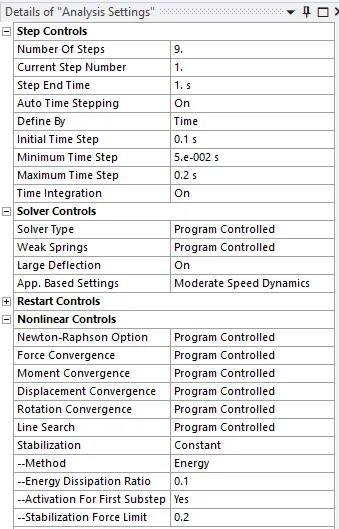

- Now for analysis setting.

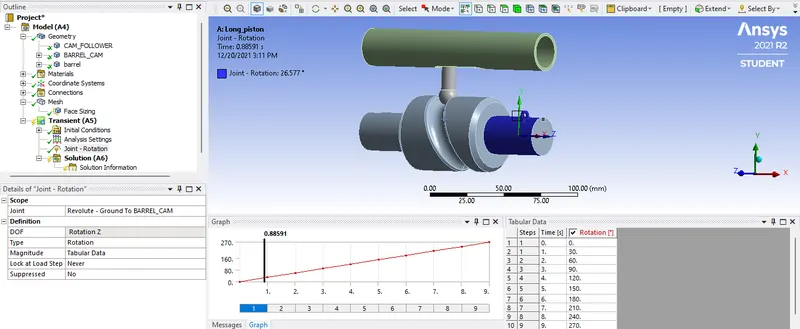

- Now after this we will assign the joint load to the revolute joint.
- And after this we will solve the problem with required results.
CASE 1: Frictionless Contact.
- Here the contact between the follower and cam barrel is frictionless.

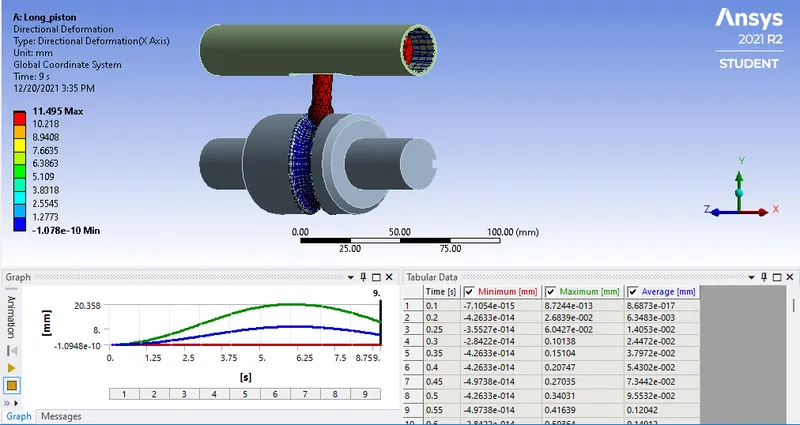

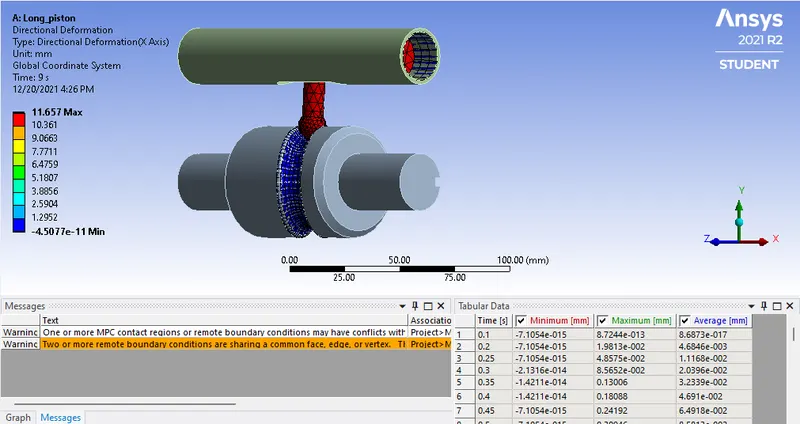

Directional Deformation

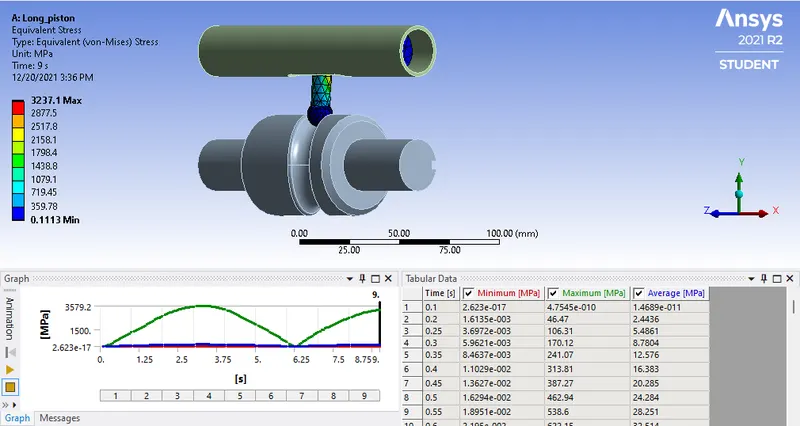

Equivalent Stress

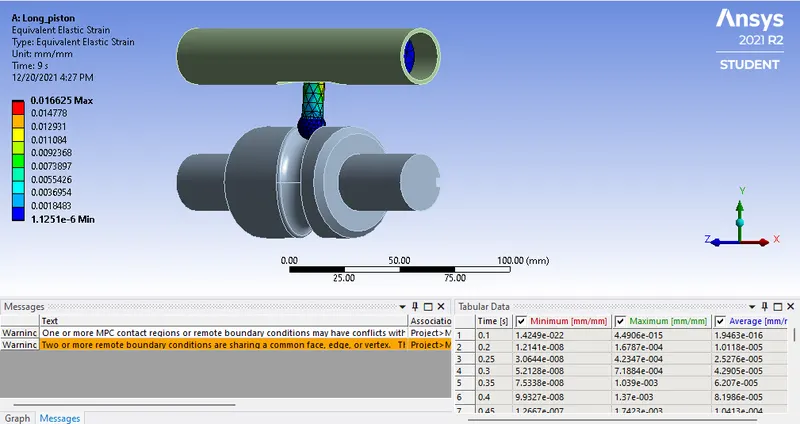

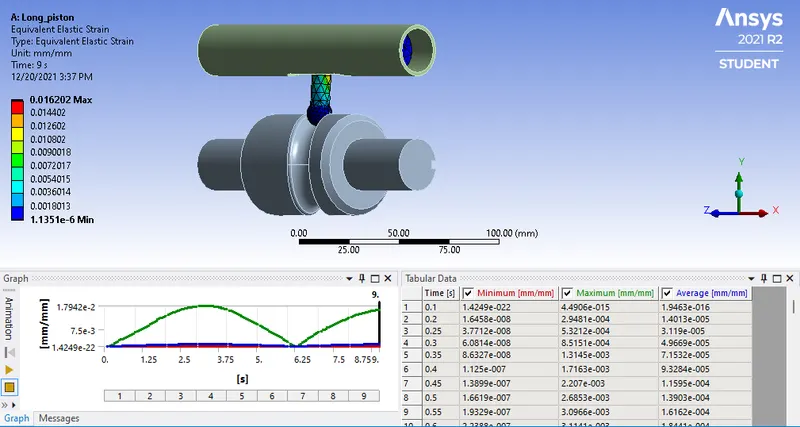

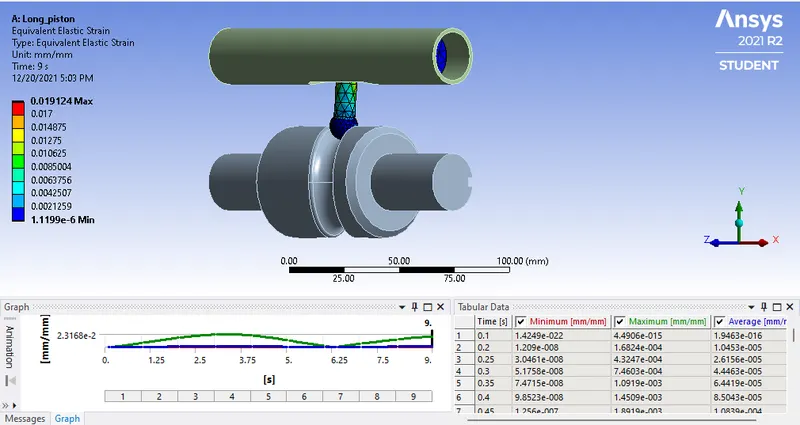

Equivalent Elastic strain
CASE 2: Frictional contact (0.1)

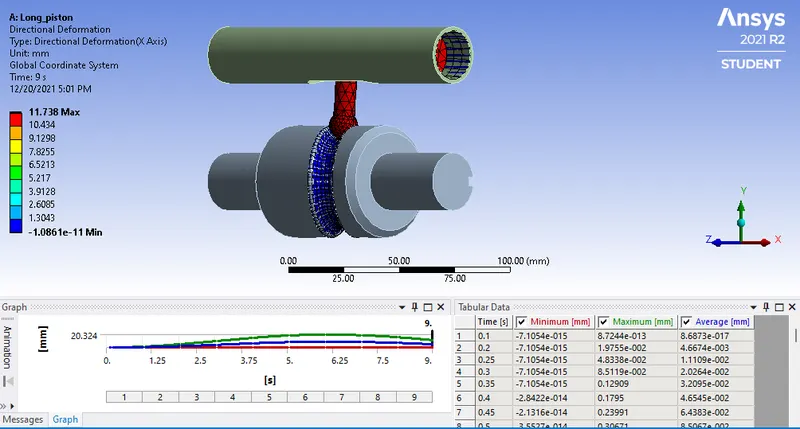

Directional Deformation

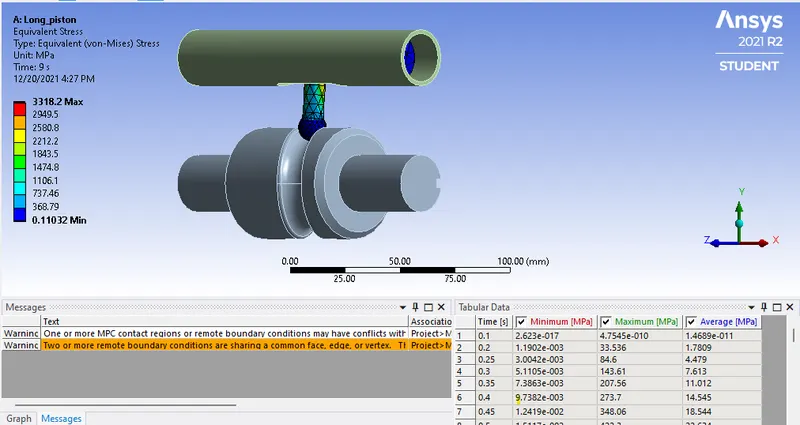

Equivalent Stress
Equivalent Elastic strain
CASE 3: Frictional contact (0.2)
Directional Deformation
Equivalent Stress
Equivalent Elastic strain
RESULTS:
| Sr No. | Cases | Directional Deformation (mm) | Equivalent Stress (MPa) | Equivalent elastic strain (mm/mm) |
| 1 | 1 | 11.49 | 3237.1 | 0.016 |
| 2 | 2 | 11.65 | 3318.2 | 0.016 |
| 3 | 3 | 11.73 | 3809.7 | 0.019 |
COMPARISON:
- As we see the directional deformation is slightly increased as the frinctional value increases.
- Then Stress induced on the component is more where the friction is more.
- Equivalent elastic strain is nearly same for all the cases.
- All the required results are captured.
